Rockwell Hardness Tester Dealers in Ichalkaranji, Kolhapur

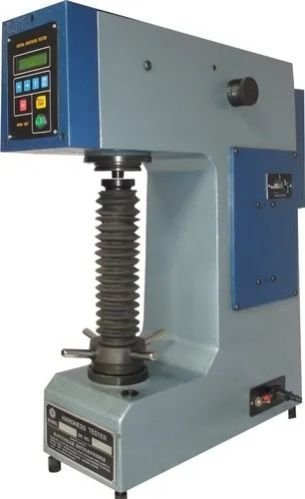

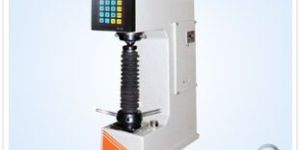

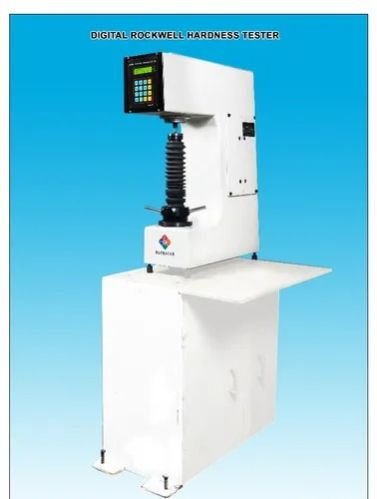

Digital Hardness Tester for Rockwell Tests has motorized automatic cycle operation i.e. load/dwell/unload. The Preliminary Test Force is 98.07N (10kgf). Total Test Force is 588.4, 980.7, 1471N (60,100,150 kgf). Test Force Selection is by external mechanical dial. The system has bar indication on display for Preload. User can set Preload Dwell time, Dwell time for Total Load and Elastic recovery Dwell time. The operation is easy with keyboard entry through reliable membrane switches for scale/HI-GO-LO/Dwell time selection. The scale display is with 0.1 Rockwell Resolution.The system has real time measurement with Digital Dial Indicator of 1 micron resolution.The machine has feature of data export to PC or serial printer. It gives results indicating serial number of tests, hardness scale, hardness value and high / good / low indication w.r.t limits entered.The Digital Rockwell Hardness Tester (MCS-RASNE) covers Rockwell scale A, B, C, D, E, F, G, H, K, L, M, P, R, S, V and confirms IS : 3804, BS 10109-2 & ASTM E-18. The Digital Rockwell Superficial Hardness Tester (MCS-RASNE/S) includes all Rockwell scales and 15T, 30T, 45T, 15N, 30N, 45N, 15W, 30W, 45W, 15X, 30X, 45X, 15Y, 30Y, 45Y and confirms IS : 5073, BS 10189-2 & ASTM E-18Also Available isMCS-RASE - Basic Rockwell Machine with digital readout interface with all above features except manual load/unload cycle. MCS-RASE/S - MCS-RASE with Superficial Hardness Tester scalesOptional Accessories• External serial thermal printer to print reports• PC software to interface machine to computer   Principle :Rockwell & Rockwell superficial tests consist of forcing an indentor (Diamond or Ball) into the surface of a test piece in two steps i.e. first with preliminary test force and thereafter with additional test force and then measuring depth of indentation after removal of additional test force (Remaining preliminary test force active) for measurement of Hardness Value. Brinell test consists of forcing a hardened ball into surface of a test piece with a specified test-force and measuring the diameter of indentation for evaluation of Brinell Hardness number. Operation :For Rockwell & Rockwell superficial Test :In case of 'RASN' series machines for Rockwell or Rockwell superficial tests, a preliminary test force is first applied without removing zero Quickly thereafter an additional test force is applied without removing the preliminary test force. When the penetration is stabilised, the additional test force is removed and the hardness number is shown directly on the indicator.For Brinell Test :The operation is exactly same as above. However, the diameter of impression is measured out side of machine by Brinell microscope. Brinell hardness number is found out by refering corresponding hardness tables showing hardness number against dia of indentation for specified ball diameter and test force.

Simplest model of rockwell Hardness Testing Machine with mechanical design. Loading, unloading manual, Best suitable for testing batch quantities. Mechatronic Control System Hardness Testers Model B-3000(H), (O) & (J) are precision engineered to IS:2281- 1968, BS:240 and ASTM:E10. However B-3000(H), (O), (J) are most suitable for production testing. These machines are designed to measure hardness of casting, forgings, other metals and alloys of all kinds, hard or soft, whether flat, round or irregular in shape. Technical Data SPECIFICATIONS UNIT Mech.CS.B3000(J) Loads 200 500 to 3000 in stages of 250 Initial Load kgf Nil Max. Testing Height mm 254 Depth of Throat mm 150 Max. Depth of elevating screw below base mm 0 Size of Base mm 255x495 Machine Height mm 860 Net Weight (Approx.) kg. 210 Drive Motor HP Nil Standard Accessories MODEL SE B-3000 J Testing table 200 mm 1 pc Testing table Y groove 70 mm Nil Ball Holder 5 mm 1 pc Ball Holder 10 mm 1 pc Test Block HB - 5/750 Nil Test Block HB - 10/3000 1 pc rockwell Microscope 1 pc Allen Spanner 4 pes Instruction Manual 1 book

Rockwell & Rockwell Superficial tests consists of forcing an indentor (Diamond or Ball) into the surface of a test piece in two steps i.e. first with preliminary test force and thereafter with additional test force and then measuring depth of indentation after removal of additional test force (Remaining preliminary test force active) for measurement of hardness value. Test Force Selection by external dialing.

Rockwell Hardness Tester, Universal Testing Machine, Vickers Hardness Teste

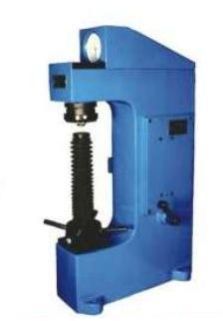

Features Rockwell, Rockwell Brinell Combined, Rockwell/Rockwell Superficial Combined System Hardness Testers.ARUN Hardness Testers, Model RAS, RAB-1, RAB-250, TWIN are manually operated. All these models are suitable for testing hardness of metals sand alloys of all kinds hard or soft, whether flat, round, or irregular shape. These testers are simple in design and easy to operate, yet sensitive & accurate. Various models from the wide range are suitable for schools, laboratories, tool-rooms, inspection, heat treatment departments, factories etc.These testers strictly confirms to IS : 1586-2000, ASTM : E 18 for Rockwell Superficial Test and IS : 2281 -2005, ASTM : E 10 for Brinell test.

Rockwell Hardness Tester, ES99 Atlas Copco Compressor Controlle

We have gained expertise in retailing and wholesaling a wide range of Rockwell C Hardness Tester
