Vickers Hardness Testing Machine
100,000 - 650,000 Per
1 Set(s) (MOQ)
Driven Type : Electric
Voltage : 220V
Warranty : 1 Year
Download : View
Manufacturer : S.s.s. Instruments, Ichalkaranji - 416 115.
Model : Sss-vm-50
Test Loads : 5, 10, 20, 30, 50 Kgf
Magnification of Optical Measuring Device : 70x
Maximum Test.Height : 200 Mm
Scale Least Count : 0.001mm
Depth Of Throat : 133 Mm
Dimensions Of Machine Base (approx.) Machine Height (approx.) : L 585 X W 290 X H860mm
Net Weight (approx.) : 70 Kg
Power Supply : 220v Ac, 50 Hz, 1 Phase
Computerised Vickers Hardness Testing Machine
Certification : CE Certified
Color : Available in Many Colors
Voltage : 380V
Automatic Grade : Automatic
Power : 6-9kw
Driven Type : Electric
Warranty : 1year
Computerised Vickers Hardness Testing Machine is fully computerized with image processing technology. The Computerised Vickers Hardness Testing Machine consists of motorized loading and unloading cycle. It also comprises of Wide Testing Range and can be connected to a PC. It is handy and can be carried anywhere. Features : High accuracy Fully computerized Motorised loading and unloading Faster measurement and higher productivity Application : It is highly suitable for measuring the hardness of metals with wide testing range from soft to hard. It can be connected to a Laptop or a Desktop.
Vickers Hardness Testing Machine Computerized
1 Piece (MOQ)
Test Loads : 5, 10, 20, 30, 50 kg. (Optional 1 Kg)
Max. Test Height (mm.) : 200
Diagonal measuring range (mm) : 0.05 to 0.4
Scale least count(mm.) : 0.001
Depth of throat (mm.) : 133
Dimensions of Machine (mm.) : L585 x W290 x H860
Weight (Approx) : 73 kg.
Power Supply : 220V AC, 50 Hz, 1-Phase
Features Fully Computerized (PC Based) Vickers Hardness Machine. Direct and accurate measurement of Vickers Hardness Number using “State of Art” image processing technology. ‘Wide testing range: from soft metal such as the lead up to medium hardened steels. High accuracy and repeatability of measurement at all loads. Faster measurement yielding to higher productivity. The small size of indentation makes non-destructive testing on finished components. Motorized loading and unloading cycle. Small loads allow the testing of thin sheet metals. Advanced Window XP based software. Latest GUI Features: User-friendly software with all help files and Window Features. Online indentation setting and focusing on the PC monitor. Advance image processing Algorithms implemented for a precise calculation of hardness numbers with various options to cover all ranges of specimens. Batch file Processing : Option for data/storage and reports generation. Statistical Evaluation: Software for calculating standard deviation, mode medium, histogram, etc. Options in calibration mode: Calibration / Verification on PC monitor makes it easier to operate. Computerized Vickers Hardness Tester is a simple and accurate means to produce automatically measure the diamond indentation to give Vickers hardness numbers. These testers are suitable for measuring the hardness of precision metallic parts with a wide testing range – from soft to hard, and their accurate results are widely acclaimed. These testers strictly conform to IS 1754 – 2002. Construction To accommodate the high precision loading system & an optical projection screen, the machine frame is designed sturdy. The specimen is placed on a testing table. The test cycle is fully automatic. The accurate load is applied to a diamond penetrator by means of a lever & weights. The load is removed automatically after a specific lapse of time. The objective is indexed with the test piece & the diamond indentation is projected on the measuring screen. The diagonals of the indentation can be measured by means of the micrometer screw of the projection screen.
Computerized Vickers Hardness Tester
1 Piece (MOQ)
Test Loads : 5,10,20,30,50 kgf
Optional Test Load : 1 kgf
Maximum Height (mm) : 200
Scale least count (mm) : 0.001
Diagonal measuring range (mm) : 0.05 to 0.4
Throat Depth (mm) : 135
Machine Dimension (mm) : L585 X W290 X H860
Weight (approx) : 70 kg.
Power Supply : 220 VAC, 50 Hz, 1-Phase.
Vickers Hardness Tester
100,000 - 300,000 Per Piece
1 Piece (MOQ)
Brand Name : SRI
Material : Mild Steel
Driven Type : Electric
Operating Type : Automatic
Color : Blue
Voltage : 220V
Overall Weight : 70-100 Kg
Country of Origin : India
We offer vickers hardness tester. F e a t u r e s: testing range is very wide, from soft metal such as lead upto the hardest, like hardened steel. same hardness number is obtained on the same specimen, regardless of the load applied. the indentation is tiny and allows testing of precision finished parts loading and unloading cycle is motorised. built in projection screen to get accurate results. thin sheet metal can be perfectly tested as load applied is very small.

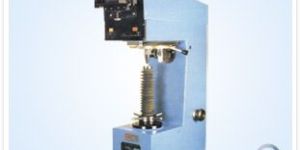

Vickers Hardness Tester
We, Aditya Instruments are one of the leading manufacturers of Vickers Hardness Tester is simple & accurate in design. It is appropriate for measuring the hardness of accuracy metallic parts with a wide testing range from soft to hard & their precise results are widely acclaimed. Some of the special features of our tester are. Small indentation allows testing of precision finished parts. Thin sheet metals are perfectly tested. Because the applied load is very small. Motorized loading and unloading cycle. Internally Built-in projection screen to get exact results. The same firmness number is acquired on the same specimen, regardless of the load applied. Extensive testing range, from soft metal such as lead, up to the most solid, like hardened steel. For world, class testers contact us now.
Vickers Hardness Tester
 Features :    • Testing range is very wide, from soft metal such as lead, upto the hardest, like hardeness steel.     • Same hardness number is obtained on the same specimen, regardless of the load applied.     • The indication is tiny and allows testing of a precision finished part.     • Loading and unloading cycle is motorised.     • Thin sheet metal is perfectly tested because the load applied is very small.     • Built-in projection screen to get accurate results. Specifications : ‘ARUN’ Vickers Hardness Tester is a simple and accurate means to produce and measure the diamond indentation. These testers are suitable for measuring the hardness of precision metallic parts with wide testing range from soft to hard and their accurate results are widely acclaimed. These testers strictly conform to IS : 1754 and ISO 6507-2.
Vickers Hardness Testing Machine
Warranty : 1 Year
Load : 5, 10, 20,30 & 50 kg
Weight : 180 Kg
Throat Depth : 135 mm
Scale Least Count : 0.001 mm
Accuracy : 1 %
Vickers Hardness Testing Machines We manufacture and supply Vickers Hardness Testing Machine in India. Our Vickers Hardness Testing Machine is simple & accurate in design. Vickers Hardness Testing Machine is suitable for measuring the hardness of precision metallic parts with wide testing range from soft to hard & accurate results are guaranteed. Our Vickers Hardness Testing Machine strictly conforms to IS: 1754: 2002 & ISO 6507 2: 1997. Vickers Testing Machine: How It Works There is an indenter in form of a square diamond pyramid forming an angle of 136 degrees between its two opposite faces. The loads used in the Vickers Hardness Test may range from 1 to 100 kgf; these loads may be applied for approx. 10-15 seconds. Once the load is applied, the material is removed and the indentation on the material surface is measured. Precautions To Take When Using Vickers Hardness Testing Machines Careful surface preparation is a must when using these machines to ensure accurate measurements Vickers Hardness is not to be used for routine testing as the entire process is quite slow. Features Wide testing range, from soft metal such as lead, up to the hardest, like hardened steel Tiny indentation allows testing of precision finished parts Thin sheet metal is perfectly tested because applied load is very small Same hardness number is obtained on the same specimen, regardless of the load applied Motorized loading and unloading cycle Built � in projection screen to get accurate result MODEL SHI VHTM 50 Construction : To accommodate the high precision loading system & an optical projection screen the machine frame is designed sturdy. Specimen is to be placed on testing table. The test cycle is fully automatic. The accurate load is applied on a diamond penetration by means of a lever & weights. The load is removed automatically after a specific lapse of time. The objective is indexed with the test piece & the diamond indentation is projected on the measuring screen. The diagonals of the indentation can be measuring by means of the micrometer screw of the projection screen.
Computerized Vickers Hardness Tester
Material : Metal
Brand Name : Ratnakar
Scale Least Count : 0.001mm
Minimum Order Quantity : 5 Unit
Vickers Hardness Testing Machine
Overall dimensions : 486*337*657 mm
Depth of Throat : 130mm
Power consumption : 100W
Measuring range : 5-3000HV
Weight : 68 kg
Brightness of the light source : PWM
We manufacture and supply Vickers Hardness Testing Machine in India. Our Vickers Hardness Testing Machine is simple & accurate in design. Vickers Hardness Testing Machine is suitable for measuring the hardness of precision metallic parts with wide testing range – from soft to hard & accurate results are widely acclaimed. Our Vickers Hardness Testing Machine strictly conforms to IS:1754: 2002 & ISO 6507 – 2: 1997.Features : Wide testing range, from soft metal such as lead, up to the hardest, like hardened steel Tiny indentation allows testing of precision finished parts. Thin sheet metal is perfectly tested because applied load is very small. Same hardness number is obtained on the same specimen, regardless of the load applied Motorized loading and unloading cycle Built – in projection screen to get accurate result.Construction : To accommodate the high precision loading system & an optical projection screen the machine frame is designed sturdy. Specimen is to be placed on testing table. The test cycle is fully automatic. The accurate load is applied on a diamond penetration by means of a lever & weights. The load is removed automatically after a specific lapse of time. The objective is indexed with the test piece & the diamond indentation is projected on the measuring screen. The diagonals of the indentation can be measuring by means of the micrometer screw of the projection screen.
vickers hardness testing machines
Material : Metal
Display Type : Digital
Usage/Application : Industrial
Grade : Automatic
Test Loads : 5, 10, 20, 30, 50 kgf
Power Supply : 220 VAC, 50Hz, 1-Phase
Optical Measuring Range (mm) : 0.1 to 1.0
Maximum Test Height (mm) : 200
Scale Least Count (mm) : 0.001
Throat Depth (mm) : 135
Weight (approx) : 70 Kg
:
Vickers Hardness Testing Machine
The company has acquired the status of the leading Manufacturer, Exporter & Supplier of Vickers Hardness Testing Machine. The Model-TVM 50 Vickers Hardness Testing Machines is one of the simplest and most accurate when it comes to the hardness measurement of precision metallic parts. The Vickers Hardness Testing Machine produces and measures diamond indentation and has a wide testing range varying from soft to hard. Features Robust machine frame designed to accommodate the high precision loading system Strictly conforms to IS: 1754 – 1986Optical projection screen also available Testing table for placing specimens Fully automatic test cycleAccurate load applied automatically on diamond penetratorsObjective indexed with test piece Diamond indentation projected on measuring screensDiagonals of indentation measured by means of the micrometer screw of projection screen
Computerised Vickers Hardness Testing Machine
We are one of the well-known Manufacturers, Exporters and Suppliers of Computerised Vickers Hardness Testing Machines in Ichalkaranji (India). The Computerised Vickers Hardness Testing Machines are a simple and accurate way of measuring the diamond indentation of various metals and alloys. The Computerised Vickers Hardness Testing Machines give Vickers hardness numbers and can be used to test metal particles of any shape and size. Model : AI-VM–50 C Features Of Computerised Vickers Hardness Testing Machines : Direct and accurate measurement of Vickers hardness numberBuilt in projection screen to get accurate resultsFaster measurement yielding to higher productivityOptional Magnification : 70 XSmall loads allow testing of thin sheet metalsSmall size of indentation makes it a non-destructive testing on finished componentsMotorized loading and unloading cycleTests Loads : 5, 10, 20, 30 & 50 KGFScale Least Count : 0.001 mmConform to IS 1754 - 2002.Wide testing range from soft metal such as lead up to medium hardened steelsHigh accuracy and repeatability of measurement at all loadsAdvanced Window XP based softwareLatest GUI FeaturesUser-friendly software with all help file and Window FeaturesOnline indentation setting and focusing on PC monitorAdvance image processing: Algorithms implemented for precise calculation of hardness numbersVarious options to cover all ranges of specimenStatistical EvaluationSoftware for calculating standard deviation, mode medium, histogram etcWide options in calibration modeCalibration / Verification on PC monitor makes easier to operatePC RequirementsCan be connected to Laptop or Desktop PC. Easy to carry anywhere and handy for use with easy SetupMinimum Pentium-II with 64 Mb RAMWindows 98 Operating System (PC not included in standard scope of supply)One USB 2.0 and one RS232 (serial) interface (9 pin) is requiredRecommended for Laptop to use external USB to serial converter for RS232 interface Construction : Designed to accommodate the high precision loadingSpecimen placed on a testing tableFully automatic test cycleAccurate load is applied on a diamond indentor by means of a lever and weightsThe specific image digitized using a CCD camera fitted on the indentationAutomatic measurement by PC to given the Vickers hardness number
Vickers Hardness Testers
Avail from us highly reliable Vickers Hardness Testers for meeting varied testing requirements. The Vickers Hardness Testers, we offer, are made using advanced technology and offer great contribution in carrying various testing process swiftly. Available in diverse specifications, the Vickers Hardness Testers offered by us can be availed at market leading price from us. Our Vickers Hardness Testers Are Demanded By Engineering industryAutomobile industryPharmaceutical industryLaboratory and foundries Features Test loads 5, 10, 20, 30& 50 kgfMagnification of optical projection 70XLoad selection just by manuallyCapacity-Throat 135mm Max. Test height 200mmScale leap count 0.001 mm
Digital Vickers Hardness Tester
180,000 Per Piece
1 Piece (MOQ)
Display Type : Digital
Brand Name : Testcarft
Parameter : HV
Model Name/Number : TS-VM-50
Automation Grade : Semi-automatic
Weight : 150 kg
Warranty : 1 year
Test Range : 5-50kg
Vickers Hardness Testing Machine
The measurement of Diagonal Diameter of indentation is done with the help of built-in optical system with graduated readout with micrometer After taking the indentation on workpiece the objective lens is automatically swivelled in position and indentation image appears on the focusing screen fitted in the front of the machine. Loading cycle is started with push button in the front where unloading is done manually by a hand lever.
Vickers Hardness Testing Machine
Simple to operate and accurate test results are some of the guarantees that are given by this Vickers Hardness Testing Machine. This Vickers Hardness Testing Machine measures hardness of any accurately designed metallic part. The tested specimen (metal) can range from soft to hard. Conforms To : IS : 1754 :2002 & ISO 6507-2 : 1997 Features : Tiny indenation allows testing of a precision finishedWide testing range, from soft metal such as lead, up to the hardest, like hardened steelSame hardness number is obtained on the same specimen, Regardless of the load appliedMotorized loading and unloading cycleThin Sheet metal is perfectly tested. Because applied load is very smallBuilt-in Projection screen to get accurate"AI" make Vickers Hardness Tester is simple & accurate in design, It is Suitable for measuring the hardness of precision metallic parts with wide testing range - from soft to hard & their accurate results are widely acclaimed.These testers strictly coform to IS :1754 :2002 & ISO 6507-2 : 1997
Vickers Hardness Testers
MODEL NO : MVM-50
 Testing range is very wide from soft metal such as lead up to hardest like hardened steel. Same hardness number is obtained on the same specimen, regardless of the load applied. The indentation is tiny and allows testing of a precision finished part. Loading & Unloading cycle is motorised. Thin sheet metal is perfectly tested because the load applied is very small. Built-in projection screen to get accurate results. Test Loads- 5, 10, 20, 30 and 50 kgf. Optional magnification - 70 X scale least count 0.001mm. Capacity - Throat - 135mm, Max test - 200 mm
Vickers Hardness Testing Machine
Driven Type : Electric
Application : Industrial
Durability : Long Life
Surface Finishing : Polished
Resistivity : Rust Resistant
Material : Metal
We are actively engrossed in manufacturing & supplying of Vickers Hardness Testing Machine from Maharashtra, India. Made from the top-notch quality material, our Vickers Hardness Testing Machines are widely acclaimed owing to their longevity, reliable performance and sturdy construction. We are acknowledged for our smooth and timely solutions. Buyers can avail Vickers Hardness Testing Machines at feasible prices. Features : Robust design with easy to operate features. Fom very soft materials (lead) to very hard materials (hardened steel) can be tested with precision and consistency. Can be used on finished components as the indentation is very fine and in most cases does not damage the component. Loading and unloading cycle is motorized. With load capacity starting from 5kg, thin components can be tested. The optical system is fitted with proper illumination and micrometer measuring system. This reduces operator fatigue and errors.
Vickers Hardness Testing Machine
range : 1 kg. to 120 kg
These machines come in two basic versions.i.e.Pure Vickers and Vickers cum Brinell. Load range for pure Vickers is from 1 kg. to 120 kg and for Vickers cum Brinell, 1 kg to 250 kg. These machines are suitable for checking Vickers or Brinell Hardness of Steel and other metals. Loads are applied with dead weights and are selectable with push buttons. Measurement of Diagonal Diameter of indentation is done with the help of built in optical system with with built-in micrometer scale. After taking the indentation on work piece , objective lens is automatically swiveled in position and indentation image appears on the focussing screen fitted in front of the machine. Loading cycle is started with Push Button in the front where-as unloading is done manually by hand lever.
Vickers Hardness Testers
Test Loads : 5, 10, 20, 30, 50 kgf
Optical Magnification : 70 X
Optical Measuring Range (mm) : 0.1 to 1.0
Maximum Test Height (mm) : 200
Scale Least Count (mm) : 0.001
Throat Depth (mm) : 135
Machine Dimension (mm) : L 585 x W 290 x H 860
Weight (approx) : 70 kg
Power Supply : 220 VAC, 50Hz, 1-Phase
Standard Text Block : 1 No.
Diamond Penetrator : 1 No.
Weights : 1 Set
Flat Anvil : 1 No.
Vee-Type anvil (Small & Big) : 1 No. each
Spanners : 1 set
Electronic Cord : 1 No.
Instruction Manual : 1 Book
Vickers hardness testing
Machine dimension (mm) : L 585 x W 290 x H 860
Vickers Hardness Tester is a simple and accurate means to produce and measure the diamond indentation. These testers are suitable for measuring the hardness of precision metallic parts with wide testing range from soft to hard and their accurate results are widely acclaimed. Testing range is very wide, from soft metal such as lead, upto the hardest, like hardened steel.
Vickers Hardness Testers
We provide a wide range of Vickers Hardness Testers
Computerized Vickers Hardness Tester
computerised vickers hardness tester
