Base Plates Dealers in Kolkata

We are offering adjustable base plate we, diamond scaffolding co. Pvt ltd, are a reputed manufacturer and exporter of adjustable base plate. Based in kolkata, we have modern infrastructure and machinery for the production of impeccable quality scaffolding base plate. We use latest technology and superior grade raw materials in the production of adjustable base plate, which are known for quality, durability, and long life-span. Adjustable base plates are used in scaffolding works. It holds the bars or channels or steel pipes at multiple angles as per the requirements in such applications. We manufacture the range of scaffolding base plates in various dimensions in consonance with the market demands. We have the capability to manufacture in bulk quantity or as per the requirements of our customers. The main features of our adjustable base plate, scaffolding base plates are: made of high grade raw materials high tensile strength highly resistant to corrosion and rusting available in various technical specifications can be customized as per the customers' requirements suitable for use in an angle range of 0-60 degrees

Base plates are generally used to take the load of Rail and distribute the load to the sleepers. We manufacture all types of Base Plates suitable for various Rail sections, for use on Wooden, Steel or Concrete Sleepers and ballast less tracks used with Elastic Fastenings on Wooden Sleepers and 'K' type fastening system.The Base plates can be made out of Rolled steel, ductile iron, Cast iron or can be welded / fabricated type depending upon the customer’s requirements. It can be made to suit various rail section i.e. UIC 60, UIC 54, RN 45, 90 A etc. We are pioneers in manufacturing such Base plates in the country.

Avail from us an immaculate assortment of high quality Base Plates that possess no other alternative in the entire domain in terms of quality and performance. We can also provide the clients with base plate accessories like Jack Nuts and Jack Plates. Our array of Base Plates is widely acclaimed by the clients and can be availed at the most cost-effective prices. Appreciated for : High tensile strengthOptimum performancePerfect finishingComplete polishingEasy installation Applications : Engineering industryConstruction industrySteel industryAutomobile sectorAgricultural industry Specifications : ADJUSTABLE U - HEAD (Pipe OD 38mm)Size (MM)Wt. (Kg)1004.701505.752006.80ADJUSTABLE BASE JACK (Pipe OD 38mm)TL/AL (Mtr)Wt. (Kg)0.450/0.3502.60.550/0.4502.950.650/0.5503.30.750/0.6503.7ADJUSTABLE BASE JACK (Solid � 32mm)TL/AL (Mtr)Wt. (Kg)0.500/0.4004.60.600/0.5005.350.800/0.7006.71.000/0.8008.12ADJUSTABLE BASE JACK (Pipe OD 34mm)Item CodeTL/AL (Mtr)Wt. (Kg)3310.450/0.3502.453320.550/0.4502.753330.650/0.5503.13340.750/0.6503.4 Note : Base Size : 150 x 150 x 6 (mm)TL : Total LengthAL : Adjustable Length

We manufacture and supply quality Adjustable Base Plate that is widely used in construction industry for protecting H Frames to the ground. Our range of Adjustable Base Plates is available in different specifications and dimensions to meet the client�s requirement. Advantages : Superior qualityDurableHigh performanceCorrosion resistant Application : Construction industry

Base plates are elements required at the end of columns to distribute the concentrated load of the column over a much larger area of the material that supports it. At present Kontinental Steel base plates used for public railway and lightrail. The base plate pads show the desired stiffness in the relevant load area, they have a circular cavity in their middle and are thinner in the area of contact with the rail foot. It is thereby achieved that at an equal vertical stiffness the rail configuration in the outer rail foot area has a higher stiffness (no tilting). Base plates are generally used to take the load of Rail and distribute the load to the sleepers. Base plates offer proven economies and are recommended for all gauges using all different rail sections. Base plates offer many advantages: They distribute the load from the rail to the ties, provide uniform bearing surface for the rail and prevent rail movement. They provide proper cant and obtain central loading and more uniform wear on the railhead. They hold the rail rigidly to gauge and protect ties against undue wear, thereby prolonging the length of service. Base plates are fabricated from heavy hot-rolled steel sections which are punched and sheared to size and are available in single or double shoulder design. Kontinental Steel facilities offer expert service for punching, drilling, and fabricating track material to exact specifications.

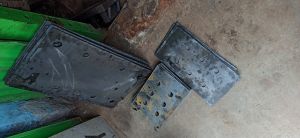

Base Plate Round and Slot Punching, Welding Anchor Bolt, Special Bol
