Brass Cable Glands Dealers in Kolkata

(6 products available)

All IndiaKolkataJamnagar Mumbai Delhi Ahmedabad Rajkot Bangalore Vadodara Pune Chennai

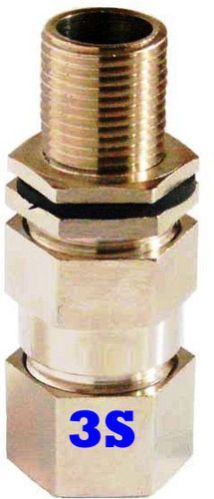

Brass Cable Gland

100 / Piece

SizeM25
Packaging TypeBox
MaterialBrass
Usage/ApplicationElectrical Fitting
IP RatingIP44
Operating Temperature-40 to 100 C

...more
Anish Electricals

Bara Bazar, Kolkata

10 yrs
DC Flame Proof IIC

Get Price Quote

Material :Brass (IS-319) Standard, (Al. / S.S. / M.S. also available)
Plating Nickle Plated Standard, (Chrome also available)
Entry Threads BSC Standard (PG / Metric / NPT / BSP / also available)
Sealing Rubber Ring Neoprene
Gland Standard BS 6121, IS/IEC 60079-0:2004
Test Certi. No.CIMFR/TC/P/H681

Application: Flame Proof Double Compression Glands are generally used in hydrogen gas/vapours area (for gas group IIC) as well as in normal climatic conditions also which are weather proof, water proof and dust proof (IP-66) which can be used in Hazardous climatic condition. Also when protected by PVC shrouds it can be used in corrosive atmosphere. These glands are available in different sizes and are suitable for all cables upto 1000 sq. mm. and control cables upto 61 cores. Accessories: PVC Shroud, Earth Tag, Stopping Plug, Reducer, Adaptor, etc. are available with specified dimensions in accordance to the Gland separately. Fitting Sequence: (a) Insert Part No. 10, 9, 8 & 7 respectively on the Outer Sheath of the cable before exposing the Armour. (b) After removing Outer Sheath of the cable, Insert Part No. 6 over the Exposed Armour. (c) Size Armour length, Lift Armour & Insert Part No. 5 under the Armour, Taper Part Facing Inward Side, Squeeze Part No. 5 by pushing Part No. 6 towards it. (d) Insert Part No. 4 & 3 on Inner Sheath, than tight Part No. 3 with Part No. 7 & Tight Part No. 10 with Part No. 7. (e) Finally apply the full fitted Gland in the Enclosure with the entry thread provided, if the Enclosure does not have thread than tight the Gland with the Part No. 1 provided.

...more
Anish Electricals

Burrabazar, Kolkata

8 yrs
+2

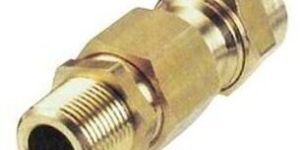

Brass Double Compression Flameproof Gland

50 - 100 / Piece

MOQ50 Piece
Size20-40mm, 40-60mm
MaterialBrass
FeatureDurable, Easy To Fit, Fine Finished, Good Quality, Heat Resistance
FinishingPolished
Country of OriginIndia
Brand NameSwastik
Tolerance±5%

Application Flame Proof Double Compression Glands Are Generally Used In Flammable Gas / Vapors Area (For Gas Group I, IIA & IIB) As Well As In Normal Climatic Conditions Also Which Are Weather Proof, Water Proof And Dust Proof (IP-66) Which Can Be Used In Hazardous Climatic Condition. Also When Protected By PVC Shrouds It Can Be Used In Corrosive Atmosphere. These Glands Are Available In Different Sizes And Are Suitable For All Cables Upto 1000 Sq. Mm. And Control Cables Upto 61 Cores. AccessoriesPVC Shroud, Earth Tag, Stopping Plug, Reducer, Adaptor, Etc. Are Available With Specified Dimensions In Accordance To The Gland Separately.Fitting Sequence Insert Part No. 9, 8 & 7 respectively on the Outer Sheath of the cable before exposing the Armour. After removing Outer Sheath of the cable, Insert Part No. 6 over the Exposed Armour. Size Armour length, Lift Armour & Insert Part No. 5 under the Armour, Taper Part Facing Inward Side, Squeeze Part No. 5 by pushing Part No. 6 towards it. Insert Part No. 4 & 3 on Inner Sheath, than tight Part No. 3 with Part No. 7 & Tight Part No. 9 with Part No. 7. Finally apply the full fitted Gland in the Enclosure with the entry thread provided, if the Enclosure does not have threaded entry than tight the Gland with

...more
Swastik Power Supply Systems

BBD Bagh, Kolkata

GST 17 yrs 5.0 (3)
Brass Cable Gland

20 / Piece

MOQ500 Piece
MaterialBrass, Nylon, Polyamide
FeatureFlameproof, Weatherproof, Double Compression, Single Compression
Singhi Supply Syndicate

Bara Bazar, Kolkata

17 yrs
Brass Cable Glands

10 - 30 / piece

MOQ5000 Piece
Packaging TypeCOPPER
UsageCABLE FLAND
Product NameCABLE GLAND

bRASS CABLE GLAND
ARCO ENTERPRISE

Baranagar, Kolkata

5 yrs
Brass Cable Gland

Get Price Quote

We Offer Cable glands made of brass.

S.N.Engineering Works

Selimpur, Kolkata

14 yrs
