Cable Glands Dealers in Kolkata (35 products available)

• Working Temperature: -40°C to -100°C.
• Intermittent Temperature: 120°C

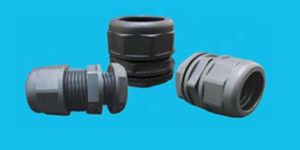

Novoflex Conduit Cable Glands have a Special Clamping Ring and Seal Design with Time-Saving Head Assembly Facilities, and a Hose Clamp Range. They are Resistant to Water, Dust, Salt, Most Acids, Alcohol, Oil, Fat and General Solvents, and are Particularly Strong in Anti-Rally. To use, simply fix upon the Conduit.

The Cable Glands, we offer, work hand in hand with weather-proof and flame-proof thermocouple double compressions and single compressions. They are an offering of top manufacturers, who take pains in designing and developing them in accordance with the quality standards. We, as an Importer and Supplier of Cable Glands in Kolkata, West Bengal, provide them to various industries swiftly and efficiently. And buyers can avail themselves of premium Cable Glands at market-leading prices from us!

• Finishing: Polished
• Color: Golden
• Condition: Good
• Size: 20-40mm
• Feature: Durable, Easy To Fit, Fine Finished, Good Quality, Heat Resistance, Light Weight, Rust Resistance

• Color: COPPER
• Usage: CABLE FLAND
• Product Name: CABLE GLAND

bRASS CABLE GLAND

We offer Cable Glands to customers across West Bengal, Kolkata and Gujarat. They are procured from authentic manufacturers of the domain. Our Cable Glands are tested under various parameters to assure their quality and potential. Cable Glands offered by us are easy to use and requires zero maintenance. Customers can avail them from us industry leading prices.Features : Quality assured Secure performance Easy installations

• Material: Brass, Nylon, Polyamide
• Feature: Flameproof, Weatherproof, Double Compression, Single Compression

• Material: Polyamide 6 (Nylon 6).
• Featured: Water Tight ,Easy Assembly ,Good Strain Relief ,Wide Clamping Range ,Multi Purpose Application.
• Volume resistivity: 1.5 x 1012 ohm-cm
• Tensile strength: 595 Kg/cm2
• Deflection temperature under load at: 66 psi 151° C
• Operating Temperature: -25° C to +85° C
• Colour: Black / Light Grey.

Suitable for unarmoured, Plastic insulated cables Operating Temperature : -25° C to +85° C Deflection temperature under load at 66 psi 151° C Tensile strength 595 Kgcm2 Volume resistivity 1.5 x 1012 ohm-cm Automatic Centering & Fixing Corrosion resistant Vibration Proof Indoor or Outdoor use Minimum Assembly time Non-Magnetic, non-conductive Economically Priced Compact Streamline Construction Maximum Cable Diameters Wide range of cable Diameters Impact Resistant High stability Resistant to Salt water, gasoline, alcohol, oil, grease, easter keyton ether, benzine, common solvent, weak acids & weak alkalies

• Material: PVC
• IP Rating: IP54
• Head Shape: Round
• Packaging Type: Box
• Quantity Per Pack: 100 Piece
• Weight: 10 gm
• Temperature: -10 to +40 C

• Size: Stabdard
• Feature: Corrosion resistant
• IP Rating: IP33, IP40, IP44

• Size: M20
• Material: Brass
• Features: High strength,Excellent finishing
• IP Rating: IP40
• Cable Diameter: 18-25 mm
• Packaging Type: Box
• Head Shape: Round

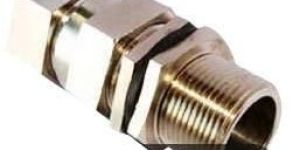

We Offer Cable glands made of brass.

• Material :: Brass (IS-319) Standard, (Al. / S.S. / M.S. also available)
• Plating : Nickle Plated Standard, (Chrome also available)
• Entry Threads : BSC Standard (PG / Metric / NPT / BSP / also available)
• Sealing Rubber Ring : Neoprene
• Gland Standard : BS 6121, IS/IEC 60079-0:2004
• Test Certi. No.: CIMFR/TC/P/H681

Application: Flame Proof Double Compression Glands are generally used in hydrogen gas/vapours area (for gas group IIC) as well as in normal climatic conditions also which are weather proof, water proof and dust proof (IP-66) which can be used in Hazardous climatic condition. Also when protected by PVC shrouds it can be used in corrosive atmosphere. These glands are available in different sizes and are suitable for all cables upto 1000 sq. mm. and control cables upto 61 cores.   Accessories: PVC Shroud, Earth Tag, Stopping Plug, Reducer, Adaptor, etc. are available with specified dimensions in accordance to the Gland separately.   Fitting Sequence: (a) Insert Part No. 10, 9, 8 & 7 respectively on the Outer Sheath of the cable before exposing the Armour. (b) After removing Outer Sheath of the cable, Insert Part No. 6 over the Exposed Armour. (c) Size Armour length, Lift Armour & Insert Part No. 5 under the Armour, Taper Part Facing Inward Side, Squeeze Part No. 5 by pushing Part No. 6 towards it. (d) Insert Part No. 4 & 3 on Inner Sheath, than tight Part No. 3 with Part No. 7 & Tight Part No. 10 with Part No. 7. (e) Finally apply the full fitted Gland in the Enclosure with the entry thread provided, if the Enclosure does not have thread than tight the Gland with the Part No. 1 provided.

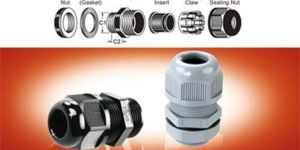

• Product ID: PG Cable Glands (A-Type)
• Thread Type: PG, according to DIN 4043
• Material Data: Halogen-free Nylon PA 66 (Flammability UL 94V-2) for A.C.F. parts
• Working Temp: 40°C to 105°C (-40°F to 221°F)

• Type: Cable Gland
• Material: Aluminun, Brass, Copper, Stainless Steel
• Color: Golden, Light Yellow, Yellow
• Condition: Good, New
• Finishing: Non Polished, Polished
• Feature: Durable, Easy To Fit, Fine Finished, Good Quality, Heat Resistance, Light Weight, Rust Resistance

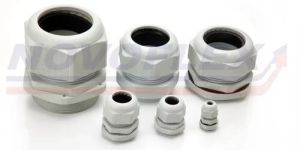

• Material: Nylon 6.6. (Polyamide)
• Brand Name: Novoflex
• Higher Continuous Temperature: Up to 115 C
• Intermittent Temperature: Up to 100 Degree Celsius (For 500 hours)
• nside Scal Ring: Rubber
• Thread: PG
• IP Rating: IP66
• Operating Temperature: -20 to +85 C
