CM Flowmeters (India) Pvt. Ltd. Kasba, Kolkata, West Bengal

Flowmeter  are used for measuring  flow in Anesthesia Machine Featurs: Conforms to ISO 5358 Proven in meeting users‘ requirements. Permanent ceramic markings fused to glass Bobbin float: aluminium alloy anodised red. with silver dot for easily observing rotation. Special design float for rapid response to flow change Machine manufacturers‘ logo prinlieci if required. Colour coding for each gas.

Anaesthetic Rotameters are used for measuring the rate of flow of gases used for anaesthesia. The gases measured are Oxygen, Nitrous oxide, Carbon dioxide, Xenon, and Air.   Anaesthetic Rotameters units with control valve system can be of 1 tube, 2 tubes, 3 tubes and so on as per user requirement. It comes as a complete unit for fitting on the Anaesthesia machine.   Flow Range High flow tubes are available in ranges of 0-10, 0-12. 0-15 LPM Low flow tubes are available in ranges of 0-1 LPM Dual scale tubes available for expanded low range reading Connections Inlet and outlet connections are available as per your choice. Most common are ISO taper with RH outlet, or 6mm Festo.

Accuracy : Compliant to ISO 5358, or ISO 15002, or VDI 3513 (upto G=2.5, lin=50%)

  A two station Selectatec Bar, conforming to international standard, used on the anaesthesia machine. This is vaporizer compatible. The anesthesia vaporizer will be attached on it directly. Double unit can be put together and to support two interlocking vaporizer. The input port and output port are in back side.

Availability : 1.550 Kg

Features:-   1) 1 - 20 LPM O2 or Air for BPC Flow meter testing 2) 10 - 70 LPM O2 or Air for anesthesia machine outlet flow testing 3) 50 - 500 LPM O2 or Air for Regulator flow testing 4) 100 - 1000 LPM O2 or Air for Regulator flow testing 5) 300 - 3000 LPM O2 or Air for Regulator flow testing 6)  5 - 60 LPM Air for vacuum application     DESCRIPTIONThe CM flowmeters provide an economical means of flow rate indication and control for general use, and laboratory applications. The instruments are ideal for common applications like purging services, cooling water flow indication, bearing lubrication, carrier gas flow rate indication, fuel flow indication, in chromatography, atomic absorption, and indication and control of doping gas in electronic crystal growing furnaces. The table models are generally used for laboratory applications and also for calibration/verification of line instruments. DESIGN FEATURES : Ten to one rangeability Heavy wall, precision bore, borosilicate glass metering tubes with contrasting background. Scales fused on metering tubes, or scales with conversion chart. Tube sealed on compression gaskets by threaded seal. Easy removable tubes without disconnecting the instrument. There is no metal side plate. Single piece acrylic covers front and side for easy visibility.

Accuracy : 5% FS (standard), 2% FS (Tube codes 100-172) 10% FS (Standard, 5%FS (Tube codes 221-882)

Connection Type : Inlet - Back entry Outlet - Top or Back

Anaesthetic flowmeters are available in single tubes versions. Available in various model.   Anaesthetic Rotameters are used for measuring the rate of flow of gases used for anaesthesia. The gases measured are Oxygen and Air. Expended Scale Range Compliant to ISO 5358, or ISO 15002, or VDI 3513 (upto G=2.5, lin=50%) Color and touch coded knob as per ISO 5358

Flow Range : 0.1-10 LPM O2 (Dual range)

Accuracy : + 10 % of Indicated Value or 300 Ml/min Whichever is Higher (iso-5358)

A single station Selectatec Bar, conforming to international standard, used on the anaesthesia machine. This is vaporiser compatibility suits all selectatec vaporisers The anesthesia vaporizer will be attached on it directly. The input port and output port are horizontal.

Availability : 1 Kg

Repeatability : ± 0.5%

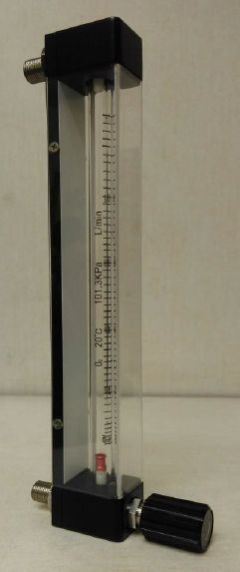

DESCRIPTIONThe CM series of flowmeters provide an economical means of flow rate indication and control for general use, and laboratory applications. The instruments are ideal for common applications like purging services, cooling water flow indication, bearing lubrication, carrier gas flow rate indication, fuel flow indication, in chromatography and atomic absorption and indication and control of doping gas in electronic crystal growing furnaces.DESIGN FEATURES : Ten to one rangeability Heavy wall, precision bore, borosilicate glass metering tubes with contrasting background Scales fused on metering tubes, or scales with conversion chart Tube sealed on compression gaskets by threaded seal Easy removable tubes without disconnecting the instrument There is no metal side plate. Single piece acrylic covers front and side for easy visibility.

Repeatability : ± 0.5%

DESIGN FEATURES : Ten to one rangeability Heavy wall, precision bore, borosilicate glass metering tubes with contrasting background Scales printed on metering tubes or scales with conversion chart Tube sealed on compression gaskets by threaded seal Easy removable tubes without disconnecting the instrument Metal (Aluminum or SS) side plates Clear acrylic front and back (with safety glass option) Available in Flange (series 8000) and Screwed connections (series 9000) DESCRIPTIONThe CM series 8000 & 9000 flowmeters provide an economical means of on-line flow rate indication of various fluids. The instruments are ideal for process industry and also extensively used as master instrument for calibration of other flowmeters.

Accuracy : 5% FS (standard), 2% FS optional

FUNCTION The Flow Head incorporates the lollowing lunctions : Gas indexed pneumatic inlet ports N20 gas flow out off in the event of oxygen failure Flow control needle valves N20/O2 flow ratio hypoxic mixture prevention proportioning system Color coded, marked specific labels for flow tubes and flow control valves Gas mixing chamber, mixed gas outlet GENERAL OPERATION The Flow Head integrates 02 and N20 (the N20 is optional). The O2 Air and N20 needle valves gas supply pressure is externally regulated to 400Kpa¢10Kpa as per standard.   The N20 channel incorporates a pressure cut-off valve. The O2 supply pressure in the circuit controls the output pressure of the pressure out-oft valve. Under all conditions of operation, the N20 flow shall reach zero before the O2 flow. ln this flow head the N20 pressure switch shall cut oft the flow of N20 before the O2 pressure drops below 50115Kpa.

Optimized & Industry-ready Solutions Flowmeter  are used for measuring  flow in Anesthesia MachineSpecification: Special design float for rapid response to flow changes Machine manufacturer logo printed if required colour coding for each gas Anti static option available Other specifications can also be met.

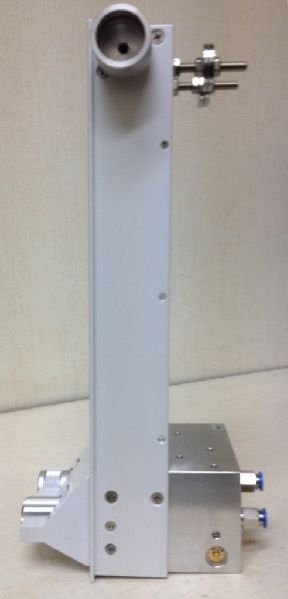

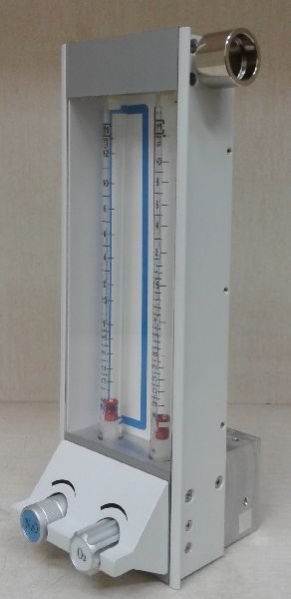

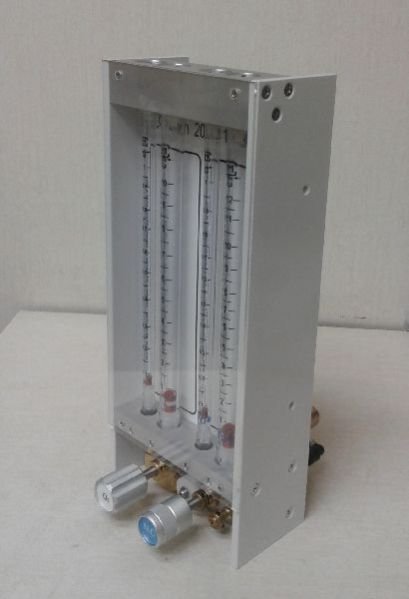

Anaesthetic flowmeters are available in 2 – 5 tubes versions.  The flowmeters (2-5 tube versions) can be supplied with or without Anti Hypoxia Device.The housings are made from Aluminum and fitted with fine adjustment valves for easy control of the anaesthetic gases. The front cover is  made from moulded acrylic. The devices have a phosphorescent “glow in the dark” (normally white) background for easy reading even in case of sudden darkness.The knobs are made from finest quality ABS. The Oxygen knob has a touch coded profile and all the knobs are colour coded as per ISO 5358 requirements.Internal gas connections are made using polyurethane tubes and Festo type connections. A non return valve in the downstream of the AHD ensures no flow of N2O in the respiratory circuit in the event of single fault condition when Oxygen line gets blocked.Various options of inlet and outlet connections are available

The O2 Flush device is suitable for a quick oxygen supply directly at the mixed gases outlet at the end of an anesthesia circuit. Made of anodized aluminum, it is equipped with an anesthetic mixture inlet connection, an oxygen enriched mixture outlet connection, an O2 feeding connection and a supply button. Different constructions can be made on request.

Availability : 0.340 Kg

Function  The Flow Head incorporates the following Functions Gas indexed pneumatic inlet ports N20 gas flow cut off in the event of oxygen failure Flow control needle valves N20/O2 flow ratio hypoxic mixture prevention proportioning system Color coded, marked specific labels for flow tubes and flow control valves Gas mixing chamber, mixed gas outlet     GENERAL OPERATION The Flow Head integrates O2 and N20. The 02 Air and N20 needle valves gas supply pressure is externally regulated to 400Kpai10Kpa as per standard. The N20 channel incorporates a pressure cut-oft valve. The 02 supply pressure in the circuit controls the output pressure of the pressure cut-off valve. Under all conditions of operation, the N20 flow shall reach zero before the 02 flow. In this flow head the N20 pressure switch shall cut off the flow of N20 before the 02 pressure drops below 50:15Kpa.   PERFORMANCE STANDARDS Standard flow conditions defined at 20°C, 101 .3Kpa, (760mmHg) Conforms to ISO 5358 requirements. Flow Tubes  Flow Tubes are calibrated for discharge into an ambient atmosphere of 101 .3Kpa at an operating temperature of 20°C. Each flow tube shall be calibrated to accuracy of 110% of reading, or better. Flow tubes withstand 690Kpa internal pressure without breaking. Flow Control Valves Anti-clockwise rotation shall cause an increase inflow. Flow control knob are color coded and touch coded. Smooth and precise rotation ensures accurate flow setting   PRESSURE CUT-OFF VALVE N20 regulated pressure shall drop with falling of 02 supply pressure and shall prograssively reduce flow of this gas while maintaining the proportion of 02 (22% min.) until O2 pressure falls to 50i15Kpa at which point the supply of N20 shall be cut off. The only means of restoring N20 flow after 02 supply failure (O2 pressure below 50i15Kpa) shall be the restoration of 02 pressure. ASSEMBLY Leakage from atmosphere shall not exceed 108ml/min. when a vacuum of 80cm H20 is applied to all internal. MATERIALS All wetted material are compatible with all gases used and all anaesthetic agents. Equipment compiles with HoHS requirements.

Anaesthetic Rotameters are used for measuring the rate of flow of gases used for anaesthesia. The gases measured are Oxygen and Air. Anaesthetic Rotameters units with single control valve system of   2 tubes as per user requirement. It comes as a complete unit for fitting on the Anaesthesia machine for veterinary used . Expended Scale Range Compliant to ISO 5358, or ISO 15002, or VDI 3513 (upto G=2.5, lin=50%) Color and touch coded knob as per ISO 5358

Accuracy : + 10 % of Indicated Value or 300 Ml/min Whichever is Higher (iso-5358)

Details   BPC flowmeters for MIG/MAG, TIG welding BPC (Back pressure compensated) flowmeters for Argon, Argon+CO2 for use in MIG/MAG, TIG welding, available in single scale (Argon), and dual scale (Argon and CO2). This is available in 4-40LPM, 2-25LPM range as standard. Other ranges are available on request. The flow tubes and outer cover are made from Polycarbonate.   The body is made from high quality extruded brass sections. Available in chromium plated or self coloured lacquer finish. BPC flowmeters are available in two different configuration: Inlet opposite to control knob, and inlet at right angle to control knob. The flowmeters are calibrated at 2Kg/cm2 back pressure as per the industry standard. Flowmeters are guaranteed for accuracy and the errors are well within the limits required by ISO 17662. See error boundary curve (VDI/VDE 3513, Sh-2).   The flowmeters are calibrated with international traceability and do not require regular calibration since the accuracy as declared in the “error boundary curves” are guaranteed.

Description: Anaesthetic Rotameters are used for measuring the rate of flow of gases used for anaesthesia. The gases measured are Oxygen, Nitrous oxide, Carbon dioxide, Xenon, and Air Anaesthetic Rotameters units with control valve system can be of 1 tube, 2 tubes, 3 tubes and so on as per user requirement. It comes as a complete unit for fitting on the Anaesthesia machine.

Number Of Flower : Anaesthesia Machine
