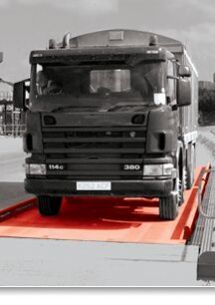

electronic Weighbridge Dealers in Kolkata (5 products available)

• Model: ATB
• Size of platform: 7.5M X 3M, 9M X 3M, 12M X 3M, 16M X 3M, 18M X 3M
• Capacity: 40T, 50T, 60T, 100T, 120T, 150T
• Graduation: 5kg, 10kg, 20kg
• Type of load cell: Double ended shear beam with IP 68 protection
• Accuracy: As per OIML R-76, Class III - Medium
• Type of platform: Steel based and concrete based
• Auxiliary outdoor display: 25mm to 100mm seven segment red LED

The platform consists of I-beams for trouble free operations year after year. Depending on the space available , both pit type and pit less designs are available. The digital load cells are pre-calibrated at full load capacity to prevent manual labour required to lift and place standard weights for cornering and calibration. This allows for an installation time of less than 8 hours and helps shorten project lead tim Double ended shear beam load cells The simple, compact design and rugged hermetically sealed construction of the load cell assures long life. The technologically advanced spherical ball mounting arrangement ensures high accuracy & reliability to weight measurement and smooth performance of the load cell. The mounting design allows the weighbridge to automatically restore to the vertical axis once the truck comes on the weighbridge.

Pitless weighbridge saves the cost of work. It is useful in areas where the soil is rocky and in low lying areas where water logging is a problem

ABLAZE Scale has introduced a new class of Electronic Weighbridge. Ablaze scale has build Premium truck scales that have become the performance benchmark for ruggedness and performance in heavy use applications. In this pit-less/pit type series the entire steel framework is mounted on Strain gauge Double Ended Sheare beem/ compression type Load cells. The nos.(4,6,8) of load cell depends on the length of the platform size of the Weighbridge. The platform is designed specially to bear the specified load at any position. Specially designed tie rods are provided to arrest the horizontal and sideway movements of the platform. The platform is constructed from ISMB girders and steel plate into one rugged structure. We are considered as one of the topmost Fully Electronics Weighbridges Exporters and provide availability of Electronic Weighbridge System in following specifications: Specifications & Features Power Supply : 230volt / 50Hz± 5% Operating Temperature : 10°c to 60°c Humidity : 10% to 95% relative Display : Seven segment bright LED /LCD Micro controller based Advanced SystemOverload protection for safetyAuto calibrationBright LED displayAuto zero trackingQuick & Easy InstallationsField proven scale ventilation design prevents water corrosion & collection.Memory AccumulationMost precise and best quality ComponentsRS232 port for computer/printer interfacingAll Models are Approved by Govt. Department of Weights and MeasureData safety of calibration parametersInsensitive to dust and temperature Application Varied Range of Applications: Moving and shipping, warehousing, weighing equipments, chemical industries, paper industries, ceramic industries, commercial weighbridges, petrochemical industries, pharmaceutical industries & many more varied applications.

Tulsi Weigh Solutions, one among the most trusted weigh bridge organization offers you a wide range of strong and sturdy static weighing machines. Durability is the core precision for building robust steel structure with hermitically sealed load cells. Weigh Bridges at Tulsi are embedded with an advanced micro controller based design, high resolution ADC and auto/fine calibration tarring range up to full capacity. As per your requirement you can prefer to mount either a pit or pit less type design adaptable to diverse range of work environment. Digital weigh bridges have been equipped with an in built surge assertors for special environment needs. Inclusive features bestow multiple weigh bridge operated centrally through single master indicator, std. software covering diverse operating needs, bright LED/LCD/Dual option and Std. RS 232 serial interface for PC/Printer. Tulsi̢۪s digital weighing machine promises to secure you by enabling an anti-theft feature through Dynamic Locking Provision.

Electronic Road Weighbridges, Platform Scale, Tank Weighing System
