Filtech [india] Ultadanga, Kolkata, West Bengal

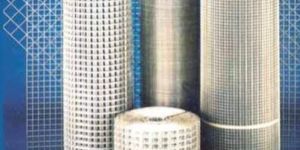

Weld mesh is manufactured from metal wires welded using an electronically controlled electric process employing the principle of fusion combined with pressure at their intersections. This gives a homogeneous section without any loss of strength or area. By using different diameter wires, it can be made into light or heavy gauge product. Because it is welded it can be cut into any shape. It cannot separate or fray and does not require tension in order to pull it into shape. Welded wire mesh typically has larger openings. With the wire strands welded at each intersection, welded wire mesh is more capable of maintaining its shape when stressed. It can be supplied in framed panels made to customer’s requirements. Welded wire mesh has wide applications in the construction, agricultural and engineering industries, due to its high rigidity and strength. It is increasingly used in security applications and as machine guards. Welded mesh is a practical and attractive solution for railings, gates, doors, fences, screens, etc.

Feature : Anti Dust,Durable,Fine Finished,Flexible,Highly Durable,Long Life,Non-Breakable,Rust Proof,Good Quality

Length : 10-20mtr,20-30mtr,30-40mtr,40-50mtr

Availability : 10-20kg,20-30kg,30-40kg,40-50kg,50-60kg,60-70kg,70-80kg,80-90kg,90-100kg

Finishing : Coated,Non-Coated

Height : 10-12ft,2-4ft,4-6ft,6-8ft,8-10ft

Material : Aluminum,HDPE,LDPE,Metal,Plastic ,PVC,Steel

Application : Home,Roads, Stadiums

Application: For use as a pre filter in air conditioning, and spray booth ventilation. Flammability: (DIN 53438) self extinguishing. Media: Synthetic. EN 779:2002 efficiency: G2 - G4. Arrestance efficiency: 65% - 92%. Eurovent 45 efficiency: EU2 - EU4. Temperature: 80°C - 100°C maximum in continuous service. Humidity: 100% RH.

We have Primary Multi Pocket Bag Filter. Application: Comfort air conditioning applications, pre filter applications. Type: Multi pocket bag filter. Case: Standard galvanized mild steel, stainless steel or aluminum Media: Synthetic fibers. EN 779:2002 efficiency: G3, G4 Eurovent 45 efficiency: EU3, EU4 Temperature: 70°C maximum in continuous service.

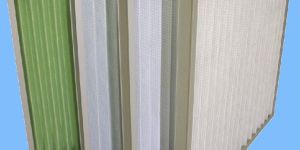

Application: Pre filtration in air conditioning or industrial processing systems. Type: Coarse grade pleated panel filter. Frame: Standard galvanized mild steel, stainless steel or aluminum Media: Mixture of cotton and synthetic fiber. EN 779:2002 efficiency: G2 - G4. Gravimetric efficiency: 65% - 90%. Eurovent 45 efficiency: EU2 - EU4. Temperature: 70°C maximum in continuous service.

Application : Glass Industries, Filling Stations, Pharmaceutical Industries

Condition : New,Old

Body Material : Copper, Steel

Shape : Square

Number Of Flower : Pleated Panel

Application: Kitchen extract systems, Pre filtration within air conditioning systems. Type: Grease elimination or coarse dust removal. Frame: Standard galvanized mild steel, stainless steel or aluminum Media: Knitted or multilayer pad. EN 779:2002 efficiency: G2, G3. Arrestance efficiency: 65% - 80%. Eurovent 45 efficiency: EU2, EU3. Temperature: 100°C maximum in continuous service. Humidity: 100% RH. Accessories: Handles and drain holes.

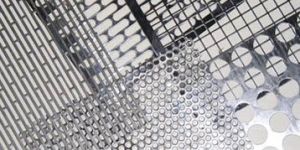

Perforated sheets are made by high speed feed and punching machines. Our range of perforated sheets is fabricated as per the specifications provided by the customers and are available at competitive prices. These perforated sheets are manufactured using different types of metals, plastics & alloys and are offered in a range of round, square, slotted or decorative patterns. These perforated sheets are widely used in various industry applications as well as with architects and designers. Perforated metals are used in a vast number of industries for sorting and screening any material from sugar and spice to sand and gravel. They are used extensively in heating and ventilating installations where they combine the practical with the ornamental. The round hole perforation is the most popular type of perforated pattern used and is manufactured in coils or sheets. Our sheets are sourced from reliable vendors and are acknowledged for their quality. Sheets upto 4' width and 3mm thickness [M.S. G.I.], 1.6 mm thickness [S.S.] or 5 mm thickness [Aluminium] can be conveniently perforated by us. It is to be noted that the material thickness cannot exceed the diameter of the holes under any circumstances.

We offer a wide range of perforated cable trays manufactured using the latest technology which provides them a fine finish. Cable trays are used to hold up and distribute cables. Perforated cable trays can be hung using a center rod support, C-hanger or two-trapeze configuration. They can also be mounted on wall using brackets. For further security, these cable trays are also available with covers. These perforated cable trays are available in various finishes such as epoxy coated, red Oxide, hot dip galvanized, powder coated or painted pre-galvanized. Features : Perforated cable trays offer an effective way to manage wiring while keeping it accessible, organized and secure These systems accommodate a large number of branch lines and offer high load bearing capacity These are widely used in the fields of petroleum, chemical industry, electrical power, light industry, TV and communication, etc.

Application: Pre filtration in air conditioning or industrial processing systems. Type: Coarse grade filter. Frame: Standard galvanized mild steel, stainless steel or aluminum Media: Synthetic glass fibre. EN 779:2002 efficiency: G2 - G4. Arrestance efficiency: 65% - 90%. Eurovent 45 efficiency: EU2 - EU4. Temperature: 80°C maximum in continuous service. Humidity: 100% RH.

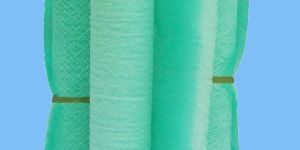

We have Over Spray Filters, Paint Arrestance Media. Application: For use as a pre filter in air conditioning, and spray booth extract systems. Media: Glass Fiber. EN 779:2002 efficiency: G2 - G4. Arrestance efficiency: 93% - 98% [mist] Eurovent 45 efficiency: EU2, EU3. UL 900 Standard: Class 2 Maximum Operating Temperature: 100°C Maximum Relative Humidity: 90%

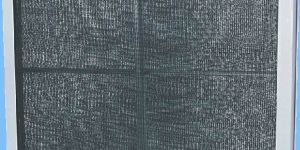

We have Nylon Mesh Pre Filter. Frame : Aluminium, G.I. or S.S. Media : PP, PA, PE fibre textile black nylon net EN 799 Class : G1, G2 Efficiency : 65% Features : Large air flow & low resistance Temperature & moisture resistance High acid & alkali resistance Can be washed repeatedly Long service life Applications : Fan Unit Diffuser Indoor Equipments ACVS Clean Room

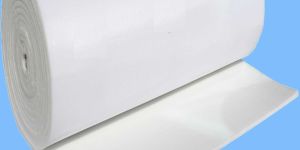

Offering Non woven Geo Textile Bags. Geotextile is a non-woven geosynthetic material, manufactured by needle-punch method. Having wonderful mechanical and physical properties, the bags manufactured from this fabric are widely used in construction industries, oil-gas area and landscape architecture.

Ducts are used in heating, ventilation, and air conditioning (HVAC) to deliver and remove air. These needed airflows include, for example, supply air, return air, and exhaust air. Ducts also deliver, most commonly as part of the supply air, ventilation air. As such, air ducts are one method of ensuring acceptable indoor air quality as well as thermal comfort.

Our range of galvanized ladder cable trays are widely demanded in various industries. These galvanized cable trays are made with premium graded mild steel that is galvanized. Our ladder cable trays have two longitudinal side rails connected by rungs. As per the client demand, we can offer our range of ladder cable trays in various specifications. features : available in widths ranging from 150-1200 mm thickness varies from 16-10 swg height ranges from 50-150 mm finishing available in hot dip galvanized, epoxy coated, powder coated or red oxide standard length is 2500 mm.

Material : Hot-dip Galvanized

Hole Shape : Hexagonal

Number Of Flower : Hepa Filters

Material : Stainless Steel

Diameter : 100-150mm, 150-200mm, 200-250mm, 50-100mm

Finishing : Coated, Non Coated

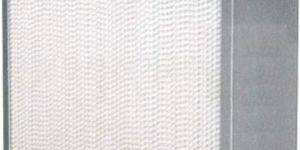

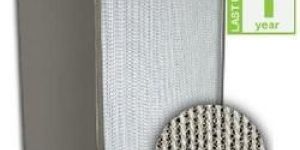

We have Hepa Filter. Application: Very high efficiency final filtration in air conditioning systems, housings and diffusers. Type: Close pleated very high efficiency filter. Frame: Standard galvanized mild steel, stainless steel or aluminum Media: Pleated glass fiber paper. Separator: Corrugated aluminum EN 1822:2009 efficiency: H10-H13 Eurovent 45 efficiency: EU10 - EU12 DIN 53438 Flammability: F1 UL 900 Standard: Class 2 Maximum Operating Temperature: 70°C Maximum Relative Humidity: 80%

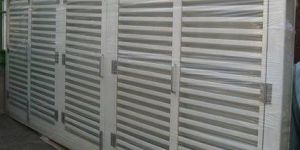

Owing to our vast experience, we have been successful in catering to the requirements of our esteemed clients by offering quality louvers. Highly appreciated by the customers for their fine finish, these products are manufactured using excellent quality material that is sourced from vendors of high repute. Latest machines and advanced technologies are used in the manufacturing process so that these are in accordance with the guidelines laid down by the industry.

Number Of Flower : Filter Bags

Material : Non Woven, Nylon, Polyster, Woven

Shape : Round

Thickness : 1.5-2mm, 2.5-3mm, 3.5-4mm, 4.5-5mm

Application : Dust Collection, Dust Filter, Idustrial

Width : 10-20mm, 20-30mm, 30-40mm, 40-50mm

Feature : Durable, Eco Friendly, Good Finish, Moisture Proof, Shrink Resistance, Waterproof

Frame Material : Aluminium

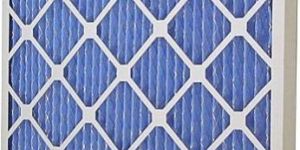

Application: Pre filter for comfort air conditioning applications. Type: Coarse dust panel filter. Frame: Standard galvanized mild steel, stainless steel or aluminum Media: Glass fibre. EN 779:2002 efficiency: G2, G3. Gravimetric efficiency: 75% - 85%. Eurovent 45 efficiency: EU2, EU3. Temperature: 120°C maximum in continuous service.

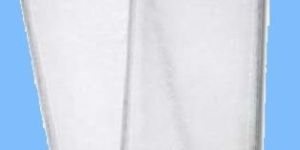

Application: Prevention of dust and dirt build up on heatingcooling coils within ventilation systems. Type: Coarse dust removal. Frame: Metal with downstream support. Media: Synthetic. EN 779:2002 efficiency: G2. Arrestance efficiency: 65%. Eurovent 45 efficiency: EU2. Temperature: 70°C maximum in continuous service. Humidity: 100% RH.

Size : 40x40inch, 45x45inch, 50x50inch

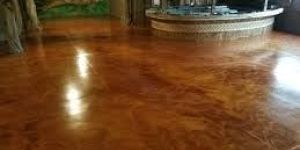

Number Of Flower : Epoxy Flooring

Material : Porcelain Clay

Thickness : 0-3mm, 3-5mm

Pattern : Plain, Printed

Feature : Accurate Dimension, Epoxy Resistant, High Strength, Quality Tested, Waterproof

Floor Use : Floor Use

Clean rooms must be validated prior to operation. This process ensures that the clean room is working correctly. Specific standards set the requirements for clean room validation. These include ISO 14644-1 or FED 309E. After a clean room is validated and becomes active it must regularly be checked in order to ensure that it continues to meet initial standards. Specific standards list the time intervals at which clean rooms should be tested and the minimum requirements a clean room must meet. Clean Room Tests / Clean Room Validation · Air Supply and Extract Quantities · Pressure Differential Between Areas · Air Movement Control and Recovery · Airborne Particle Concentrations Optional Tests Used in Clean Room Validation · Lighting Levels · Temperature · Humidity · Heating and Cooling capabilities of the room The microbiological, bio-technological & pharmaceutical sectors are subject to GMP requirements, with testing & validation of clean room ventilation as one of the most critical parameters. We prepare necessary protocols, perform the tests & make the final reports. Our experience with meeting the stringent requirements within the microbiological, bio-technological & pharma sectors can with advantage be transferred to other industries, such as hospitals, electronics, the food sector & the device industry. As an independent testing and certification agency, we use only the most reliable and accurate testing instrumentation, calibrated to national standards.
