Strainers Dealers in Kolkata

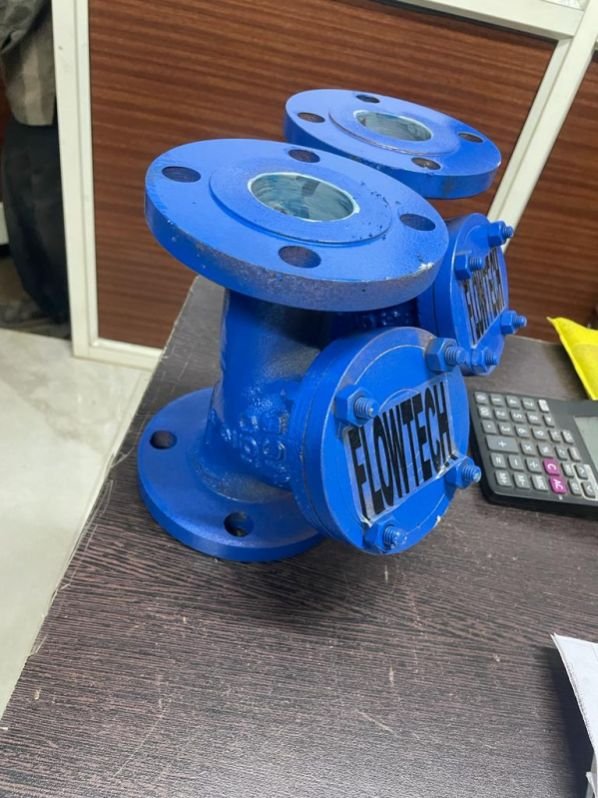

Y-strainers are used to remove solids from liquid, gas, or steam applications in small volumes. Y-strainers can be fitted with a blow off connection on the cover, to permit cleaning the screen without removing the cover. Y-strainers are offered in 150# to 1500# class. These strainers are designed for improved with trouble free service. These are easy to install and prevents the introduction of foreign matter in the pipelines. This saves the reoccurring expenditure in costly repairs and replacements. We also provide customization facility to our clients at competitive prices.

Strainer type : strainers application : filtration of liquids , gas, water, lube & fuel oil ,chemicals etc. Construction : close grain cast iron , bronze, cast steel, stainless steel and fabricated construction . Connections : flanged ,screwed , s.w ends flanges in din, asa or to customer's specifications. Range : a) pressure : 150#, 300# and above. B) sizes : nb 15 to nb 500 and above. Elementscreen · stainless steel, brass, monel from coarse say 8 mm to as fine as 0.5 micron. Features : · side bodies ( filter element housing ) are integralseparately fixed (cast or fabricated ) to accommodate higher filtrate and for high filtration ratio depending upon process requirement. · low pressure drop. · easy to install · very convenient to replace simplex filtersstrainers accessories : · magnetic element. · differential pressure indicatorswitch. · steam jacketing. · collessel filter element. · back washing. · zinc anodes.

Type: Teflon Lined Strainer Design: Basket Type Size Range: 25mm to 150mm Pressure Rating: Class 150# End Connection: Flanged End MOC - Body & Ends: ASTM A 106 Gr.B (SCH-40) MOC - Flange: ASTM A 105, IS 2062 Lining Thickness: 3 to 5mm Lining Options: PFA, FEP Applications: Valve suitable for various corrosive applications Applicable Standards: Driling Standard: ASA # 150 / DIN 2632 / 2633 / BS 10 Table D, E,F Flange Standard: As per ANSI B16.5 Test Hydraulic Test: Body (Shell) - 20 Kg/cm2 Spark Test: 15 K.V.D.C

Avail the Simplex Strainer that is well-known for effectual functioning and longer service life. Customers can be eased with the reasonable rates of the Simplex Strainer. Features Simple constructionRobust design High performanceMulti Basket

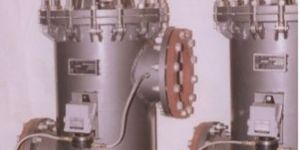

Special Features :- It is specially designed for uninterruption flow of liquid. There is no need to clean the elements. Cleaning is done by automatic flushing by differential pressure initiated by D.P SWITCH,Motor etc.   Construction :- The outher casing is made of fabrication or casting to withstand high pressure. The elements are generally made of wiremesh of SS-304, SS-316 etc. as per application.   Application :- It is suitable for raw water, D.M water, Coolant Fluid, Water / Oil Emulsion, oil at constant pressure drop. Additional Information: Item Code: BSC01

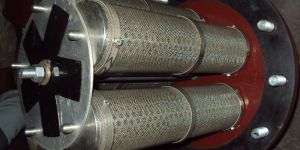

Reusable SS 100 mesh / 149 micron std Aluminium die cast nut Steel cap / support tube Continuous epoxy bond Suitable for hydraulic/mineral oil Max. Working temp. 80oC     Amco Filter Suction Strainer Elements are designed for installation into suction lines of pumps. Extra caution should be taken to ensure that the suction elements are always mounted below the minimum oil level of the reservoir. Standard models have nominal filtration ratings of 74 or 125 microns. The suction strainer elements can also be supplied with a bypass valve to reduce high pressure drops caused by contaminated elements or high viscosity fluids during cold starting. The bypass valve opens at 3 psi. For best results, suction strainer elements should be sized for clean element pressure drops off no higher than 0.5-.07 psi.Amco Filter suction Strainer Elements are manufactured using stainless steel wire screen media. Suction strainer elements are only intended to protect hydraulic pumps against catastrophic failure caused by coarse contaminants. Suction strainer elements should be inspected and cleaned regularly. Suction strainer elements should not be used as the only filtration elements in a hydraulic system. Pressure filters and return line filters, with reasonable dirt holding capacity, must be installed to provide protection against component damage caused by fine contaminants.

Clients can avail from us, perfectly made Perforated Sieves. Our Perforated Sieves are an alternate to square wire mesh due to their durability and strength. We can provide any pitch & un-perforated area in these Perforated Sieves. Manufactured using the finest quality metals and other raw materials, our Perforated Sieves remain un-affected from corrosion. We are a major Perforated Sieves Manufacturer and Supplier in Kolkata, India.

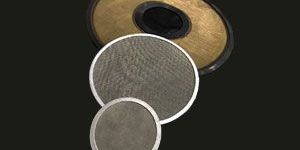

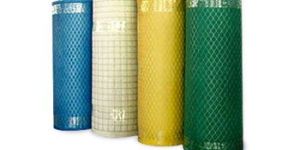

The company manufactures high quality Filter Wire Mesh which are known for their supreme strength, superior quality and durability. This Wire mesh is majorly used for preventing contamination in the molten mass and various plastic industries, synthetic fibre industries, poly and spinning departments and more. Owing to excellent performance, Filter Wire Mesh is greatly in demand by the customers.

MATERIAL OF CONSTRUCTIONBody : Cast Iron to IS 210 FG 200Cast Carbon Steel to ASTM A 216 GR WCBMS Fabricated to IS 2062Stainless Steel to ASTM A 351 GR CF8 or CF8MScreen : Brass or SS 304 or SS 316 END CONNECTIONSFlanges may be laced and Drilled to IS or BS or ANSI or DIN Standard •  Screens of Brass or SS perforated sheet with a mesh of ranges between 30 to 200 microns as Desired by the customers •  Surface area of straining element la 2.5 times of flow area minimum •  Valves can be supplied higher sizes 40 to 1200 mm, If required

We manufacture a wide variety of oil filters, strainers, filter bags exclusively for oil line and hydraulic line. The strainers are manufactured from GI sheets and wire netting that has suitable media, as per the designed specifications.

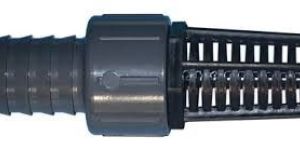

Owing to our capacity of meeting the exact requirements of the clients, we are supplying quality PVC Strainer. Our payment procedures are hassle free and transparent. We take aid of reliable online and offline payment procedures for your safety as well as ours. We ensure the payment is done legally along with documentation. Features: High grade material High in demand Construction application

Earthmovers Hydraulic Filters, Pressure Indicators, Air Filters, Assembl

Butterfly Valves Strainers, Ball Valves, Plug Valves, Industrial Hos

Industrial Filters, Hydraulic Filter, Simplex Filter

Filter Wire Mesh, Bolting Cloth Nylon, Bolting Cloth, Fishing Ne

Lead Free Sieves, Air Filter Test Rig, Mobile Filtration Syste

we are offering Strainers.

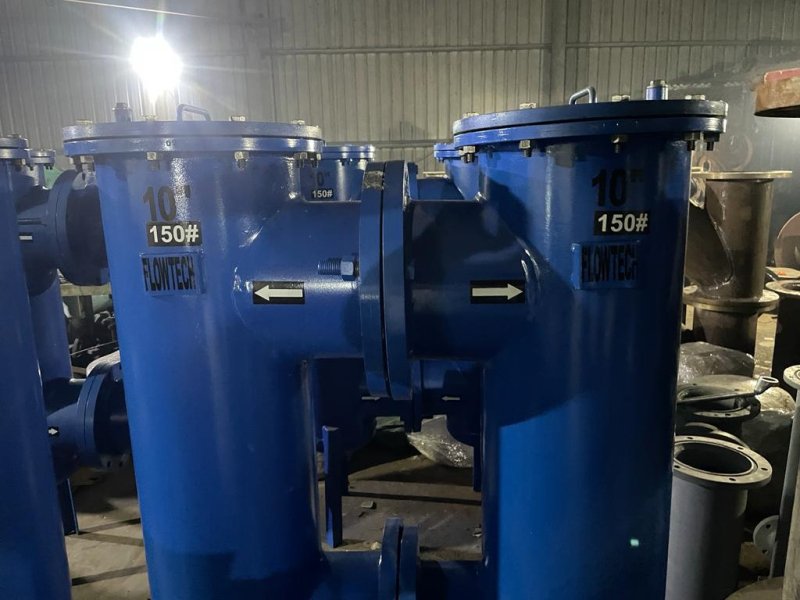

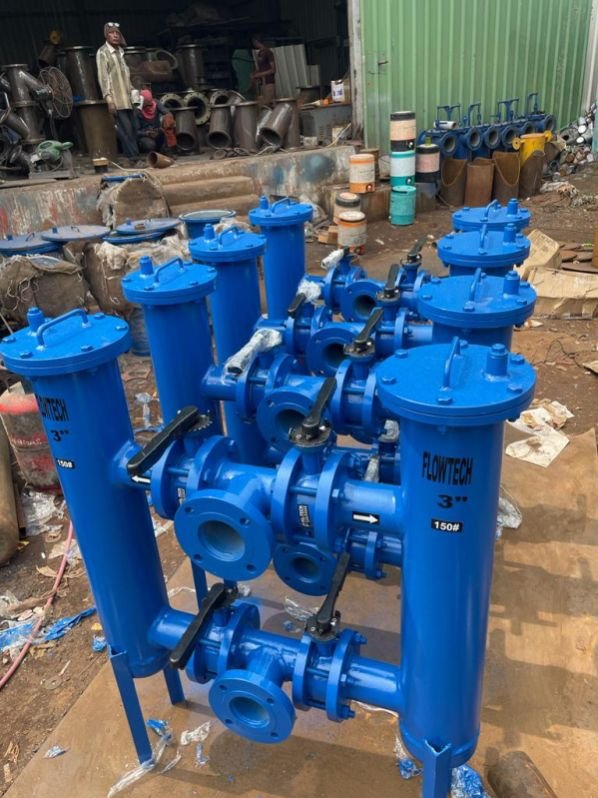

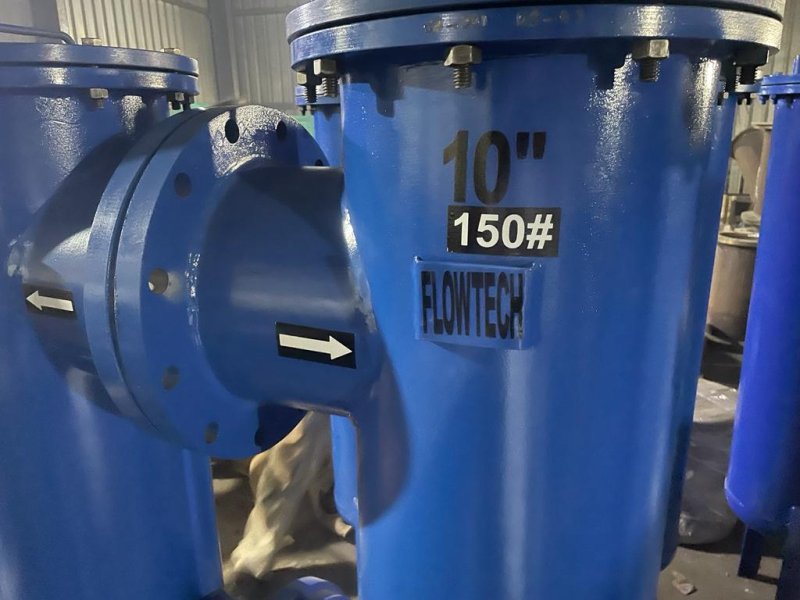

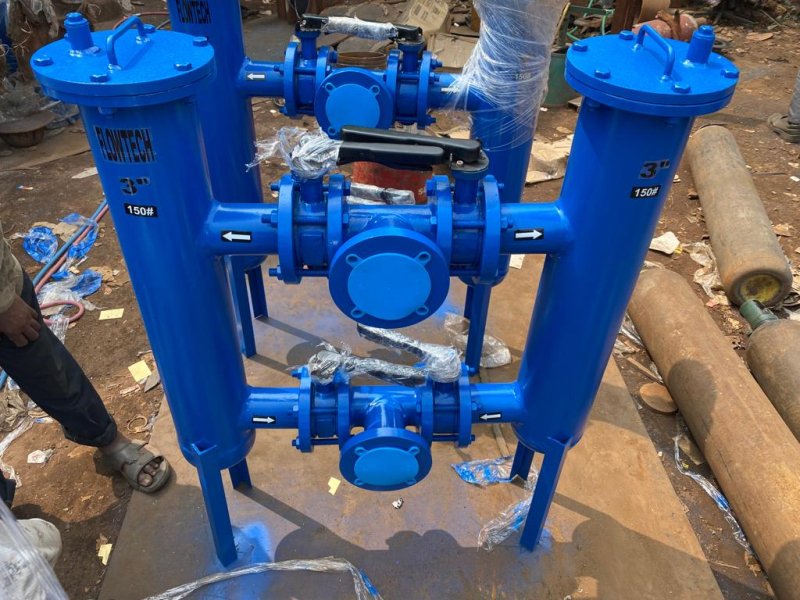

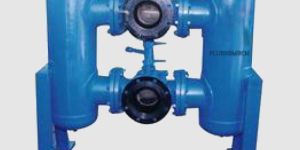

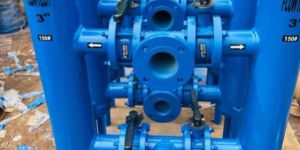

Basket / Duplex Fitrers for Oil/Water/Chemical.
