HVAC Air Filter Dealers in Kolkata

We have Nylon Mesh Pre Filter. Frame : Aluminium, G.I. or S.S. Media : PP, PA, PE fibre textile black nylon net EN 799 Class : G1, G2 Efficiency : 65% Features : Large air flow & low resistance Temperature & moisture resistance High acid & alkali resistance Can be washed repeatedly Long service life Applications : Fan Unit Diffuser Indoor Equipments ACVS Clean Room

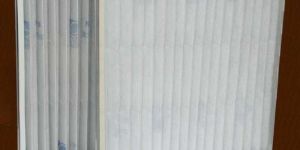

Prefilters are designed to remove particles down to 3, 5 or 10 microns (identified as super, standard and junior) at retention efficiencies 99%, 98% and 95% respectively when tested as per bs 2831 using test dust ii. The fiber glass media (4, 2, 1 layers respectively for 3, 5 & 10 microns) inhibits growth of microorganisms, it is sandwiched between 2 layers of hdp mesh and reinforced with anodized aluminum grills on both sides. The filter matrix is housed in an g.i sheet frame with flanges and closed-cell neoprene gasket. Filters can be cleaned with water, mild detergents or compressed air in reverse direction.

• Material: Aluminium
• Finishing: Polished
• Shape: Square
• Condition: New

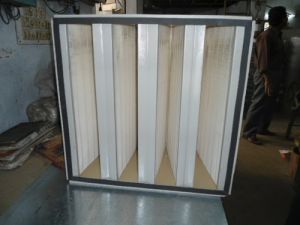

• Product Name :: Mini Plate Hepa Filter
• Model :: CMP Series
• Filter Grade :: EU 6 to EU 13
• Recommended Air Velocity :: 0.5 to 1.5 mtr./sec.
• Initial Pressure Drop :: 10 to 25 mm. of wg.
• Efficiency as per B. S. 2831, Test Dust No II & III :: 98 to 99.97%.

Media & Constraction : The basic media of these filters are either glass fibre paper or cellulose and synthetic fibre mix paper. The seperator used are hot melt type and are suitable to work upto temp. of 100 C. The media is encased in aluminium,G.I. frame with no metallic spacers. Application : It is applied for multi stage filter system in ACVS, Micro electronic, medicine, and compressors.

• Shape: Rectangle
• Country of Origin: Made in India
• Brand: AFi
• Filtration Grade: Hepa Filter
• Filter Type: Wire Mesh
• Filter Media: Glass Media

Testing and certification for this range of filters has been sadly lacking in our country. For many years,and right upto the present time, efficiencies for this range of filters are reported in terms of BS 2831,which is an obsolete standard.Current international norms call for reporting of filters to be tested and evaluated in terms of ASHRAE 52.2, which specifies the rating of filters in terms of MERV (Minimum Efficiency Reporting Value). For the first time, filters are rated in terms of their efficiencies at a particular particle size, rather than in terms of simple gravimetric retention or dust spot efficiency. Spectrum is a pioneer in the installation of a test rig for the testing of filters in accordance with ASHRAE 52.2, and possesses a state-of-the-art facility for testing, evaluation and reporting of prefilters and intermediate efficiency filters. Spectrum also supplies prefilters and intermediate efficiency filters for various industrial applications, with media from Filtrair b.v., Netherlands, which is UL certified and certified for efficiency. Domestically available media are not certified, and their actual performance is therefore indeterminate. The Company thereby ensures that its products invariably satisfy client requirements with regard to filtration efficiency and dust holding capacity.

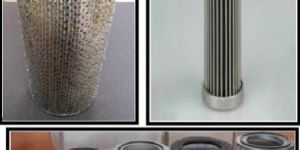

• Type: Pleated Filter Cartridge
• Material: Microfiber, Polyester
• Shape: Round
• Application: Filter Use
• Length: 10inch, 20inch
• Weight: 100-150gm
• Color: White

Polypropylene Pleated Filter Cartridges have been designed as an effective membrane pre-filter and as final polishing filter for many liquid processing applications. The cartridges are double layered filters. The graded porosity design removes particles in sequence such as larger particles by the more open outer layers and the smaller particles by the tighter inner layers. The outer layer acts as the pre-filter while the inner layers provide the rating at the specified pore size. This efficiently spreads the contaminants throughout the media matrix resulting in superior contaminant holding capacity, lifetime & pressure drop as compared to other media cartridges. Features & Benefits Very good for pre filtration & Clarification of fluids   Graded porosity polypropylene Media 100% PP construction   Wide chemical compatibility Consistent & good flow rates   Biologically safe   No fibre migration   FDA approve   Thermally welded construction   End connections to fit all standard housings Construction -  Filter media - 100% Polypropylene fibre   ‘O’ Ring/ Gaskets - Silicone/ EPDM/ Viton Configuration -  Double open end type (DOE Type) Code 7 (226 ‘O’ Ring design/ Bayonet or fin) Code 3S (222 ‘O’ Ring design/ Bayonet or fin) Sizes - 5”, 10”, 20”, 30”, 40” Applications Food & beverage - Bottled water, Beer, Wine, Flavours, Polishing lines, clarification Pharmaceutical, Membrane pre-filtration, Ophthalmic, Oral medications, Serum, Fine chemicals - Polymers, photo resists, Acids bases, Solvents, Electronics - High purity water, photo resists, acids, etch solutions Cosmetics - Alcohol, creams, lotions, essential oils, mouthwashes Metal finishing - Plating solutions, wash solutions, paints, resins, varnishes Water treatment - Potable water, resin trap, pre/ post UV, membrane protection

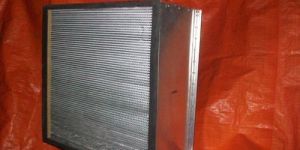

• Product Name :: HEPA Filter
• Model: HEPA
• Filter Grade: Absolute
• Recommended Air Velocity: 0.5-1.5 mtr./sec.
• Initial Pressure Drop: 10 mm. to 24 mm. of wg.
• Efficiency as per ASHRAE 52.2: 99.97%.

Media & Construction :- Filter media fabricated from water repellent 100% micro glass fibre paper pleated over corrugated aluminium/paper board separator, encased in an GI /Al frame.Neoprene sponge rubber sealing provided for leakproof sealing Application : Cleanroomof class 1000 & below,Operation Theater,Control room.

• Diameter: 150 mm / 225 mm / 325 mm
• Length: 250 – upto 2000 mm

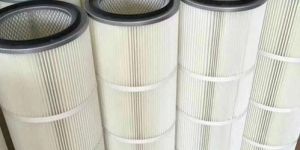

We are offering dust collector Cartridges which are made spun bonded polyester to provide high quality surface filtration. This unique and hard finished materials provides features of good pleat ability, excellent stable structure, fine dust release & good resistance of particle penetration into the filter. These filter media are pleated in different filter depths such as 16 23 28 48 mm to provide a wide range of area. Diameter of the cartridge can be 150 mm 225 mm 325 mm etc., and the length 250 � upto 2000 mm. These filter media placed in cylindrical configuration with metal in caps to form pleated dust collection cartridges. Mostly it is used in cement plants, food industry, pharmaceuticals company, powder coating plant etc.

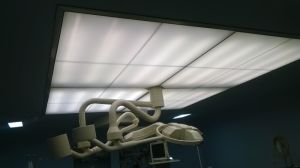

The Caracas of the plenum will be made of extruded aluminum sections in such a manner that the air is passed only through the filters only. Plenum unit for laminar flow diffuser will be made of thick aluminum sheet. The complete unit will have factory prepared fine sealing system. The plenum will be supplied at site duly sealed in factory made packing. The Laminar flow system will have anodized aluminum perforated diffuser grill. The laminar flow system will have such design that it provides cleanliness of class 1000.

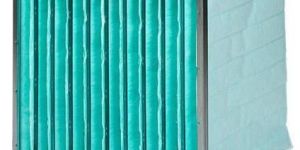

Pocket Filters, RO Purifier Pipe, RO Pumps, RO Membrane
