Direct Force Exciters   Direct Force Exciters are predominantly used to drive vibrating conveyors, feeders and screens. It has two shafts fitted with unbalance masses, which are caused to rotate by integrated gears in opposed directions at the same speed. The directional force excitor is driven from an external standard electric motor via a universal joint shaft. With a frequency invertor, the speed can be infinitely varied during operation. Anti friction bearings and gearing are accomodated in a housing and oil immersion lubrication. Maintenance is limited to an occasional check of the oil level, or oil change at prescribed intervals

IC Vibrating Grizzly Screen Feeders are fully floating, linear motion units supported on compression springs, and are driven by highly reliable Direct Force Exciters, through drive motor and cardan shaft coupling. Depending on design, certain models are driven by a pair of unbalance motor exciters. Deep side plates connected by huck bottled cross beams, ensure high rigidity .Wear surface is provided with abrasion resistant liners. 1. Capacities up to 2500 tons per hour. 2. Handling single particle lumps up to 2.5m edge length 3. To withstand high impact loads when installed directly under dump hopper. 4. Sizes up to 3.5m wide & 8.5m long. Larger size4s available on request. Typical application includes crusher relief operations in mining & quarrying applications. Screening out trash and tramp material such as high capacity screening of moist coal in power plants-without material blockage. Increasing use in road building and civil construction projects for screening of basalt rock, various types of stones and gravel.

The comprehensive range includes Electromagnetic and Mechanical VIbrating Feeders and Conveyors to cater to almost every industry. Controlled feeding and dosing of bulk materials - coarse and fines, lumpy, sticky, hot or cold, moist or dry, abrasive, corrosive - come with complete solutions through careful planning, design, construction and installation. A wide variety of control systems, and accessories are available such as - Thyristor Controllers, Starter Panels, Frequency Invertors, various types of bunker gates all of which add up to deliver a total solution. Mechanical Feeders   IC Mechanical vibrating Feeders are characterized by high availability,low operating cost ,low energy consumption and protection of environment. Controlled Feeding of Bulk Material with absolute reliability Computer aided selection and design Rigid manufacturing standards Sophisticated test facilities Prompt after sale service

Omni VSI outperforms other crushing machines, with it’s versatility of uses optimized operation, ease of installation, smooth operation, reliability, and yield. Product quality within specifications, with particles of cubical shape are produced with desired MF(fineness modulus). OMNI large VSI models are able to handle feed size of approx 70mm and majority of crushed materials lies between 40mm to 5mm.   Models available upto 1200 HP, also suitable for highly abrasive materials.   The OMNI VSI Crusher is an ideal machine to produce Crushed Sand, that is washed and classified to remove unwanted micro-fines. High quality crushed-sand finds extensive use, replacing natural sand, in cement concrete and asphalt plants.   IC VSI is suitable for all types of minerals from soft to hard and extremely abrasive minerals.   The particles of the feed material are accelerated by centrifugal forces against an impact wall making use of comminution by rock –on – rock principle.   Special features of IC VSI   Rotor is dynamically balanced for vibration-free operation Modular construction for quick erection  and ease of transportation Special rock box design to ensure optimum crushing Heavy duty construction

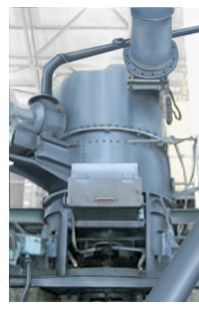

  For pulverizing materials to extreme fineness, no grinding equipment will excel the UFG Vertical Mill, with air classification system. The UFG Vertical Mill can reduce many products to 95% / 98% finer than 15 to 20 Microns. In fact, some products can be ground to finenesses of 95% to 99% or finer below 10 microns. Typical materials processed by this unit include calcite, limestone, talc, cocoa powder, marble , asbestos, kaolin, colors, graphite, sugar used in confections, pharmaceuticals and various food products. Principal advantages: Close control of particle size Simple operation and maintenance Automatic feed control Occupies minimum installation space Precision engineering Dynamically balanced rotor assembly and water cooled bearings

These Clasifiers have been developed specially for achievement of below 40 micron down to 8/10 micron or finer particles. Best yields at very low specific energy consumption can be achieved. Various options are available such as stainless steel construction / ceramic lining against corrosive and abrasive materials. We can run semi-industrial tests in our test facility

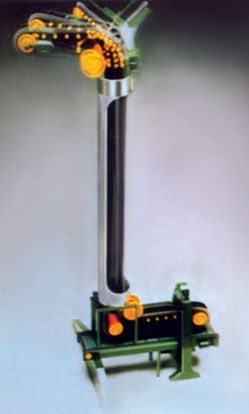

The Spiralling Belt Elevator moves bulk solids continuously through horizontal and vertical stretches with no points of transfer. Motor speed, material feed, and straight belt run are monitored by safety devices. The elevator is fed horizontally by a continuous conveyor. In the area of transfer, any fine material particles adhering to the belt drop into a scraper conveyor and are fed back as spillage to the main flow by a circuit conveyor. The vertical handling section consists of the rubber belt with corrugated side walls and "flights'. This vertical section of the elevator can be slewed in the direction of discharge. Slewing through 135°C to either side is possible while moving. A control unit ensures accurate positioning of the belt to the selected point of discharge. The material is discharged from the upper horizontal section. Application The Spiralling Belt Elevator can be used wherever fine-to-coarse-grained bulk solids require to be handled, horizontally and vertically, in a very confined space.

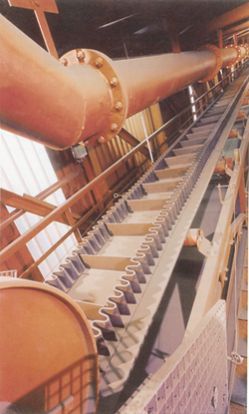

The Scooping Belt Conveyor moves bulk solids continuously on level and inclined stretches. The webs, or flights, of the corrugated and belt scoop up the material and also prevent the flow-back of fluidising powdered material. The totally enclosed construction ensures that there is no spillage. Material adhering to the belt and moved beyond the point of discharge, immediately returned by the partitions to the feed side and received back by the upper belt. The housing of the return, and take-up units designed as a scooping trough, serves this purpose. Application The Scooping Belt Conveyor is preferably used to handle wet ash. lime, cement, gypsum, ground lime, wood chips, or similar, difficult-to-handle material.

We supply modern drive solutions for all industry sectors in which material must be moved. the customer benefit lies in the robustness and durability of our product. The simple and cost effective installation, the minor service necessity and the high efficiency reduce the cost throughout the whole life of the drive. Typical for  the steel industry is that all equipment is set under extremely arduous ambient conditions. these includes heat, cooling water jets, tinder dust and heavy charging generating high shock loads on the gear boxes. Bauer is known for its heavy duty geared motors which are specially designed to master all these extreme conditions. For this purpose, Bauer have developed a special series for the steel industry the so called “roller table’ geared motors. Typical application for the geared motor are transporting steel and non ferrous metal in various forms in and out of furnaces, towards various working stations where the steel is formed into plates, tubes and wires up to the finishing line and then to the dispatch.   Available in standard ,ventilated,ringribs and non ventilated versions.   Main Features   Special roller table design Re-inforced fan Heavy duty fan cover Gear box and motor housings in grey cast iron(ductile iron on request) Motor windings developed for mains and frequency inverter duty providing brake out torques up to 4 times nominal torques. Direct online with high number of starts and stops Stalling and blocking times of up to 5 minuites Gear box housings and gear wheels designed for heavy duty shock loads Thermistors protect motor windings Motors designed for blocking Insulation classes F & H Seals designed for high temperatures High resistant paint coating Enclosure IP 65 as standard(IP 66 on request)

The roll crusher is available in 2 roll design with reduction ratio in the range of 4 : 1 upto 6 : 1. The Capacity range varies upto 1000 tph. The design is provided with spring loaded retraction system for protection against ingress of tramp iron in the system. The specific power consumption is low in the range of 0.25 to 0.3 Kwh /  ton. The rolls design can be provided with cast tooth rolls with hard faced tooth  or segmented rolls for quick replacement of tooth. Various tooth profile is provided depending on application. The roll crushers are suitable for crushing ROM coal, lignite, coke, sinter etc. OMNI Roll Crushers OCR 0810      80 wide x  100 dia OCR 1610      160 wide x  100 dia OCR 1225      120 wide x  150 dia Available with toothed and plain rolls For Coal, Coke, sticky and clay material

For service in the fields of medium fine and fine grinding, Raymond Roller Mills have an unsurpassed record of dependability and economy in maintenance. These machines are incorporated in an automatic and dustless system for grinding and classifying non- metallic minerals and dry chemicals to a high degree of product uniformity. With integral cone and whizzer separators, product finenesses from 800 to 35 microns are achieved. The mills are airswept with a classifier fitted directly above the grinding chamber to give continuous classification of the ground material. They are ideal for economic production of very fine powders, and can handle difficult, sticky materials.   Mill systems can be supplied complete with air heaters for simultaneous drying and grinding moist materials. The mill operates under suction which prevents leakage of dust to the atmosphere Available in 5 graded sizes, the Roller Mills feature automatic feed control system, in- circuit drying, range of different classifiers to suit application requirement. Extensive experience with airswept mills and associated classifying technique enable us to offer complete installations

These machines are incorporated in an automatic and dustless system for grinding and classifying non- metallic minerals and dry chemicals to a high degree of product uniformity. With integral cone and whizzer separators, product finenesses from 800 to 35 microns are achieved. The mills are airswept with a classifier fitted directly above the grinding chamber to give continuous classification of the ground material. They are ideal for economic production of very fine powders, and can handle difficult, sticky materials.

The Raymond Impax Pulveriser is a versatile and dependable high speed, airswept swing hammer impact mill, designed for fine and medium grinding of softer non-metallic minerals, coal, various chemical compounds, food products and other materials. Almost any soft material with a nominal 12 mm top size can be effectively pulverized in the Raymond Impax Pulveriser to a fineness from 1,000 microns to as fine as bulk passing 45 microns or even less. The standard Pulveriser is equipped with air classification system comprising elevated in-stream classifier, sysem fan , cyclone and dust collector. Available in a range of 6 sizes, they incorporate the following features:- Range of capacities 2 to 15 TPH of pulverized product. Heavy-duty design for continuous 24-hour operation, minimum maintenance. Low operating temperature design ideal for heat sensitive materials. Available with integral flash drying

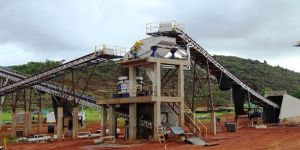

Crushing, Screening & Conveying Systems for Iron Ore, Aggregate, Coal and other Minerals. Our Project Division is well equipped for Design, Engineering with Electrical and Automation of complete Crushing Systems and equipment. Our extensive experience in handling systems for Coal, Limestone, Iron Ore ,Aggregate and other minerals can give the customer the most effective solution. We can provide complete solution with supply of Structural and civil engineering, Erection & commissioning of the complete plant. Tertiary Crushing  and Sand manufacturing Our VSI Crusher ensures product quality and specification to meet the Industry standards for combined Flakiness and Elongation Index. Our VSI Crusher is also an ideal machine to manufacture Sand, which can be washed and segregated by our Mechanical Air Separator / Ecutec Turbine Classifier to remove unwanted micro-fines. .  Grinding, Drying & Classification Systems . In Joint Venture with world leaders, ALLGAIER, we offer drying process based on Fluidized bed system and “MOZER system” rotating Drum Dryers. Our offer includes complete solutions that represent combination of various drying processes as well as  granulating and screening system. IC offers complete grinding Mill systems designed  to pulverize and classify various kinds of materials including non- metallic  Minerals, fertilizers, chemicals, etc. Application covers stones , waste / recycling, chemicals, food , mining(Coal/Ore), metallurgy, Plastics ,Pharmaceuticals etc. Manufacture and Supply of Specialized Bulk Material Handling Equipment Specialized Bulk Material Handling for intelligent solutions to suit even difficult to handle materials. They are categorized in particular by high economy proven under harsh service conditions and are environment friendly. The range of equipment covers  Paddle Feeders(Slot Bin Extractors), Girdle Pocket Elevators, Spiralling  Belt Elevators, Scooping Belt  Conveyors, Belt and Pan Conveyors.

Today Allgaier driers are used successfully in almost all industrial sectors, particularly in non-metallic mineral processing industry and in recycling operations,the rotary drum driers and fluidised-bed driers prove their extra ordinary abilities. Allgaier drying systems are extremely adaptable. their design features and the large number of available options  permit the design of extremely productive processes.   Application areas-Fluidised-bed and drum-driers:   Non metallic mineral processing Building materials Sand ,mineral ,glass Moulding sand Ceramics Chemical substances Pigments Clay Agrochemicals Recycling, waste materials,sludge Filter cakes Iron sulphate Titanium di-oxide Limestone , magnesite Metal chips ,woodchips etc.   Features:   High thermal efficiency Few parts subject to wear Product optimized drying Large number of process options Easy access,and thuseasier replacement of spare parts Variable design permits rapid conversion for different products High degree of energy utilization.

Omni Screen's unique vibrating assembly and modular concepts have resulted in a linear movement screen that can operate at substantially higher acceleration providing unparalled flexibility and metallurgical performance Customise the screen panels Customise the screendecks on each module. Using polyurethane, rubber or wire screen media, producing the right sized product has never been easier. Patented design provides customized performance   Modular Linear Motion High acceleration Large screen area Low Mass Low Maintenance Easy Installation Omni Screen's unique vibrating assembly and modular concepts have resulted in a linear movement screen that can operate at substantially higher acceleration providing unparalled flexibility and metallurgical performance.   Optimise Acceleration Each module can be turned to provide specific acceleration of between 4 - 7 g, to maximise screening capacity and efficiency, eliminate blinding, reduce recirculation loads and minimise degradation. Wet or dry, OmniScreen offers superior performance. The compact and incredibly strong assembly is a simple solution to contain the lateral tension and compression forces. this makes it possible to run the OmniScreen continuously at up to 7 g if required. Particularly difficult or sticky applications can have intermitent acceleration up to 10g with the addition of Vari-speed Drive Modular concept for optimum benefit. Modules can be arranged in horizontal, inclined or multislope configurations or in a combination thereof. Benefits Higher Capacity Excellent screening efficiency Large screen deck area Reduced building costs Lower installed power Simplified installation Increased profits

A Vibrating Screen or Feeder is usually the heart of a production plant, its failure causes loss of production and repair may be expensive if damage has already occured. The monitoring system for Vibrating Machines detect irregular vibrations which usually remain unnoticed by maintenance personnel. The system reports them early enough to trigger preventive measures and avoid extensive damage and unscheduled downtime Monitoring functions include failure of drive shafts, overspeed, transverse vibrations, overload and resonance vibrations. Use of monitoring systems increase plant availability through avoiding unscheduled breakdowns and reducing maintenance.

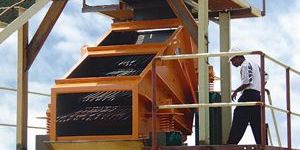

The Vibro-Barsizer really works because of its effective blockage-free design principle. It separates difficult-to-screen and heavily polluted materials reliably, including bulky and irregularly shaped particles. Very effective with greasy, sticky and wet materials. Textiles, fibres and plastics in the product stream pose no problems. The linear vibration of the Vibro-Barsizer and the bars fixed at only one end help ensure a fully trouble-free separation. The bar decks are mostly arranged in multiple cascade- like steps. The material is turned around and opened up as it falls from one step to another. Pegging and blockages are positively avoided. Driven by two maintenance-free and quiet vibrator motors or Direct Force Exciters the Mogensen Vibro-Barsizer can additionally be equipped with mesh panels to meet special requirements.   Facts & Data 1. Capacity over 1000 m3/h 2. Separations between 10 mm and 150 3. Handling solids and slurries 4. Dust-tight enclosure 5. Maintenance-free operation for long-term continuous duty 6. No blockage and pegging 7. Favourable energy/capacity ratio Mogensen Bar Sizers The Mogensen Bar sizer is specially designed for coarse separations and it operates accordingly

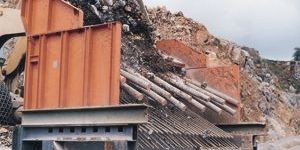

        The complete range of Mogensen Sizers are offered including specialised accessories.Also included in the range are Flip Flop Screening Machines as well as the new Sizer 2000 especially suitable for very fine screening applications.Mogensen screening machines are offered on a made-to-measure basis offering intelligent solutions.The product range offers a very wide selection for fine screening - from approximately 100 mic. and for coarse separations up to 5 mm. 3 to 6 progressively inclined screen decks with progressively finer mesh apertures are arranged in a functional and compact manner in the vibrating screen frame. Because of the inclination in the meshes the screening effect and thereby the separation size are appreciably smaller than the apertures in the mesh panels. This drastically reduces the risk of pegging and increases the capacity considerably because the coarse-mesh system induces a dispersed material flow without the build-up of a bed of material. Residence time in the machine is short. The processed material falls vertically and rapidly through the Sizer whereby coarse particles are removed early in the screening process from the required product stream. Wear and tear on the finer lower decks is greatly reduced.

at high capacity, free from blockage.It works without moving parts and without consuming energy. The range of separation is between 25 mm to 400 mm. Individual pieces may be 1 m in size and up to 3 t in weight. The quality of separation is astonishingly good in relation to the requirements of coarse screening. The simple and robust design ensures failure and maintenance free operation, even with difficult sticky materials contaminated with impurities. It is a simple design with creative technology. The bars diverge and are fixed at one end only. The gap opens up towards the end of the bars in the same direction as the flow of material. The material - induced bar vibration prevents blockages. The bars are made of a special steel and may be reversed in order to increase operational life. Facts & Data 1. No power supply required 2. No noise from drive or moving parts 3. No danger of blockage 4. Capacities up to 1500 tph or even more 5. Size of separation between 25 mm to 400 mm 6. Can handle large lumps up to 3 t individual weight 7. Maintenance-free operation 8. Suitable for both mobile and static plants.

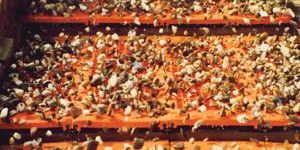

Rectangular modules of 300 mm x 300 mm are available in wear-resistant rubber and polyurethane as standard units with snap-action fixing plugs mounted on deck support structure Relatively large open areas of screen is obtained along with reliable connection of the screen units to the support structure without having to use any special tools. In adition, space saving stackability by nesting of the units to reduce storage expense and easy to replace small, light screen deck units with uniform dimensions contributes to success of this modular design Fixing plugs are available in steel as well as polyurethane in order to suit different designs of deck support systems Screen decks are supplied complete with all fitment accessories such as fixing plugs, centre and side clamping bars, side wedge bars, etc.   Modular screen decks : Standard range of aperture openings include square/rectangular apertures, in line/staggered slot perforations, taper slot perforations and round perforations Highly wear –resistant Precise separation High through-put rates No product degradation Corrosion-resistant Ejects marginal particles Extremely low operating cost Low downtime for screen replacement

Built in 11 commercial sizes ranging from 4 feet to 24 feet in diameter, as well as a 30 inch unit for small capacities and test run. a special 10 inch laboratory separator completes the Raymond line, and is a useful machine for handling small lots of materials in experimental works. on many material finished product with a high percentage passing 15 to 20 microns can be obtained without difficulty.   Advantages   Produce materials with high uniform fineness. Operate in open or closed circuit. Excellent for de-dusting. can provide drying and cooling. Faster separation of fines and more positive rejection of oversize.   Single whizzer separator has one bank of whizzer blades and used for coarser separations upto approximately 85% to 90% passing 200 mesh double whizzer separator with two banks of whizzer blades,they can produce finished materials upto 99% to 99.5% passing 325 mesh. Application in closed circuit grinding When operated in closed circuit combination with pulverizer , ball or tube mills the separator skims off the fines rapidly so the mill works only on fresh material without wasting power. The tailings are discharged back to the mill for further reduction.the reground material is returned to the separator with the feed thus setting up a constant circulating load.

adapted with great ease to the particular screening task. Relatively smaller size of linear motion machines can also be offered with a wide range of Unbalance Motor exciters.   The linear motion screens are made up of sub-assemblies Huck/lock-bolted together, enabling wear parts to be readily replaced. Drive is from standard AC motor via cardan shaft. The linear motion screens are horizontal/low inclination Screens and its operation is based on the micro throw principle. The operating frequency is generally 750 or 1000 vibrations per minute and easily adapted to the material to be screened in terms of angle of throw and amplitude which are adjustable within certain limits. Great stress has been laid on machine ruggedness and stability, simple maintenance and servicing including replacement of screen decks. Depending on application the machines are available as single or double deck type. Sizes range up to 4 m wide and to 9 m long and capacities up to 3000 tph depending upon the cut point and material characteristics. Applications include primary and secondary classification, sizing, washing/dewatering/ desliming, knock-out screens in foundry, screening of hot material and many others. Screen mats used are woven wire, rubber, polyurethane and perforated plate.   Isolation Frame In a large vibrating machine, substantial exciter forces are active and to avoid harmful vibration to building and support structure, Isolation Frames can be offered to reduce dynamic loads by approximately 90%-95%. These Isolation Frames are mounted on springs and hyraulic shock absorbers. Trolley Vibrating screens mounted on trolleys are offered suitable for transverse or longitudinal movement. Trolley movement can be either manual or motorised. Special jack pads and wedge block mounting ensure that load is off the wheels when screening machine is in operation. Circular Motion Vibrating Screens This is a new generation range of vibratory screening machines characterised by low profile, efficient protection of

Linear Motion Screens are designed to cope with medium to large bulk solid flows, operating with equally great success in the Mining, Iron and Steel, Coal, Ore Dressing, Cement, Fertilizer, Chemical, RefractoryCeramics and many other industries. Operating in the supercritical range and nonrestrained, the linear motion screens are driven by the renowned Directional Force exciters, proven for many decades, which permit the vibration characteristics of the screen to be adapted with great ease to the particular screening task. The linear motion screens are made up of sub-assemblies Hucklock-bolted together, enabling wear parts to be readily replaced. Drive is from standard AC motor via cardan shaft.
