Number Of FlowerPolycarbonate Ventilator Base Plate
MaterialPolycarbonate
Thickness2.00MM
CertificationISI Certified
Packaging TypeTransperant
FeatureHardend & Temper
TechnicsThermoforming
Surface FinishingPolished
Air Ventilator Base PlatePolycarbonate Base Plate

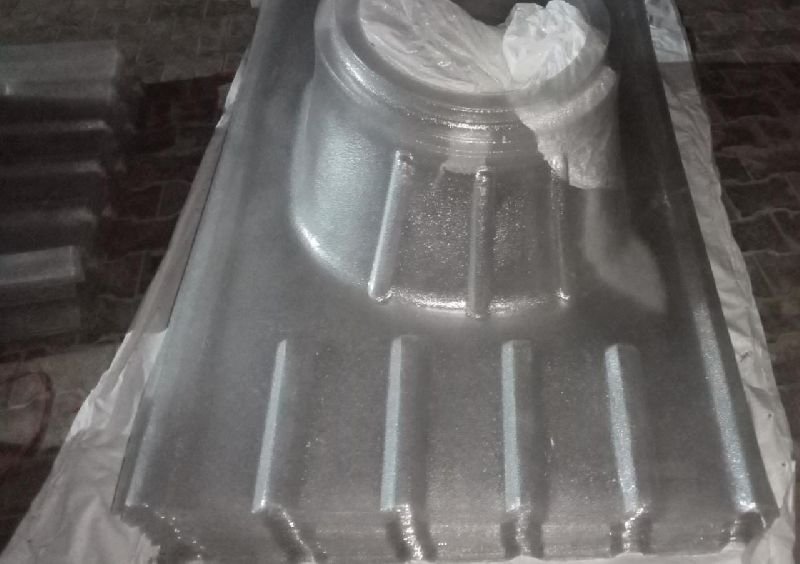

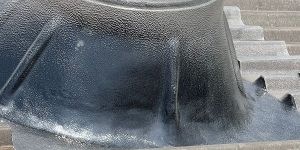

Polycarbonate Base Plate:
It gives 4 times the life of FRP base Plates. We provide 10 years limited warranty.
Virtually Unbreakable and Design Freedom.
UV Resistant & Temperature resistant (-40C to +130 C). Compared to FRP, PC base plates have minimal thermal expansion and contraction, which prevents cracks in long run.
Light Transmission Transmits light up to 89%.
Features:
Fire Retardant
Maintenance free
Available in 20, 22, and 24 Diameter
Our expertise in roofing products enables us to design base plates matching with Metal sheet precision, thus eliminating the possibility of leakage

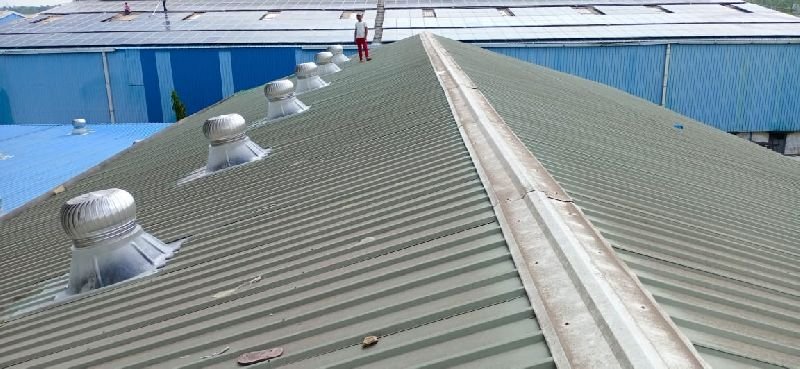

Further we have successfully installed Ventilators on Multiwall Polycarbonate roofs as well.
Technical Specifications:
MOC of Vanes
Industrial Grade Aluminum - 8011
MOC of Top Plate
SS 304
MOC of Bottom Ring
SS 304
weight of ventilator
6 Kg.
Height of ventilator
410mm 5mm
Center Width of Ventilator
735mm 5mm
Dia of Top Plate
500mm 5mm
Dia of Bottom
600mm, 5mm
Nos of Vanes
42 Nos. Rolled formed
Thickness of Vanes
0.45mm
Bearing Type
SKF - 6001 ZZ Permanently Lubricated & Sealed
Rivets
Aluminum Alloy with Washer
Polycarbonate Sheet
2mm Thickness X 1.8m X 1m
Mat
450GSM
Dome Height
18 Inch
