The installation of an in-line quenching process can produce steel reinforcing bars with high and very stable yield strength around 500N/mm Sq.
This TMT (Thermo-mechanical treatment) process exposes the bar to an intense cooling after the last rolling pass, providing excellent strength combined with good toughness, hardening of the surface layer and subsequent tempering by residual heat flowing from the core. The fast cooling of the core leads to a very fine ferritic – pearlitic structure. Hence the mechanical properties required by several technical standards like ABNT, BSI, AFNOR, JIS, DIN, etc. regarding high strength bars may safely reach, even for analysis levels which normally apply to low resistance material only, as follows:
C :0.20 to 0.30% Si :0.10 to 0.30% Mn :0.60 to 0.90% Ceq :0.30 to 0.50%
Thus High strength material may be produced combined with weld ability characteristics. (C= 0.24, Ceq = 48%)
The installation of an in-line quenching process can produce steel reinforcing bars with high and very stable yield strength around 500N/mm Sq.
This TMT (Thermo-mechanical treatment) process exposes the bar to an intense cooling after the last rolling pass, providing excellent strength combined with good toughness, hardening of the surface layer and subsequent tempering by residual heat flowing from the core. The fast cooling of the core leads to a very fine ferritic – pearlitic structure. Hence the mechanical properties required by several technical standards like ABNT, BSI, AFNOR, JIS, DIN, etc. regarding high strength bars may safely reach, even for analysis levels which normally apply to low resistance material only, as follows:
C :0.20 to 0.30% Si :0.10 to 0.30% Mn :0.60 to 0.90% Ceq :0.30 to 0.50%
Thus High strength material may be produced combined with weld ability characteristics. (C= 0.24, Ceq = 48%)
We Offer Straightening Machine. salient Features available in Steel Fabricated Body. high Quality Adamite or S.g Rolls Gears from Forged Tested En Steel. suitable for Girders Up to 600 Mm Angles Up to 200x200 Mm and Channels Up to 400 Mm. sturdy Heavy Duty Section Straightening Machines for Round and Structural Sections like Channel, Joist, T-section Etc. specification available in 120 Mm Center to 600 Mm Roll Center hardened & Ground Gears No. of Rolls -10/6 Suitable for all Sections
We Offer Straightening Machine. salient Features available in Steel Fabricated Body. high Quality Adamite or S.g Rolls Gears from Forged Tested En Steel. suitable for Girders Up to 600 Mm Angles Up to 200x200 Mm and Channels Up to 400 Mm. sturdy Heavy Duty Section Straightening Machines for Round and Structural Sections like Channel, Joist, T-section Etc. specification available in 120 Mm Center to 600 Mm Roll Center hardened & Ground Gears No. of Rolls -10/6 Suitable for all Sections
These machines are specially designed for rapid cutting up of metal scrap and possess the stamina for continuous high speed duty. Blades are set at an angle to the frame so that long bars can be cropped. Many hundreds of these machines are in use.
These machines are specially designed for rapid cutting up of metal scrap and possess the stamina for continuous high speed duty. Blades are set at an angle to the frame so that long bars can be cropped. Many hundreds of these machines are in use.
We are Offering Slag Grinding Machine.
available in Steel Fabricated Body
Heavy Duty Main Dru
Maximum Output with Better Results
Low Power Consumption
Heavy Duty Spherical Roller Bearing
Compact & Modified Design.
We are Offering Slag Grinding Machine.
available in Steel Fabricated Body
Heavy Duty Main Dru
Maximum Output with Better Results
Low Power Consumption
Heavy Duty Spherical Roller Bearing
Compact & Modified Design.
We Offer Shaping Machine.
a Shaper is a Type of Machine Tool that Uses Linear Relative Motion Between the Workpiece and a Single-point Cutting Tool to Machine a Linear Toolpath. Its Cut is Analogous to that of a Lathe, Except that It is (archetypally) Linear Instead of Helical. (adding Axes of Motion Can Yield Helical Toolpaths, as also Done in Helical Planing.) a Shaper is Analogous to a Planer, But Smaller, and with the Cutter Riding a Ram that Moves Above a Stationary Workpiece, Rather Than the Entire Workpiece Moving Beneath the Cutter. the Ram is Moved Back and Forth Typically By a Crank Inside the Column; Hydraulically Actuated Shapers also Existrke Roller Guides Can Be Used for the Guiding of Many Sections such as Leader and Breakdown Ovals, Squares, Hexagons, and Octagons. the Roller Guide Can Be Used for Hand Rolling, Continuous and Repeater Rolling, and Enable the Last Method Be Used Even for Small Leader Ovals Down to 5mm Round. the Rolling of Large Rounds is Made Much Easier By the Use of Roller Guides.
the Roller Guides are Delivered to Suit Ant Type of Rest Bar.
rollers are Fitted with Strongest Ball/ Roller Bearings. the Rollers are from Special High- Carbon, High- Chrome Steel.
fixing and Replacement of the Entry Made from Alloy Cast Iron Can Be Performed to Their Function Quickly.
We Offer Shaping Machine.
a Shaper is a Type of Machine Tool that Uses Linear Relative Motion Between the Workpiece and a Single-point Cutting Tool to Machine a Linear Toolpath. Its Cut is Analogous to that of a Lathe, Except that It is (archetypally) Linear Instead of Helical. (adding Axes of Motion Can Yield Helical Toolpaths, as also Done in Helical Planing.) a Shaper is Analogous to a Planer, But Smaller, and with the Cutter Riding a Ram that Moves Above a Stationary Workpiece, Rather Than the Entire Workpiece Moving Beneath the Cutter. the Ram is Moved Back and Forth Typically By a Crank Inside the Column; Hydraulically Actuated Shapers also Existrke Roller Guides Can Be Used for the Guiding of Many Sections such as Leader and Breakdown Ovals, Squares, Hexagons, and Octagons. the Roller Guide Can Be Used for Hand Rolling, Continuous and Repeater Rolling, and Enable the Last Method Be Used Even for Small Leader Ovals Down to 5mm Round. the Rolling of Large Rounds is Made Much Easier By the Use of Roller Guides.
the Roller Guides are Delivered to Suit Ant Type of Rest Bar.
rollers are Fitted with Strongest Ball/ Roller Bearings. the Rollers are from Special High- Carbon, High- Chrome Steel.
fixing and Replacement of the Entry Made from Alloy Cast Iron Can Be Performed to Their Function Quickly.

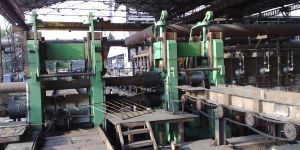

Section cum Structure mills with Rolls 250 to 750 mm diameter are employed for the production of rounds and squares from 8 to 150mm in size, Beams and Channels from 50 to 300 mm in depth, Angles from 20 x 20 to 200 x 200 mm in size and other section. In accordance with the size of section they accommodate, these mills are often further classified as heavy-section mills with Rolls from 500 to 750 mm diameter, medium-section mills with 350 to 500 mm diameter rolls, and light-section mills in which the rolls are from 250 to 350 mm in diameter.
Section cum Structure mills with Rolls 250 to 750 mm diameter are employed for the production of rounds and squares from 8 to 150mm in size, Beams and Channels from 50 to 300 mm in depth, Angles from 20 x 20 to 200 x 200 mm in size and other section. In accordance with the size of section they accommodate, these mills are often further classified as heavy-section mills with Rolls from 500 to 750 mm diameter, medium-section mills with 350 to 500 mm diameter rolls, and light-section mills in which the rolls are from 250 to 350 mm in diameter.
The rotary shear is used for cutting off the rod for two purposes:
For removal of front and back ends
For cutting the long length of a bar into smaller commercial lengths.
The rotary cutters of EN - 24 steel, are mounted on a swivelling housing along with the motor and transmission gears. The speed of the cutters is synchronized with mill speed so that a neat cut is obtained
The rotary shear is used for cutting off the rod for two purposes:
For removal of front and back ends
For cutting the long length of a bar into smaller commercial lengths.
The rotary cutters of EN - 24 steel, are mounted on a swivelling housing along with the motor and transmission gears. The speed of the cutters is synchronized with mill speed so that a neat cut is obtained
By using roller guides instead of friction guides on hot mills, the following advantages may be obtained:
Increased accuracy
Less scrap
Reduced operating costs
Increased output
RKE roller guides can be used for the guiding of many sections such as leader and breakdown ovals, squares, hexagons, and octagons. The roller guide can be used for hand rolling, continuous and repeater rolling, and enable the last method be used even for small leader ovals down to 5mm round. The rolling of large rounds is made much easier by the use of roller guides.
The roller guides are delivered to suit ant type of rest bar.
Rollers are fitted with strongest Ball/ roller bearings. The rollers are from special high- carbon, high- chrome steel.
Fixing and replacement of the entry made from alloy cast iron can be performed to their function quickly.
By using roller guides instead of friction guides on hot mills, the following advantages may be obtained:
Increased accuracy
Less scrap
Reduced operating costs
Increased output
RKE roller guides can be used for the guiding of many sections such as leader and breakdown ovals, squares, hexagons, and octagons. The roller guide can be used for hand rolling, continuous and repeater rolling, and enable the last method be used even for small leader ovals down to 5mm round. The rolling of large rounds is made much easier by the use of roller guides.
The roller guides are delivered to suit ant type of rest bar.
Rollers are fitted with strongest Ball/ roller bearings. The rollers are from special high- carbon, high- chrome steel.
Fixing and replacement of the entry made from alloy cast iron can be performed to their function quickly.

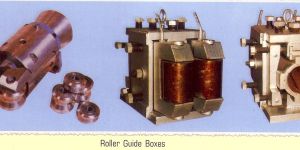

We Offer Roller Guide Box, Twister Guide Box.
by Using Roller Guides Instead of Friction Guides On Hot Mills, the Following Advantages May Be Obtained:
Increased Accuracy
Less Scrap
Reduced Operating Costs
Increased Output
rke Roller Guides Can Be Used for the Guiding of Many Sections such as Leader and Breakdown Ovals, Squares, Hexagons, and Octagons. the Roller Guide Can Be Used for Hand Rolling, Continuous and Repeater Rolling, and Enable the Last Method Be Used Even for Small Leader Ovals Down to 5mm Round. the Rolling of Large Rounds is Made Much Easier By the Use of Roller Guides.
the Roller Guides are Delivered to Suit Ant Type of Rest Bar.
rollers are Fitted with Strongest Ball/ Roller Bearings. the Rollers are from Special High- Carbon, High- Chrome Steel.
fixing and Replacement of the Entry Made from Alloy Cast Iron Can Be Performed to Their Function Quickly.
We Offer Roller Guide Box, Twister Guide Box.
by Using Roller Guides Instead of Friction Guides On Hot Mills, the Following Advantages May Be Obtained:
Increased Accuracy
Less Scrap
Reduced Operating Costs
Increased Output
rke Roller Guides Can Be Used for the Guiding of Many Sections such as Leader and Breakdown Ovals, Squares, Hexagons, and Octagons. the Roller Guide Can Be Used for Hand Rolling, Continuous and Repeater Rolling, and Enable the Last Method Be Used Even for Small Leader Ovals Down to 5mm Round. the Rolling of Large Rounds is Made Much Easier By the Use of Roller Guides.
the Roller Guides are Delivered to Suit Ant Type of Rest Bar.
rollers are Fitted with Strongest Ball/ Roller Bearings. the Rollers are from Special High- Carbon, High- Chrome Steel.
fixing and Replacement of the Entry Made from Alloy Cast Iron Can Be Performed to Their Function Quickly.

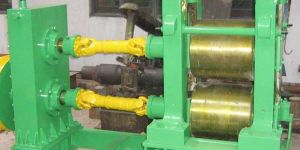

In a Rod Mill, the pinch roll is used for moving the material further when bar has left the mill stand.
The main housing of Pinch roll is made from Cast iron, and fitted with EN - 9 rolls with spherical roller bearing housed in steel chocks. The tap roll setting device consists of screw down screw of EN - 8 with gun metal nut. The top roll is also spring loaded with helical spring for balancing.

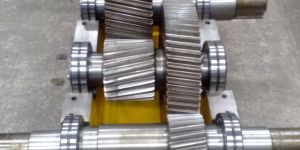

Gear box: The main body is fabricated from M.S.plate. The gears of EN-9 steel fitted on two shaft of EN-8 steel run on antifriction bearings. The gears and the bearings run in oil bath and provide adequate lubrication at all times.

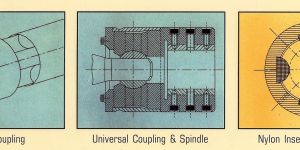

Spindle: The pinch roll and the gear box are coupled with two nos. Universal type spindle.
Motor: The motor is coupled to one of the shaft by vee-belts.
Base: The whole equipment is mounted on one common base plate fabricated from steel.
In a Rod Mill, the pinch roll is used for moving the material further when bar has left the mill stand.
The main housing of Pinch roll is made from Cast iron, and fitted with EN - 9 rolls with spherical roller bearing housed in steel chocks. The tap roll setting device consists of screw down screw of EN - 8 with gun metal nut. The top roll is also spring loaded with helical spring for balancing.
Gear box: The main body is fabricated from M.S.plate. The gears of EN-9 steel fitted on two shaft of EN-8 steel run on antifriction bearings. The gears and the bearings run in oil bath and provide adequate lubrication at all times.
Spindle: The pinch roll and the gear box are coupled with two nos. Universal type spindle.
Motor: The motor is coupled to one of the shaft by vee-belts.
Base: The whole equipment is mounted on one common base plate fabricated from steel.

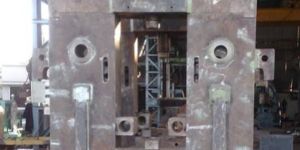

We are Offering 3 Hi/2 Hi Mill Stands are of Steel/cast Iron Machined Accurately and Fitted with Linear Pads of High Grade Steel to Prevent the Housing from Wear & Tear. the Mill Housing in Tighter On the Bed Plate After Proper Spacing Along with Rest Bars.
roll Bearing Chocks are Cast Out of Steel to Match with the Mill Housing Window. the Chocks are Fitted with Fibre Bearing or Roller Bearing as Required.
top Roll Setting is Through Screw Down and Turnstyle Balancing Spring. Bottom Roll Setting is Through Adjustable Taper Wedge Arrangement Operated By Screw & Nut Through Turnstyle.
We are Offering 3 Hi/2 Hi Mill Stands are of Steel/cast Iron Machined Accurately and Fitted with Linear Pads of High Grade Steel to Prevent the Housing from Wear & Tear. the Mill Housing in Tighter On the Bed Plate After Proper Spacing Along with Rest Bars.
roll Bearing Chocks are Cast Out of Steel to Match with the Mill Housing Window. the Chocks are Fitted with Fibre Bearing or Roller Bearing as Required.
top Roll Setting is Through Screw Down and Turnstyle Balancing Spring. Bottom Roll Setting is Through Adjustable Taper Wedge Arrangement Operated By Screw & Nut Through Turnstyle.
3 Hi / 2 Hi mill stands are of steel / cast iron machined accurately and fitted with linear pads of high grade steel to prevent the housing from wear & tear.
The mill Sit tighter on the Bed plate after proper spacing along with rest bars.
Roll bearing Chocks are cast out of steel to match with the mill housing window The chocks are fitted with fiber bearing or roller bearing as required.
Top roll setting is through screwdown and turn style balancing spring. Bottom roll setting is through adjustable taper wedge arrangement operated by screw & nut through turnstyle.
3 Hi / 2 Hi mill stands are of steel / cast iron machined accurately and fitted with linear pads of high grade steel to prevent the housing from wear & tear.
The mill Sit tighter on the Bed plate after proper spacing along with rest bars.
Roll bearing Chocks are cast out of steel to match with the mill housing window The chocks are fitted with fiber bearing or roller bearing as required.
Top roll setting is through screwdown and turn style balancing spring. Bottom roll setting is through adjustable taper wedge arrangement operated by screw & nut through turnstyle.
Types of rolls:
Alloy cast steel rolls.
Definite chilled rolls- DPCC.
Indefinite chilled rolls - DPIC.
Alloy steel base rolls/ adamite.
Spheroidal graphic (nodular) cast iron.
S.G iron or Ductile iron rolls in wide range of hardness.
Types of rolls:
Alloy cast steel rolls.
Definite chilled rolls- DPCC.
Indefinite chilled rolls - DPIC.
Alloy steel base rolls/ adamite.
Spheroidal graphic (nodular) cast iron.
S.G iron or Ductile iron rolls in wide range of hardness.
We Offer Magnetic Separator.
specification
3-hi & 2-hi Pinion Stands
Ranging Between 4" Pcd to 24" Pcd
Teeth in Dp as Well as Module System.
Salient Features
Available in Steel Fabricated Body
Heavy Duty Main Drum
Low Power Consumption
Heavy Duty Spherical Roller Bearing
Compact & Modified Design.
We Offer Magnetic Separator.
specification
3-hi & 2-hi Pinion Stands
Ranging Between 4" Pcd to 24" Pcd
Teeth in Dp as Well as Module System.
Salient Features
Available in Steel Fabricated Body
Heavy Duty Main Drum
Low Power Consumption
Heavy Duty Spherical Roller Bearing
Compact & Modified Design.
