Industrial Coupler Dealers in Kolkata

The Flexocon Tyre coupling is primarily designed to allow for misalignment both angular and parallel and compensates for end float. Torsional vibration is reduced and shock loads minimized by the flexing body. The Flexocon Tyre coupling has been successfully subjected, under normal circumstances, to angular misalignment up to 4째, parallel misalignment up to 3mm and end float up to 8mm. The design of the Flexocon Tyre coupling having a flexing member with remarkable durability suppresses the Initial shock load and eliminates to a marked degree the stresses common to power driven machinery.     Features   Highest Misalignment tolerance     Parallel : 3 mm.      Angular : Max 4 degree     End float : Max 8 mm.  Better protection in impact loads & heavy shocks.  Easy to assemble & dissemble.  No need for lubrication.

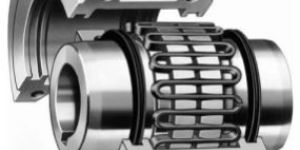

Our range of Resilient Couplings give you a combination of advantages of high power rating of a gear coupling and flexibility of elastomer coupling. They are easy to install and simple to maintain. The flexible grids are quickly replaceable without disturbing the connected equipment. Resilient Couplings are available in broad range of sizes covering from 0.45 kW to 1307 kW per 100 rpm and bores upto 267mm. CONSTRUCTION : A High torque Resilient Coupling basically comprises a grid spring which connects two hubs – one on the driving and the other on the driven shafts – through axially cut grooves around the peripheries of the two hubs. The spring, which is of special design compatible to the required characteristics of the system, form a series of resilient bridges along the grooves. The grooves are flared to allow the grid members long flexible spans under normal loads as well as better support by the sides of the grooves under over load conditions. The stiffness of the spring and thus the coupling depends on the length of each flexible span not in the contact with the grooves. Subsequently, the contact length changes with every variation in torque, resulting in change in the stiffness of the coupling at every instant during a vibration cycle. Consequently this produces a powerful detuning action resulting in continuous alteration of the torsional vibration frequency and prevention of a build up of resonance in the system. The principle of design adopted in Resilient Coupling, makes it capable to accommodate considerable axial, parallel and angular misalignment between a driving machine and a driven machine. Simultaneously, it can absorb considerable overloads due to high torque with consequent reduction in wear and tear on plants and machinery. With the use of resilient couplings, break-down and down time in any manufacturing unit, will be minimum.

Miller UK Ltd. ,is an organisation which has revolutionised the way attachments like rock breakers etc are being handled on hydraulic excavators. The Miller Quick Hitch Coupler will increase your efficiency, enhance performance and increase productivity. It will transform your hydraulic excavator from a machine that simply digs, to a multi tool carrier capable of carrying out a number of tasks on site and all at the flick of a switch from the comfort and safety of the cab.We produce innovative solutions that are designed to provide operators with the latest techniques available to help make on site tasks easier. With thousands of couplers supplied to a worldwide customer base we are without question the global leaders in Pin Grabber Quick Coupler technology.

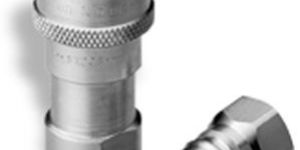

Quick release coupling without the ability to immediately cut off sections of your system, you run the risk of enabling permanent damage to occur. You need to make the most of high-performing and fluid-resistant hydraulic quick release couplings to ensure the security of your system. Our models of hydraulic quick release couplings are available in a range of sizes, in both female and male connective designs. Ss camlock couplings as with all of our hose coupling types, this range of stainless steel cam lok fittings enable you to connect and disconnect your hosing quickly and easily. Manufactured to close tolerance in 316 grade stainless steel, this leading class of products represent the best in production at an economical price. The arms fold down into position for a secure join, and are available in female bsp thread we stocks all kinds fittings like camlock couplings, qrc, male fittings, female fittings, flange and we make non-standard fittings as per order.

Stationed in Kolkata(India), our organization is one of the prime most providers in the industry today. Designed to brave shipping and handling related damages, our packaging materials are industrial grade and keep the products protected. Thus, ensuring products remain brand new.   Features : Great strength Fine finish Long service life

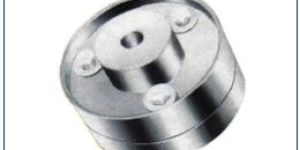

The construction of Techstar Pin Bush type flexible coupling is simple and compact. The flanges are made of C.I. confirming to FG 200 I.S : 210-1978 and pins which transmit torque, are made of high tensile steel. Highly developed rubber compound is used in bushes to capable to work in all most all the environments normally found in Indian industries. Where oil, grease, acid, heat etc. are present,

Our company has gained immense recognition in the construction industry for manufacturing and exporting an impeccable range of Girder Coupler. Immensely used for installation scaffolds, these couplers have accurate dimensions and rigid construction that allow the heavy scaffolds to stand straight on the ground. Only quality tested raw materials are used for manufacturing these couplers. Available in different specifications, our entire stock of Girder Coupler is tested on various quality standards before supplying to market.

We Offers Flexible Gear Coupling Which are Used to Connect Motor to Fly Wheel and Fly Wheel to Reduction Gear and Reduction Gear to Pinion Stand with Various Range Size G-1 to G- 20. the Coupling is Triple Crowned Double Engagement Type. Max Torque 152000kgm Hex Bolt are Hardened and Ground to Fit Reamed Hole of Coupling. if Intersted Feel Free to Contact.

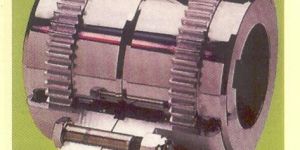

Unique gear couplings is a range to cater for torque ratings upto 114000 nm with triple crowning on gear teeth provide a most reliable and economic solution to many drive requirements. Superior sealing and higher bore capacities are features of these couplings, also available in spacer design, floating drive shafts with solid or light weight tubular intermediate shafts and with shifter arrangement for manual disengagement of drive, piloting on tooth ensures greater concentricity/better dynamic balance.   Key Features   Teeth Curved as well as barreled Improved Seals – Perform much better than O rings Full Teeth engagement – Reduces uneven wear Piloting on Teeth OD – Ensures better dynamic balance Higher Bore capacities Compact Wide Range – Full Gear , Semi Gear , Spacer Couplings Full Floating & Semi Floating Shafts

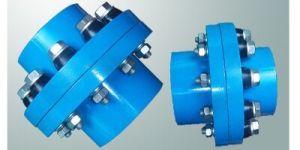

Flexocon Pin bush type flexible Couplings are of the cushioned drive type, transmitting the torque, through high Tensile bolts to the machine input shafts. Special Rubber Compounds are used in bushes so that it can absorb slight misalignments, tensional vibration and shock loads. The flanges are made of high grade cast iron. For special applications cast steel flanges are also manufactured. Flexocon offer 20 standard models of Pin bush coupling with rating range from 0.81 KW to 249 KW at 100 rpm. Flexocon also manufacture Pin bush type Brake Dum cum flexible couplings of different diameter to suit standard as well as non standard brakes.   Features No lubrication required. Accommodates misalignments. Damps out vibration. Reversing resiliency against shocks. Easy installation and removal. Inexpensive.

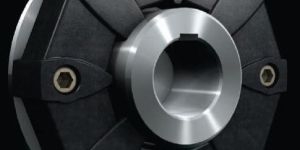

Smooth and compact design The coupling requires no maintenance which saves you a lot of money The rubber parts suffer no wear and tear giving it a long useful life Subject to only compressive stress High torsional elasticity Compensates much of the axial, radial and angular misalignments Dampens shocks and vibrations Easy to handle and mountable with minimum work Easy to fit and dismantle without any use of special tools ORDER FROM US! Our company has emerged as one of the most trusted Centaflex Couplings Exporters In India. Our only promise is that we give you impeccable customer experience. We have earned the respect of our clients for always delivering our products within the agreed time. Buy from us to get it as soon as possible.

We offer gear coupling, half geared half rigid coupling, full gear coupling, mill motor type gear coupling, brake drum type gear coupling, half rigid gear coupling, gear coupling as per drawing dimension, shearpin type gear coupling, etc.

Straight Through QRC is a double path open type coupler which does not have a valve mechanism at either the socket nor the plug. It is used in piping systems in which blocking of the fluid when disconnected is unnecessary and closure of lines is achieved by back up valves. This permits full flow capability due to their smooth and accurately finished bores. Feature Since the pressure loss is small, it is ideal for High viscosity fluid. Hose end, screw end (male screw, female screw) and a variety of other types are also available.

Rubber Tyre Couplings comprise of rubber tyre which connects two metal hubs - one on the driving shaft and the other on the driven shaft. Rubber Tyre Couplings provide resiliency to the tyre coupling, which ultimate makes them capable of absorbing shock load, parallel misalignment upto 4mm, angular misalignment upto 4o, end float upto 5mm or combination of all misalignment depending upon the size of the coupling. Design and Construction Mounting on and dismantling from shafts can be easily accomplishedInspection of components can be carried out without dismantling of couplingTyre element can be easily replaced without disturbing the alignment of the installationNo lubrication is needed

We are a prominent manufacturer and supplier of a comprehensive range of Forged Couplers that is widely acknowledged for its precise dimensions and high tolerance. Fabricated using optimum quality raw materials, our array of Forged Couplers is highly in demand in the market and can be availed in varied sizes, weights and dimensions. Besides, these couplers provide a strong grip and are competitively priced. Appreciated for : Corrosion resistanceDimensional accuracyEasy installationHigh tensile strengthTrouble-free operationLow maintenance Applications : Construction industryMaintenance industryEngineering industryAutomobile industry

Metal Grid type coupling are used where transmission of high power is required. Tyre type couplings are best for low power transmission; they are also flexible in case of out of alignment

By keeping records of the clients' requirements, we have developed a system that offers several options for transferring money from one end to another. With the aid of diligent team of professionals and brilliant packaging system, we are able to meet standard as well as tailored packaging requirements of the patrons.   Introduction :  TC introduces unique replacement for Gear Coupling.The TBC type coupling constructed by Cast Steel and Heavy duty Rubber Blocks.Rubber blocks are available in different stiffness to match the application requirement.   Industry Applications : Mines- Conveyor, Crusher, Feeder Breaker. Cement- Raw Mill, Coal Mill, Cement Mill, Fan. Thermal Power - Bowl Mill, Conveyor, Crusher. Others- Fans, Pumps, Compressor, Generator etc.   Salient Features : Severe shock load protection avoiding failure of the driveline under high transient torques. Intrinsically fail safe ensuring continuous operation of the driveline in the unlikely event of rubber failue or damage. Maintenance free with no lubrication or adjustment required resulting in low running costs. Vibration control achieving low vibratory loads in the driveline components by selection of optimum stiffness characteristics. Zero backlash eliminating torque amplifications through pre -compression of the rubber elements. Misalignment capability allows axial and radial misalignment between the driving and driven. Future Replacement parts is the only Rubber Blocks & Replacement time is very low.

Highspeed brand shimoflex all metal flexible couplings have flexible disc rings of special grade spring steels.s to transmit the power and compensates for parallel, angular misalignment and end-float.

These type of Couplings are used in hubless cast iron sanitary ans atorm drain, waste and vent piping applications to connect hublesss cast iron soil pipe and fittings.
