SM Flow & Controls Pvt. Ltd. BBD Bag, Kolkata, West Bengal

Type: Teflon Lined Strainer Design: Basket Type Size Range: 25mm to 150mm Pressure Rating: Class 150# End Connection: Flanged End MOC - Body & Ends: ASTM A 106 Gr.B (SCH-40) MOC - Flange: ASTM A 105, IS 2062 Lining Thickness: 3 to 5mm Lining Options: PFA, FEP Applications: Valve suitable for various corrosive applications Applicable Standards: Driling Standard: ASA # 150 / DIN 2632 / 2633 / BS 10 Table D, E,F Flange Standard: As per ANSI B16.5 Test Hydraulic Test: Body (Shell) - 20 Kg/cm2 Spark Test: 15 K.V.D.C

Type: Teflon Lined Check Valve Design: Ball Type Design Size Range: 15mm to 200mm Pressure Rating: Class 150# End Connection: Flanged End MOC - Body & Ends: Ductile Iron GGG40.3 / ASTM A395 Cast Steel ASTM A216 Gr. WCB ASTM A315 Gr. CF8 / S.S.304 ASTM A351 G.r. CF8M / S.S.316 Lining Thickness: 3 to 5mm Lining Options: PFA, FEP, ETFE, PVDF Applications: Valve suitable for various corrosive applications Applicable Standards: Testing Standard: BS 6755 (Part 1) Flange Standard: As per ANSI B16.5 / B16.42 Driling Standard: ASA # 150 / DIN 2632 / 2633 / BS 10 Table D, E,F Face to Face Standard: ANSI B 16.10 / DIN 3202 / BS EN 558-1&2 Test Hydraulic Test: Body - 15 Kg/Cm2, Back Seat - 2 Kg/cm2 Spark Test: 15 K.V.D.C

Type: Teflon Lined Butterfly valve Design: Wafer Design Size Range: 50 NB to 600 NB Pressure Rating: Class 150# End Connection: Flanged End MOC - Body & Ends: Ductile Iron GGG40.3 / ASTM A395 Cast Steel ASTM A216 Gr. WCB ASTM A351 Gr. CF8 / S.S.304 ASTM A351 G.r. CF8M / S.S.316 Cast Iron IS2108 FG 260 Lining Thickness: 3 to 5mm Lining Options: PTFE/ PFA /FEP /ETFE Applications: Valve suitable for various corrosive applications Applicable Standards: Testing Standard : BS EN 12266-1 & 2 (2003) Design Standard: BS EN 593 : 2004 (Formerly BS 5155) Face to Face: API 609 / DIN 3202 K1 / BS 5155 / ISO 5752 / BS EN 558-1/2 Drilling: ANSI B16.5 / DIN PN 10/16 Test Hydraulic Test: Body (Shell) - 20 Kg/Cm2, Seat - 11Kg/cm2 Pneumatic Test: Seat- 6 Kg/cm2 Spark Test: 15 K.V.D.C

Type: Teflon Lined Ball Valve Design: Maintenance Free Glandless with Integral Ball & Stem as 1 piece Body in Two pc. Design Regular port Size Range: 15 to 200mm Pressure Rating: Class 150# End Connection: Flanged End MOC - Body & Ends: Ductile Iron GGG40.3 / ASTM A395 Cast Steel A216 Gr. WCB ASTM A315 Gr. CF8 / AISI S.S.304 ASMA A CF8M / AISI SS 316 Cast Iron IS2108 FG 260

Type: PP Non Return Valve - Flanged End Size Range: 1" to 8" ( 25mm to 200mm) Pressure Testing (max): Body 150 PSI Temp. 80 degree C Seat 100 PSI End Connections: Flanged As per ANSI B 16.5 (150#) / As per BS 10 table (D/E/F) / DIN STD MOC - BODY: PP / HDPE / IS PP / PVDF

PP Foot Valve - Flanged End Type: PP Foot Valve - Flanged End Size Range: 1" to 8" ( 25mm to 200mm) Pressure Testing (max): Body 150 PSI Temp. 80 degree C Seat 100 PSI End Connections: Flanged As per ANSI B 16.5 (150#) / As per BS 10 table (D/E/F) / DIN STD MOC - BODY: PP / HDPE / IS PP / PVDF

PP Flow InDiactor Type: PP Flow Indicator - Flanged End Design: 3 Piece Design, Full Bore, Borosil Glass, Teflon Seated Size Range: 20mm to 150mm  Pressure Testing (max): Body 150 PSI Temp. 80 degree C Seat 100 PSI End Connections: Flanged As per ANSI B 16.5 (150#) / As per BS 10 table (D/E/F) / DIN STD MOC - BODY: PP / HDPE / ISOPP / PVDF

Type: PP Diaphragm Valve Flanged End Size Range: 15 mm to 150mm Pressure Testing (max): Body 150 PSI Temp. 80 degree C Seat 100 PSI End Connections: Flanged As per ANSI B 16.5 (150#) / As per BS 10 table (D/E/F) / DIN STD MOC - BODY: PP / HDPE / ISOPP

Type: PP Butterfly Valve Design: Wafer design to fit between Flanges of ANSI B 16.5 Class 150# Size Range: 2" to 8" ( 50mm to 200mm) Pressure Testing (max): Body 150 PSI Temp. 80 degree C End Connections: Wafer end MOC - BODY: PP / HDPE / ISO PP / PVDF

Type: Ball valve Design: Standard two way Single pc. Design/two pc. Design/three pc. Design Full port/Regular port Size range: 8mm to 65 mm Pressure Rating: Class 150# / Class 300# / Class 800# End Connections: Screwed end / Socket weld / Butt weld MOC - Body and Ends: Carbon Steel ( ASTM A216 Gr WCB) Stainless Steel ( CF8, CF8M,) MOC - Seats: PTFE TFM Glass filled PTFE Carbon filled PTFE Applications: Standard Valves Applicable Standards: ASME B16.34 ASME B16.10 EN 12266-1 Face To Face: As per ANSI B 16.10

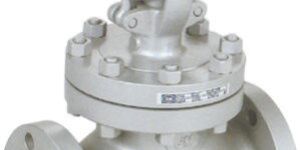

Design STD: As per BS 1873 Face to Face: As per ASME B 16.10 Flange: AS per ASME B 16.5 Testing STD: AS per API 598, ISO 5208 Size: 15 TO 300 M.M.(1/2" to 12") Pressure Rating: Class 150# / Class 300# / Class 600# / Class 900# End Connection: Flanged End MOC: Body: WCB, CF8, CF8M etc. Gate: Ca-15, CF8, CF8M etc. Trim: 13% Cr., SS 304, SS316

Type: Gate Valve Design STD: As per API 6D, API 600, BS 1414 Face to Face: As per ASME B 16.10 Flange: AS per ASME B 16.5 Testing STD: AS per API 598, ISO 5208 Size: 15mm TO 300 MM Seat: Replaceable Pressure Rating: Class 150# / Class 300# / Class 600# / Class 900# End Connection: Flanged End MOC: Body: WCB, CF8, CF8M etc. Gate: Ca-15, CF8, CF8M etc. Trim: 13% Cr., SS 304, SS316

Type: PP Ball valve Flanged End Design: 3 Piece Design , Single Piece Stem (Spindle) Reinforced Ball , Teflon Seated , Full Bore Size Range: 15 mm TO 200mm Pressure Testing (max): Body 200 PSI Temp. 100 degree C Seat 150 PSI End Connections: Flanged as per ANSI B (150#) As per BS 10 table (D/E/F) Din STD MOC - BODY: PP/HDPE/ISOPP

Type: Teflon Lined Plug Valve - Non Jacketed Design: Totally Maintenance Free Design Size Range: 15mm to 250mm Pressure Rating: Class 150# End Connection: Flanged End MOC - Body & Ends: Ductile Iron GGG40.3 / ASTM A395 Cast Steel ASTM A216 Gr. WCB ASTM A351 Gr. CF8 / S.S.304 ASTM A351 G.r. CF8M / S.S.316 Cast Iron IS2108 FG 260 Lining Thickness: 3 to 5mm Lining Options: PTFE/ PFA /FEP /ETFE Applications: Valve suitable for various corrosive applications Applicable Standards: Testing Standard : BS EN 12266-1 & 2 (2003) Design Standard: BS EN 593 : 2004 (Formerly BS 5155) Face to Face: API 609 / DIN 3202 K1 / BS 5155 / ISO 5752 / BS EN 558-1/2 Drilling: ANSI B16.5 / DIN PN 10/16 Test Hydraulic Test: Body (Shell) - 20 Kg/Cm2, Seat - 11Kg/cm2 Pneumatic Test: Seat- 6 Kg/cm2 Spark Test: 15 K.V.D.C
