Smartpower Automation Bara, Kolkata, West Bengal

Power : 4.5W

Universal RF (Radio frequency 433.92Mhz) Remote Controller & Receiver are used in Door & Gate Automation. This can be used in Rolling Shutters - Tubulors motors Rolling Shutters - Side motros Rolling Shuters - Central Motors Sliding Gate Motors Swing Gate Motors Boom Barriers Curtins & Blinds

Tubulor Motors are used in small size rolling shutters up to 100 sq feet. It removes traditional spring system and uses a 80 mm hollow pipe. The motor is inserted in the 80 mm pipe and can be operated by a remote or switch.

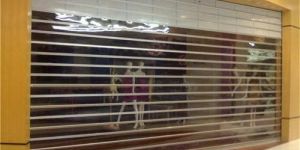

Transparent PVC rolling doors are mainly used in shopping malls to display goods 24 hr x 365 days. It is made of PVC slats of size say 300mm x 100 mm each, which are joined through stainless steel pipes.

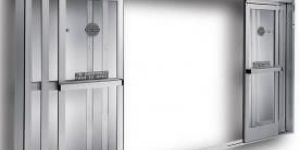

Telescopic Auto Door used where large opening are needed.  It can provide 66% openings, whereas ordinary glass sensor door provide less than 505 openings. It is made of dual track system There are various types of Auto Sensor Door available - 1) Sliding Sensor Door 2) Swing Sensor Door 3) Revolving Sensor Door 4) Telescopic Sensor door

Auto swing gate motors have been prevalent in the west for the last decade and now it's coming to India. Consists of two extended, synchronized, arms that are attached on the two flaps of your existing swing gate.  ARM type Swing Gate Operators are widely used in Gate Automation. Suitable for upto 300kg / 3 meter per leaf gates.

Sliding Gate Operator are specially designed Motors to operate Sliding Gates.It can be operated electrically and operated by switch, remote or any other access control system.

Side Motors are used in heavy duty rolling shutters upto 1500 sq feet. There are two type os side motors. they can operate with remote control and electric switch. During power fail chains are used to open the door. A) Chain type - are commonly used in all rolling suhtters motorization purpose. B ) Gear type - are more reliable but not flexible in practical applications.

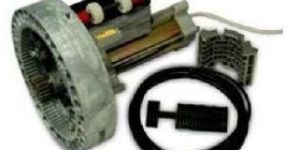

Central Motors are used in Rolling Shutters upto 200 sq feet. It can be operated by remote control and ordinary switch. During power fail, it allows to operate the rolling by hand. Fitted at the Center of Spring System Suitable for up to 280 Kg Rolling Door Manual Operation on Power Fail Clutch Key for Locking (Optional) 100% safety due to Spring System Re-mote Control (Optional).

Smartpower   DOOR ACCESS CONTROL SYSTEM is allows selective Entry of people vide RFID Access Control Card or  Digital Keypad . It also allows Entry or Exit vide Remote Control . EXIT is allowed by a Manual PUSH Switch also. For smooth operation of the system 24 hour power is needed.    RFID ACCESS CONTROL (Picture 2) as shown below is a control system whichallows selective Entry of people vide RFID Access Control Card or Digital Keypad. It also have provision to connect Door Bell so that when the unknown visitor comes, the people inside can decides and can open the door from inside by Remote or EXIT Push switch.

Auto Revolving Door are mainly used in Shoppimg Malls, Hotels and offices. Ordinaryglass sensor door cannot maintain 100% isolation between inside and outside air, which result in huge air conditon loss in summer or heat loss during winter. Revolving doors provide full isolation between inside and outside of a building door. They are available in 3 or 4 wings model. At a time only 2 wings are open to outside and hence isolation is maintained. Its structure is made on stainless steel or aluminum, the normal door diameter is .6 ~ 3 Meter diameter and  2.2 Meter height with 300mm canopy. It also has  German SEC Motor with Panasonic controller European Sensors Heavy duty 24 hr x 365 days operation Available in 3 / 4 wings Aluminum & SS#304 frame with Toughen Glass.

Remote controlled Door Lock systems are widely used in 2~5 stories housed and villa. People want to OPEN the door from home using remote and switch. It is a low cost solution for people who want to avoid video door phones.

PIR Motions Sensor ( Pyro Electric Motions sensors) senses Infra Red heat sensor emitted from human body. When the human being moves on, the head waves emiited by their body changes the Infra Red wave gradient, this change is detected by the PIR Motion sensor (also called smart switch) and activates a relay. This relay switches ON / OFF a Light or FAN or Alarm etc. These sesnors also have builtin LUX( Luminance intensity of light) control switch, according to which it works. The LUX sense can vary from 20 LUX( extreme dark) to 20000 Lux( bright sun light). The Smart switch can be operated as per the need. It can be set to Switch On light only after sunset and switch OFF light after sun rise. These smart switch also have sensitivity parameter adjustment, so that the relay is not operated by a moving rat or butterfly or cat. It is set in the manner so that a Dog of atleast 20 kg ( similar to the weight of a small child) is required to sense the relay. PIR sensor can be of many types - A) Wall Mounted PIR sensor - can sense from 12 meter distance in 120 degree angle. B) Ceiling mounted PIR sensor - can sense from 3~4 meter in 360 degree 3 meter diameter.  In addition to the above, water proof model, out door models etc are avaibale in variour size and l

Wireless Parking Fee Management System - is widely used in Shopping Malls, Bus Stand, Apartment complex,Airport, Railway Station, Public places etc. In this RFID card based Parking FEE Management System no wires are used between Entry & Exit Gates. Multiple Entry and exit Gates can be controlled by one software. Simple RFID reader is used at Entry Gate and POS system at Exit Gate, both are integrated with Boom Barrier.   The basic features are a) Wireless System b) Multiple Entry & Exit fully Integrated c) Kioks Box with Card Dispensor at Entry & High speed printer with PC at EXIT d) Multiple type of Vehicle allowed e) reports of vechile wise / date wise / time wise / operator wise Fee collection    Operation Principal When the vehicle approaches the parking entry, the vehicle loop detector senses the vehicle and makes system ready, the drives PRESS the push button and takes RFID card from the kiosk.  At the same moment the speaker welcomes the driver and the barrier gate opens. After the vehicle enters, the barrier gate closed automatically. At the Exit Gate the driver shows the card to the EXIT POS (Point of Sale) system. The POS ask for type of vehicle and its vehicle number. The Automatic system calculates the parking FEE, after the FEE is paid, the Barrier Gate Opens and allows the vehicle to exit. Finally the barrier gate closed automatically.

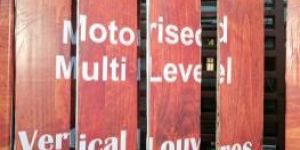

Smartpower Motorized Vertical Louvres are cuistomised in nature, multiple vertical louvers (say 6 nos) or each upto 2 feet wide and 10 feet height can be used to rotate 45 degree / 90 degree / 180 degree / or any arbitrary degree.

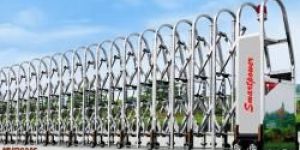

Retractable gates are also called collapsible gates, they are mainly used where large openings are needed. It is made of stainless steel or aluminum. It can give upuo 77% clear openings. the normal height of these gates are 1~2 meters. the standrad height is 1.6 meters. The motors speed is 15 Mt / min Open Time .  They are used as movable remote controlled fencing options. Can be used to cover up or surround a large area in a very short time. The broad build makes it difficult to cross or tamper with. They are available in two types - with or without rail lines. Depending on the customer's requirement. The Stainless steel bodies provide strength and integrity for outdoor operations. Retractable gates can be fitted with Alarm lights or sound - so that people around are alerted while the gate is in operation.

Motorised Curtain up to 20 feet Can Operate with Remote + Switch + Manual Operation Automatic Operation on Hands touch Automatic Limit Switch available Special silent operation

hermetically sealed auto Hospital Doors used in Operation Theatres. It allows to maintain clear air in Operation Theatres. When the doctor to operation inside the door is locked, when the doctors wants to go out, they can open the door with foot sensor.  It is made of stainless steel / aluminum  hermiatically sealed  door.

Country of Origin : India

Type : Automatic Sensor Door

Material : Stainless Steel

Usage : Operation Theatres

Power Source : Electricity

Installation : Wall-mounted

Compatibility : Operation Theatres
