Suburban Industrial Works (Lessee) Diamond Harbour Road, Kolkata, WB

We are offering wall mounted fan. Type: wm - wall mounted axial flow fan with inlet cone as an integral part of the fan. Wheel diameter: 300 mm - 2000 mm. Performance: 1250 - 280000 cmh upto 80 mm wg sp Mounting: wall mounting & panel mounting. Application: same as that of tube axial flow fan.

We are offering Vane Axial Flow Fan. Type: apg-vane axial flow fan. Wheel diameter: 254mm -3000 mm. Performance: 1500-850000 cmh upto 150 mm wg sp in single stage & 300 mm wg in double stage. Mounting: floor mounting. Application: these fans are generally provided for handling large volume of air at comparatively higher pressure. these are provided with outlet guide vanes and may or may not be provided with inlet guide vanes. these fans are used for surface mine ventilation and industrial process cooling application.

We are offering Apg-Vane Axial Flow Fan. Wheel diameter: 254mm -3000 mm. Performance: 1500-850000 cmh upto 150 mm wg sp in single stage & 300 mm wg in double stage. Mounting: floor mounting. Application: these fans are generally provided for handling large volume of air at comparatively higher pressure. These are provided with outlet guide vanes and may or may not be provided with inlet guide vanes. These fans are used for surface mine ventilation and industrial process cooling application.

We are offering tubular centrifugal inline fans. Type: tsl,tubular centrifugal inline fans wheel diameter: 305mm - 2260mm. Performance: 2800 - 377000 cmh upto 300 mm wg sp Application: the tsl fans use aerofoil wheel for quieter operation for supply and exhaust where space is limited.

We are offering Tube Axial Fan. Type: tl & ts -tube axial flow fan withlong casing & short casing with two flanges. Wheel diameter: 300 mm - 2000 mm. Performance: 1250 - 280000 cmh upto 80 mm wg sp. Mounting: duct, floor & wall upto 1200 mm dia. Application: ideal for installation in hospitals, schools, research labs, exhaust air & supply air system. It is most often used in hvac duct system.

We are offering square inline fans. Wheel diameter:311mm - 927mm. Performance: 440 - 47600 cmh upto 114 mm wg sp Application: the ssi's unique inline airflow design provides universal mounting arrangement, high static pressure capability and efficient operation in a compact unit. It is most often used in hvac duct system.

We are offering siac centrifugal backward aerofoil fan. Type: siac centrifugal backward aerofoil narrow width high pressure fan, sisw. Wheel diameter: 600 mm - 2500 mm. Performance: 500 -200000 cmh upto 1000 mm wg spnarrow width hi-effiency aerofoil section blades are non overloading type. Application: these fans are designed for forced draft, glass cooling, combustion air and high pressure process supply aplication.

We are offering Roof Extractor / Roof Ventilator Fan. Type: re -roof extractor / roof ventilator. Wheel diameter: 300 mm -1600 mm. Performance: 1250 - 162000 cmh upto 30mm wg sp Mounting: flat or sloping roofs. Application: roof ventilators are ideal for clean air, low velocity application in both supply and exhaust system.

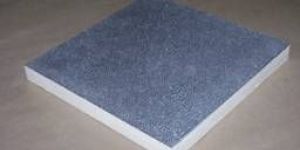

We are offering Pre Insulated Duct Panels. *Poly-isocyanurate foam(PIR)* sandwiched between Aluminum foil, one on each side. Pre Insulated Duct Panels are cost economical (cost saving around 10%), having best Thermal Conductivity, Environmental Friendly (Green Building Product), Fire retardant (Class O BS 476), Anti Rodent, Moisture resistant, Water Resistant, Fast track installation, Acoustic etc. Pre Insulated Duct Panels are one of the best replacements of • GI Ducts with Nitrile/Glass wool insulation for HVAC ducting system. Please find attached herewith the *Company Profile,* *Technical Specifications & Few of the images of Installed site *for your detailed information and review.

We are offering mh- centrifugal radial bladed fan. Type:mh, centrifugal radial bladed fan, sisw wheel diameter:311 mm - 2134 mm. Performance:324 - 500000 cmh upto 500 mm wg sp. The blades welded to the flange and backplate facilitates fabrication from special materials or the application of corrosion -resistant coating necessary for severe operating conditions. Application: the mh wheel is designed to efficient handling of clean air or air containing granular materials, grains, dust, abrasive exhaust from grinding or buffing operations and is utilized in corrosive fume removal.

We are offering mancooler tubular fan. Type: nic -axial flow mancooler tubular type. Wheel diameter: 450 mm - 1200 mm. Performance: 1500 - 90000 cmh at fad. Mounting: floor stand portable or bracket mounting. Application: industrial ventilation, cooling application.

We are offering ls centrifugal radial bladed fan with no front flange, sisw. Type: ls centrifugal radial bladed fan with no front flange, sisw. Wheel diameter:311 mm - 2134 mm. Performance: 324 - 500000 cmh upto 500 mm wg sp the ls cone wheel is fabricated with a heavy gauge back plate but with no front flange. Application: the ls wheel is capable of chopping fibrous material as they are fed into the fan.omission of the flange allow free passage of fibrous material such as wood shavings, ensilage, paper strips, textile products and other materials which normally tend to clog flanged type wheel.

We are offering inline duct fan.

Brand Name : Sarala / CentAxia

We are offering hib -20 & hib-24 hi-efficiency industrial backward cueved fans. Type: hib -20 & hib-24 hi-efficiency industrial backward cueved fans. Wheel diameter: 520 mm - 2305 mm. Performance: 5100 - 340000 cmh upto 1000 mm wg sp Application: these fans are designed to handle clean air or air with light dustloading, the fans are widely used on the clean side of baghouses, in hi-efficiency filtration, forced draft and other high pressure process supply application.

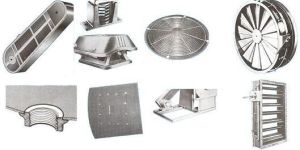

We are offering fans accessories. Outlet dumper fan, variable inlet vane dumper fan, common base frame fan, access door fan, heat slinger, housing drain fan, inlet & outlet safety screens fan, vibration isolater fan, belt guard fan, v-belt drive set fan.

We are offering double curved fan basically backward curved in single and double inlets. Wheel diameter: 305 mm - 2762 mm. Only models 400-1000 si , di are amca certified Performance: 1100 - 625000 cmh upto 250 mm wg sp the impeller has deep, wide blades highly efficient & very rigid on account of double curved feature. Application: these centrifugal fans are having non-overloading characteristics available in single & double inlet for general ventilation, air conditioning system and medium pressure processes where clean air is common.

We are offering Backward Inclined Aerofoil Fan. Type: baf, backward inclined aerofoil in single and double inlets Wheel diameter: 463 mm - 2496 mm. Performance: 2500 - 850000 cmh upto 1000 mm wgsp Application: aerofoil fans are non-overloading, high efficiency type in single & double inlets for general ventilation, air conditioning system and high pressure processes where clean air is common.

We are offering Bifurcated Fan. Type: bf-bifurcated axial flow fan. Wheel diameter: 500 mm -1000 mm. Performance: 1250 - 73000 cmh upto 40 mm wg sp Mounting: inline duct and or wall mounting. Application: these fans are suitable for handling hot, explosive, corrosive and inflammable gases.motor remain outside the air streem.

We are offering backward inclined flat blade fan in single and double inlets. Wheel diameter: 311 mm - 2496 mm. Performance: 1200 - 850000 cmh upto 1000 ' mm wg sp Application: the bc, fans are also non-overloading high efficiency type in single & double inlet designed for similar applications as that of baf fans, but more suitable for higher temperature and humid application.

We are offering Auxiliary Mine Ventilation Fan. Type: amv - auxiliary mine ventilation fan. Wheel diameter: 510 mm. Performance: 18000 - 22000 cmh at 250-60 mm wg Mounting: floor, wall bracket mounting. Application: axial flow auxiliary booster fans with flame proof electricals for underground mine ventilation.

We are offering ah - backward inclined blades. Wheel diameter: 324 mm - 2210 mm. Performance: 230 - 500000 cmh upto 500 mm wg sp the eight backwardly inclined blades are curved slightly to maintain efficient gas flow in the fan. Application: single inlet centrifugal ah fan wheel is custom designed for maximum efficiency while handling hot air, gases, fumes either clean or containing light concentrations of solid materials.

We are offering axial flow fan. 1) tube axial fan 2) wall mounted fan 3) roof extractor/ roof ventilator 4) bifurcated fan 5) mancooler tubular fan 6) vane axial flow fan 7) auxillary mine ventilation fan

Brand Name : Salara, Siwent, Sital, Siwax
