Zephyr Enterprise ( India ) Pvt. Ltd. Baithakkhana, Kolkata, West Bengal

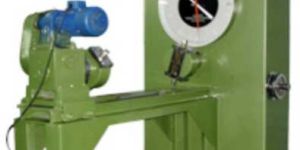

We are proud to say that we are one of the well-known Testing Machines suppliers and manufacturers, based in India. We offer three types of testing machines i.e. universal testing machines, fatigue testing machines, torsion testing machine. Below given are the features of three testing machines. Universal Testing Machine Our Universal Testing Machine comes with Electronic Instrumentation and Software. It has 40 ,60, 100 tons capacity with PC, inkjet Printer, UPS, Key Board, Moniter & Pre-loaded software, Brief Description: The Machine is hydraulically operated. The Power Pack is located in the Control Panel. The Load is applied through Hydraulically Lubricated Ram. An Electronic Pressure Transducers is located in the pipe line in the control panel. This gives load indication in the computer monitor. The indicator has tare & peak hold features. An Electronic Rotary Encoder/LVDT is fitted on the Load Frame which gives accurate indication of displacement of sample on the computer monitor. It also has peak hold & Tare Facility. SOFTWARE is provided which processes the data obtained from the said indication. This also makes the system compactable. PC with Monitor, Key Board and Jetink Printer is provided, when the test is conducted. The graph showing behavior of the specimen under test is displayed on the PC. Monitor. After the Test is complete, on command the Print out can be obtained from the Printer provided. All the calculation/formula is put in the software to give you Net Results. Fatigue Testing Machine The machine is used for metals� reverse bending. The Cantilever Type is supplied complete with jigs and fixtures mounted on elegant table with motor, weights etc. An electronic Digital Revolution Counter registers the number of revolutions taken by the sample to break. The machine automatically stops after the rupture of the specimen. Torsion Testing Machine The machine is designed for conducting torsion and twist tests on various metal Wires/rods. Torque measurement is conducted by Pendulum Dynamometer System. Torque is applied to the specimen by geared motor through gear box.

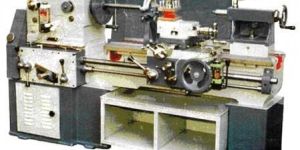

We are one of the leading Industrial Machines manufacturers and suppliers, based in India. We offer two types of industrial machines i.e. center lathe machines and planing machines. Below are the common features of our two industrial machines. Center Lathe Machines Heavy duty, Precision quality, Centre Lathe Machine is fitted with 3-speeds Semi-Norton Gear box, Head-Stock fitted with tapper roller bearings, complete with all standard access, such as: One face plate, one coupline, one steady rest, one follow rest, two morse taper centers, thread dial indicator, oil tray and machine cut change wheels but without electrical. Machine has a length of bed 4� �6�, width of bed 11�, Height of center 9�, Accessories at Extra Cost: Dog Chuck True Chuck Coolant Pump with tank and Motor 3 ph. 1 H.P. Motor with Starter V-belt and pulley reversible switch MM Gear Machine Lamp with fittings Alternatively: Heavy duty precision quality, Centre Lathe, fitted with 3-speeds semi-norton gear box, head stock fitted with tapper roller bearings, complete with all standard accessories, but without electricals. Machine has a length of bed 6�, width of bed 14�, height of centre 12�. Accessories at extra cost: 14� dia 4-jaw independent chuck 10� dia 3 jaw self centering chuck with separate back plate 2 Hp Motor AC/440V, 1440 rpm with push button starter ,reversible switch and V-belt Electric coolant pump of 0.10 HP with separate tank & spout assembly Machine lamp 127 Teeth Gear for M. M. Thread cutting. Planing Machine Our heavy duty double column Planing Machine come with single tool post and Lubrication system. Size: 6� x 3� x 3� with all standard accessories but without electricals. Extra Accessories: 3 HP Motor AC/440V, 1440 rpm with push button, starter flat belt and V-belts.

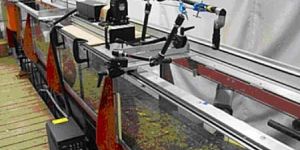

We have been evolving the milestones in the excellence of manufacturing Flume Mechanics and bed flume mechanics which are accessible in the technical specifications and description. We are the dominating fixed bed flume mechanics manufacturers in India. Specification: Dimension: Length = 15000 mm, Width = 900 mm, Depth = 700 mm. Transparent Portion (Wall): 3000mm. fitted with 18mm. glass sheet. Sluice Gate: 2 nos. Sluice gate sliding type are to be incorporated one for up-stream and another for downstream, operated by manually by wheel & Gear for open and close complete with rack & penion arrangement. Bed of fixed flume: Made from M.S.6mm. plate duly reinforced. Measuring Tank: Suitable capacity with level glass & scale fitted with water discharge hopper. Complete with pipe lining with valve. Water Pump: Water pump Monoblock type suitable capacity, suction & delivery with electrical start-stop starter. Pipe lining: Suitable size pipelining from pump set to venturimeter to upstream chamber fitted with operational valve and necessary pipe. Venturi Meter: Suitable capacity made from GunMetal duly proper machining. Pointer gauge: Range: 0-1000 mm. long/ height. Fitted with perpex block, scale, glass tube valves and other fittings. Complete set up fitted with a stand. Differential Manometer: Dimension= 1000 mm. long / height fitted with perpex block, scale, glass tube valves and other fittings. Complete set up fitted with a stand.

CNC Trainer Lathe We are acknowledged all over the world as the valiant CNC Machines manufacturers & suppliers from India, providing you an exclusive gamut of CNC lathe machines and CNC trainer lathe. 2-Axes CNC lathe machines with 8 station programmable turret: (Flat bed CNC trainer lathe) With concomitant accessories With 2 HP Spindle Variable speed drive motor Following Concomitant Accessories are included. Concomitant Accessories 3 Jaw Chuck (100 mm dia)- 01 No. Center � 01 No. Revolving center � 01 no. Variable speed drives 2 HP DC Motor & DC Drive for Lathe Spindle- 01 No. Window based software to operate M/C (One seat included) � 01 No. Optional Additional copy of Window based CNC Lathe software. � 01 No. 04 Nos. CONCOMITANT ACCESSORIES REQUIRED TO OPERATE THE M/C Suitable PC-PIV- 1 No with. 40 GB HDD (minimum) 14� VGA Color Monitor 3 ½ �Floppy disc drive, CD Drive 128 MB RAM CD Drive 101 English Key, key board This is essential to operate CNC Machine. Essential Accessories: Solid State Voltage Stabilizer 2 KVA Optional Accessories for CNC Lathe (Additional � Not essential for operation but useful for long life) Automatic Lubrication System with Hand pump�1 No. Coolant pumps with nozzle�1 no. Tool Holders with Sandvik tools (Brazed tools) Tool holder for external screw cutting with 1.5 mm pitch�1 No. Tool holder for plunge cutting� 1 No. Tool holder for Boring � 1 No. Eight Station Automatic Index able Turrent BTP-40T (To be used like aluminum or brass)�1 No. Drill chuck (Capacity up to 8mm) � 1 No. With Arbor MT-1 CNC Mill Trainer is also available with us accessible in different specifications. CNC Milling Machine With ATC 3-AXES BENCH CNC MILLING MACHINE WITH (ATC) CNC MILL TRAINER � Three Axes With Technical Tie-Up With Tudor-U.K.(Cut Viewer) CAD S/W interface possible With Essential Item Like- Basic machine with ball screw, stepper motor drives & controller, motor 1 hp variable speed drive. For CNC mill head. (As per description and technical specification in Literature enclosed) Manual Tool Change Controller for machine Concomitant Accessories (I.e. Tool & fixture these are essential to operate the Machine) Set of Tools Fixture machine vice � 01 Set. Milling cutter � 01 No. Holder Collet Holder � 01 No. Collet 4 to 16mm � 04 Nos. End mill holder � 01 No. Cutters Facing Cutter � 01 No. End mill of 10 mm dia � 01 No. Slot drill of 6 mm dia � 01 No. Twist drill of 4, 6,8,10 dias. � 01 Set. Slot drill of 10 mm dia � 01 No. PC- Pentium III / Pentium IV No. 40 GB HDD (minimum) � 01 No. - 15� Colour monitor - 3 ½ � Floppy Disc Drive - 128 MB Ram - 101 English Key, Key Board 1 No. of I/O card & 1 no. ADC Card with Isolation � 01 Set. Automatic tool change & control Software (Hydraulic Powerpack) - 01 No. Other Item Voltage Stabilizer (2KVA) with 2% regulation Window Based Offline Software (With FANUC control) One Seat Two Seat Five Seat Window Based Offline Software(Cut-Viewer, Tuder UK make with FANUC, Heidenhein, Siemens Control) One Seat Two Seat Five Seat Ten Seat
