bharat jyotee mech Focal Point, Ludhiana, Punjab

Stem Holding Capacity 14" to58" (6 mm to 16 mm),Valve Grinding Capacity Upto 3.12" dia. (90 mm),Power Requirement 12 H.P. 200220 volts A.C,Valve Face Angles (Workhead) 15 to 90 degrees

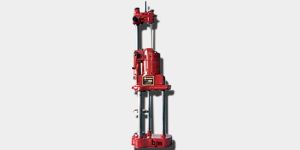

Max. Diameter of Bore 65,115,132.Min . Diameter of Bore 40,55,65,Max. Length of Bore 150,250,350,Max. Travel of spindle 200,275,375 Max. Single Cut,0.50,0.75

Distance from built in Parallels to centre of Boring Bar MaxMin 815 mm (32"),515 mm (20"),815 mm (32"),515 mm (20"),815 mm (32"),515 mm (20"),Boring Capacity 34-150 mm, (1.516" - 5 78"),34-150 mm, (1.516" - 5 78"),34-150 mm, (1.516" - 5 78"),Spindle Speeds Continuously variable 50 to 750 RPM,Continuously variable 50 to 750 RPM,Continuously variable 50 to 750 RPM,Work Space Required 5050x760mm, (200" x 30"),5600x760mm, (220" x 30"),6050x760mm, (238" x 30")

Boring Capacity (Dia.)60-200 mm,Boring Depth Max.350 mm,Spindle Travel Max.450 mm,CI to Columns ways 250 mm,Table Transverse Max.900 mm,Spindle R.P.M.100-150,200-300,400-600

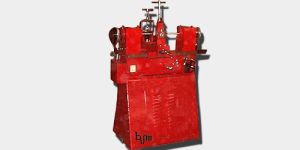

Max. Holding Capacity of connecting rod 15",Spindle Speed 475 & 330,Boring Length 4",Boring Capacity 1.38" to 3.14",Bed width 11",Bed Length 34",Centre Height 4.34",Net Weight Approx.400 kg.Gross Weight Approx.600 kg,Power Required 1HP Single Phase.

International and ISI Standards for machine testing are followed.Castings properly seasoned for providing consistent accuracy during the life of machine. Wheel Head, Work Head and Tail Stock Spindles are made of special steel, hardened and ground for precision grinding as well as longer life.Imported angular contact bearings provided in Wheel Head, Tail Stock and Work Head. Gears are hob cut made of alloy steel.Automatic lubrication system is provided in Wheel Head Assembly for longer life of the Phosphorous Bronze bushes and Spindle.Taper table helps in easy flow of cutting oil.
