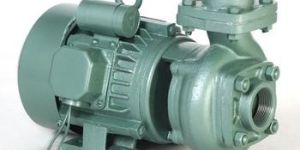

Centrifugal Water Pumps - 02
Get Price Quote
We are listed amidst the most dependable Centrifugal Pumps Manufacturers in India. The use of excellent quality materials in the manufacturing of the Centrifugal Water Pumps ensure effective performance in varied agricultural, domestic and industrial applications. The Centrifugal Pumps are also designed using the latest techniques that further assists in preventing cracking of the cases due to back throw of the water as the delivery being in center as the force is equally distributed. Moreover, noteworthy feature i.e. less consumption of fuel & maximum output, easy installation, operation and maintenance have also played a vital role in making our Submersible Centrifugal Pump the foremost choice of millions.
Technical Data of Pumps
S. B. Type : Vertically delivery split casing oil seal type with two ball bearings ideally suitable for agriculture purpose.
D. B. Type : A stream lined and strong pump with unparalleled hydraulic performance, highest suction lift characteristics, two taper roller bearings used for fixed the shaft without gland, light weight ideally suitable for agriculture. Can also be used for domestic/industrial application for pumping water.
S. P. Type : Single fast pully, double ball bearing pumps suitable for pumping water, it can be operated at various speed, with variety of drives such as electric motors, diesel engines, directly through a belt drive arrangements.
D. P. Type : Loose and fast pully pump,compact single unit in new design, a single pedastal. No bush bearing, rigid and sturdy. Can be driven by low or high speed engine and motor. Can suck water from depth as low as 9 meters.
H. H. Type : BSA High Head pump, compact single unit in new design, highest suction lift characteristics. No bush bearing, rigid and sturdy. Can be driven with variety of drives such as electric motors, diesel engines, low or high speed engine and motor and even tractor also. Can suck water from depth and delivered upto 50 meter high.
Technical Specifications
TypeSuction Delivery(mm)Impeller dia(mm)Head Range(m)Discharge Range(L/sec)Speed (R.P.M)Power H.P/KwSB-165x6522216-1927-1515008/5.9SB-280x6522215-1829-1515008/5.9SB-3100x8022011-1838-18150010/7.36SB-4100x10012010-1742-22180010/7.36SB-5125x1251805-1145-1515006.5/4.8DB-165x6521011-1825-1015005/3.7DB-280x6521010-1725-815005/3.7DB-3100x8019610-1533-1515006.5/4.8DB-4100x1001969-1432-1315007.5/5.25DB-5125x1251965-1146-2515006.5/4.8SP-180x6521010-1671-4016008/5.9SP-280x8021012-1626-1516008/5.9SP-3100x8022011-1828-17160010/7.36SP-4100x10022011-1838-18160010/7.36SP-5100x8022012-2038-18160010/7.36DP-180x6521715-1924-816006.5/4.8DP-280x8021713-1726-1116006.5/4.8DP-3100x8022011-1838-1216007.5/5.25DP-4100x10022010-1739-1316007.5/5.25HH-1100x8030015-2745-22150018/13.25HH-1100x8030017-3140-20160018/13.25HH-1100x8030019-3535-18170018/13.25HH-1100x8030012-4135-15180018/13.25HH-2100x8030014-4734-14160020/14.72HH-380x6525017-3028-12150010/7.36HH-380x6525019-3426-12160010/7.36HH-380x6525021-3624-12170010/7.36HH-380x6525022-3723-10180010/7.36
