Special Accessories: Additional Ram head on Cross RailTurret head on Cross RailThreading head on Cross RailSide Ram HeadGrinding Head

In the vertical mill the spindle axis is vertically oriented. Milling cutters are held in the spindle and rotate on its axis. The spindle can generally be extended (or the table can be raised/lowered, giving the same effect), allowing plunge cuts and drilling. There are two subcategories of vertical mills: the bed mill and the turret mill.

HIPAT brand heavy duty universal milling machine with latest technology, made of high grade standardized cast iron. Spindle and gears of quality steel, Bearings ( Taper Roller, Ball & Thrust) of genuine quality. Alloy steel Arbour, Carbon Steel Lead Screws with working pressure of table lead screw taken up by thrust bearings. Machine is easy to operate and gives maximum production with minimum fatigue and is enameled in ever shine lasting color.BaseThe base which at the same time serves as a coolant tank dimensioned, coolant pump and the coolant pipes are so dimensioned that sufficient coolant is supplied to the cutter.KneeThe heavy knee is made as box and rests on a vertial spindle equipped with tank and protected from earth and chips by telescopic tubs. The moveable parts inside are protected from intrusion of foreign matter and coolant. All the hand wheels are removable type.TableThe worktable is of a very sturdy construction and the dovetail is provided with jig. The table has 3 T- slots and is provided with coolant channels. Accurate Graduation is provided to obtained an exact angle adjustable at each side. The table is provided with Auto feeds ( 2 or 3 Nos.) only in longitudinal direction and is controlled by limit stoppers.

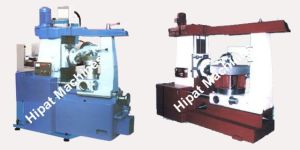

Salient Features :Gear Hobbing Machine model V-300 is designed for the production of precision Spur, Helical, Worm Gears, Splines, Sprockets, Rachet Wheels & any other form that can be hobbed. Its bed & column are of close grain casting & are well ribbed with V-type guideways. The shafts & Gears are made of alloy steels. The indexing worm wheel is of high grade Bronze material. The machine is equipped with Differential Mechanism for cutting helical gears. Provision has been made to remove backlash between the indexing worm & worm gear and also between feed screw & the nut of the hob slide. Oil reservoirs are provided in the machine which ensures thorough lubrication of gears & bearings. Standard Equipments :One Electric Motor 2 H.P. (960 RPM), One Electric motor 1 H.P. (1440 RPM), One Electric Coolant Pump, One work arbour, One Hob arbour, One set of 45 change gears,One set of spanners.

We are one of the leading UNDER CRANK SHEARING MACHINE which is a statement in itself, these are designed through structural analysis technique which ensures scratch free production, high accuracy and repeatability. Interlock Shearing Machine which we manufacture are the most trusted and reliable machine in the market. Being one of the prime Shearing Machine Supplier in India, we know that quality assurance and customer satisfaction is a key to success for any business to grow and success. The OVER CRANK SHEARING MACHINES have been designed and developed through structural analysis technique for continuous production, accuracy and repeatability. This Machine over Crank Shearing Machine is provided with high quality single segment knives for longer tool life. Ease in assembling knives reduces down time. The knives blades are four edged. Scale on the black gauge gives instantaneous reading of distance between shear and back gauge. Power Shearing Machine Supplier, in India we are trusted worldwide not only for the robust quality of our machines but also for the assurance of durability and a long life.Feature Foot pedalFly wheel and gear guardSelf lubrication systemMotor pulleyA pair of four edge shear bladeStandard front gaugeBlack gauge manually operatedFinger guard fitted in front of hold down for operator protection Specification All dimensions are in mmPower supply 400/440 volts, 3 phase, 50 cyclesUndergo stringent quality checks for easy and smooth operationMotorized back gauge automatic lubrication systemV beltsAll dimensions are in mmPower supply 400/440 volts, 3 phase, 50 cyclesElectric Motor StarterStroke CounterHold Down Pads

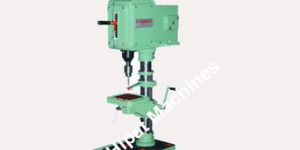

Features12 M.M. Tapping Machine’s Clutch Cone Export quality liner clutch system make with use of specially processor trimentaly the clutch the liner clutch.HeadMade from close grained cast iron accurately bored, rimering and honed in perfect paralyze between the column and spindle. easy clamping device fitted for locking it on the column.SpindleMade from EN8 to withstand distortion it is lanced and mounted on roller bearings.TableProportionately designed for rigidity and sufficient surface area is provided to hole down job. It can be vertically powered or can be vertically powered or raised by worm and rack raised by worm rack (19mm).The slotting are provided to hold the heavy job.BaseThis is of design and provides sufficient area for heavy jobs. Slots are provided for convenient holding.

Indroduction:These products are the result of our long year of experience in the manufacturing of precision horizontal surface gridingMachines which require power design careful selection of materials, proper manufacturing techniques and craftsmanship. Features All main parts such as column, wheel head, table, saddle and machine base are provided with heavy & study design to give higher rigidity of the machine.All Hand wheel, levers, Switches are conveniently grouped at the front of the machine for convenient operation of the machine.All sides ways and electrical switch box are sealed from dust, chips and coolant for easy maintenance and longer life of the machine.Hydraulic power unit and coolant tank are separated from the machine.Wheel, spindle rotates in greas packed angular contact rolling element bearing and directly driven by the motor through a flexible coupling.Independent lubrication system to the guide ways of the table and grinding wheel head ( in hydraulic model only

Standard EquipmentsElectric Motors Complete with Panel Board & Pendant Control for all operations. One Steel Telescopic Cover, One Boring Bar, Working Spindle Support Guide for Vibration Control, Co-ordinate reading arrangement with Scales & Verniers for X. Y.Z.-Axis and Handles. Facing head, 2No. Lubricating Pumps, 5 No. limit Switches & Automatic Rapid Travel, fitted with the Machine. Revolving Centre with 6″True Chuck Three Nos. Dial Indicators duly fitted in dust proof housings with attachment & Electric Coolant Pump.Extra Equipments Milling Attachment.Taper Boring Attachment.Threading Attachment.2Axis D.R.O.

Power Source : AC Single Phase

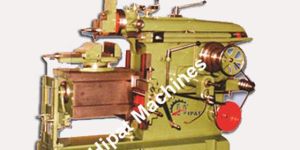

Naturally seasoned castingHeavity cross Ribbed, Robust and sturdy construction to ensure free workingSpecially designed for increase production, precision, performance and deep cutFully hand scrappedDouble jack system (No more digging of pits)Clutch within easy reach of operatorSelected special alloy steel used for screws, shafts and other steel partsExpanding ring type clutch drive in all geared machines to eliminate slippageGraduated total slide swiveling 90 degrees either wayHIPAT shaper for a deep cut-high metal removal & sustained accuracyAccuracy plus simplicity is the compact of HIPAT SHAPER

Experienced and actual users, keeping in mind most rigorous working environment, designed our machine with extensive calculations of stresses and loads on every component. This has created a robust machine with adequate safety factors and with minimum power requirement. It saves upon the electricity consumption, thus effective running cost. All components are suitably machined to provide true alignment, which gives a better-finished product. True alignment also enhances the longevity of the machine eliminating breakdown and revenue loss. Use of Helical gears, which has better load bearing capacity as compared to Spur Gear, which enhances the longevity of the machine eliminating breakdown and revenue loss. Machine is equipped with dynamically designed support roll system, which arrests the skewing of the machine, which again increases the longevity of the machine eliminating breakdown and revenue loss with a better finished product. Only maintenance required is oiling at various points.Along with our machine we provide the following test and guarantee certificates 1. Test certificates for the material used.2. Ultrasonic test certificate for the forgings used.3. Guarantee and test certificate for the motor used.4. Guarantee and test certificate for the Gear Box used.5. 12 months warranty for our product

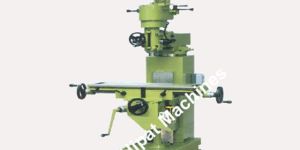

A turret mill has a stationary spindle and the table is moved both perpendicular and parallel to the spindle axis to accomplish cutting. The most common example of this type is the Bridgeport, described below. Turret mills often have a quill which allows the milling cutter to be raised and lowered in a manner similar to a drill press. This type of machine provides two methods of cutting in the vertical (Z) direction: by raising or lowering the quill, and by moving the knee

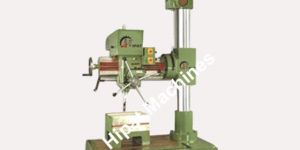

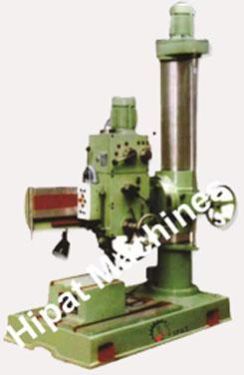

HIPAT” Precision Heavy Duty Radial Drilling Machines have a stremlined modern outlook and contain all the characteristics normally expected in a superiior qualillty machine.All the castings are of close-grained, heavy duty alloyed cast iron and amply ribbed to withstand stress without distortion, the shafts are of special quality steel andare having ground finish. all the bearings, shafts and gears of the main assemblies are force lubricated properly. the gears are induction hardened. The hardened and ground spindle run in a hardened and super-finished barrel, which slides an honed sleeve of the gear-box, the locking of the gear-box to arm and the radial movement is having special design to hold it rigidly during drilling operation.

HIPAT Radial Drilling machine are of robust construction and are designed for heavy duty drilling. All cast parts are of fine close grained grey iron, machined to closed tolerance and are subjected to rigid inspection at all stage of assembly to ensure accuracy and trouble free service. Each and every machine is thoroughly checked and tested to grade-1 standard. Base is generously proportioned and fortified by internal ribs, the base is built to handle heavy jobs, Three T-slots on the base ensure easy handling of the job. Column is cast as one single piece, ensures, perfect, rigidity. It is ground on the external circumference. The ARM moves up and down by a screw and rotates with complete ease around the column. For angular drilling, it tilt in Model PRD 25 & 32. The graduation provided on the collar of the arm indicates the degree of the incline to any desired angle up to 90 degree on either side.

re miniature versions of a general-purpose center lathe (engine lathe). They typically have swings in the range of 3″ to 7″ (70 mm to 170 mm) diameter (in other words, 1.5″ to 3.5″ (30 mm to 80 mm) radius). They are small and affordable lathes for the home workshop or MRO shop. The same advantages and disadvantages apply to these machines as explained earlier regarding 3-in-1 machines. As found elsewhere in English-language orthography, there is variation in the styling of the prefixes in these machines’ names. They are alternately styled as mini lathe, minilathe, and mini-lathe and as micro lathe, microlathe, and micro-lathe.

Net Weight : 45 Kg

Experienced and actual users, keeping in mind most rigorous working environment, designed our machine with extensive calculations of stresses and loads on every component. This has created a robust machine with adequate safety factors and with minimum power requirement. It saves upon the electricity consumption, thus effective running cost. All components are suitably machined to provide true alignment, which gives a better-finished product. True alignment also enhances the longevity of the machine eliminating breakdown and revenue loss. Use of Helical gears, which has better load bearing capacity as compared to Spur Gear, which enhances the longevity of the machine eliminating breakdown and revenue loss. Machine is equipped with dynamically designed support roll system, which arrests the skewing of the machine, which again increases the longevity of the machine eliminating breakdown and revenue loss with a better finished product. Only maintenance required is oiling at various points.Along with our machine we provide the following test and guarantee certificates 1. Test certificates for the material used.2. Ultrasonic test certificate for the forgings used.3. Guarantee and test certificate for the motor used.4. Guarantee and test certificate for the Gear Box used.5. 12 months warranty for our product

Standard EquipmentsElectric Motors Complete with Panel Board & Pendant Control for all operations. One Steel Telescopic Cover, One Boring Bar, Working Spindle Support Guide for Vibration Control, Co-ordinate reading arrangement with Scales & Verniers for X. Y.Z.-Axis and Handles. Facing head, 2No. Lubricating Pumps, 5 No. limit Switches & Automatic Rapid Travel, fitted with the Machine. Revolving Centre with 6″True Chuck Three Nos. Dial Indicators duly fitted in dust proof housings with attachment & Electric Coolant Pump.Extra Equipments Milling Attachment.Taper Boring Attachment.Threading Attachment.2Axis D.R.O.

Condition : New

Rated Power : 3-5kw

Application : Industrial

Certification : ISO 9001:2008

Voltage : 110V

Weight : 100-1000kg

Automation : Semi Automatic

Country of Origin : India

Type : Planer Machines

Material : Steel

Material : KCP

Automatic Grade : Automatic, Manual, Semi-Automatic

Driven Type : ELECTRIC

Availability : 55 KGS

Power : SINGLE PHASE

Country of Origin : 220 VOLTS

The clutch is of Rolling key type & gives continuous strokes for mass production. Crank shaft is made of special Alloy Steel and fitted in with Gun Metal bushes for smooth
