Hydraulic Presses Dealers in Dhandari Kalan, Ludhiana

We manufacture high quality press brakes that can withstand extreme use with longer lasting. The body is made from premium quality corrosion resistant material and the components included are of high quality.

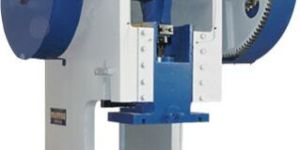

The C-Frame Press line features a slim and clean design, allowing the operator excellent accessibility to the work area from the front as well as the sides. Ideal for rubber molding, straightening, bending, pressing, stamping, and die cushion work, C-Frame Presses offer an outstanding price-performance ratio.Range : 10 Tons to 250 Tons

The C-Frame Press line features a slim and clean design, allowing the operator excellent accessibility to the work area from the front as well as the sides. Ideal for rubber molding, straightening, bending, pressing, stamping, and die cushion work, C-Frame Presses offer an outstanding price-performance ratio.

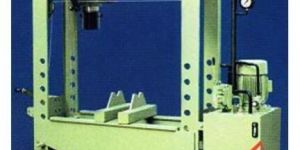

We are a leading Manufacturer and Exporter of Hydraulic Power Press that serve the demands of different industries. This Hydraulic Power Press is ideally used in process of transferring of hydraulic fluids under high pressure. We offer Hydraulic Power Press at most competitive prices. Features DurableAvailable in different capacitiesEasy to operateHigh performance Used at Engineering industryAutomobile industry Technical Specifications TONS Between Column Length mm X Breadth mm Between Ram to Bed Min mm x Max. mm Travel of RAM  in mm Motor H.P. 5500 x 12575 x 6001003 10600 x 15075 x 6001253 15650 x 15075 x 6001503 25850 x 300180 x 9101803 40950 x 350180 x 9101903 501000 x 400180 x 9502005 601050 x 450180 x 9752005 751150 x 500180 x 9752105 1001200 x 600180 x 9752255 1501300 x 625180 X 97524010 2001325 X 650180 X 97524015 2501350 X 650180 X 97525020

SPECIFICATION OF HOT FORGING PRESS MACHINE Model UNITS RHF - 400 RHF - 600 RHF - 750 RHF - 1000 RHF - 1350 RHF - 1600 CAPACITY Tons 400 600 750 1000 1350 1600 Tonnage Rating Point MM 2 3 3 3 4 5 Stroke Length Mm 160 170 180 250 280 300 Stroke Per Minute S.P.M 110 105 100 95 90 90 Die Height MM 530 560 540 700 720 720 Adjustment Of Slide MM 6 6 8 10 10 10 Bolster Area (LR X FB) MM 600x700 680x780 730x890 920x1050 950x1250 1000x1270 Slide Area (LR X FB) MM 580x600 650x670 720x780 880x900 900x960 970x1000 Side Opening (W XH) MM 320x520 360x580 400x600 460x600 460x680 560x720 Main Motor Kw/Hp 22/30 37/50 45/60 55/75 75/100 90/120 Adjustment Motor Kwxp 0.5 0.75 1.5 1.5 1.75 1.75 Air Pressure Kg./Cm2 5.5 5.5 5.5 5.5 5.5 5.5 Upper Ejector Type MECH. MECH. MECH. MECH. MECH. MECH. MECH. 1. Capacity TON 1 1 2 3 5 5 2. Stroke MM. 15 20 30 40 50 50 3. Pin Dia MM. 40 50 50 50 55 60 Lower Ejector Type AIR AIR AIR AIR AIR AIR AIR 1. Capacity TONN 1.5 2 4 5 6 10 2. Stroke MM. 40 40 40 50 50 50 3. Pin Dia MM. 40 50 50 50 50 50

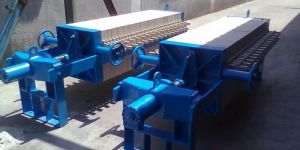

We are offering hydraulic p.p filter presses. Filter presses are very extensively used in oil mills, chemical works etc. Our filter presses are most suitable for cleaning oil drawn from the different expelling plants. The filtering capacity varies with the viscosity of the oil, liquids & with the amount of sediment contained therein. Filter press consists of chiefly c.i. Square plates. Mounted parallel on heavy flat m.s. Plates fixed on heavy cast iron stand. All filter presses are supplied with air vessel, filter cloth, c.i. Cocks, oil tray & best quality motor driven plunger pump. The oil or liquid pressed by a pump passes through filter cloth fitted to either side of each plate. All impurities are retained by the filter cloth, the filtered oil leaves the chamber through cocks fitted to each plate & flows where it is collected.

- Sheet Metal Components- Components used in Cycle parts, Two Wheeler, Three Wheeler & Four WheelerC-Frame Power press is designed for handling sheet metal components. Here at Binny Machine Tools, we provide a capacity range from 10 to 200 Tons.

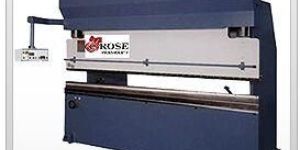

Hydraulic Press Brake C Cum H Frame Heavy Duty We offer the clients with the highly acclaimed Hydraulic Press Brake ‚ frame heavy duty that is sourced from the well reputed manufacturers. You can avail Hydraulic Press Brake frame heavy duty in various sizes.

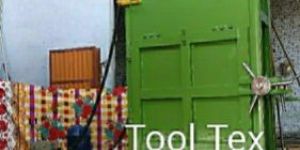

SALIENT FEATURES:   Total Bed Dimension : as required according to yarn  Maximum compressible length : 10”  Capacity : 5 kg to 15   Duration : 1 Minute  Electric Motor : 3HP ~ 5 HP/ 1440 rpm*  Cylinder : single Cylinder (Double Piston)  Total Height of structure with cylinder : 56” (Approx)Please mention us your Bed dimension before you are going to place your order. Along with the development and improvement in our machine, dimensions and specifications may be change without prior notice.
