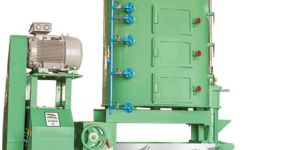

Shea Butter / Shea Nut Oil Extraction Machines
2,635,000 - 2,932,500 / piece
- MOQ1 piece
- Model NumberGOYUM 150
- Brand NameGoyum
- CertificationISO 9001:2008 Certified, CE Certified, ISO 14001 : 2015 Certified
- Length8’6
- ConditionNew
- Capacity15 – 17 Ton In 24 Hours,250 – 300 Machines Annually
- Machine Weight4800 Kgs (With Three Stage Kettle),5500 Kgs (With Four Stage Kettle)
- Packaging TypeWooden Box
- Driven TypeElectric
- Country of OriginIndia
- Operating TypeSemi Automatic
- Automation GradeSemi Automatic
- ApplicationMulti Seed Oil Extraction
- SpecialitiesHigh Performance
- I Deal InNew Only
- Expeller Motor3 Phase, 40 HP, 1440 RPM
- Kettle MotorFor 3 Stage: 3 Phase, 5 HP, 1440 RPM, For 4 Stage: 3 Phase, 7.5 HP, 1440 RPM
- Chamber SizeDia 7.5” X Dia 6.5” X 45” Long
- Breadth4'7
- Height13 feet (With Four Stage kettle), 11.5 feet (With Three Stage Kettle)
- Total Carbohydrate1 Year Against Manufacturing Defects
- Number Of FlowerCommercial Expeller
- Shea Butter / Shea Nut Oil Extraction Machines is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.
Features:
Bodies and Base
Fabricated from Mild steel
Gearbox
Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel.
Chamber
Steel Casting of Four Sections. Horizontally fitted
Size: Ø 7.5” X Ø 6.5” X 45” Long.
Worm Assembly
Hard Faced along with Discharge Ring and Compression Ring
Main Worm Shaft
Can be withdrawn out without Disturbing the Gear Box.
Kettle
3 or 4 stages with Steam Jackets of Ø 48” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps.
Cake Thickness
Can be Adjusted on Running Machine.
Crammer Shaft
For extra Cramming of the Seed or Cake in the Feed Body.
Oil & Oil Cake
Superior Quality
Maintenance
Minimum
Crushing Capacity
Differs with the density of oilseeds & nuts and quantity of oil in it.
