Apollo HawkeyePedershaab Concrete Technologies Pvt. Ltd. Mehsana, Mahesana, Gujarat

PLC controlled design of cage welding machine for producing round wire cages with and without socket. Cage diameter from 330 to 2500 mm Cage length up to 3000 mm Number of line wires: 9, 18 High flexibility, more reliability and long life span due to stable construction Strictest production tolerance for exact and straight cages. Compatibility with any standard Rapid chain controlled diameter adjustment (hydraulic, low-maintenance) Water re-cooling system with closed circuit cooling (only necessary to fill once) Safety light barrier system separated for feeding and cage removal side Security fence on the left / right side as well as at the central division area Double layer cages can be made in intervals, without requiring any changes on the wire cage welding machine (inner-outer-inner-outer cage etc.). Control of the machine with limit switches and PLC, safety with secure input / output in dual channel (double redundancy) Technical execution of the wire cage welding machine according to CE Conformity Very low change over times No foundation required Only one operator required

It is a universal shotcrete Machine Driven by a deisel engine , equipped with a shotcrete pump and a telescopic boom for concerete spraying . Enriched with years of experience in the industry, we are engaged in offering Shotcrete Machine.The telescopic boom is extendable up to 14m. The boom can rotate 270° about y-axis. Both the pump and boom are driven by an electrical motor. Emergency operation of boom is carried out by a separate geared pump driven by vehicle’s diesel engine.

CARMIX background comes in fact from CARMAN the Company that in the early Sixties started assembling parts and components supplied from old military and agricultural vehicles. The result was something far from the actual 4x4 mixers but already good enough to satisfy a precise need: assuring fresh concrete within the site.Mixing and discharging speed independent from r.p.m. of diesel engine;Discharging by reversing drum.

The Pipemaster Pipe Unloader is the fast and dependable way to unload concrete pipe. Its smooth hydraulic action virtually eliminates pipe breakage. Pipe can be unloaded almost as fast as they can be rolled off the truck. And it’s economical. The Pipemaster is completely self-contained and requires no external power source. Its rugged construction makes for years of trouble-free pipe unloading. Pipe unloader will be impored from HP. PIPEMASTER MODEL 100: Capacity to unload concrete pipe weighing as little as 80 Kg. up to 4,990 Kg., typically a 1500mm diameter x 2.5M length pipe. PIPEMASTER MODEL 206: Capacity to unload concrete pipe weighing as little as 250 Kg. up to 9,340 Kg., typically a 2100mm diameter x 2.5M length pipe.

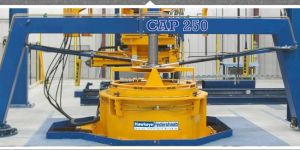

We offer Pipe Manufacturing Machine. The pipe plus series of machines offers great manufacturing value and productivity. The equipments can produce greater than 400 tubes per cycle and are ideal for production of manholes and larger diameter pipes.

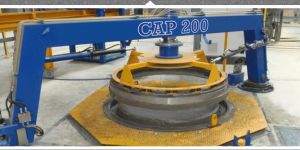

We offer Pipe Making Machinery. A whole range of pipe making machines is available such as the CAP -150200, CAP 250, VIHY Master flex SC 60. The master flex sc 60 is a great solution for production of the smaller diameter and non reinforced concrete ducts and operates on the module of the vihymatic system. The production capabilities of these machines are extremely high with the sc 60 able to produce greater than 600 tubes per run and the triple production mode.

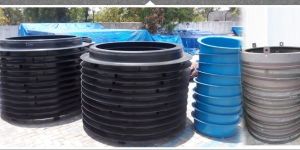

  Pallet is one of the important part in pipe making process. The joints in pipe are crucial for leak proof applications. Considering this importance, we offer pallets which will serve the dual purpose i.e. become the conductor of transferring the vibration and profile of the pipes is maintained as per IS458:2003 Standards. Set Rings For the VIHY vibration Technology Pipe machines setrings are used. The setrings are used after green pipe is taken-out from the Mould. The technical reason is being to protect the pipe spigot end from any possible shrinkage. Set rings can be taken-off from the mould after 2-3 hours. This is most economical method of joint applications. The setrings are made of fibre glass material which is lighter in weight and easy for handling. Headers Stay-In-Place Headers are used for Most precise joint dimensions Smooth, polished spigot surface No grinding of out-of-spec spigots

A concrete product can only ever be as good as the mould it was made in – words to live by and trust when it comes to mould equipment. AHCT’s vast experience coupled with their engineering and manufacturing abilities enables the supply of precise, robust and long-lasting moulds, able to produce all manner of concrete products, both wet-cast and dry-cast. Along with their strivings for quality, AHCT understands the importance of quick delivery of aftermarket molds, enabling the customer to react quicker to their markets’ demands without reverting to the use of local, low quality suppliers to meet delivery requirements. AHCT’ has mould production facilities in Gujarat-India to quickly serve the requirements from any part of India and Asian markets. Depending on your requirements, AHCT can manufacture following types of Moulds: Moulds for Straight Pipes. Moulds for Spigot & Socket (S&S) Pipes. Moulds for Jacking Pipes. Moulds for Lined Pipes. Moulds for Manhole Systems. Mould for Box-Culverts.

The circular and reinforced concrete pipe is a highly recommended product for construction of drainage systems, storm drains, culverts and even irrigation systems. This type of pipe shows good strength and performance properties and is also cost effective compared to other drainage construction materials. This type of pipe is manufactured with the concrete pipe-making machine, which is able to impart the required properties on the final product for durability and functionality.

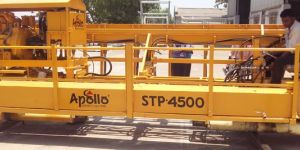

Apollo Fixed Form concrete pavers are among the best available machine in the market where price, reliability, flexibility is the key factor.Control unit includes all hydraulic and mechanical drives. Halogen lamps are provided to work even at night. Effortless steering control with levers governing two sets of drive tubes.

The (CAP-150/200) is most versatile, Indian manufactured, Vibrated casting technology Machine for producing concrete Pipes, Manhole systems, Box culverts, Lined Pipes, Jacking Pipes etc. CAP-150/200 advanced designed concrete pipe machine is available in single station and twin station. The CAP-150 Concrete Pipe Making Machine can be upgraded to CAP-200 with minimum modifications. Pipe manufacturing Capacity of CAP-150: 300 mm to 1500mm Diameter Pipe manufacturing Capacity of CAP-200: 300 mm to 2000mm Diameter Effective Length: 2500mm Box culvert : 1200mm x 1200mm Features & Benefits of Concrete Pipe Making Machine VIHY Core Vibration VIHY Table Vibration Semi-Automatic Operation with laser-level fill control Quick-Mold Change System Optional Header System 1 or 2 Station Arrangement Turnover System for Slabs and Bases Optimal for Lined Pipe Adjustable Box Culvert Molds Automatic filling of box culverts Optional Double Set of Outer Molds for Increased Production Optional Cast-In-Place Manhole Steps Optional Lifting Anchor Automation VIHY Core Vibration Use advanced Danish technology to ensure maximum concrete density. The VIHY core vibrator has been the industry’s leading vibrator for more than 50 years. Its precision build quality and dry-sump, oil-lubricated design allows for speeds and powers unmatched by competitive vibrators –guaranteeing the customer maximum compaction power, reduced cement consumption and maximum concrete densities. VIHY Table Vibration Enable the production of a vast array of concrete products through the use of a Vibration Table. The VIHY vibration table allows for the optimal production of many shapes that are difficult through traditional core vibration including flat products, square products and irregular products. The VIHY vibration table provides the following definable benefits: Powerful, hydraulically driven 100 kNm uni-directional vibrator with variable frequency makes uniform compaction throughout the entire product length –essential for producing high-quality products Low noise emission following effective hydraulic locking of mould equipment –reducing noise-related safety problems Elevator for easy adaptation to required product length , increasing machine flexibility Optional hydraulic elevator option for operator comfort, in-cycle access and easy cleaning Simple core design allowing easy installation and maintenance of features Semi-Automatic Operation with laser-level fill control Reduce labor and increase product consistency and repeatability through the use of automation. Other than the crane demoulding process, the entire production cycle of the Multicast machines can run automatically, including a unique laser-level fill control to ensure exact product lengths. Quick-Mold Change System Be Flexible. Don’t tie up your money in excess pipe inventory. Simple, pinned, machine-to-mold connections allow for quick mold changeover, eliminating costly downtime and increasing production flexibility to react to short orders. Optional Header System Produce pipe with perfectly round, glass-like spigots –ensuring exact field pipe connections. Use of stay-in-place headers allows for the production of pipe with more precise male-end spigots with a smoother surface finish. 1 or 2 Station Arrangement Tailor your Multicast to your specific market needs. The Multicast machines are available in either a single or double station arrangement; with either station able to be specified independently with respect to size and/or vibration system. Turnover System for Slabs and Bases A manhole machine’s effectiveness is largely tied into its ability to produce the full range of manhole products. In-machine turnover system allows for optimal dry-cast production of monolithic manhole bases and slabs. Optimal for Lined Pipe Produce all varieties of lined pipe. No machine in the world is trusted in the production of lined pipe like the Multicast. It is uniquely equipped for the production of all manner of lined pipes, including liners made of steel, HDPE, PVC, GRP and others. There are more than 50 machines regularly producing lined pipe on Multicast machines. Adjustable Box Culvert Molds Produce an entire range of box sizes from a single adjustable box mold set. Structurally robust and rigid panels allow for production of dimensionally accurate box products, with both gasketed and non- gasketed joints. At its basic element, a set of adjustable box molds consist of four corner pieces of the core, outer mold, header and pallet, forming the smallest product, typically .75m x 1.0m (3’ x 4’) or larger. To adjust the size upward, extension panels are placed between the corner pieces to independently increase the rise and the span, creating virtually any size of box desired. Along with the ability to increase the rise and span, the pallets are designed to also allow for variation in wall thickness. Adjustable box mold sets are available with either vertical vibration or external mold vibration and can come with an integrated pressing system to eliminate the need for a swing-in press arm or a weighted press. Along with the mold sets for standard box culverts, the possibility also exists to expand the mold sets to produce the following products: U-shapes and matching covers Galleries –boxes with one arched side Twin or double boxes Automatic filling of box culverts Eliminate labor and speed up production through the use of an automated, laser-controlled filling process. The Multicast XL BC 360 machine comes standard with a special, X-Y controlled concrete feeding belt that allows for the automatic tracking of rectangular and non-round shapes. The feeding belt uses four lasers to read the concrete level in all four directions for quick and precise filling, ensuring an evenly filled box. Optional Double Set of Outer Molds for Increased Production Enable increased production through the purchase of a second outer mould. A second set of outer moulds can increase production by up to 50% buy eliminating machine downtime that exists during the existing demoulding process. Optional Cast-In-Place Manhole Steps Eliminate costly and back-breaking labor required to drive steps into manhole products. The Cast-In-Place Step (CIPS) program allows for the automatic casting-in of manhole steps – including an automated step- insertion robot to keep the operator working at a safe distance from the machine. Optional Lifting Anchor Automation Save labor costs by automatically casting lifting anchors into products during machine cycle. One of the most tedious and labor-consuming tasks in a manhole or pipe operation is the insertion and driving in of lifting anchors into already-cured products. Eliminate this step with an automated lift-anchor insertion system.

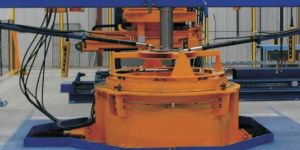

We offer Concrete Pipe Machine. The CAP – 150200 is versatile equipment which uses vibrated casting technology for manufacturing of concrete pipes, culverts, jacking pipes and even lined pipes. Some of the benefits of this machine include semi automatic operation, VIHY core and table vibration, quick mold changing systems, optional header systems and most of all the adjustable box culvert molds.

Concrete construction equipment is very important for the construction companies. With good quality concrete construction equipment, a construction company can get quality construction work done in lesser amount of time. It can therefore cut down on its labor costs and increase profits by giving the quality construction services to its clients in a faster way. With advancement in technologies, today a number of concrete construction equipments have come up for the use of construction companies for improved construction processes.

This is a new generation concrete batching plant integrated with advanced PLC technology automation that allows to perform functionalities like high speed weighing, automatic scale tolerance checking, inventory monitoring, reports generation including batch wise, load wise, data wise, recipe wise and production wise reports for a better and cost effective concrete manufacturing process. The newly designed Twin shaft mixer and Planetary Mixer enables efficient mixing of concrete with less wastage and improved quality parameters. This is a proficient concrete production unit which is designed to give optimum mixing performance while reducing the operation and production costs with lesser maintenance required. We can supply both standard as well as customized batching plants for concrete to meet the high-end concrete manufacturing requirements of our clients.

RCC Hume pipe refers to Reinforced Concrete cement pipes. The HumeSpun pipe process is widely used in un-developed and developing countries. Generally these spun pipes are used for sewage, drainage purposes.The HumeSpun pipe process is more labor oriented, exhaustive, less productive and quality is largely depend on the operator skill. However this process has got its own significance in terms of social attachment as these units are operating since decades by the earlier generations.

QRE Cage Weld is semi-automatic cage making machine imported from HawkeyePedershaab-USADenmark. The Cage Welding Machine in-line with general cage requirements in the industry.
