  Zigbee 2.4GHz TTL output Product ID: 1191 CC2500 Wireless Module Small Size 2.4GHz Wireless Transceiver Module Description: 2400-2483.5 MHz ISM/SRD band system Application: Consumer electronics Wireless game controllers Wireless audio Wireless keyboard and mouse RF enabled remote controls Supports Multiple Baud rates (4800/9600/19200/38400) Works on ISM band (2.4 GHz) which is reserved internationally so no need to apply for license. Supports multiple frequencies within the same band rate thus avoiding data collision No complex wireless connection software or intimate knowledge of RF is required to connect your serial devices Designed to be as easy to use as cables No external Antenna required Plug and play device Works on 5-9v DC supply Standard UART Interface.

  Wi-Fi Transceiver ESP8266-01   Product ID: 1121 The ESP8266 is a low-cost Wi-Fi chip with full TCP/IP stack and MCU (microcontroller unit) capability produced by Shanghai-based Chinese manufacturer. Baud Rate: The black PCB is 9600, but the baud can be changed Voltage: 3.3V Size: 24.8*14.3MM Support 3 modes: AP, STA, AP + STA Perfect and simple AT commands Documents link: https://nurdspace.nl/ESP8266 802.11 b/g/n Wi-Fi Direct (P2P), soft-AP Integrated TCP/IP protocol stack Integrated TR switch, balun, LNA, power amplifier and matching network Integrated PLLs, regulators, DCXO and power management units +19.5dBm output power in 802.11b mode Power down leakage current of

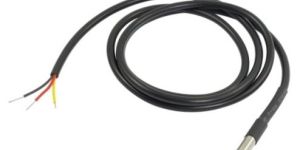

Product ID: 1139 This sealed digital temperature probe lets you precisely measure temperatures in wet environments with a simple 1-Wire interface. The DS18B20 provides 9 to 12-bit (configurable) temperature readings over a 1-Wire interface, so that only one wire (and ground) needs to be connected from a central microprocessor. 3.0-5.5V input voltage Waterproof -55°C to+125°C temperature range ±0.5°C accuracy from -10°C to +85°C 1 Wire interface

  Water Pump Submersible DC 5V   Product ID: 1127 DC Voltage: 2.5-6V Maximum lift: 40-110cm / 15.75"-43.4" Flow rate: 80-120L/H Outside diameter of water outlet: 7.5mm / 0.3" Inside diameter of water outlet: 4.7mm / 0.18" Diameter: Approx. 24mm / 0.95" Length: Approx. 45mm / 1.8" Height: Approx. 33mm / 1.30" Material: engineering plastic Driving mode: brushless dc design, magnetic driving Continuous working life of 500 hours

Product ID: 1152 A float sensor is a device used to detect the level of liquid within a tank. The switch may be used in a pump, an indicator, an alarm, or other devices. Magnetic float sensor is an electromagnetic ON/OFF switch. It helps to sense the level of water present in the overhead tank or sump. These sensors have a permanent magnet in the float. The Switch is present in the white stem of the sensor. As the float rises or falls with level of water in the tank, the switch gets activated by the magnet in the float, thereby the signal which is obtained from the sensors is used along with the water level controllers for controlling the motor pump. No electrical contact with water. Shock proof Corrosion free and rust free Sensor with 1.5 meter cable

Product ID: 1315 This module is based on principle of resistive voltage divider design, can make the red terminal connector input voltage to 5 times smaller. Arduino analog input voltages up to 5 v, the voltage detection module input voltage not greater than 5Vx5=25V (if using 3.3V systems, input voltage not greater than 3.3Vx5=16.5V). Arduino AVR chips have 10-bit AD, so this module simulates a resolution of 0.00489V (5V/1023), so the minimum voltage of input voltage detection module is 0.00489Vx5=0.02445V. Voltage input range: DC0-25 V Voltage detection range: DC0.02445 V-25 V Voltage analog resolution: 0.00489 V Output Interface: "+ " connected 5/3.3V, "-" connected GND, "s" connected Arduino AD pins DC input interface : red terminal positive with VCC, negative with GND By 3P connector, connect this module with the expansion of board Arduino, not only makes it easier for you to detect voltage battery, can also use the IICLCD1602 LCD to display voltage.

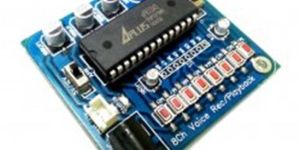

Product ID: 1196 Working voltage: 5V DC on White RMZ Connector or 7 to 12V AC/DC on Power Supply Connector. Current: 500mA, 8Channel, recording time on all the 8 Channels: 10 min Mic: On Board, Output: Amplified Speaker Output Playback and Recording Switch, Status Indicator Microcontroller TTL Interface Pins with respect to Ground. (Not soldered on Board) Working and Application instructions Interface the speaker pins and power on the module, slide the switch towards the recording option, then press and hold the M1 button and speak near the microphone then release the button M1. To playback the recorder message, slide the switch towards playback and then just click the M1 button, the recorder message will be played. Repeat the same procedure to record the different messages on the different channels from M1 to M8 To interface with Arduino, 8051, PiC and any of the other microcontrollers, Solder the Berg header and interface it to the port pins directly, and send active low signal to active the button, the low signal period width depends on the time duration of the message to be recorded and single low pulse to playback.

Product ID: 1335 4pcs/lot PL2303 USB to RS232 TTL Converter Adapter Module PL2303HX USB to UART TTL Cable module Product Features: Uses PL2303hx Supports Windows 8 Supports three power modes: 5V external power supply; 3.3V external power supply; externally powered (requires 3.3V-5V) With 3 LED: TXD LED, RXD LED, POWER LED Applications: RS-232 to USB up grade traditional devices USB to RS-232 serial adapter Instructions for use: (to access the MCU for example) VCCIO: Output 3.3V or 5V (USB-powered module jump, jumper shall 3.3V or 5V) GND: GND connection TXD: pick MCU.RX (signal flow: MCU.RX PL2303 >> PC.RX)

  SIM900A GSM/GPRS USB Modem   Product ID: 1265 Sim900a GSM/GPRS USB Modem Featuring an industry-standard interface The SIM900A delivers GSM/GPRS 900/1800MHz performance for SMS, Data, and Fax in a small form factor and with low power consumption, With Aluminum enclosure to minimize noise. General features: Dual-Band 900/ 1800 MHz GPRS multi-slot class 10/8 GPRS mobile station class B Compliant to GSM phase 2/2+ Class 4 (2 W @900 MHz) Class 1 (1 W @ 1800MHz) SAIC (Single Antenna Interference Cancellation) support Control via AT commands (GSM 07.07, 07.05 and SIMCOM enhanced AT Commands) SIM application toolkit Internal Supply voltage range: 3.2 ... 4.8V External Supply voltage range: 9 ... 12V DC Low power consumption: 1.0mA (sleep mode&BS-PA- MFRMS=9) Operation temperature: -40C to +85C

  Ultrasonic Sensor-HC-SR04   Product ID: 1304 This is the HC-SR04 ultrasonic ranging sensor. This economical sensor provides 2cm to 400cm of non-contact measurement functionality with a ranging accuracy that can reach up to 3mm. Each HC-SR04 module includes an ultrasonic transmitter, a receiver and a control circuit. Supply voltage: 5 VDC Current consumption: 15mA Working Frequency: 40Hz Max Range: 4m Min Range: 0.02m (2cm) Measuring Angle: 15 degree Trigger Input Signal: 10uS TTL pulse Echo Output Signal: Input TTL lever signal and the range in proportion Operating Recommendation Smooth surface area to reflect signal should be 0.5 square meters or more. Distance computation Distance (cm) = Measured Echo Time (in µsec)/58 Distance (inch) = Measured Echo Time (in µsec)/148

  SIM800C TTL GSM Modem   Product ID: 1129 Power Supply = 4V DC 2A. On Board Power and Network Indication LED Micro SIM Card Holder SMA Antenna (Optional) Works with standard AT Commands. Interfacing Pins: 1) MIC (MICP, MICN) = Differential Signal Pins. 2) Speaker (SPKP. SPKN) = Differential Signal Pins. 3) BT_A = Bluetooth Antenna External pin (Works only if the firmware in updated) 4) ADC = Analog to Digital Input pin 5) STAT = Status Signal Pin 6) RI = Ring indicator 7) UART Pins: DTR, DCD, CTS, RTS, RXD, TXD. 8) make sure to use TTL Level Converter for RX and TX of the microcontroller interface.

Product ID: 1212 This is TEC1-12706 40x40mm thermoelectric cooler Peltier plate module 12V 60W Get ice cold in minutes or heat to boiling by simply reversing the polarity, used for numerous applications from CPU coolers to alternate power sources, or even for your own custom car drink warmer/cooler. Since they consist primarily of semiconductor material sandwiched between ceramic plates and have no moving parts Its work is characterized by side refrigeration and side fever. Hot and cold on both sides of the temperature difference of 68 degrees Connected to the 12-volt power supply cooling piece on both sides there will be difference in temperature, side cold side of the heat, do not long power cooler radiator, otherwise it will cause cooler internal overheating and burning. Model: TEC1-12706 Operates from 0~15.2V and 0~6A Operates Temperature: -30C to 70C Max power consumption: 60W

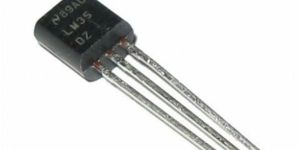

Product ID: 1337 The LM35 is a high precision temperature sensor. It has a analog output, which is linearly proportional to the surrounding temperature. Just hook it up to a ADC pin on your microcontroller to get temperature readings. Output calibrated in ° Celsius 0.5° C accuracy at 25° C Wide range of operation between -55° to +150°C Wide range of operating voltage ranging between 4 to 30 volts Current consumption of less than 60 μA

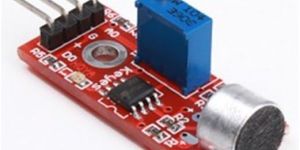

Product ID: 1329 Can detect the surrounding sound then output analog value Can set a sound value then output digital value Adjustable Sensitivity , Stable Performance 5V Working Voltage , support both the output digital value and the output analog value Analog voltage signal output, signal amplitude is VCC / 2 Sensitivity, built-in amplifier circuit, gain can be adjusted Get the intensity of the sound of the voltage signal through the AD transform Port explanation : DO for digital output, AO for analog output Applicable to a variety of platforms including Arduino / AVR / ARM

Product ID: B3 5W Solar Panel 320X200X18mm Photo-voltaic solar panel 5W VPM - 17 V IMP - 0.3A VOC - 21 V ISC-0.33A

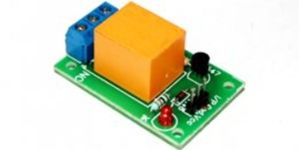

Product ID: 1114 Relay board module is used for controlling higher current loads from your microcontroller development board, PC parallel port or Arduino Uno. This board has one (1) on-board relay which can switch up to 7Amps. Relays terminals (C, NC, NO) are accessible through screw terminals which makes wiring up the board very easy. The relay is safely driven by transistor BC547 hence your input device, such as Arduino, is protected from relay circuit. There is free wheeling diode which will further protect your microcontroller from relay kick back.

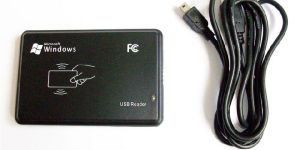

Product ID: 1267 Color: Black Dimensions: 104 × 68 × 10 mm Indicator: Bi-color LED (Red: Power On. Green: Read) Read cards: 125 KHz EM4100 and compatible ID cards Read Time: < 0.5 s • Read Distance: 0 - 8 cm Data Transfer Range: 80 - 150 meters Output: 10 digits

  RFID READER 125KHz Serial/TTL   Product ID: 1118 Proximity RFID Reader Module has an inbuilt antenna. Designed to work on the industry standard carrier frequency of 125 KHz Sensitivity Range is about 6cm from antenna. Internal antenna on the PCB Buzzer to detect the proximity cards Blue LED blinking to show that the RFID reader is powered on. Direct TTL output that can be directly coupled with most of the microcontrollers without max232. Operates at 5v with 500ma of current Microcontroller to decode the data into Serial o/p RS232 to convert signal into TTL to RS232 (optional) The LF module is best suited for applications in Access Control, Time and Attendance, Asset Management, Handheld Readers, Immobilizers, and other RFID enabled applications.

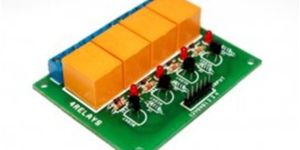

Product id: 1119 Relay board module is used for controlling higher current loads from your microcontroller development board, PC parallel port or Arduino Uno. This board has four (4) on-board relay which can switch up to 7Amps. Relays terminals (C, NC, NO) are accessible through screw terminals which makes wiring up the board very easy. The relay is safely driven by ULN2003 IC hence your input device, such as Arduino, is protected from relay circuit and IC will further protect your microcontroller from relay kick back.

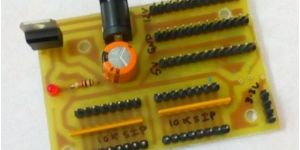

Product ID: 1137 A general purpose power regulator and supply board. It basically takes an input of 7-20V AC or DC and outputs a constant voltage of 5V and 3.3 V. It can supply a maximum of 1A of current at 5V. Comes with appropriate filtering circuits, regulators, power junctions, pull up resistors, a power indication LED and mounting holes for easy mounting. All inputs and outputs can be provided through standard screw terminals, which allow easy connections. This board is great for generating constant voltages during prototyping, testing, experimenting, etc.

  Real-Time Clock Module-DS1307 Product ID: 1198 DS1307 I2C real-time clock chip (RTC) 24C32 32 K I2C EEPROM memories Includes LIR2032 rechargeable lithium battery with charging circuit Fully charged, it can work for 9 years or more Compact design, 27 x 28 x 8.4mm Can be cascaded to other I2C devices This Arduino Tiny RTC I2C module incorporates the DS1307 I2C real time clock IC and the 24C32 32K I2C EEPROM storage. What's more, it has a DS18B20 temperature sensor on board. All of this in a tiny package of 25mm x 28mm x 8.4mm. It comes with a LIR2303 rechargeable lithium battery, and a charging circuit is included in the module. When the temperature sensor is off, the RTC module can run for 1 year on a single charge. This module is used for applications such as data logging, timing applications ex. turning on the sprinklers at 4pm in the evenings. Since the module is self powered the time data is maintained even if the Arduino is powered off, allowing for building low power systems which can run for a long span of time without change of batteries.

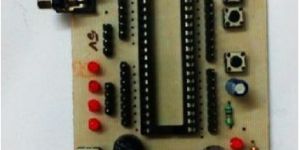

Product ID: 1269 With this board you can develop and prototype with any of 8051 40 pin microcontrollers. . The board has User button and status LED. The bridge rectifier allow this board to be powered with both AC and DC power supply adapters. DIL40 microcontroller socket Quartz crystal 11.05892 MHz RS232 Interface Reset button Power plug-in jack Extension slot on every uC pin GND bus Vcc bus. Four mounting holes 3,3 mm (0,13")

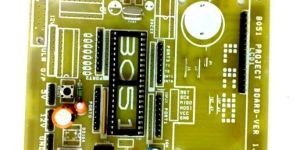

Product ID: 1250 With this board you can develop and prototype with any of 8051 40 pin microcontrollers. . The board has User button and status LED. The bridge rectifier allow this board to be powered with both AC and DC power supply adapters. DIL40 microcontroller socket Quartz crystal 11.05892 MHz LCD Display with Contrast Adjust ULN2003 to Drive Relays and Stepper Motors RS232 Interface I2C 24CXX EEPROM RTC DS1307 Reset button Power plug-in jack Extension slot on every uC pin GND bus Vcc bus. Four mounting holes 3,3 mm (0,13")

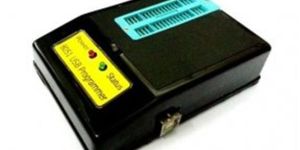

Product ID: B4 USB 8051 PROGRAMMER is self Powered programmer. No Need of external Power supply. Power LED Indicator and Status LED Indicator. User Friendly GUI and Software. Kit Includes USB Cable , CD and programmer.
