Fully Automatic Fly Ash Brick Making Machine Dealers in Morbi

Our Fully Automatic Fly Ash Bricks Making Machine (NH-1024) has the manufacturing capacity of 15 fly ash bricks in one operation. This machine is manufactured using corrosion resistant material and is widely known for its high compressive strength.  Details : Maximum High Pressure Capacity - 150 Ton Total power Required - -40HP Oil Tank Capacity - 550ltr(Hydraulic Oil 68 Number) Manufacturing Capacity - Fly Ash Bricks-15pcs. in one operation Bricks Production Capacity 22000 to25000 pcs.8 Hrs. Single Feeder facility for production of fly ash bricks Bricks pallet Size - 27”x33” inch ,Thickness 24mm Raw Material  - Fly Ash,Stone Dust,Stone Chips,Lime,Cement Labour - 12 unskilled and 1 skilled General Technical Information : Piston is Hard Chrome. Wiper on cylinder top. Super Vibration and pressing Systems for Maximum compaction and strength. Discharge of finished product through conveyor belt for FASTER production. Automatic pressing and demoulding by preset auto timer control. The press is controlled by jeans of PLC. Fly Ash Bricks, made will have shining smooth finish. Safe Working conditions with electrical and mechanical interlock system. Indicative only. production depends upon the labour efficiency and mix quality. Higher Tonnages, Brick size as per customer specifications. standard brick size is 230 X 110 X 75 mm. Specifications are subject to change for improvement. specifications, eights, volume are approximate only. Manufactures may be introduce such alterations as they may deem fit without previous notice. machines can supplied as per customer’s specific requirements. Machine capacity mentioned is only for guidence. it will vary with materials.

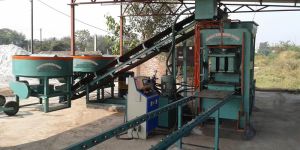

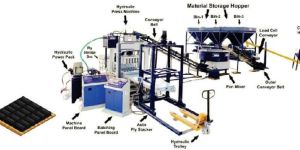

Our Fully Automatic Fly Ash Brick Making Machine has the maximum high pressure of 100 to 125 ton. This fully automatic fly ash brick making machine is equipped with two roller pan mixer, PLC control, conveyor belt, etc.   Specification & Features  : Maximum High Pressure  -  100 To 125 Ton Total Required of Power  -  30 HP Facility  -  Two Feeder Facility for Production of Fly-Ash Bricks & Colour Blocks. Accessories  - Two Roller Pan Mixer, PLC Control, Conveyor Belt, Power Pack, Fully Sensor Type Machine, 2 - Trolley, 1 - Colour Drum, Tool Box. Electric Power  -  (30 HP) - 10 HP (Main Pass), 7.5 + 7.5 = 15 HP (2 - Pan Mixer), 2 HP (Conveyor), 1 HP (Vubrator), 2 HP - Colour Drum. Approx Production  -  8 Bricks in a Strock, Bricks Size  -  230 x 100 x 75mm, 14,000 Bricks / 8 Hr. Approx. 2 Bricks in a Strock, Blocks Size 300 x 200 x 150mm, 2,500 Blocks / 8 Hr. Approx. 4 Paver in a Strock (60, 80, 100mm) 5500 Pavers / 8 Hr. Approx. Oil Tank (Power Pack)  -  400 Ltr. (68 No. Hydraulic Oil). System  -  PLC for Electro Mechanical, Oil Cooling, Auto Feed, Vibrating. Shed  -  50 x 35 Ft., Height - 16 Ft.

Our company is capable of delivering consignments on time owing to an efficient trading network we have. Using ultramodern packaging equipment and superior grade materials, we secure our products and make them safe from external damages. In addition, the packs are labeled properly for information.

Maximum high pressure 100 to 150 ton total required of power 28 hp facility two feeder facilitates for production of fly ash bricks & paver block. Accessories two rollers pan-mixer, panel board, conveyer belt, power pack, fully sensor type machine, trolley, tool box. Electric power 10 hp main press 7.5 + 7.5 = 15 hp pan mixer-2 nos 2 hp conveyer 1 hp vibrator 28 hp man power 1 skilled 9 unskilled 10 persons approx production 10 bricks in a stocked bricks size 230x100x75mm 17,000 to 19,000 bricks 8 hr. 3 solid block in a stocked solid block size 300x200x150mm 4,000 to 4,500 solid block 8 hr. 4 paver block in a stocked paver block size 60, 80, 100mm 4,500 to 5,000 paver block 8 hr. Oil tank (power pack) 68 no. Hydraulic oil 425 ltr. Wooden pallets 22" x 30" (inch) thickness 18 mm - shed 50 x 35 ft height 16 ft area required 10,000 to 15,000 square ft. Note: engineering drawing for civil work and shed for the machine installation.

Fly Ash Brick Making Machine, Automatic Fly Ash Bricks Making Machin

We are a renowned organization engaged in offering premium quality Fully Automatic Fly Ash Brick Machine with Vibro that is known for its optimum performance. Skilled professionals manufacture it using the best quality raw material and the most advanced techniques in complete compliance with international quality standards. In addition to this, our precious clients can avail this product from us at market leading prices. Specifications: Maximum High Pressure Tonnage : 70 Total Power Required : 17 HP (Main Press: 7.5 HP, Pan Mixer: 7.5 HP, Conveyor-2 HP,) Oil Tank Capacity : 300 Ltr Manufacturing Capacity : Fly Ash Bricks - 6 Pcs. in One Operation Bricks Size : 9" X 4" X 3" Bricks Production: 7000 to 8000 Pcs. 8 Hrs Manufacturing Capacity : Fly Ash Bricks - 4 Pcs. in One Operation Bricks Size : 9" X 6" X 3" Bricks Production ;4000 to 5000 Pcs. 8 Hrs Facility : Single Feeder Facilities for Production of Fly Ash Bricks

Automatic Fly Ash Bricks Plant, Paver Block Moul

We are equipped with advanced designing techniques and a very skilled team of experts, which is why we are able to offer a wide array of Fully Automatic Fly Ash Brick Making Machine. These Brick Making Machines are produced with superior quality raw material using advanced technology. Moreover, these machines are manufactured in adherence with international quality standards and are tested on various parameters, before delivering them to our buyers. This attributes to our becoming one of the renowned Manufacturers, Suppliers, and Exporters of Fully Automatic Fly Ash Brick Making Machine in Gujarat.   Total Plant Information : Main Technology : Hydraulic pressure Pressure Capacity : 100 Tones Heap Area : 15,000 to 20,000 Sq. feet Operation Time : 20 to 23 sec. per stock Oil Tank Capacity : 400 ltrs. Power required : 28 hp One stock 10pcs. Size 225mm × 100mm × 75mm Total production 13,000pcs. to 14,000pcs. Per shift (8 hours)   Features : Rugged design Robust construction Consistent product quality Least maintenance cost   Instructions  : Piston is Hard Chrome Wiper on top of the Cylinder Super Vibration & Pressing system for maximum compaction & strength Discharge of finished product though converge belt for faster production Automatic Pressing & Demodulating by preset auto-timer control Fly Ash Bricks will have shining smooth finish Indicative only production depends upon the labour efficiency & mix quality Higher Tonnages, brick size as per customer specification standers brick-size is 230 x 100 x 75mm Specifications are Subject to change for Improvement, Specification, Weight, Volume are approximate only Mfg may be introduce such alterations as they may deem fit without previous notice, machine can supplied as per customer's specific requirements, machine capacity mentioned is only for guidance, it will vary with materials

Fully Automatic Fly Ash Bricks Making Machine, Paver Block Machin
