rachana hydraulic & engineering Moon Nagar, Morbi, Gujarat

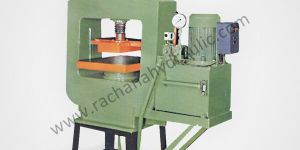

We are offering tiles & chequered tiles press machine with power pack. Specifications and features » construction : fabricated m.s. Plates steel body wiper on cylinder top » production capacity : 1200 to 1500 nos. Per shift » manufactur of : cement tiles,chequered tiles, galicha tiles, elevation wall tiles » mf.g capacity : size of tiles upto 375mm x 375mm » power consumption : 5 hp »oil tank capacity : 40 litres

Paver made will have Shining smooth finish,Pavers mfgd. from our PAVER MACHINE are fitted in PETROL (FUEL) PUMP, RAILWAY PLATEFORM AIRPORT, SWIMMING POOL, GARDEN RESORT, GENERAL PUBLIC PARKING PLACE,INDUSTRIAL PARKING PLACE RAILWAY CROSSING AND CONTAINER YARD,PAVER MACHINE FACILITATE Mfg. OF paver pc. in two colours : bottom in grey cement material and top pc.( thickness 10 mm ) as Required selected by customer. this help cost efficiency of paver.

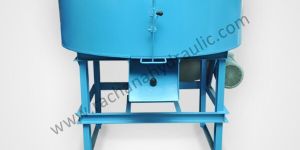

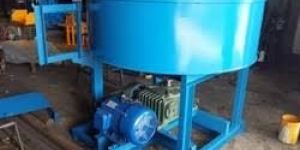

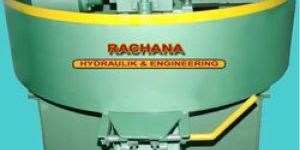

We are offering pan mixer machine with rollers. Pecifications and features » capacity : 300 kg batch » power (motor) : 5 hp » manufacturing : mixing of raw materials of fly-ash bricks and second layer raw material of paver blocks. » discharge ( manual) : bottom door opening » mixing : by heavy rollers & hand faced scrapers

Mixing Capacity,400 Kg batch,Total Power Required,7.5 Hp (Three Phase),Manufacturing Capacity,Mixing Raw Materials of Paver Blocks, Chequred Tiles and Fly-Ash Bricks,Materials Mixing,Two Heavy Rollers and Two hand Faced Scrapers

We are offering oil hydraulic power pack. specifications and features » construction : fabricated m.s. Plates steel body fitted with standard pump & motor » capacity : 3 press » power consumption : 5 hp » oil tank capacity : 100 litres » pressure pump capacity : tonnage 40

we are leading supplier of this product.

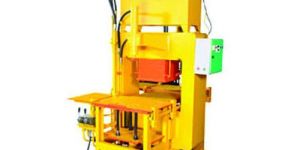

pecifications & Features: Maximum High Pressure Tonnage 70 Oil Cooling System Facilitate to cool down Oil even Press is working Auto Stop Safe working conditions with electrical and mechanical interlock system Superior Vibration and Pressing Systems For maximum compaction and strength The Pressing operation is time controlled with single switch operation for pressing and return strokes ensuring uniform pressure on all asides of paver block Power Required : 7 HP Oil Tank Capacity : 200 Litres Each Paver Machine can give production of 1400 to 1800 nos. Paver Block in 1 Shift. Manufacturing Capacity : Paver block & 450 mm x 300 mm x 150 mm Kerb Stone GENERAL TECHNICAL INFORMATION Wiper on cylinder top. At a time 4 worker can work. For removing of ring, Facility Of Hydraulic Stand is available. It can also manufacture CHEQUERED TILES, ELEVATION WALL TILES, CABLE TILES. Paver made will have Shining smooth finish. Pavers mfgd. from our PAVER MACHINE are fitted in PETROL (FUEL) PUMP, RAILWAY PLATEFORM AIRPORT, SWIMMING POOL, GARDEN RESORT, GENERAL PUBLIC PARKING PLACE, INDUSTRIAL PARKING PLACE RAILWAY CROSSING AND CONTAINER YARD. PAVER MACHINE FACILITATE Mfg. OF paver pc. in two colours : bottom in grey cement material and top pc.( thickness 10 mm ) as Required selected by customer. this help cost efficiency of paver.

pecifications & features: maximum pressure tonnage 40 manufacturing capacity mosaic tiles up to 375mm x 375mm solid for manufacturing capacity of paver 25mm to 100mm each paver machine can give proudction of 1400 to 1800 nos. paver in 1 shift power required : 5 hp oil tank capacity : 60 litres general technical information wiper on cylinder top. at a time 4 worker can work. for removing of ring, facility of hydraulic stand is available. it can also manufacture chequered tiles, elevation wall tiles, cable tiles. paver made will have shining smooth finish. pavers mfgd. from our paver machine are fitted in petrol (fuel) pump, railway plateform airport, swimming pool, garden resort, general public parking place,industrial parking place railway crossing and container yard. paver machine facilitate mfg. of paver pc. in two colours : bottom in grey cement material and top pc.( thickness 10 mm ) as required selected by customer. this help cost efficiency of paver.

Piston is Hard Chrome. Wiper on cylinder top. Super Vibration and pressing Systems for Maximum compaction and strength. Discharge of finished product through conveyor belt for FASTER production. Automatic pressing and demoulding by preset auto timer control. The press is controlled by jeans of PLC. Fly Ash Bricks, made will have shining smooth finish. Safe Working conditions with electrical and mechanical interlock system. Indicative only. production depends upon the labour efficiency and mix quality. Higher Tonnages, Brick size as per customer specifications. standard brick size is 230 X 110 X 75 mm. Specifications are subject to change for improvement. specifications, eights, volume are approximate only. Manufactures may be introduce such alterations as they may deem fit without previous notice. machines can supplied as per customer's specific requirements. Machine capacity mentioned is only for guidence. it will vary with materials.

We are a renowned organization engaged in offering premium quality Fully Automatic Fly Ash Brick Machine with Vibro that is known for its optimum performance. Skilled professionals manufacture it using the best quality raw material and the most advanced techniques in complete compliance with international quality standards. In addition to this, our precious clients can avail this product from us at market leading prices. Specifications: Maximum High Pressure Tonnage : 70 Total Power Required : 17 HP (Main Press: 7.5 HP, Pan Mixer: 7.5 HP, Conveyor-2 HP,) Oil Tank Capacity : 300 Ltr Manufacturing Capacity : Fly Ash Bricks - 6 Pcs. in One Operation Bricks Size : 9" X 4" X 3" Bricks Production: 7000 to 8000 Pcs. 8 Hrs Manufacturing Capacity : Fly Ash Bricks - 4 Pcs. in One Operation Bricks Size : 9" X 6" X 3" Bricks Production ;4000 to 5000 Pcs. 8 Hrs Facility : Single Feeder Facilities for Production of Fly Ash Bricks

Being a quality oriented firm, we are engaged in manufacturing, distributing and supplying the best quality fly ash brick machine. Our firm also caters to customize this product as per the customers’ requirements. The entire range is quality tested under the guidance of skilled quality controllers using advance testing tools in order to eliminate flaws. In addition to this, our offered range is highly appreciated by clients for features given below. specifications: maximum high pressure tonnage: 70 total power required: 7.5 hp oil tank capacity: 200 ltr production capacity : 2000 to 3000 pcs.in one shift (8 hours)

we are leading supplier of this product.

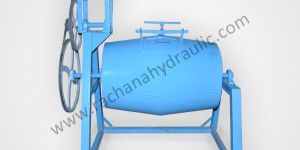

We are offering colour mixer machine (for mix dry colors). Specifications and features » construction : the lid barrel is made of dual mild steel cones. There is complete arrangement provided for speed control. The lid contains leak proof provision » utility : fast and accurate in colour mixing. Continuous mixer for first (top layer of mosaic tiles and paver block. » capacity : 250 kg. Per batch » drive : 2 hp 1440 rpmb » ideal speed : 38 to 42 rpm.

we are leading supplier of this product.

we are leading supplier of this product.

Production Capacity : 1200 To 1500 Nos / 8 Hours.  MFG. of. Cement Tiles, Chequred Tiles, Galicha Tiles, Elevation Wall Tiles.

e are the well-known manufacturer, distributor and supplier of a wide array of Vibro with High Pressure Paver Block Machine. This product is precisely fabricated using the best quality raw material and latest technology and designed with high precision in order to meet the set industrial quality standards. To meet various needs of the clients we offer this product in various specifications. Clients can avail this product from us at rock bottom prices. Specifications: Maximum High Pressure Tonnage : 70 Oil Cooling System Facilitate to cool down Oil even Pressing is Working Auto Stop Superior Vibration and Pressing Systems for Maximum Compaction and Strength The Pressing Operation is time Controlled with single Switch Operation for Pressing and return Strokes ensuring uniform pressure on all asides of Paver block Power Required 5 + 2 HP Each Paver Machine can give Production of 1400 to 1800 Nos. (in 8 Hours) Oil Tank Capacity : 200 Liters Manufacturing Capacity : Paver Block 8 450 mm x 300 mm x 150 mm Stone Features: Easy to operate Premium quality Perfect finish
