Acme Machinery India Pvt. Ltd Matunga, Mumbai, Maharashtra

Polyester, BOPP,PVC,Golden & Silver Films Can be Used. Lamination Width "24" 32" 48" Maximum Speed / Hour App. 1800 Ft 1800 Ft 1800 Ft. Film Roll Width 24" 32" 48" Film Roll Dia 12" 12" 12" Power Required 1 H.P 1.5 H.P 2 H.P Gross Weight 1200 Kgs. 1500 Kgs. 1700 Kgs.

Backed by decades of reseach and innovative work, Thread Book Sewing Machine Model ACME Sewing Master has been established as top level product. With the latest technology and functions, the Machine It is most suitable for commercial production leaving conventional stitcher far behind. It is fully enclosed, compact and robust in construction, even, reliable in efficiency and capability in the intricate block construction. It has very good accessibility to all structural units. The machine is absolutely free from risk prone possibilities as the same has been provided with ELECTRO MAGNETIC systems for instant megnetic brake in adverse conditions. The machine contributes to good psychologic and physiologic working conditions. Due to auto-fed lubrication device, the machine is free from general maintenance, resulting in good quantum of production. The machine is provided with a Control system for the whole Electric System. It operates the Electric Motor, Lubrication system, Machine lamp and Key switch for shut down the machine in non-working condition, special provision of shut off switch is provided for instant stop of the machine.   MACHINE LAMP   This system has been provided with Thread piercing to eliminate all parts/function for every operation of machine.   ELECTROMAGNETIC CLUTCH BRAKE   This system is provided for the purpose to conduct smooth functioning of the machine and in the event of any emergency, the magnetic Brake is applied for instant shut off the machine. This special feature of the machine deviates from all the conventional machine in terms of better control on the machine by the operator. The machine can be put into operation only when the operators desires by demagnetising the clutch brake. The feature is most helpful in adverse conditions to avoid futile running of the machine.   ADJUSTABLE HOOK/ NEEDLE HOLDER   This device is provided to facilitate the adjustment of stitches. Maximum 7 stitches can be put and these can be had at the desired point with the help of said adjustable Hook / Needle holder. With this the distance and No. of stitches can also be adjusted.   LUBRICATIONS   The machine is equipped with time schedule based Lubrication system for repeated Lubrication at desired time intervals to lubricate all the rotating parts for lessening the wear and tear.

Size : 72" Floor Space : 8Ft. x 4½ Ft Power : 2.H.P (1.5 KW) Slotting Depth : 6" x 4" x 5mm. Second Slotting Knife Set : 14" x 4" 6mm. Gross Weight : 800 Kgs. Accessories : 3 Slotting Dies     1 Corner Die & Handle Punch Dies

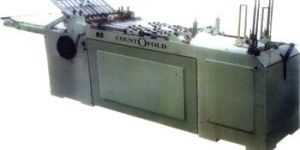

TECHNICAL SPECIFICATION Floding and Counting Machine counts and folds from 2 to 12 sheets with one or two folds (parellel) for exercise books, album etc, Automatic High Pile Feeder Folder and counted work is delivered in streaming fed. The sheets counting is by electronic counter. Easy handling ensures regular performance HEAVY DUTY STICHER Most useful for Stiching of Notebooks, Books, all kind of megazines, Bus Tickets and Currency Notes etc. TECHNICAL DATA Maximum Sheet Size : 890 x 890 mm Minimum Sheet Size : 400 x 350 mm Folding Capacity : 2 to 12 sheets depending upon condition and paper Mechanical Sheed : Maximum 180 to 200 sheets per minute. Pile Stack Capacity : 10 to 12 Reams Power Required : Total 2.5 H.P 3 phase 440 V Floor Space Required : 1400 x 3600 x 1250 mm Machine Weight : Approx. 2000 kgs.

Floding and Counting Machine counts and folds from 2 to 12 sheets with one or two folds (parellel) for exercise books, album etc, Automatic High Pile Feeder Folder and counted work is delivered in streaming fed. The sheets counting is by electronic counter. Easy handling ensures regular performance Most useful for Stiching of Notebooks, Books, all kind of megazines, Bus Tickets and Currency Notes etc.

It is a folding cum gluing machine for the manufacture of cartons in packaging of Pharmaceuticals Products, Food Stuffs, detergents and many other products. Highly versatile, dependable and capable of making large range of cartons, with tuck in type or automatic lock bottoms.

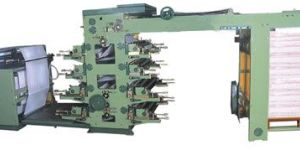

  2 - 3 - 4 colour Automatic Ruling Machine     Two feint ruling head on each side of the web with brass disc of 45 mm dia. (Standard Ruling Disc) and     one or two flexo head for Margin line and delay & date or any other required Printing with rubber or Photo     Polymer stereo. Feint ruling in 2 colour. Can cut required size of paper by charging gears Static Eliminator to neutralize paper Jogging arrangement Counting provided Speed increase and decrease in possible Self loading reel stand No necessity of oiling in gears High Pile Delivery Ruling disc and Spacer are of standard machine Imported A.C Very Speed Control provided with inching facility Speed about 100 to 125 mtrs. per minute depending on quality of paper . Paper Sensors for auto stop.

Provide with electro magnetic cluth & brake. Dwell timing device is provided The platen can stops from 1/2 second to 10 seconds according the requirement at the place of   feeding. Impression counter is provided. Platen Drive transmission is immersed in OIL for smooth, silent working and durability of moving   parts. Centralized lubricantion automatically through conveniently located Hand-Pump. Platen movement and the powerful action achieved with the combination of Double helical reduction   gear system and heavier flywheel. Single piece Connecting Arms, Rear-gear shaft and Reduction-gear shaft are mounted in phosphor-   broze bushing. Double micrometer impression adjustment for ease and precision in setting. Safety Guard, Feed & Delivery board.

The Machine is sturday in construction with the extra heavy duty for any kind of tough job. Totally enclosed body. The gears are of Special casting hard material for longer life of the machine. The Mechanism is designed to give more strength at the low level and mounted with bearing in order to have free acess in operation. The Machine is designed as per japan type Drum system cluth and friction brake on both the sides. The friction brake of the Machine ensures the instant stop of the machine at any point of The back guage slides in the rectangle groove at the centre of the plate and the same there are two slots at the corner of the plate in which the back guage with the guide slides that ensures totally against any corss cutting. Machine can be operated by power only.

TECHNICAL SPECIFICATION Floding and Counting Machine counts and folds from 2 to 12 sheets with one or two folds (parellel) for exercise books, album etc, Automatic High Pile Feeder Folder and counted work is delivered in streaming fed. The sheets counting is by electronic counter. Easy handling ensures regular performance HEAVY DUTY STICHER Most useful for Stiching of Notebooks, Books, all kind of megazines, Bus Tickets and Currency Notes etc. TECHNICAL SPECIFICATIONS Size of Machine "1" 25.4 mm Gross Weight Approximate 350 kgm 875 Lb. (Placked in one case) Net Weight 200 Kgm 500 Lb. (Without Packing) Space Required "32" x "28" 81 cm x 71 cm TECHNICAL DATA Maximum Sheet Size : 890 x 890 mm Minimum Sheet Size : 400 x 350 mm Folding Capacity : 2 to 12 sheets depending upon condition and paper Mechanical Sheed : Maximum 180 to 200 sheets per minute. Pile Stack Capacity : 10 to 12 Reams Power Required : Total 2.5 H.P 3 phase 440 V Floor Space Required : 1400 x 3600 x 1250 mm Machine Weight : Approx. 2000 kgs.
