Slotting Machines Dealers in Mumbai

Advantage for the Industry Automatic Sequence of operations Minimum set-up time Low cost High efficiency

Feeding by manually (chain feeding). Printing is done by means of rubber stereo. Stereo can be fixed on printing cylinder by double side adhesive tape.Feeding by manually (chain feeding). Printing is done by means of rubber stereo. Stereo can be fixed on printing cylinder by double side adhesive tape.

FOR CORNER CUTTING & SLOTTING, CREASING & EDGE CUTTING OF BLANKS IN SINGLE OPERATION   Sizes available from 1200*2000 to 1600*3000 mm Chain feeder for easy operation. Automatic feeder for chain feeding also available. Motorised with numerical control for adjustment of slotting rotary position. Zigzag slotting knife with 7mm thickness made of alloy steel.   Also available with automatic feeder for chain feeding.

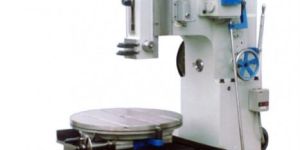

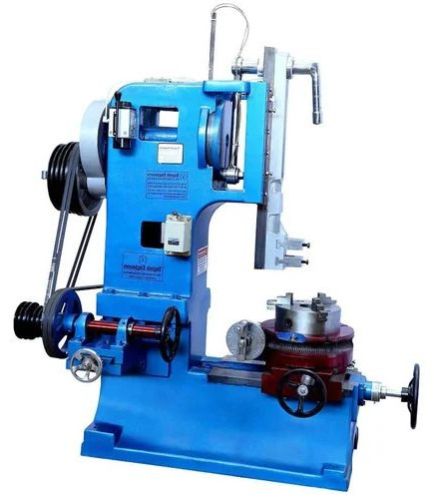

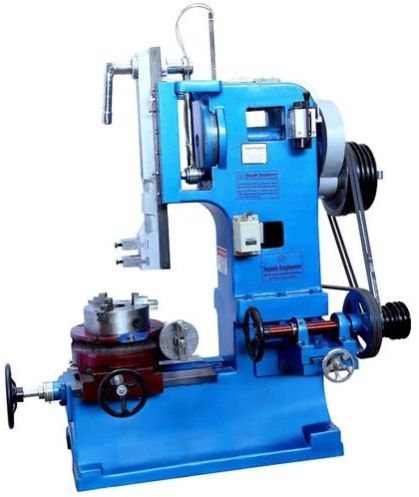

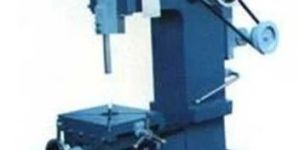

The constant research and regular investigations into new materials & methods got into high class products and first class service is our policy. CONSTRUCTION OF MACHINE : COLUMN : The column consists of two parts which are adequately ribbed & securely held together to form a rigid unit. The deep throat enables a wide variety of parts to be machined. DRIVE : The electric motor drives the clutch pulley and the gears fitted in the column. From there the power is transmitted to the ram by the means of link mechanism. The ram-movement is started by engaging clutch. The link mechanism allows for an accelerated ram movement in return stroke Ram speed changes are effected by sliding gears controlled by shaft through gear box. RAM : The ram is well ribbed and is quite strudy. An taper wedge is provided for smooth running. The ram can be tilted 5 degree on demand and swiveled 10 degree in case of 400 mm stroke. TABLE: The table is circular and is provided with T-Slots. It is divided on its circumference into 360 degrees. A tapered whole is provided in the centre of the table for reception of the centering mendral while machining circular slotting work. Direct indexing is provided for accurately locating the table in various positions. FEED : The feed mechanism mounted on the column through side gear box. The feeds are infinitely within the range of 0.2 mm to 1.5 mm. In case of 450 mm stroke 0.2 mm to 2 mm per cycle. The feeds can be adjusted when machine is at the rest   OUTSTANDING FEATURES : High grade casting for wear resistance and rigidity. Single lever control for changing the speeds. Centralised machine controls on operating side. Steel gears sliding on multi splined shafts. Drum clutch for stopping ram at any position. All shafts are carried on Ball Bearings. Hand operated automatic pump for lubrication. Indirect indexing by dividing attachment. Variable automatic table feeds in all directions is optional. EXTRA EQUIPMENTS : True Chuck, Electric Motor, Starter, Vee Belts, Lubrication Pump, Special Index Plate, Bellows, Longitudinal & Cross Auto Feed, Rotary Table Auto Feed, Tilting Head±5°, Swivel Head 10° for 400 mm stroke(cooper type).

Partap has developed this machine for quick handling. Machine consists of three slotting head and one corner head. These heads can be set quickly by handle. For adjustment of side cutter after regrinding screw arrangements have been provided. This machine is strong and dependable for accuracy and quality.

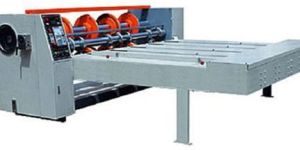

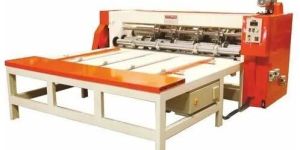

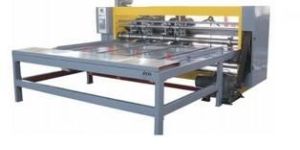

Rotary Creaser Slotter Combine Machine Three slotting heads and one corner cutter head, Four sets of creasing heads and one set of trimming head, Chain feeding system.

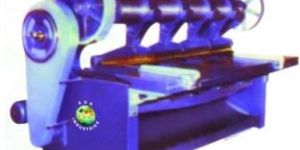

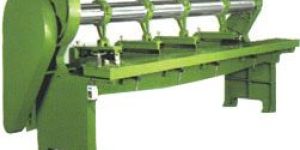

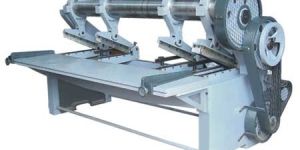

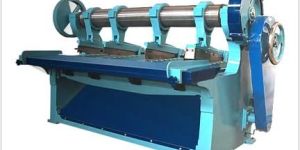

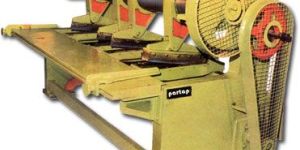

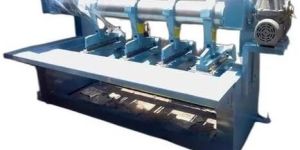

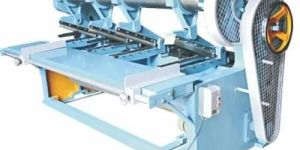

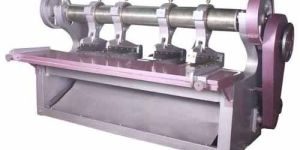

We are offering eccentric slotter. This robust machine is built for accuracy and quality. The machine is provided with three slotting heads and one corner head. These heads can be set quickly and accurately to the required size. Adjustment screws are provided on the cutter slides for setting of the cutter blades. gauges are provided on the platform for accurate feeding.

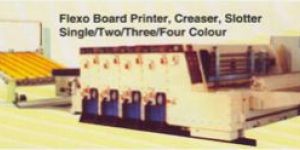

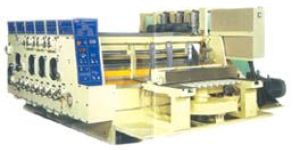

Slotting machines are used to make hollow grounds or points in the metal blocks and surface, fully automatic paper cutting machine, thin blade rotary cutting & creasing machine, platen punching machin, flexo printer cum slottere, semi-automatic printer-slotter-slitter cum creaser

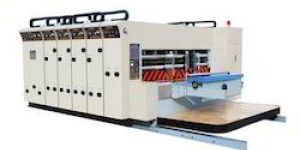

High Speed 3 colour Printer, Rotary, Slotter and Die cutter machine from Guangzhou Keshelong Carton Packing Machine Co, China - Newly installed. Produce 150 sheets of high quality prints per minute.

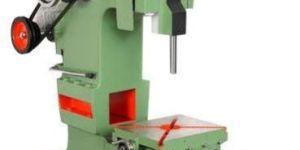

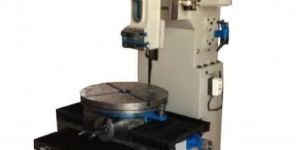

he column has a deep throat to enable a variety of parts to be machined the circular table is provided with t-slots 360º direct indexing to accurately locate positions a taper hole in the center of the table is useful for reception of cantering mandrel while machining circular slotting work. steel gear slide on multi-spline shafts. All shafts are carried on ball bearings. accuracy: as per is standard 2308 perpendicularity of the ram movement to table surface in longitudinal direction 0.02mm/300mm perpendicularity of the ram movement to table surface in traverse direction 0.02mm/300mm application: cutting slots, splines, keyway- internal and external machining internal and external gears, concave, circular, semi circular and convex surfaces, dies, punches shaping internal and external forms or profile internal machining of blind holes machining of shapes which are difficult produce on shaper   accessories:±5º tilting head, auto feed for x & y axes, auto rotary feed, bellows, true chuck, ±10º swivel head, coolant system

Partap has developed this machine for quick handling. Machine consists of three slotting head and one corner head. These heads can be set quickly by handle. This machine is strong and dependable for accuracy and quality.

Rigid Construction hence smooth and Vibration free operation. Fine grained castings and duly Seasoned. All gears are Machine cut and Properly fitted. Extra Accessories : Rotary Table with 36:1 Ration (250mm). Electric Motor True Chuck Switch V-belt

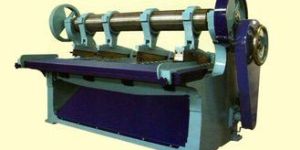

This Machine Is Equipped With Three Slotting Heads And One Corner Cutting Head Capable To Punch Out Number Ofboards At A Time. It Is Used For Slotting & Corner Cutting Of The Corrugated Boards Simultaneously. The Slot Units Are Mounted Over An Eccentric Roller Causing Them To Move Accurately As Required. Guides Are Provided On The Feed Table To Support The Sheet To Be Fed At Accurate Angle And Dimension The Rack Arrangement Is Provided To Set Proper Adjustment Of Knives Easil Alloy Steel Knives Shear Cut The Corrugated Board Ensuring Precise, Smooth & Sharp Cuttting.

Size : 72" Floor Space : 8Ft. x 4½ Ft Power : 2.H.P (1.5 KW) Slotting Depth : 6" x 4" x 5mm. Second Slotting Knife Set : 14" x 4" 6mm. Gross Weight : 800 Kgs. Accessories : 3 Slotting Dies     1 Corner Die & Handle Punch Dies

 “OMEGA” HEAVY DUTY ALL GEARED PRECISION SLOTTING MACHINES SAILENT FEATURES :   2 RAM SPEED QUICK RETURN MOTION FRICTION CLUTCH & ROTARY INDEXING TABLE

We are offering slotting machine.

Partition Slotting Machine, Cutting Machine, Creasing Machine, Board Cutte
