Adept Export Goregaon, Mumbai, Maharashtra

The Ultrasonic Tool Cleaner provides an effective and efficient method for cleaning Punches & Dies and tablet press parts. Improper cleaning of Punches & Dies leads to product contamination and adversely effects tablet quality and tool life. The Ultrasonic cleaning process ensures consistent cleaning of tools without manual intervention and any deterioration. Areas like intricate embossing, upper punch key ways, inside of die, etc are cleaned with same efficiency. Cleaning such areas manually is difficult and also time consuming. This process also reduces chances of damage as manual handling is minimised. Stainless Steel Tooling Basket The S.S. Tooling Basket has been designed to save time, reduce handling and prevent tool damage. It provides secure handling of tooling from Tablet Press to the Cleaning System to Storage Shelf. For maximum efficiency, the baskets can also be used for storage along with plastic box.   Salient Features: Cycle time of 5 to 15 minutes Timer Controller Temperature Controller Tank suitable for Tooling Basket

In cases when corrosive material is used or for very high volume products or products which require high compression force - the punches get corroded and a die ring is formed very fast. To avoid this wear and tear and to increase the life of the tools we use a very hard metal; Tungsten Carbide in the contact areas.

The 'Tool Storage Box' is a safe and simple storing system for Punch & Dies. These are made of poly-propylene to prevent damage during storage. The boxes can be stacked for optimised floor space utilisation. The 'Tool Storage Box' is available for 'D', 'B' and 'BB' tooling.   Key Advantages Safe and easy handling due to inbuilt recessed handles The box along with tooling can be taken to tablet press Prevents damage while storage and transportation Punches do not collide amongst themselves Special head support to ease punch removal Serial number on each pocket for easy identification Space to write product details Minimum floor space required due to stackable design Nesting design for storing empty boxes Easy to clean

For tablets that are sticky in nature, a common problem is jamming of the lower punch. The main reason for this is sticking of powder on the wall of die bore resulting in jamming of the tip in the die bore. To reduce this problem we give a sharp undercut on the punch tip, acting like a scrapping blade, which cleans the die bore at every compression.

Sticking is a major problem faced while manufacturing effervescent tablets. Not only does the powder stick to the punch face but it also corrodes the tooling. To minimize these problems we use Teflon tip punches as Teflon is less prone to sticking and the disc can be replaced if damaged.

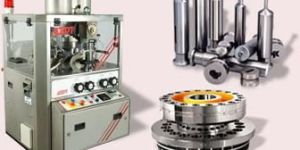

We have been manufacturing Tablet Compression Tools since our inception in 1969. In 1989 we decided to capitalise on our knowledge & expertise in manufacturing Punches & Dies to bring you Tablet Press. Apart from these we also manufacture turrets and spares for other makes of tablet compression machines

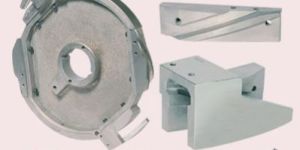

Like any machine, even a Tablet Press requires replacement of parts to ensure smooth and uninterrupted performance. We not only supply spares for Adept Tablet Press but also for other brands like Manesty, Stokes, Cadmach, etc.

ADEPT tablet presses are remarkably sturdy and simple to use. Unlike other presses they are smaller in height, hence much more rugged and stable. Special emphasis has been given to safety & durability while designing these machines. This emphasis has resulted in features like.   Double key for Upper punch cam-plate to reduce chances of accidental cam-plate displacement. Compression type safety spring to prevent overload on punches, which also acts as tonnage indicator. Graded casting for turret to reduce turret cracking. Tunnel tracks to ensure accurate lifting of upper punch, reduce accidents due to punch jamming and cam wear.   Key Features Front Control of pressure & weight Variable frequency AC Drive Timer controlled automatic lubrication

Most punches are damaged in handling rather than while production. And to ensure safe storage and handling of punches we have created a safe storage cabinet for your tooling. Not only does it keep your tools safe, but it also makes optimum use of space, making the cabinet an essential commodity. It offers benefits like:

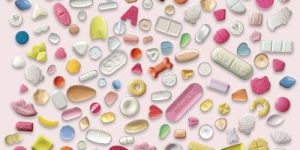

Considering today's competitive scenario where tablets need to have a unique identity, evoke a certain emotional response and be difficult to copy, tablet designing has become a very important process. To cater to this we can and have in the past developed irregular shaped tooling. Some of the shapes we have made are almond, lion, bear, cat, star, and banana.

Our Single Rotary Press is available only in GMP model. Some of the key features of Adept Single Rotary Press are: Centre Drive: Eliminates gear on turret and gearbox in compression zone thereby reducing downtime and maintenance. Pre-compression: Improves tablet friability and minimizes capping problem. Force Feeder: To minimize weight variation at high speeds

Shaped toolings have a shorter life than round toolings. One of the major reasons is that the wear & tear of the underside of the punch head results in weight variation. To avoid this we have created a rotating head tooling so the punch head can rotate just like round tooling and avoid this wear and tear, thereby giving it longer life.

Rotating Head for Shaped Punches, Shaped toolings have a shorter life than round toolings. One of the major reasons is that the wear & tear of the underside of the punch head results in weight variation. To avoid this we have created a rotating head tooling so the punch head can rotate just like round tooling and avoid this wear and tear, thereby giving it longer life.

Taking trials with different combinations of sample tooling on a single machine is a tough task for the R&D departments of pharmaceutical companies. To overcome this, we have developed a unique R&D turret. This turret consists of four stations of D-D, four stations of D-B, four stations of B-B and four stations of B-BB tooling.

Since every punch tip is very precise and accurate, slight wear & tear can result in production of dull or collared tablet. And hence, polishing of punch cavity is an important exercise to ensure reliability of the tooling process. Our punch cavity polishing kit helps you in acquiring the original cavity finish of your punches. Out kit contains different types of brushes for different cavities & different types of pastes for varied application. Since polishing is done to revive the original cavity finish, extreme care should be taken while doing it. One should avoid excessive or wrong polishing. The four most common errors while punch cavity polishing are: 'Rounding' of the outside diameter of the tip 'Rounding' of the edges of the tip face 'Distortion' of embossed details 'Distortion' of the tip face

For tablets that are small in size and are required to be manufactured in huge volumes, we provide multi-tip tooling. In these tooling more than one tip is accommodated on a single punch thereby increasing production substantially. However using this tooling requires a lot of skill and does have shorter life than normal tooling. It is recommended ideally where the tablet size is very small, hence many tips can be accommodated which would help distribute the compression force over a larger area.

The Adept Mega Press has been designed keeping in mind Adept’s philosophy of providing simple and efficient solution. The machine not only gives a higher output but also guarantees minimum breakdown and maintenance.   Key Advantages The machine has centre drive, with no gear on the turret. The machine is designed for 10 tons Pre-Compression pressure. All eight Compression rollers are identical and interchangeable. The rollers do not require continuous lubrication. Front control for all external control mechanisms. Multi chamber food grade gravity feeder. Upper punches completely covered to avoid powder settlement. Common hopper for Rotary and Gravity feeder. Bottom driven Rotary Feeder. Control knobs fitted with Seiko dials for fine control. Separate Control Panel. Not attached to the press. PLC based control.   Optional – Bi layer tablets.

The Adept Mega Press has been designed keeping in mind Adept’s philosophy of providing simple and efficient solution. The machine not only gives a higher output but also guarantees minimum breakdown and maintenance. Key Advantages: ADEPT Mega Press The machine has centre drive, with no gear on the turret. The machine is designed for 10 tons Pre-Compression pressure. All eight Compression rollers are identical and interchangeable.

On prolonged usage, punches & dies, are likely to give rise to the following problems: Excessive weight variation Tablet hardness variation Excessive powder seepage from lower punch or collar formation Bending of small size punch tips caused by excessive compression pressure   These problems need to be adhered to in due time to avoid excessive damage later on. Our inspection kit can be used to identify the inconsistencies in tooling. We can check the following parameters: Working height uniformity of all punches Punch tip & body diameter Punch tip to body concentricity Die OD & Height Die bore go / no-go status

We offer higher station turrets to help increase the production of your existing tablet press. All you need to do is change the turret (usually a less than 5 hour activity). The cam-plate and cam-tracks do not have to be changed if the tooling type remains same.

Metal feed frames, if not set properly lead to metal contamination and black particles in tablets. To address this problem, ADEPT has developed a feed frame made of Food Grade Co-Polymer. This ensures that the tablets don't have any metal particles from the feed frame.

We also make De-dusters & Dust Collectors which have today become a necessity in most pharmaceutical companies. These not only improve the tablet quality but also increase productivity by ensuring trouble free production and enabling to run the tablet press at higher speeds. De-Dusters A de-duster ensures that the tablets produced are clean, do not have any loose particles and reach the consumers undamaged. It also removes burr on the edges thereby reducing packaging problems and improving tablet appearance. We offer 2 types of de-dusters: Elevating Model and Vibratory Model

Our Double Rotary Press is available in both Open and GMP model. Currently more than 300 of our machines are producing tablets across the globe. Some of the key features of the Double Rotary press are:   Drive shaft made of alloy steel to ensure longer working life. Turret Ring is detachable from the turret and thereby reducing replacement cost. Discharge chute and feed frame are independent of turret guards, thereby reducing cost of maintenance and also eases setting the feed frame. Double V-belts to increase life of belts Our open model is simple and basic but performs better than most competition. It has all the same features of the GMP model except for Front Control, AC Drive & Timer Controlled Automatic Lubrication. However we do provide Timer Controlled Automatic Lubrication at extra cost Both the models can be provided with De-dusters and Dust Collection Unit.

Our Double Rotary Press is available in both Open and GMP model. Currently more than 300 of our machines are producing tablets across the globe. Some of the key features of the Double Rotary press are: Drive shaft made of alloy steel to ensure longer working life. Turret Ring is detachable from the turret and thereby reducing replacement cost. Discharge chute and feed frame are independent of turret guards, thereby reducing cost of maintenance and also eases setting the feed frame.
