Belcon Powertrans LLP Saki Vihar, Mumbai, Maharashtra

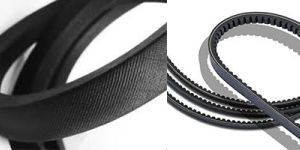

V belts (also style V-belts, vee belts, or, less commonly, wedge rope) solved the slippage and alignment problem. It is now the basic belt for power transmission. They provide the best combination of traction, speed of movement and long service life. They are generally endless, and their general cross-section shape is trapezoidal (hence the name "V"). The "V" shape of the belt tracks in a mating groove in the pulley (or sheave), with the result that the belt cannot slip off. The belt also tends to wedge into the groove as the load increases—the greater the load, the greater the wedging action—improving torque transmission and making the V-belt an effective solution, needing less width and tension.For high-power requirements, two or more V-belts can be joined side-by-side in an arrangement called a multi-V or by using ‘Banded’ V Belts, running on matching multi-groove sheaves. V-belts are generally made of rubber or polymer and have fibers embedded in the rubber or polymer for strength and reinforcement. The fibers may be of textile materials such as Nylon or polyester or aramid. Belcon is the authorised distributor for western India for SWR EUROPE Make V Belts. SWR EUROPE V Belts are manufactured on state-of-art lines from Germany in ISO 9001 & ISO 14001 certified production facilities using the latest production technology and subjected to the most stringent quality controls to ensures that our customers are supplied with high standard products. SWR EUROPE Belts meet all valid international standards like DIN, BS, ISO, RMA/ MPTA, JIS, etc. All SWR EUROPE V Belts are electrically conductive (anti-static) to DIN ISO 1813 and are suitable without restriction for use in tropical regions, are oil and heat-resistant with restrictions up to 120° C. SWR EUROPE offer a wide range of belts to satisfy the most demanding application.

Tyre Couplings consist of metal flanges with a elastic, high quality elastomer member which minimizes misalignment and maximizes power transmission. This torsionally elastic couplings tolerate large amounts of misalignment in all planes. They are lubrication free, demand little maintenance, offers simple, easy installation and inspection without disrupting the drive. Tyre coupling also has excellent shock absorbing properties while reducing vibration and torsional oscillations. Tyre Couplings are available in Series PH, PX / F, TC & U. PH Series has largest range. In the PH series the flexible member is firmly bolted to clamping elements. There is no possibility of Tyre slipping out even in case of imperfect installation.

Number Of Flower : Tyre Couplings

Material : Metal, Rubber

Shape : Round

Condition : New

Fetatures : Durable, Excellent Quality

Brand Name : UNIQUE

Timing (Synchronous) Belts Pulleys (Sprockets) are integral part of the Timing belt drive system. For the drive to perform at its optimum its very important to have pulleys which are perfectly made and matched with the belt being used. Poor quality pulleys tend to cause slippage, belt jumps, frequent belt breakages, poor drive efficiency, higher energy consumption, etc. ‘Belcon’ Timing Belt Pulleys are constructed from high quality material, are finished with particular care and to tight dimensional tolerances. Pulleys are manufactured in a modern and well equipped workshop. The special profile of the teeth are generated using imported hobs from reputed manufacturers, which ensures a very precise tooth profile and minimal pitch to pitch error. Belcon Powertrans LLP. manufactures pulleys in pitches: Classical series MXL, XL, L, H, XH & XXH in and in metric series HTD 3M, 5M, 8M & 14M; STD S3M, S5M, S8M & S14M; RPP 5, RPP8 & RPP14 in metric & for PU belts in T2.5, T5, AT5, T10, AT10, T20 & AT20 pitches. Pulleys can be manufactured with or without taper locks or with Keyless locking elements. Large range of pulleys are available from ready stock for immediate delivery. Pulleys as per customers drawings/ specifications are also possible. Our engineering team is always ready to to offer technical help in drive designing or trouble shoot drive problems. Belcon Powertrans LLP offers a large range of Timing pulleys both in Solid (Hub) Type in Pilot Bore and in Taper Lock type (With finished bore & Key way) from ready stock for immediate delivery.

Country of Origin : India

Number Of Flower : Timing Belt Pulley

Material : Aluminium, Iron, Metal, Mild Steel

Packaging Type : Metallic

Feature : Corrosion Resistance, Durable, High Quality

Brand Name : TRANSTEC

The most prestigious belt for power transmission. Its a flexible gear system with precision of a cog wheel. Due to its characteristics timing belt transmission allow: Synchronous Drive Constant and High Angular Speed Excellent Mechanical Speeds Dimensional Stability Resistance to high and intermittent overloads Silent Running No Lubrication and Low maintenanceDouble Sided or Twin Power Timing Belt The Double sided synchronous belts are specially designed with teeth on both sides providing two driving surfaces in positive drive applications. Ideally suited for serpentine drives when reverse rotation is required or where synchronization of multiple driven shafts is needed. Double sided timing belts are available in almost all series of timing belts. We stock a wide range of timing belts from some of the most reputed manufacturers like Contitech, Gates, Optibelt, Bando, Mitsuboshi, Elatech, Megadyne, Synchroflex, Brecoflex, SWR, Carlisle, etc. Timing Belts are available in wide range of lengths & various pitches to suit the most demanding drive design requirements: Classical or Imperial Pitches Metric Size Pitches Polyurethane (PU) Belt Pitches

  PVC / PU conveyor belts are the most commonly used belts for conveying application. These belts are made from high strength polyester carcass laminated with PVC / PU coatings - having Plain or textured finish. Top Surface: Coated with PVC / PU or Non Coated. Tension Member: Fabric of high strength polyester mono filament Bottom Layer: Bare Fabric or coated with PVC / PU Properties: Virtually Stretchless Dimensionally Stable Flexible Low Noise Easy Maintenance Easy to Handle & Economical to Use PVC / PU belts can be used in horizontal, incline or even curved conveying applications. They are available in various thickness, colours, chemical resistance and with various surface & bottom patterns. These belts can also be fitted with Sidewalls, Cleats (partitions), tracking guides, etc. PVC / PU belts can be supplied as Endless belt using hot vulcanization or with mechanical fasteners. All our cleats and sidewalls are welded using the most modern Ultrasonic welding system which ensures clean and strong fixing of Cleats & Sidewall. Due to its versatile nature PVC / PU conveyors are used in the basic to the most demanding applications in almost all types of industries like material handling, Food, Fitness, Ceramic & Tile, Textile, Engineering, Airports, Automobiles, Electronics, Chemical, Packaging, Paper & Board, Distribution & logistics.

PV belts design : Eliminates belt matching Permits drive design to meet exact power or space requirements Distributes the drive load across the entire belt width Permits cooler running and high drive efficiency Excels on small pulleys at high speeds Features : Extremely flexible High flexing capacity at high flex frequency Uniform power distribution across the entire width of the belt Long service life Applications :Office machines, printing machines, electric tools, conveyance technology. Major household applicances, machine tool equipment.   Properties   High transmission ratioThe belt's construction ensures extremely high flexibility and consequently transmission ratios of up to 1:40 using pulleys of extremely small diameter. High belt speedConstruction and material allow high-speed drivers with belt speeds of upto 60m/s. Compact driversThe outstanding flexibility permits a high reverse bending capacity at a belt flex frequency of up to 120 persoeond. This in turn means extremely small pulley diameters and allows conterflexing. Short centre distances and restricted spaces can be overcome by using reversetensioning idlers and serpentine drivers. High power transmisionExcellent frictional engagement and even load distribution across the entire belt width contribute to ensuring an efficiency of 98%. For high power transmissions we can supply Multiple V-Ribbed Belts of the ZAR type which have aramid tension members. For lower power transmissions and high speed changes, belts can be used as V-flat drives. Smooth runningNo twisting in the pulley grooves due to the single belt design characteristics. This ensures low vibration and quiet operation. Long service life.The tough, abrasion resistant materials can with stand high loading and dynamic stress. This assures long belt life and economical drives. All standard Poly V Belts are: Designed for temperatures ranging from -30C to +80C Moderate oil resistance Unaffected by weathering Resistant to effects of ozone Suited to use in tropical climates Electrically conductive/antistatic

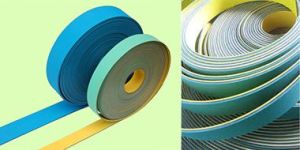

The friction layer canbe of either wear resistant rubber, chrome leather, Textile Fabric or combination thereof either wear resistant rubber, chrome leather, Textile Fabric or combination thereof. Properties: High Flexibility and long service life Very High Efficiency & Energy Cost Saving High Coefficient to friction Low Noise & Vibration free Wide range of power transmission capabilities

Number Of Flower : Nylon Flat Belt, Rubber and leather

Material : Nylon, Rubber and leather

Thickness : 0-10mm

Condition : New

Country of Origin : India

Brand Name : Transtec

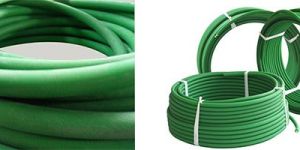

Polyurethane is an extremely tough durable raw material ideally suited and resistant to high levels of abrasion along with excellent chemical properties. PU Round (Solid &Tubular) & V Profile are ideal for light to medium duty drives and for conveying application. Properties: Extremely Strong Highly wear resistant Resistance to most Oils, ozone, fuels & Chemicals High Coefficient to friction. Easy to join Due to these properties, PU beltings are widely used in Various industries like textile, Ceramics Tiles, Glass, Food Processing, Printing, Live Roller Conveyor, etc. PU Belts being themo plastic are easy to join by simple heat welding. Joining is possible on-site by the customer or they can be supplied jointed endless. Easy to use joining kits and tools are also available. Round belts are available in diameters ranging from 02 mm to 15 mm. Belcon Engineers Pvt. Ltd is the sole distributor in India for Extruded PU Belting manufactured by

to achieve higher coefficient of friction, extra thickness or better abrasion resistance in a standard belt, extra layer of backing such as rubber, polyurethane, foam, pvc, fabric, etc. Is applied. also known as haul off belt or bagger belt or vffs belt the coated belt consists of any basic belt (like timing belt, poly v belt, flat belt, etc.) and a extra layer of cover. coating can be of various types like rubber, pu, silicon, sponge, foam, textile, pvc, supergrip, etc. And the base belts can be rubber or pu timing belts, poly v belts, flat belts, etc. Depending on the requirement, these belts can be with or without vacuum wholes, slits, tooth grinding, profiles, etc. such belts are used in various industries like packaging, paper, labeling, metal, food, glass, ceramic, textile, etc. Some of the popular applications are in the vertical form fill seal (vffs) machine as puller belts, in printing as feeder belts, in labeling machines as massage belts. belcon powertrans llp offers a large range of belts & coatings to suit a wide design requirement.   base belts offered: rubber timing belt polyurethane timing belt rubber poly v belt flat belts coatings offered: high abrasion rubber pu coating (90 shore a) pu sponge pu foam hard pvc super grip (rough top) rubber foam textile fabric machining: tooth grinding holes

Number Of Flower : Coated Belts

Condition : New

Material : Abrasion Resistant Rubber or PU or Sponge
