Bridge Rectifiers Dealers in Mumbai

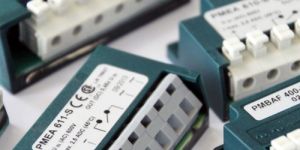

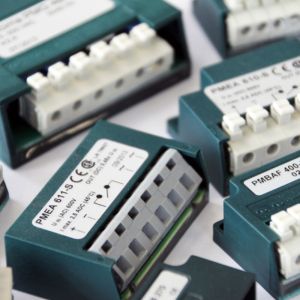

Previous Next Half- wave and bridge rectifiers Half- wave and bridge rectifiers PMB = Bridge Rectifier PME = Half-Wave Rectifier PMEA = Half- Wave Rectifier with protection against overvoltage PMG = Fast Response Rectifier These compactmodules have been aspecially designed to be fitted into the terminal boxes of electric-motors. The PME half wave rectifier which halves the supply voltage is the most cost effective. The PMB full wave bridge rectifier produces a smooth DC voltage (95% of the supply voltage). Both rectifiers are available for switching on AC or DC side. Varistors in the input and output protect the rectifiers from surge voltage. The PMG fast excitation rectifieris recommended whenever short release times or low dissipation is required. It combines the benefits of the half wave and bridge rectifiers.

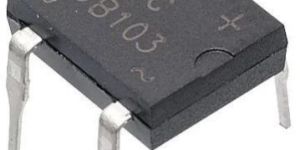

For conversion of an Alternating Current (AC) input into a direct current (DC) output known as Bridge Rectifier. A Bridge Rectifier provides full wave rectification from a two wire AC input resulting in lower cost and weight as compared to a rectifier with a 3 wire input from a transforer with a centre tapped secondary winding.

Bridge rectifiers are used with electronic equipments to provide full wave rectification from an AC power supply. It is also called full-wave rectifier because it makes use of all the AC wave, that is both positive and negative parts. It also produce full-wave DC voltage output.Advantage of Bridge Rectifiers - One of the notable benefits of bridge rectifier is that with a given transformer, it produces a voltage output that is nearly twice that of conventional full-wave circuit. - Bridge rectifiers have low ratio of peak inverse voltage as compared to average output voltage. Bridge rectifiers are rated by the maximum current they can pass and the maximum reverse voltage they can withstand.

Bridge Rectifier, Electro Plenty Rectifier, Power Control Equipmen

Bridge Rectifiers, Thyristor Inverter

Bridge Rectifiers, Piezo Buzzer

Bridge Rectifiers, Ferrite Cores, Water Cooled Thyristor Switche

Bridge Rectifier, High Watt LED, 5 MM Super Flux LED, Power LED 3 Wat

Moulded Bridges Rectifiers, Semi Conductors Devices, Diodes, Thyristor

Bridge Rectifiers, Audio Accessories, Electronic Alarm

Bridge Rectifier, Gasket Make

Diode Bridge Rectifiers, Fast Recovery Diode

Bridge Rectifiers, Voltage Regulators, IGBT, Mosfet, Mosfet Transisto
