Cintex Industrial Corporation Dadar, Mumbai, Maharashtra

The Temp. & Humidity controlled by Microprocessor based PID Temp. & RH% Controller with Dual Digital Indicator & PT – 100 sensor for Temp. & capitence type sensor for RH%.Overload protection relay & time delay for compressor.A Boiler Tank consisting of Water Heater having auto cut off facility with Audio Alarm for low water level.Air Circulation system ensures more stability of condition & even distribution inside the chambers.A two pan glass window provided on door for clear observation of test. An ancillary type heater provided in between the glass to cut the condensation.

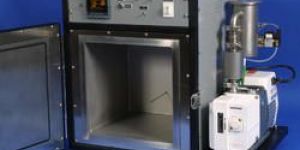

Specially designed heating element that eliminate exposed heaters giving smooth Chamber surface, The heat tempered full length Inner glass having window allows observation of load, Radiant warm wall heat guarantees even heat distribution, Chamber 304 SS with Exterior GI Powder Coated finish in REGULAR MODEL, Interior 304 MattBuff finish & Exterior 304 SS Matt finish in GMP MODEL. Two 316304 SS valve-one for evacuuming and other for pergingflushing, Vacuum levels are controlled between 1" and 30"Hg.

Designed for testing product shelf – life, packing and electronic test.Specially designed to meet ICH, WHO & USFDA requirements.Double walled having Inner 304 SS chamber and Exterior finished in Powder Coated Shade in REGULAR MODEL.The Temp. & Humidity controlled by Microprocessor based PID Temp. & RH% Controller with Dual Digital Indicator & PT – 100 sensor for Temp. & capitence type sensor for RH%.Cooling Kit is CFC Free. The Cooling Kit includes hermetically sealed compressor, condenser, Fan Motor, etc. and are safety placed belowabove the chamber.

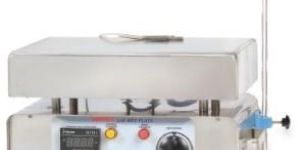

Plates are in Rectangular Shape. Top plate over hangs by supporting MS/SS pillars which allows air insulation between plate and control compartment to keep control compartment cool. Long Lasting Nichrom Elements. Body made of thick mild steel/GI sheet duly finished in powder coated shade in REGULAR MODEL. Body made of SS 304 & plate also made of SS 304 in GMP MODEL. With Energy Regulator and three heat control switch OR Microprocessor based PID Temp. Controller with Dual Digital Indicator & PT – 100 sensor. Max. Surface Temp. 300°C. Operates on 230 Volts A.C.

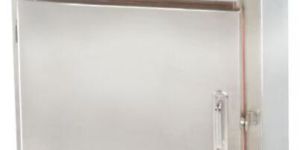

Triple walled in construction with Inner made of Stainless Steel – 304 & Exterior of GI/MS sheet duly finished in powder coated shade in REGULAR MODEL. Inner SS 316 or SS 304 Exterior SS 304 Matt/Buff finish in GMP/CGMP Models. High quality compressed glass wool or cerawool insulation between walls to Prevent heat – loss. A fully insulated door with sturdy brass – SS hinges with spring ball type latch and gasket for perfect sealing. Automatic autotuning Microprocessor based PID Temp. Controller with Dual Digital Indicator & PT – 100 sensor. Perforated Inner chamber for Air Circulation & uniform distribution of Temp. within chamber. Air circulation by motorized blower for uniform distribution of Temp. within chamber. Available with galvanized wire mesh shelves or SS wiremesh shelves. Temperature Range: 5°C above ambient to 250°C.Temperature Accuracy: ± 1°C.

Aluminium housing – non rusting. Powder Coated Finish in REGULAR MO1DEL. Body & Housing of SS 304 in GMP MODEL. Thick hand knitted fibre glass netting. High quality insulation. Energy regulator – power controller. Maximum surface temperature 350°C. Booster heaters – in bigger sizes. Usable with round bottom flask.

  Double walled having 304 Inner SS Exterior GI Powder Coated finish in REGULAR MODEL. Interior 304 SS buffed finish and Exterior SS 304 matt finish in all GMP MODEL. Units are highly insulated by PUFF/Wool between the walls to minimize the heat exchange. Highly advanced CFC free cooling system includes hermetically sealed compressors. A full length Inner glass door for observation of test without disturbing temperature equilibrium. A key lockable insulated door having positive door gasket seals door perfectly. Mechanical convection system (Motorized Blower) ensures even air distribution within the chamber. Heating is provided by 'U' type SS air heaters. Removable SS wiremesh shelves or SS rod type shelves. Automatic autotuning Microprocessor based PID Temp. Controller with Dual Digital Indicator & PT – 100 sensor. Electrical safety includes ELCB, Contactor and fuse AFETY CONTROLLER required to take over control in case of Temp. overshoot or if main PID Temp. Controller fails. PRINTER OUTPUT facility required to record PV, SV, Actual Date/Time with variable print time interval, 5000 line memory & Audio alarm facility in case of memory full. AUDIO ALARM facility to alert for Temp. Overshoot/undershoot. TIMER facility. 21 CFR PART 11 COMPLIANCE SOFWARE for Data Management. NOTE: We reserve the right to change Outer Size and design of equipment due to constant equipment upgradation.

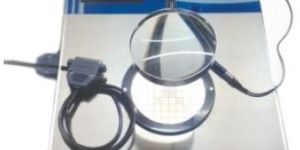

This unit is most useful for accurate counting and recording of Bacterial and Colonies. Usable in all Laboratories- Biology, Pathology, Zoology, Bacteriology etc. Housing made of MS/GI sheet finished with epoxy powder coated shade in REGULAR MODEL. Body made of 304 SS matt finish in GMP MODEL. 4 Digit Resetable Digital display to read and record counting. Illumination provided by cool tube light for clear view and perfect counting through magnifying glass provided. A probe (PEN) for marking as well as counting provided. With wolffhueged grid glass plate and a magnifying lens. Operates on 230 volts A.C.

Designed for testing product shelf – life, packing and electronic test, Specially designed to meet ICH, WHO & USFDA requirements, Double walled having Inner 304 SS chamber and Exterior finished in Powder Coated Shade in REGULAR MODEL, Inner SS 304SS 316 and Exterior SS 304 mattbuff finish in GMP MODEL, The Temp. & Humidity controlled by Microprocessor based PID Temp. & RH% Controller with Dual Digital Indicator & PT – 100 sensor for Temp. & capitence type sensor for RH%, A perfectly designed CFC Free cooling system to operate any temperature from 10°C to 60°C, Cooling Kit is CFC Free. The Cooling Kit includes hermetically sealed compressor, condenser, Fan Motor, etc. and are safety placed belowabove the chamber.

Ideal for Sterilization, drying heat treatment and thermal testing. Triple walled in construction with Inner made of Stainless Steel 304 and Exterior of GI/MS sheet duly finished in powder coated shade. Inner SS 316 or SS 304 Exterior SS 304 Matt/Buff finish in GMP/CGMP Models. High quality compressed glasswool insulation between Inner wall and outer wall to prevent heat-loss. A fully insulated door with sturdy brass SS hinges with spring ball type latch and gasket for perfect sealing. Automatic Autotuning Microprocessor based PID Controller with Dual Digital Indicator. Air Circulation performed by motorized blower. Available with galvanized wire mesh shelves OR choice to select SS wire mesh shelves. Temp. Range : 5° above ambient to 60°C. Temp. Accuracy : ± 0.5°C

Double walled having 304 Inner SS Exterior GI Powder Coated finish in REGULAR MODEL. Interior 304 SS buffed finish and Exterior SS 304 matt finish in all GMP MODEL. Units are highly insulated by PUFF/Wool between the walls to minimize the heat exchange. Highly advanced CFC free cooling system includes hermetically sealed compressors. A full length Inner glass door for observation of test without disturbing temperature equilibrium. A key lockable insulated door having positive door gasket seals door perfectly. Mechanical convection system (Motorized Blower) ensures even air distribution within the chamber. Heating is provided by 'U' type SS air heaters. Removable SS wiremesh shelves or SS rod type shelves. Automatic autotuning Microprocessor based PID Temp. Controller with Dual Digital Indicator & PT – 100 sensor. Electrical safety includes ELCB, Contactor and fuses. SAFETY CONTROLLER required to take over control in case of Temp. overshoot or if main PID Temp. Controller fails. PRINTER OUTPUT facility required to record PV, SV, Actual Date/Time with variable print time interval, 5000 line memory & Audio alarm facility in case of memory full. AUDIO ALARM facility to alert for Temp. Overshoot/undershoot. TIMER facility. 21 CFR PART 11 COMPLIANCE SOFWARE for Data Management. NOTE: We reserve the right to change Outer Size and design of equipment due to constant equipment upgradation.

Ideal for tissue culture and bacteriology. Most useful for IVF Lab. Inner SS 316 Water Jacket and Exterior GI finished in Powder Coated Shade. Thermal conductivity CO2 sensor and PT-100 temperature sensor. PID Temperature Controller and PID Co2 level Controller easy to read LED Indicates SET and actual temperature and set and actual Co2 level. Audible and visual alarms warns against exceeding limits of Co2 and temperature. Controlled door heater eliminates condensation on the Inner glass door. User friendly features includes front panel calibration and sample port for checking of Co2 concentration built in filter on Co2 supply line easily replaceable. Stainless Steel pan to get Humidity upto 98% at 37°C by keeping at the bottom of the inner chamber. Usable with medical grade Co2 only.

JACKET CAPACITY : CIC - 73 A

Fully Automatic Autoclave – most useful to sterilizer Lab glassware, Plastic Tubing, Liquid in sealed glass containers and many more uses. Fully Argon welded to avoid steam and pressure leak. Double walled in construction with InnerSS 304 & Outer SS 304 Matt/Buff or mirror finish. A Special Box Type outer SS 304 body is provided with state of art control panel to avoid direct heated contact with main Jackett and double walled body of autoclave. A unique single lever lock ensures easy lifting & closure of Autoclave door without leakage of Vacuum & Pressure. The Temp. is being controlled by Microprocessor based PID Temp. Controller with Dual Digital Indicator and PT – 100 sensor. The cycle begins with press of a start Switch for fully automatic operation. Automatic steam and air exhaust at end of cycle. Specially designed heaters reduces power consumption. Removable SS wire mesh/rod carrier supported on footed, SS frame in-built. Water low level Alarm indication and heater cutt off facility. Lid is equipped with pressure guage range 0 to 20 PSI, safety value, and manual exhaust valve. Safety valve, Steam release Exhaust Valve, Vacuum breaker – for more safety.

Capacity : NO. OF SHELVES BASKET

This is very compact and designed for measuring the diameter of finished zone in petridish, for determining the strength of antibiotic materials. Ext. GI Powder Coated in REGULAR MODEL Unit made of SS 316 or SS 304 in GMP MODEL. With Accuracy of 0.1 MM. This Antibiotic Zone Reader measures the diameter of the inhibited zone within the range of 0 to 80 mm with accuracy of 0.1 mm. The light from inside source of the base passes up through the transparent and semi transparent of the Agar then to a reflacting mirror situated in an arm above the unit. The mirror reflects the light to a glass prism mounted at the magnified image of the zone of inhabitions is clearly visible on the prism.

Most suitable for Ageing test of PVC and Rubber. Solid Aluminum heating Block (Circular) to accommodate cylinder cells. The aluminum cell has a center hole at the bottom which allows to enter pre-heated air from a small diapharm pump, the air changes per hour are same through all the cells. The Temp. is being controlled by Automatic autotuning type Microprocessor based PID Temp. Controller with Dual Digital Indicator and PT-100 sensor. The system incorporate with Digital timer of 99 hours. Selection of Model 7 cells or 19 cells as per BS specification.
