Compression Load Cell Dealers in Mumbai

• Excitation Voltage: 15 VDC – Maximum 20 VDC
• Nominal Output: 2.0 mV/V
• Hysteresis: < ± 0.03 % FSO
• Creep (30 minutes): < ± 0.03 % FSO

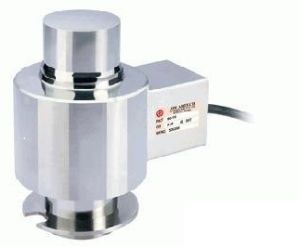

90410 Compression Loadcell is a single-column rocker pin type compression load cell. 90410 is constructed from high-grade tool steel with electroless Nickel plating for resistance to shock loads and corrosion. It is a strain gage based sensor with temperature compensation for 0 to 60 deg. C. We mainly deal with ADI Artech Loadcells and are distributors of ADI ARTECH. Seegate Corporation is based in the weighing industry for 25 years and more. Has been known by all prominent Companies. 90410 is airtightly fixed with laser welding for IP 68 ecological security. Its rocker pin configuration helps for self-focusing and self-reestablishing under moving heaps of trucks. It is given gass release tubes for assurance against lightning and line voltage shortcomings Please contact us for more details about the compression-type loadcells. Search for more compression-type loadcell like 90310, 90210, 90410 etc. Check below for the features and specific applications 90410 compression load cell is used in. Some of the specific features of 90410 Compression Loadcell are as follows: 10 to 100 Tf capacities offered. Complete environmental protection IP68 class. Standard output 2.0 mV/V available. Laser welded. Stainless steel construction. Application areas for this 90410 loadcell are as follows : Weighbridge. Tensile testing. Industrial automation.

Capacity: 5Tf to 500Tf Industries: Defence, Weighing Transport & High Way Authority, Tensile Testing, Fertilizer, Cement, Chemical, Steel industries, Material Testing Application: Calibration load cell, Civil Construction Pile Testing Dynamometer, Compressive Force Measurement & Testing, Force in Product Testing, Hopper, Tank, Silo Weighing, Impact Measurement, Materials Testing, Press Force Checking & Calibration, Recoil Force in Rocket Engine Test, Truck Weighing, Weigh Bridge Scale

This load cell is designed for high capacity weighing in limited space conditions. Stainless steel construction and laser welded enclosure provides long term-stabilized performance in adverse environmental conditions.

• Material: Stainless steel
• IP Rating: IP68 & IP69K
• Compensated Temperature Range: 0 to +50 deg C
• Load Capacity: 10t to 1000t
• Operating Temp. Range: 0 to +50 deg C

we offer Compression Column Load Cell C 310. Features: fully stainless steel construction. fully welded and hermetically sealed to ip68. pre-corner adjustment optimised for multi-cell systems. self-centering column design with anti rotation pin. in-built surge arrestors for lightning protection. manufactured in europe. oiml r60 approved to 4000 divisions. atex high temperature version available.
