Cottor Plants (india) Pvt. Ltd. Andheri, Mumbai, Maharashtra

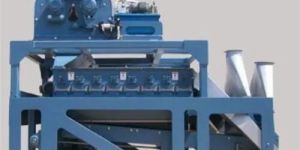

Twin roll hulling has proven to be the highest capacity and most efficient way to hull bulk oil seeds, which include cottonseed, sunflower, soybean, peanuts, etc.Cottor has significantly improved on this technology by Offering the most advanced huller on the market today.The hulling process starts with an adjustable metered roll feeder designed to offer complete consistency and uniformity to the flow rate.By utilizing an adjustable feed damper and variable speed control, an accurate and reliable feed rate can be maintained. The heart of the hulling process is the twin, rugged 18" dia rolls equipped with removable huller knives. These twin rolls are driven at a ratio to enhance the cutting process thus minimizing the amount of uncut and recycle seed. This ratio combined with a spiral lead on the cutting edges allows the highest percentage of open "hulled" seed available to the separation room. The replaceable huller knives are manufactured from the highest quality alloy and hardened to 52RC for extra long process life. Having removable hulling surfaces allows Cottor to tailor the knife profiles to fit the specific hulling requirements of the wide variety of oil seeds processed. All huller knives are manufactured from a single fixture giving absolute interchangeability for all replacements. Protecting the machined huller knives while they are in operation is accomplished with hydraulic cylinders and relief valves that will instantly open the rolls automatically should any damaging contamination come in with the seed stream.Rugged, reliable, high capacity, low maintenance and economy are the many reasons more processors are changing to Cantrell's twin roll huller. Main Drive Motor - 25hp 1450/1750rpm, 380/230/440v 50/60hz Hydraulic Motor - 2hp 1000/1200rpm, 380/230/440v 56/60hz Feeder Motor - .1hp 90v Dc Belts - Primary 5v-6 Groove - Secondary "cc" - 4 Groove Replaceable Huller Knives 19 Per Cylinder 38 Total Hydraulic Safety Roll Relief System Dual 18" Dia.X 36" Hulling Cylinders Shipping Weight: 7800 Lbs / 3538 Kg Shipping Volume: 160 Ft3 / 4.5m3 Replaceable Huller Knives 19 Per Cylinder 38 Total The 36" / 48" Twin Roll Hller & Cottor Beater / Shaker is primary to produce hulls with a minimum oil content by efficiently beating the hulls to remove the high protein finished meats. The combination consists of an 36" Twin Roll Huller, eight-chamber beater section mounted above a Shaker Separator Tray.

Country of Origin : Made in India

Country of Origin : 240-380 V

Country of Origin : Made in India

Automation Grade : Automatic

Country of Origin : 230-380 V

The performance of your lint room is critical to maintaining quality lint at the highest capacity obtainable. Nothing controls your lint quality and capacity as a good sharp saw tooth, and nothing controls a good sharp saw tooth as your precision saw filer. So it stands to reason that you want the best saw filer obtainable for your operation. Unmatched for precision and performance in maintaining quality uniform teeth, throughout the life of your saws. Completely automatic saw filer with machine tool accuracy. Ruggedly built for smooth operation and reliability. Completely interchangeable parts for low maintenance and service ease. The Cottor 176 & 200 Saw Filer Maintaines Saws In Perfect Condition At All Times. The Cottor Saw Filer Has Machine Tool Precision That Will Cut In And Maintain A Good Tooth Profile Throughout The Life Of The Saws. 176 Saw Drive Motor - 2 Hp - 60hz / 3 Hp - 50 Hz 200 Saw Drive Motor - 3 Hp - 60hz / 5 Hp - 50 Hz Shipping Weight: (176) 1930 Lbs / 875.4kg (200) 2150 Lbs / 975.2kg Shipping Volume: (176) 145ft3 / 4.1m3 (200) 160ft3 / 4.5m3 Cottor Provides A Complete Line Of Parts And Accessories

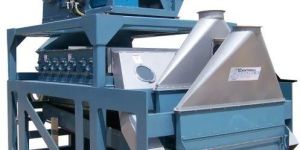

The 48" twin roll huller & basket beater shaker is primary to produce hulls with a minimum oil content by efficiently beating the hulls to remove the high protein finished meats. the combination consists of an 48” twin roll huller, eight-chamber beater section mounted above a shaker separator tray.

Country of Origin : Made in India

Country of Origin : 380-415 V

Country of Origin : Made in India

Country of Origin : 380-415 V

Capacity : 30 TPH

The Four Tray Seed Cleaner is sturdy steel fabrication machine having Four Tray reciprocating motion through Eccentric Shaft assembly unit. All steel feeder with volume control feeding by worm gear motor connected to variable frequency drive control panel for feed regulate.The vacuum chamber is specially designed for easy of operation and maintenance. The blower is mounted on frame for better air efficiency. The unginned seed cotton separated from Tray one and Three collected separately. The seed from tray two & Four are moved to Vacuum suction chamber which deliver cleaned seed collected through conveyor, separating stone, metal pieces also separating light fly lint and hulls in cyclone.This perfect cleaning protect other processing machine namely Delinter & Huller.This Seed Cleaner can be used for multiple seed cleaning application : Cotton Seed , Soybeans, Sunflower Seed, Ground Nut Etc.,The better cleaning improves quality of by products of cottonseed. Simple & Sturdy Modern Construction. Proven Design For Better Working. Higher Capacity - Low H.P. New Volumetric Steel Feeder With Feed Control. Engineered For Better Working Performance. Better Cleaning Efficiency Specialy For Cottonseed Cleaning Also Used For Other Oilseeds.

Capacity : 9 TPH

Country of Origin : Made in India

Country of Origin : 220-380 V

Material : MS

Country of Origin : Made in India

Brand : Cottor

Country of Origin : 340-415 V

Material : Mild Steel

Country of Origin : Made in India

Capacity : 100 MTD

The Four Tray Seed Cleaner is sturdy steel fabrication machine having Four Tray reciprocating motion through Eccentric Shaft assembly unit. All steel feeder with volume control feeding by worm gear motor connected to variable frequency drive control panel for feed regulate. The vacuum chamber is specially designed for easy of operation and maintenance. The blower is mounted on frame for better air efficiency. The unginned seed cotton separated from Tray one and Three collected separately.

Machine Type : Semi-Automatic

Country of Origin : Made in India

Power Source : Electric

Country of Origin : 230-380 V

Country of Origin : Made in India

Machine Type : Automatic

Country of Origin : 230 - 460 V

Capacity : 13610 kg/ 24 hour

Country of Origin : Made in India

Continuous Solvent Extraction is the most modern way of recovery of oil bearing materials. Mechanical Expulsion with expellers subjects the oil to the combined action of high temperature, high pressure and high moisture, the effect of which causes oxidation, colour fixation and hydrolysis. Some of the materials like Ricebran, soyabean seeds mostly can't be handled by exellers. Continuous Solvent Extraction, on the other hand does not cause any alteration to the properties of the oil and recovers it with the same characteristics as were present in the Raw Material and can handle all types of materials. Recent developments of the Expander system with the squeezomatic attachment invaribly ensures even direct extraction of high oil content material like sunflower, rapeseed etc., producing the best quality of crude oil and completely eliminating the prepressing operations by old technology of expellers. Thanks to this most modern and versatile design of expanders which can be very well fitted in the preparatory section itself. COTTOR continues solvent extraction plant thus completely eliminates the dependency on oil millers during lean seasons and gives additional advantage to solvent extraction plant owners for processing even direct extraction of high oil content seeds.

The Cottor 60" wide Beater / Shaker is used to produce hulls with a minimum oil content by efficiently beating the hulls to remove the high protein finished meats.The machine consists of an eight-chamber beater section mounted above a shaker separator tray. The Beater Separator combines mechanical and pneumatic forces to effectively remove hulls from decorticated oil bearing seeds, including cottonseed, sunflower, soybeans, peanuts, etc.Solidly designed and built for most generic hullers to be mounted over the frame.   The heart of the hulling process is the twin, rugged 18" dia rolls equipped with removable huller knives. These twin rolls are driven at a ratio to enhance the cutting process thus minimizing the amount of uncut and recycle seed. This ratio combined with a spiral lead on the cutting edges allows the highest percentage of open "hulled" seed available to the separation room. Self cleaning aluminum sash for level consistant results. Extra heavy duty eccentrics for smooth operation and long life. The most efficient primary removal of hulls from oil bearing seeds on the market today. Shaker Motor - 3hp - 1000/1200rpm - 380/230-460v / 3ph / 50-60hz Beater Motor - 5hp - 1450/1750rpm - 380/230-460v / 3ph / 50-60hz Gear Reducer, Double Reduction / Helical Gear 9.3:1 60"Eight Stationary Screens - Removable Shaker Tray - 42.5 Sq Ft Of Self Cleaning Sash Adjustable Air Hoods - Two 10" Dia./ 1900 Cfm / 3484 Fpm Inspection Windows - 2 Large 10" Dia. Viewing Areas Universal Huller Stand / Fits All Makes And Models Shipping Weight: 5400 Lbs / 2448 Kg. Shipping Volume: 512 Ftt3 / 14.5M3

Utilizing 'Laminar Flow' cleaning, for the highest recovery of quality lint in the industry.Extra large capacity reclaim section for high secondary lint recovery.Beater screens mounted in easy-pull trays for quick change and ease of maintenance.Clean rugged design with heavy structural construction for smooth operation.Total control of bran, meats and other oily by-products removed from lint stream.Advanced powdered metal finish for easy clean-up and long lasting appeal.The Cottor 7 stage lint cleaner will provide the highest capacity and recovery of lint on the market today, while maintaining the highest lint quality available. Laminar flow cleaning gently fluffs the lint while removing the contaminates with little or no damage to fiber.Large pepper and bran section eliminates oil, meats, and hull bran early to keep oil absorption and discoloration in finished lint to a minimum. FEEDER MOTOR - 1.5HP - 1450/1750RPM - 380/230- 460V / 3PH / 50-60HZ. BEATER MOTOR - 5HP - 1000/1200RPM - 380/230- 460V / 3PH / 50-60HZ. BEATER MOTOR - 2HP - 1450/1750RPM - 380/230- 460V / 3PH / 50-60HZ. SHAKER MOTORS - (2) 1HP - 1000/1200RPM - 380/230- 460V / 3PH / 50-60HZ. AIR HOODS - (2) 6" DIA. / 750 CFM EACH / 3819 FPM VELOCITY. AIR HOOD - 10" DIA. / 1600 CFM / 2934 FPM VELOCITY. CAPACITY 30,000 LBS / 13,610 KG PER 24 HOUR DAY. 48" (1219mm) WIDE CELLULOSE SEC. 30" (762mm) WIDE RECLAIM SEC. SHIPPING WEIGHT: 11,800 LBS / 5,352 KG. SHIPPING VOLUME: 603 FT / 17 M.

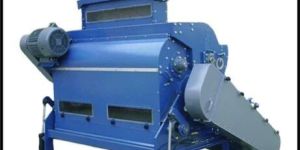

Cotton seed processing machinery the new cottor cantrell 200 saw delinter combines the highest capacity lint removal with the lowest maintenance required for any delinter on the market today. the extremely low profile makes for easy adjustments while allowing for smooth trouble free operation. monitoring the delinters' performance has never been easier with extra large inpection windows at the most critical locations. High performance, quality lint, reliability and safety are the best reasons for purchasing this new saw delinter.

The new Cottor 200 saw delinter combines the highest capacity lint removal with the lowest maintenance required for any delinter on the market today. The extremely low profile makes for easy adjustments while allowing for smooth trouble free operation. Monitoring the Delinters' performance has never been easier with extra large inspection windows at the most critical locations. High performance, quality lint, reliability and safety are the best reasons for purchasing the new saw delinter. No air idlers required: positive manual adjustment of saw motor drive. Twin gratefall cylinders: add balance to opening and sit back out of the aisle to prevent damage. Ball bearing gratefall pivots: eliminates gratefall bushing maintenance. Motors located for easy access: allow for well ventillated cool running. New design float cylinder: rugged high performance & low maintenance Rugged aluminum saw pully: allows for easy removal (28 LBS). Extended seed chargeing chamber: creates extra density in float for a more uniform lint cut with no seed mess. Low profile: low center of gravity makes smooth running and easy to reach operation & maintenance. Heavy gauge: drive guards with easy access to drives. Advanced powdered metal finish: makes for easy clean-up and long lasting appeal. Feeder Motor - 1hp - Worm Gear Motor Float Motor - 25hp - 1450/1750rpm - 380/230- 460v / 3ph / 50-60hz Saw Motor - 40hp - 1450/1750rpm - 380/230- 460v / 3ph / 50-60hz Brush Motor - 3hp - 1000/1200rpm - 380/230- 460v / 3ph / 50-60hz Lint Air Hood - 11" Dia./ 2200cfm / 3340 Fpm Velocity Dual Gratefall Assist Hydraulic Cylinders (560 Psi) Positive Mechanical Belt Tensioning 200 - 18" Dia. X .045" Saws On 7 15/16" Dia. Cylinder Shipping Weight: 6800 Lbs / 3084 Kg. Shipping Volume: 477 Ft3 / 13.59m3
