D.v. Technolinks (india) Kandivali, Mumbai, Maharashtra

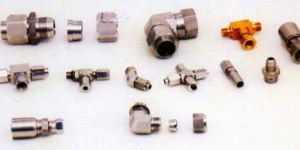

We have created a positive image of ourselves in the market as a Manufacturer and Supplier all types of Single Ferrule Tube Fittings (Parker Type) and DIN-2353 (Ermeto type). Single Ferrule Tube Fittings are designed to give leak-proof, secure connections that can withstand high pressure, vibration and vacuum applications. To this end, Single Ferrule Tube Fittings are made up of three parts that are precision engineered and they are machined body, ferrule and nut. Single Ferrule Tube Fittings are designed for use in control system, process and instrumentation devices. Used In Industries Such As InstrumentationOffshorePulp & Paper millsPetroleum Process plantsPower generation plantsRefineriesChemical Process Plants Chromatography

We have won wide appreciation of our distinguished clients as a Manufacturer and Supplier of Precision Pipe Fittings. Our Precision Pipe Fittings are machined from bar stock or forgings of 316-stainless steel or any other material of construction required. The Precision Pipe Fittings designs are made as per highest quality standard and meet the requirements of ANSI B 31.1Power Piping Code, ANSI B31.3 Chemical Plant, Petroleum Refinery Piping and Section Vll of ASME Boiler & Pressure Vessel Code. Range Precision Pipes in OD & Nominal Bore size or size in any thickness as per customer requirement in C.S. M.S., G.I., SI1239, S.S. 304, SS316, Monel in IBR and Non-IBR Pipe Fittings IN Carbon Steel SS. 304, SS316, Monel, GI in Socket Weld Type & Screw Type in any Schedule & Thickness range from ½" to 2" or above both in IBR & non IBR. Availability In sizes 1/8 to 2 threads which exceed the requirements of ANSI B 1.20.1 for (NPT) tapered pipe threads. These are ISO Parallel threads whose protective end caps prevent damage to exposed threads. As Couplings, Elbows, Bushings, Caps Adapters, Plugs, Nipples, Tees & Crosses are designed to fit most applications.In materials including Stainless Steel, Carbon Steel, Brass, Monel, Litanium, Hastealloy, Lnoonel or any other alloy as per client's requirements. Features Protective end caps prevent damage to exposed threads.316 stainless steel fittings are heat traceable.

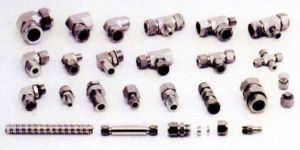

We have gained high appreciation as a Manufacturer and Supplier of Double Ferrule Tube Fittings. These Double Ferrule Fittings are available in Stainless Steel, Canon Steel, Brass, Monel, Titanium Hastelloy, Inconel or any other alloy as per client requirement. Double Ferrule Tube Fittings are used in process-control, instrumentation, hydraulic & pneumatic applications in Chemicals, Petrochemicals, Fertilizers, Offshore Power Plants, Automobile and other process industries. Double Ferrule Tube Fittings are given surface protection to guarantee long life even in the most corrosive atmosphere. All stainless steel nuts used in Double Ferrule Tube Fittings are internally silver plated to prevent galling of threads. Double Ferrule Tube Fittings are tested as per universally accepted norms for pressure and stress. All bend fittings are made from forgings. Specifications The standard sizes range from 2 mm to 50 mm,1/16� to 2" and normal bore sizes from1/8� to 1.1/2�nb, with variety of end connections according to BSP, NPI BSPT, METRIC, UNF or any other thread standard. High quality of steel and alloys are procured from genuine sources with check tests conducted by neutral inspection agencies. Total accuracy in manufacturing and quality is maintained through the use of thread and inspection gauges which are regularly calibrated.

We are among the leading Manufacturers and Suppliers of Ball Valves. Free floating ball design of these Ball Valves provide seat wear compensation in various modes including 2 way, 3 way, 5 way & 7 way. The Ball Valve is a 3-piece construction that executes full operating pressure at any port. The Ball Valves have low operating torque. Adjustable stem seal of the Ball Valves can be maintained in-line. The Ball Valves are equipped with Easy switching-over handle. Available in Full port designsRegular port designs.

We are widely appreciated as a reliable Manufacturer and Supplier of Check Valves. These Check Valves are designed for uni-directional flow control of fluids and gases in different systems. Our Check Valves are manufactured using premium grade raw materials. The Check Valves are stringently tested for optimum performance. Available in : Cracking pressure of 1/3 PSI and is suitable for high pressure operations up to 10000 Psig.

Our distinguished clients have always appreciated us as a Manufacturer and Supplier of Gauge Valves. Only high quality raw materials are used in manufacturing these Gauge Valves. These Gauge Valves are highly durable and cost-effective as well. The Gauge Valves are used for venting and calibration screwed bonnet design. Features Bonnet : Back seated blow out proof. Spindle : Ground and thread rolled.Packing : Below thread to increase the life of packing. Spindle Tip : Non rotating lip shut off type stellated, regulating stellated and soft sealed. Optional Ball-lip Design available for larger orificBonnet Pusher : Silver plated for anti-galling freezing for increased stem cycle life.

We have received wide acclaim as a Manufacturer and Supplier of 2, 3, & 5 way Manifold Valves. These Manifold Valves are designed for remote or separate Mounting. Our quality experts have stringently tested these Manifold Valves to ensure optimum performance. We make the Manifold Valves available at competitive market prices. Features Connecting from process side W NPT (F) and instrument side 1/2� NPT (F) the Two-Valve Manifold Valves connect system impulse lines and transmitters, having simple two valves configuration which allows for easy block or isolate & calibration. Three-Valve Manifold Valves consists of 2 isolate and 1 equalizer valve for equalizing the pressure on HP and LP line. Five Valve manifold consists of 2 isolate 2 Drain and 1 Equalizer Valve. All these manifolds are available in various designs for Direct Mounting or Remote Mounting. Please write to us for drawings of our standard models. Also available Manifolds with Ball Valve design for higher orifice and flow.

We have earned distinction as a Manufacturer and Supplier of Needle Valves. Various designs of Needle Valve are available with us including Screwed Bonnet, Union Bonnet, Integral Bonnet forged body designs. Needle Valve with bleed plug is available for venting. We can provide various types of miniature Needle Valves as well. These Needle Valves can tackle working pressure up to 15000 PSIG. Range Bar Stock Needle ValveForged Needle ValveHigh Pressure Needle ValveBrass Needle ValveScrewed Bonnet Needle ValveAngle Needle Valve3 Way Needle ValveUnion Bonnet Needle Valve.

We have carved a niche as a Manufacturer and Supplier of Relief Valves. The Relief Valves are designed in such a way that when the upstream pressure exceeds the closing force exerted by the spring, the lower stem opens permitting flow through the outlet port to release the excess line pressure. Our prices for the Relief Valves are highly competitive.

We have won trust of our valued clients as a Manufacturer and Supplier of simple, high qualify Flare Tube Fittings with excellent performance and reliability. Various types of positional Flare Tube Fittings are available for high pressures. All Flared Tube Fittings are manufactured in accordance with US Military standards (MS 515XX & MS 518XX). The prices of the Flared Tube Fittings offered by us are highly competitive. Used In Petroleum Process plantsPower generation plantsRefineriesChemical Process Plants ChromatographyInstrumentationOffshorePulp & Paper mills. Availability Tubfit 37o Flared Tube Fittings meets SAE Standard J 514Stainless Steel High Pressure 37�Flared Tube Fittings 1/8� to 1.1/2" (Tube, Nut. Sleeve, 3 Piece Tube Assemblies).
