Disc Harrow Dealers in Mumbai

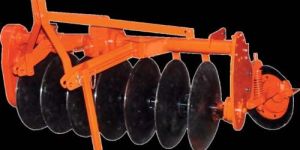

We offer well-designed Disc Harrows, which are essential for preparing farmlands for cultivation. While they break up the soil and level it, the disc harrows ensure even sowing for superior quality crop output. These disc harrows are tractor mountable and compatible with all models of tractors. We are an established manufacturer and supplier of quality disc harrows, based in Mumbai, Maharashtra, India. Product Details : Durable Smooth finish Precise design Fine finish Accurate dimension Rugged

We offer disc harrow. Fourteen disc mounted harrow is secondary tillage equipment very commonly used in india for field preparatoin and used prior to harrow especially in fields with big shrub and wild grass. It essentially has high carbon discs arranged in tow rows on a sturdy channel frame. The front row has seven scalloped disc and the rear row has sever plain discs and it is ideally suited for 35 hp tractors of all makes and type with cat ii linkage. The discs are mounted on a 3 mm square bar with c I spools spacers in between to maintain disc spacing of 225 mm every alternate spacer has bearing hub with two new taper roller bearing and thus a total of twelve bearing are used in the harrow. The three point linkage bridge strut is made of flat 65 x 12 and the crank leveling lever is made of 28 mm dia road. Depth operation is controlled by tractor hydraulic model: 10 disc harrows (5 x 5) type: offset mounted disc harrow fitted in sturdy ms iron frame disc dia: 20" carbon steel discs square axle size: 28 mm bearings: cast iron spool bearings frame type: m s fabricated approx weight: 310 kg attachment: 3 point linkage adjustable hitch attachment model: 12 disc harrow (6 x 6) type: offset mounted disc harrow fitted in sturdy ms iron frame disc dia: 20" carbon steel discs square axle size: 28 mm bearings: cast iron spool bearings frame type: m s fabricated approx weight: 360 kg attachment: 3 point linkage adjustable hitch attachment model: 14 disc harrows (7 x 7) type: offset mounted disc harrow fitted in sturdy ms iron frame disc dia: 20" carbon steel discs square axle size: 28 mm bearings: cast iron spool bearings frame type: m s fabricated approx weight: 380 kg attachment: 3 point linkage adjustable hitch attachment
