Door Interlocks Dealers in Mumbai

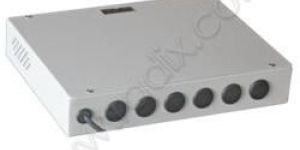

Features Advanced Micro-controller based Each door locked and release Indication in RED/GREEN LED. System expansion with cascading. Support more than 99 doors in cascading. Preventing simultaneous of doors/rooms. Ensures that when one door for a room is OPEN then all other doors in that particular rooms are closed. Programmable delay between each door openings to maintains required pressure. Emergency key is available for opening the doors. Emergency & fire alarm stations. Configurable door inter-locking logic with the DIP SWITCH. Facility available to read feed back from magnetic lock. Soft touch Membrane keypad with various fault alert buzzer. Supply : 90 to 260 VAC @ 50 Hz

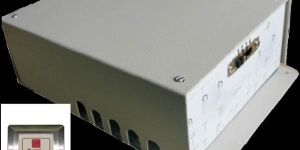

The door interlocking system is used to control the entry of a person to a secure area such as a clean room, research lab, etc. where dust or small particles may be a problem or security is of high concern. In its simplest form, the door interlocking is composed of 2 doors that are electrically interlocked in such a way that the doors cannot be opened simultaneously. Another example of Door Interlocking is Man trap. The 4 Door Interlocking Terminal can handle up to 4 doors ( 8 IN/OUT switches ). Thus logic can be built up around the number maximum number of doors ( 4 ) i.e. the manner in which they need to open or close. The Pass-through authorization is validated by a switch or the DIT can operate in a switch-less mode. Spectra’s DIT400 from the Enclava series caters to this requirement of 4 Door Interlocking.   Advantages Easy to install and configure Switchless operation Cost saving   Specifications: Hardware CPU 8 Bit Microcontroller running at 8 MHz Program Memory 32 KBytes Communication Serial RS232 ASCII Door Interface 2 Switches & 2 DOTL per door Door Control 1 Buzzer and 2 LED indicators per door Relay Interface Relay outputs for lock : 3A @ 1 V DC Digital Inputs 4 General Purpose Optically isolated digital inputs Digital Outputs 2 General Purpose Relay Outputs Watchdog Built-in watch dog supervisor Power Less than 5 Watt Protection Miniature Circuit Breaker (MCB) for over current protection   Specifications: DIT800 Controller 8 Door / 16 Switches Supply requirement 13.8 V DC / 5 Amp with battery charger, provision to connect 12 V / 7.2 AH Battery Weight 5.14 Kg Dimensions 36.2 cm (L) x 32.5 cm (W) x 8.3 cm (D)   Specifications: DIT400 Controller 4 Door / 8 Switches Supply requirement 13.8 V DC / 2.5 Amp with battery charger, provision to connect 12 V / 7.2 AH Battery Weight 2.65 Kg Dimensions 26.2 cm (L) x 23.0 cm (W) x 5.7 cm (D)   Specifications: DIT200 Controller 2 Door / 4 Switches Supply requirement 13.8 V DC / 2.5 Amp with battery charger, provision to connect 12 V / 7.2 AH Battery Weight 2.65 Kg Dimensions 26.2 cm (L) x 23.0 cm (W) x 5.7 cm (D)   Applications areas Door Interlocking Control Mumbai,

This is a door system with pre-defined enrty & exit and operating rules which can be either microprocessor based or PLC  controlled. This system is used for restricting unauthorised movement of man and unwanted air.    Features 45mm general purpose full flush design, rated for light to extra  heavy-duty use Kraft Honeycomb core provides structural strength andexceptional flatness Full-coat internal contact adhesive for permanent pressurebond and rust prevention Mechanically interlocked vertical edges for added strength and rigidity Electro statically applied prime base coat / PU painted Factory made insulated glazing Standard Specifications 1.2mm thick, Galvanized Iron/ SS304 Hairline finish, 100x75 mm Single Rebated Frame / 150x75 Double Rebated Frames 0.8mm thick, Galvanized Iron / SS304 Hairline finish, 45mm thick Shutters Seamless Design by application of epoxy filler or continuous welding (2mm thick shutters only) 4mm thick steel Back up plates for accessories mounting Color as per RAL standards  Options Glazing – Single or Double Glazed Glass Size: 300x300; 300x600; 450x600; 450x900 (mm ); Special on request Color finish –Matt or Glossy Electro Magnetic Lock for Access Controls, Interlocking. Accessories :   Standard door position switches Hinges- SS 304 Pivots – Aluminum Die Casted Lock system Push Plates – SS 304 Kick Plates – SS 304 Tower Bolt - Concealed Door Closer – External Std. Arm Sliding Door Kit     Optional Drop Seal ( Automatic Door bottom) Panic Bar Locks- External , Concealed Dead Bolt Cylinder with Key and thumb turn Tower Bolt - External Door Closer –Hold Open Arm, Floor Spring Door Coordinators for Sequencing Double Door High Impact Crash Guards Louvered Vision Panel

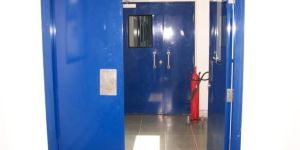

We are offering interlockin door. Features 45mm general purpose full flush design, rated for light to extra heavy-duty use kraft honeycomb core provides structural strength and exceptional flatness full-coat internal contact adhesive for permanent pressure bond and rust prevention mechanically interlocked vertical edges for added strength and rigidity electro statically applied prime base coat pu painted factory made insulated glazing

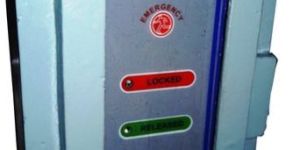

We are offering flameproof door interlock system. we manufacture and supply flameproof door interlock system. The flameproof door interlock system offered by us is also known as explosion proof or x proof door interlock. The flameproof door interlock system which we bring forth is extremely easy to operate as well as maintain. Our flameproof door interlock system offers the valued clients, a highly reliable, efficient, and cost effective security solution. The flameproof door interlock system comprises of soft touch key board to provide user friendly benefits to our clients. how to operate flameproof door interlock system? swipe your hand near to key if i/r based keyboard is installed at doorshow your card if access card system is installed at door. Door holding magnet will be de energized and door will be released flameproof door interlock system information time period of door released by default is 5 secondsnext door will not open until and unless first door is closed properlyin case of emergency situations any emergency push button can be programmed to release all doors immediately soft touch key board indications green indication glows : door is openred indication glows : opposite door is openblinking of red & green indication : emergency switch is pressed

WE CAN SUPPLY DOOR INTERLOCKS, CASTLE LOCKS AND OTHER PATLON PRODUCTS AT VERY COMPETATIVE RATES. WE CAN SUPPLY YOU PATLON MAKE CASTLE LOCK, DOOR INTERLOCKS, Description: This electrical interlock is used primarily as a disconnecting or changeover switch in a control circuit. It can be used as a load make and break switch. The switch operates in direct response to the rotation of the key. The changeover switch is housed within an aluminum box which is actuated by interlock bolt movement.   Specifications: No Description Material Finish 1 Rectangular Lock Body Aluminum casting Powder coated (Black) 2 Cylindrical Lock Body, Bolt & key Brass Chrome Finish   Applications: Electrical Switchgear Interlocking   Ordering Information: Engraving details : alpha / alphanumerical Form : a, b, c, d Bolt extended length (L) : 19mm standard. Various length available. The lock comes with a standard Siemens make 1n/o 1n/c 10 amp contact. Pin Tumbler mechanism available.

Secure your home or office with the kb1000 fingerprint door lock. This revolutionary fingerprint lock has three different ways for you to grant access. Fingerprint, pin code, or secure key. The kb1000 has a single latch mortise providing easy installation with no need to modify most existing doors. Powered by 4 aa batteries, this lock can be operated for up to a year without changing the batteries. Fingerprint enrolment is quick and easy. 30 users can be enrolled directly on the fingerprint lock at the door. stainless steel tubular single latch mortise - now available in silver finish.   State-of-the-art: Heavy duty and durable design. ·         Two ways of unlocking: Fingerprint and/or PIN code.   ·         Stainless steel tubular single latch mortise: Easy to install and simple to operate.   ·         Fingerprints can be enrolled/erased on the lock directly with lock on door.   ·         Total 30 fingerprint storage.   ·         4 digit keypad.   ·         Adopts optical CMOS fingerprint sensor.   ·         Integrated cast steel structure.   ·         Satin brushed stainless steel finish only.   ·         All critical parts within inside housing.   ·         With normal open status for meeting.   ·         Two high security override keys are provided for emergency entry.   ·         Concealed mechanical override for emergency.   ·         No external wiring required.   ·         Easy battery replacement.   ·         Operates on 4 AA standard alkaline batteries.   ·         One year battery life under normal use.   ·         Low battery warning.   ·         Outside lever free to rotate in locked mode.   ·         Very easy installation and operation.   ·         Image capture time: 1 second.   ·         Response time: 1 second. ·         Door thickness: 35 – 55mm

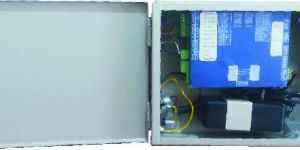

DXC341 controls interlocking of 2 to 4 doors using door feedback sensors. It is a system which on request allows access to only one door for a predefined time and makes other door secure within the designated area. LED indication show forcible operation of a door, which is blocked by the system. Door locking time and opening time can also be set on board. A no touch switch / touch switch is provided at the entry side of each door for access. Two general purpose inputs (GPI) are provided for emergency door opening. Two general purpose outputs (GPO) are relay outputs which can be used to operate a siren.  Four Door Open Switches Two General Purpose Inputs (GPIs), for any emergency action Four DOTL switch inputs for door position sensing Four relay outputs for Four Electromagnetic Locks of doors Two General Purpose Relay Outputs (GPOs) Green & red LED indications

Door Interlocking System, Fingerprint Scanner, Crowd Control Pos

Door Interlocking System, Digital Video Recorder, Fire Alar

Door Interlocking System, Lambda Control System, Digital Pressure Gaug
