Fire Knock Masjid Bunder, Mumbai, Maharashtra

Country of Origin : Made in India

Form : Liquid

Size : customised

Country of Origin : Made in India

We are offering water spray system is a special fixed pipe system connected to a reliable source of pressurised water supply and equipped with water spray nozzles for application on area equipment to be protected. The system can be operated automatically by connection to an automatic detection and alarm system or manually, or both. Water spray nozzles are designed to spray water directly onto the hazard surface via a series of nozzles with a carefully predetermined spray pattern. They are suitable for a variety of special hazards including transformer, turbines and combustible liquid hazards and systems can be individually tailored to your needs. Water spray systems are generally used for fire protection of flammable liquid and gas storage tanks, piping, pumping equipment, electrical equipment such as transformers, oil switches, rotating electrical machinery etc. And for protection of openings in fire walls and floors. Types of water spray system: medium velocity water spray systems (mvwss) high velocity water spray systems (hvwss) high velocity water spray systems (hvwss) are used for extinction of fires in flammable medium and heavy oils or similar flammable liquids having a flashpoint above 65 degree c. High velocity systems are often used to protect equipment that incorporate heavy or medium oils; equipment such as transformers, circuit breakers, diesel engines and fuel oil storage tanks, turbo alternator lube oil systems and oil fired boilers.

Water monitors are durable units suitable for the protection of flammable liquid storage tanks. It can be used for fixed installation as well as for trailer mounting. These monitors have a flow rate of 1750 2580 3750 lpm at 7 bar.

Country of Origin : Made in India

Size : 63 MM / 80 MM / 100 MM

Material : MS

Brand Name : FIRE KNOCK

Application : Fire Fighting

Feature : LONG THROW OF WATER WITH PRESSURE

Water Curtain Nozzle distributes water in a flat curtain extending all the way to the ground. Water Curtain Nozzle when mounted in pendent position acts as a window spray nozzle to protect interior walls, windows and other openings of the building which are affected by fire. The nozzles when mounted in horizontal position with flow towards ground, a flat water curtain are produced to segregate the area which is under fire. Water Curtain Nozzles are available in Brass and Stainless Steel construction with different flow rate. MAXIMUM WORKING PRESSURE 12 Bar (175 PSI) EFFECTIVE WORKING PRESSURE 1.4 - 3.5 bar (50 - 150 PSI) END CONNECTION ½" BSPT, (NPT OPTIONAL) INCLUDED WATER SPRAY ANGLE FOR EACH K-FACTOR 140°, 120°, 110°, 100°, 90°, 80° & 65° ORIFICE SIZE AND MM (INCH) METRIC (US) K-FACTOR K23 K30 K37 K45 K53 K72 K98 K120 K140 FINISH Brass finish, Chrome plated Brass (Optional) Strainer Option Available

A fire sprinkler system is an active fire protection measure, consisting of a water supply system, providing adequate pressure and flow rate to a water distribution piping system, onto which fire sprinklers are connected. Over the years, fire sprinklers have become mandatory safety equipment in most parts of India, in certain occupancies like newly constructed hospitals, schools, hotels and other public buildings, Industries, etc. Subject to the local building codes and enforcement. Sprinklers may be required to be installed to reduce potential property losses or business interruption. Each sprinkler activates independently when the predetermined heat level is reached. Because of this, the number of sprinklers that operate is limited to only those near the fire, thereby maximizing the available water pressure over the point of fire origin. Fire Sprinkler Systems have been the biggest breakthrough in fire protection in the last 100 years. Fire sprinklers are the most effective method of protecting lives and property. Sprinkler systems are now recognized as being so effective they are being made mandatory in many situations. o Fire Fighting Pumps & Accessories. O Piping o Panels o Sprinklers o Sprinkler Alarm Valve o Wiring & Instrumentations

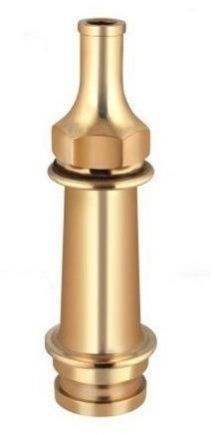

We are offering short branch pipe (isi marked). Its inlet connection is 2 ½” male instantaneous and outlet is solid jet nozle. Material of construction may be gun metal, aluminum alloy or stainless steel. Its operating pressure is 150 psi max and is naturally polished. It is a basic fire fighting nozzle commonly used by most fire brigades. These smooth bore tips creates concentrated jet pattern of water flow with maximum reach. Material gun metal - gm stainless steel - ss aluminum - al size 63 mm male instantaneous test pressure 21 bar working pressure 7 bar discharge pattern solid uniform jet pattern approval isi approved , is: 903

We are offering rrl hose type b. Rrl type b - reinforced rubber lined hose has excellent durability. The overall construction is of high tenacity synthetic fibre circular woven seamless reinforcement, totally encapsulated in all synthetic special polymer. Material rubber lined fabric reinforced fire hose with jacket of 100% synthetic yarn working pressure 14 bar (200 psi) test pressure 21 bar (300 psi) burst pressure 35 bar (500 psi) sizes 63 mm dia standard is: 636 type b, isi marked length 7.5 meters15 meters special features rrl type b hose has excellent heat and abrasion resistance. It is resistant against grease, oil, acids, ozone, fungus, alkalis, heat & chemicals.

Application : FIRE FIGHTING

Material : Plastic

Color : White

Size : 100 mmx43 mm

We are offering medium velocity nozzles. Medium velocity water spray nozzle has an external deflector, which discharges water in a directional cone shaped pattern of small droplet size. The water is uniformly distributed over the surface to be protected. The nozzle is used in deluge water spray system for special hazard fire protection application. As the design and intent of specific water spray system may vary considerably, a mv nozzle is made available in several combinations of orifice sizes and spray angles. maximum working pressure 12 bar (175 psi) effective working pressure 1.4 to 3.5 bar (20 - 50 psi) end connection ½" bspt, (½" npt optional) included water spray angle for each k-factor 140°, 120°, 110°, 100°, 90°, 80° & 65° orifice size and mm (inch) metric (us) k-factor k18 k22 k30 k35 k41 k51 k64 k79 k91 k102 finish natural brass finish, chrome plated brass, electroless nickel plated, epoxy powder coated approvals ul listed strainer option available

We are offering linear heat sensing cable. Linear heat sensor cable is a flexible, durable and cost-effective fixed temperature fire detector, suitable for protecting a wide range of commercial and industrial fire applications where spot-type heat detectors are unsuitable. Simple and easy-to-install, the lhs cable connects directly to the fire alarm panel initiating circuit. A short circuit along the lhs cable indicates a zone alarm condition. The lhs cable is available in a variety of operating temperatures and jackets. The heat from a fire causes the lhs cable’s special insulation to melt at a specific temperature, allowing the two conductors to short together, thus creating an alarm condition on the fire control panel. Applications • open area protection • belt conveyers • tunnels • aircraft hangars • cable trays • floating roof tanks

Brand Name : Patol Limited

Conductor Material : SS

Outer Material : nylon

Application : heat detection

Certification : UL Listed

Feature : Durable

Conductor Type : 2 core

Number Of Flower : Linear Heat Sensing Cable

Thickness : 3.5-4mm

Country of Origin : India

Being one of the oldest but yet the most effective and common fire fighting solution, a well designed and a well laid out hydrant system forms the backbone of the entire fire fighting system. It comprises of heavy duty above & underground piping with accessories. External and fire escape hydrant valves are provided at every strategic location. A fire hydrant is a pipe that allows water to flow from a water main with the control of a valve in order to put out a fire. Fire hydrant protection system is designed to fight fire of huge proportions, in all classes of risks. It is designed to be in operation even if a part of the affected structure collapses. Dry barrel and wet barrel are the two kinds of fire hydrants. The wet barrel fire hydrant holds a constant water supply, while the dry barrel fire hydrant needs to have a valve release to let water in. It is designed to provide rapid access to water in the event that a fire breaks out. Fire brigade connections are installed as standalone systems which act like building-specific fire hydrants, providing fire protection which will be readily available to fire fighters. Guidelines and approval for hydrant system are available from various national and international organizations like: nbc, nfpa, tac, is, fm and local fire authorities. Components of the system: o fire fighting pumps & accessories o piping o panels o landing valves o hoses o couplings o hose reel o branch pipes & nozzles o fire brigade connections o wiring & instrumentations o maintenance valves 

We are offering fire hose reels provide a reasonably accessible and controlled supply of water to combat a potential class a fire risk. A control nozzle attached to the end of the hose enables the operator to control the direction and flow of water to the fire. The fire hose reel features: • a unique ball valve shut off device, ensuring the maximum flow of water is available to the hose with one movement of a lever • wall mounting installation hose reel disc mild steel sheet, red powder coated hose rubber braided pvc braided test pressure 21 bar inlet 1" male bsp threaded connection hose size ¾" 1" 1 ½" hose length 30 meters hose reel function manual type swing movement nozzle 19mm 25mm shut off nozzle finish red polyurethane

We are offering hose box. Cabinets are used to store the firefighting equipment like fire hoses, fire extinguishers, fire hose reels, branch pipes etc. These cabinets provide best protection from the environmental damage to the fire equipment. No. Of doors double door material 18 swg crca sheet sizes 750 mm x 600 mm x 250 mm storage 2 nos. Of 15 mtr hose pipes & 1 no. Branch pipes finish red powder coated

Material : Brass

Application : INDUSTRY

Pressure : 17.2 bar

Material : Plastic

Application : Offices

Size : 63 mm

Material : GUN METAL

Brand Name : OEM

We are offering frp hose box. Cabinets are used to store the firefighting equipment like fire hoses, fire extinguishers, fire hose reels, branch pipes etc. These cabinets provide best protection from the environmental damage to the fire equipment. No. Of doors double door material frp sizes 750 mm x 600 mm x 250 mm storage 2 nos. Of 15 mtr hose pipes & 1 no. Branch pipes finish fire red

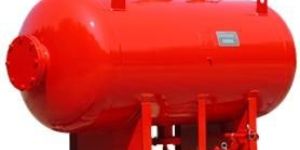

We are offering foam storage tank. Atmospheric storage tanks are used to store foam products used in the foam protection system. It is fitted with inline foam inductor, balance pressure foam proportioner and inline balance pressure foam proportioning system for the system installation. Storage capacity 150 to 17500 ltrs. Material construction mild steel stainless steel (304 or 316) expansion dome 2% of total tank capacity finish red ral 3000 or natural

Foam Sprinkler Heads are available in both aspirating and non-aspirating versions. Aspirated sprinkler heads are required for protein and fluoroprotein foams in deluge systems. Non-aspirated heads with AFFF agents are more economical and can be used in either open deluge or closed-head sprinkler systems. The Foam-Water Sprinklers are used in the deluge foam system to protect the risk where foam is required to be applied from overhead sprinklers and is to be followed with plain water in a standard sprinkler pattern. Foam Water Sprinklers protect the loading and unloading area in the event of a spill fire with low expansion foam systems. MOUNTING Pendant MAXIMUM WORKING PRESSURE 12 Bar (175 PSI) OPERATING PRESSURE 2.1 - 4.2 bar (30 - 60 PSI) END CONNECTION ½" BSPT, (½" NPT OPTIONAL) INCLUDED WATER SPRAY ANGLE FOR EACH K-FACTOR 140°, 120°, 110°, 100°, 90°, 80° & 65° ORIFICE SIZE AND MM (INCH) METRIC (US) K-FACTOR K42 FINISH Natural
