Pipe Flanges Dealers in Grant Road, Mumbai

The functions of an Orifice Flange is to provide access to a line for metering of gases or liquids. An Orifice Plate is clamped between a pair of flanges when installed in a line & the whole assembly is known as an orifice flange union. Jack-screws within the assembly facilitates the removal of the orifice plate. In the orifice plate, the metering device, consists of a thin plate with a concentric, square edge & circular hole in the center. Two different pressure tap-holes are drilled in each flange to measure pressure difference through the orifice.

Spectacle Pipe Flanges are exclusively used in oil, chemical industry, water conservancy, electric power, boiler, machinery, metallurgy, sanitary construction and many more. We offer Spectacle Pipe Flanges in different surface finishing such as anti-rust oil, transparent/yellow/black anti-rust paint, zinc etc. Avail Spectacle Pipe Flanges from us in different order quantities.

Separating one part of a line from another requires a spectacle blind, able to switch from closed to open and back again. Bleed rings provide a means to release pressure from the pipe through a controlled opening.Materials used:Stainless Steel: ASTM A182 F304/304L, F316/316L, F316H,F316Ti,F321,F44(UNS S31254)Key Features: Can be attached to the pipe without welding (sometimes an additional seal weld is used as well) Ideal for higher pressure and temperature applications for small pipe sizesNot recommended for larger loads, especially when subjected to higher torque Uses of threaded flanges: Threaded flanges can be fitted to pipes of various sizes without welding and this is one chief benefit for which these flanges are highly demanded. They can be used in extremely high pressure applications, particularly at or near atmospheric temperature, where the necessary post weld heat treatment is not possible. They are ideal for small diameter piping applications. They are economical and time saving devices. These threaded flanges are normally designed for non-cyclic applications. The flanges are suitable to be used in applications where welding is hazardous. They can be used in highly explosive areas. These types of flanges are made from plate, and come in 3 different types. The first and most widely used type are spec blinds – short for spectacle: these are flanges with two equal outside diameter (OD) parts welded together by way of a ‘bridge’. One of the parts also contains an inside diameter (ID), while the other is a blank, or blind. A whole is put at the halfway mark of the bridge. These are also called spectacles, figure 8’s, and figure 8 blanks, because of their resemblance to reading glasses (spectacles) and figure 8’s. These are referred to as ‘Line Blanks’ in the ASME/ANSI standards. The second and third types are quite similar: both have longer bridges, referred to as ‘paddles’, which resemble longer handles. One type has only an OD, and so is a blind plate – similar in appearance to a large pizza oven peel. These are referred to as paddle blinds. The other type is exactly the same but comes with an ID as well, enabling flow-through when installed in a piping system. These pieces have holes in the paddle which enables field personnel to determine by sight which piece is installed in a system. These are referred to as paddle spacers, and are often supplied in sets together with the paddle blinds.All 3 types of these flanges are used in piping systems or pressure vessels where the flow needs to be interrupted from time to time. They are installed between two pipe flanges (as specified above), and by way of a screw inserted into the hole in the bridge or paddle, they are able to rotate or ‘swing’ into and out of position to interrupt or allow the flow, as the user sees fit.

We have gained immense expertise in delivering Reducing Flange to our clients. The offered range of reducing flanges is available in available in all types & pressures and is ideally utilized for pipe-to-pipe connections. Possessing a flange with one specified diameter having a bore of a different and smaller diameter, the offered range is checked on various characteristics so as to ensure its compliance with the industry laid norms. These products have dimensions of the larger pipe size, except for the bore and hub dimensions. This range is ideally utilized for the outlet side of the expansion joint.Offerings: Steel reducing flanges Stainless steel reducing flanges Features: Durable Corrosion resistance High strength Dimensional accuracy Fine finish Material used: Durable Corrosion resistance High strength Dimensional accuracy Fine finish Types of reducing flanges: Welding neck Slip-on Threaded

The function of an orifice flange is to provide access to a line for metering of gases or liquids. An orifice plate is clamped between a pair of flanges when installed in a line and the whole assembly is refer to as an orifice flange union. Jack-screws within the assembly facilitate removal of the orifice plate. The orifice plate, the metering device, consists of a thin plate with a concentric, square edge, circular hole in the centre. Two pressure tap-holes are drilled in each flange to measure pressure difference through the orifice.

We are engaged in manufacturing high quality Slip on Flange having dimensional accuracy and high strength. Our Slip on Flange is in huge demand in the national and international markets. Specifications : ANSI B 16.5 from 1/2" to 24" and classes150 to 2500 (complete range) Applications : Used in pipe section and in quick assembly

Our customers can avail from us a wide range of HDPE Pipes & . The procured products are individually rechecked at our own premises, thereby ensuring defect a free range. These HDPE or High Density Polyethylene Pipes Fittings are known for their features like easy installation, high tensile strength and resistance against corrosion.

Lap Joint Flanges Flanges Price Leading manufacturer of Lap Joint Flanges Our Live Stock of Lap Joint Flanges Lap Joint Flanges Application We are a government approved largest Manufacturer, Supplier and Exporter of Lapped Joint Flanges, ASME 16.5 Lap Joint Flanges. Lap joint pipe flanges slide directly over the pipe and are most commonly used with stub end fittings. A pipe is usually welded to the Stub End and the Lap Joint pipe flange is free to rotate around the stub end. The benefit of this is that there will not be any issues with bolt hole alignment. Lap Joint pipe flanges are often used for applications that require frequent dismantling. A Lap joint Flange is very similar to a slip-on flange, with the main difference being that it has a curved radius at the bore and face to house a lap joint stub-end.Lap Joint Flanges are available in following specifications:

ASME Ring Joint Flanges, ASTM Ring Joint Flanges, Stainless Steel Ring Joint Flanges, Duplex Steel Ring Joint Flanges, Monel and Inconel Ring Joint Flanges, SS Ring Joint Flanges Manufacturer and Exporter in India. ASTM/ASME – A 182, SA 182, ASTM B247, B361, Aluminum Ring Joint Flanges, Carbon Steel Ring Joint Flanges, Nickel Alloy Ring Joint Flanges, supplier.   Shasan Piping Solution is one of the preeminent Supplier and Manufacturers that offers high caliber of Ring Joint Flanges. These ribs are over and over utilized through their most huge advantage, which is it can be utilized for unforeseen circumstances and as a part of extremely alterable zones where welding is perilous. With unique materials like Stainless steel, Alloy steel and Carbon steel, Shasan Piping Solution offer disparate sorts of Ring Joint Flanges, for example, Slip-On, Threaded and Welding Neck amongst others. In the interim, these sorts of Flanges are additionally available in various sizes, particular, evaluations, and thickness according to the requirements of customers.Range :½” (15 NB) to 60” (1500NB) in 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS ASA 150, ASA 300, PN 6,10,16,25, 40,64,100,160 ETC. available with NACE MR 01-75.Features : Dimensional accuracy High efficiency Corrosion resistance Durable Excellent finish Details : Stainless Steel Standard  - ASTM / ASME A/SA 182 Grade - F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L Titanium Standard  - ASTM B381. Grade - Grade 1, Grade 2, Grade 4, Grade 5, Grade 6, Grade 7, Grade 9, Grade 19, Grade 23 Duplex Steel Standard  - ASTM / ASME A/SA 182 Grade - F 44, F 45, F51, F 53, F 55, F 60, F 61 Copper Alloy Standard  - ASTM / ASME SB 61 / 62 / 151 / 152. Grade - UNS NO. C 70600 (CU -NI- 90/10), C 71500 (CU -NI- 70/30) C 71640 Nickel Alloy Standard  - ASTM / ASME SB 564 / 160 / 472 Carbon Steel Standard - ASTM A 105/A694/ A350 LF3/A350 LF2. Grade - F42/46/52/56/60/65/70 Low Temperature Carbon Steel ASTM A 350 LF2 / A350 LF3 Alloy Steel Standard  - ASTM A182 Grade - F1/F5/F9/F11/F22/F91 Nickel Alloy Standard : Nickel 200 – UNS N02200 Nickel 201 – UNS N02201 Monel 400 – UNS N04400 Monel K500 – UNS N05500 Inconel K600 – UNS N06600 Inconel 601 – UNS N06601 Inconel 625 – UNS N06625 Inconel 800 – UNS N08800 Inconel 800H – UNS N08810 Inconel 825 – UNS N08825 Hastelloy C276 – UNS N10276 Alloy 20 – UNS N08020

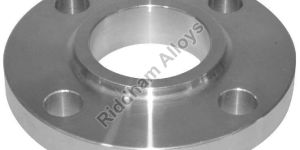

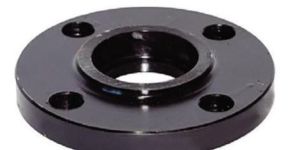

A Slip-On Flange is bored sightly larger than the outer Diameter of the matching pipe. The pipe slip into the flange prior to welding both inside and outside to prevent leaks.The British standard flanges manufactured by us pertain to all standards like BS10 1962 Table D,E,F,H IS 6392 Table 5,17,26 IS 1538 in slip. These are manufactured using mild steel both in slip-on and blind type. Our quality slip on flanges are ideal for lower pressure applications. Their ease of fitting and welding reduces fabrication costs. Our professional engineering team is involved in innovating durable and high-quality products to cater to our clients' needs. Detailed Product Description of Slip-On Flange : The slip-on flange has a low hub because the pipe slips into the flange prior to welding. It iswelded both inside and out to provide sufficient strength and prevent leakage.They are ideal forlow pressure applications. Material specifications: Stainless steel:304,304h,304l,310,316,316h,316l, f10,321 Standard dimensions:   strong Ranging: 0.5" to 24" as per ANSI b16.5, bs 4504, bs-10, asme b 16.36. 26" - 72" as per mss sp44, api -605, awwac-207-55, asme b 16.47, bs 3263   Standard ratings: Pounds:150,300,400,600,900,1500 and 2500 Standard facing: Raised face, ring - type, flat face, male - female, tongue - groove.welded both inside and out to provide sufficient strength and prevent leakage.They are ideal for low pressure applications. Advantages of slip on flanges: Low cost installation Less time needed to spent on ensuring the accuracy of the cut pipe They are somewhat easier to align The slip-on flanges have low hub because the pipe slips into the flange before welding The flange is welded both inside and outside to provide sufficient strength They prevent leakage
