Working Width40” (1000 mm) (Also available in 20” /30")
Floor Space 40" (1000 mm)12 ft. x 8.5 ft.
Designed SpeedVariable upto 300 mtrs Per/ min.
Max. Unwind dia40" (1000 mm)
Max. Winding dia24" (600 mm)
Core ID at winding & Unwind3” (76 mm) Paper core
Minimum Slit2" (50 mm)
Type of materialPaper (45 to 150 gsm) & Films (50 to 250 mic)
Power Required17 HP
OptionalShaft less Unwind, Floor Reel lifting, Air Shaft at winding
Machine is Designed to Slit Paper, Films, Foils & Laminates
Main Features: Air Shaft & Pneumatic Brake for Auto Tension Control, Electronic Web Guide at Unwind, Quick change over of Slitting size, Pneumatic control for Nip, Lay on Rolls, Side Arms and Differential Shaft at Winding for Quick change over
Machine is Designed to Slit Paper, Films, Foils & Laminates
Main Features: Air Shaft & Pneumatic Brake for Auto Tension Control, Electronic Web Guide at Unwind, Quick change over of Slitting size, Pneumatic control for Nip, Lay on Rolls, Side Arms and Differential Shaft at Winding for Quick change over
Floor Space 20" (500 mm)5.5 ft L x 9.5 ft B x 6 ft. H
Working SpeedVariable upto 150 mtrs / min.
Max. Unwind dia40" / 50"
Max. Wind dia12" (304 mm)
Core ID at Unwinding3" (76 mm) Paper core
Core ID at winding2" (50 mm) / 3" (76 mm)
Minimum Slit4" (100 mm)
Power Required6 HP 440V 50Hz
Type of materialPaper / Thermal Paper 50 to 200 GSM
OptionalAuto Tension Brake, Web Guiding, Pneumatic Reel loading & Air Shaft at Unwind
This model consists of Shaft Less winding system which enables to have more faster production output. The Machine has fully Intergraded PLC base Controls, Touch Screen, etc. Ones the Start Button is Pressed all operations are automatically done. The machine is equipped with Auto Tension Pneumatic Brake. Air Shaft at unwind unit for easy and quick change over of reels. It has Shaft less Rewind system for 2"& 3" core ID to increase the production. It also has automatic pneumatic cross cutting system. Online Printing unit can also be incorporated.
This model consists of Shaft Less winding system which enables to have more faster production output. The Machine has fully Intergraded PLC base Controls, Touch Screen, etc. Ones the Start Button is Pressed all operations are automatically done. The machine is equipped with Auto Tension Pneumatic Brake. Air Shaft at unwind unit for easy and quick change over of reels. It has Shaft less Rewind system for 2"& 3" core ID to increase the production. It also has automatic pneumatic cross cutting system. Online Printing unit can also be incorporated.
Working Width40” (1000 mm) (Also available in 20” /30
Floor Space 4012 ft. x 8.5 ft.
Designed SpeedVariable upto 300 mtrs Per/ min.
Max. Unwind dia40
Max. Winding dia24
Core ID at winding & Unwind3” (76 mm) Paper core
Minimum Slit2
Type of materialPaper (45 to 150 gsm) & Films (50 to 250 mic)
Power Required17 HP
OptionalShaft less Unwind, Floor Reel lifting, Air Shaft at winding
Main Features: Air Shaft & Pneumatic Brake for Auto Tension Control, Electronic Web Guide at Unwind, Quick change over of Slitting size, Pneumatic control for Nip, Lay on Rolls, Side Arms and Differential Shaft at Winding for Quick change over. Machine is Designed to Slit Paper, Films, Foils & Laminates.
Main Features: Air Shaft & Pneumatic Brake for Auto Tension Control, Electronic Web Guide at Unwind, Quick change over of Slitting size, Pneumatic control for Nip, Lay on Rolls, Side Arms and Differential Shaft at Winding for Quick change over. Machine is Designed to Slit Paper, Films, Foils & Laminates.
Floor Space 20" (500 mm)5.5 ft L x 9.5 ft B x 6 ft. H
Working SpeedVariable upto 150 mtrs / min.
Max. Unwind dia40" / 50"
Max. Wind dia12" (304 mm)
Core ID at Unwinding3" (76 mm) Paper core
Core ID at winding2" (50 mm) / 3" (76 mm)
Minimum Slit4" (100 mm)
Power Required6 HP 440V 50Hz
Type of materialPaper / Thermal Paper 50 to 200 GSM
OptionalAuto Tension Brake, Web Guiding, Pneumatic Reel loading & Air Shaft at Unwind
This model consists of Shaft Less winding system which enables to have more faster production output. The Machine has fully Intergraded PLC base Controls, Touch Screen, etc. Ones the Start Button is Pressed all operations are automatically done. The machine is equipped with Auto Tension Pneumatic Brake. Air Shaft at unwind unit for easy and quick change over of reels. It has Shaft less Rewind system for 2"& 3" core ID to increase the production. It also has automatic pneumatic cross cutting system. Online Printing unit can also be incorporated.
...more
Shaft Less Slitting and Rewinding Machine for Plotter Paper Rolls
This model consists of Shaft Less winding system which enables to have more faster production output. The Machine has fully Intergraded PLC base Controls, Touch Screen, etc. Ones the Start Button is Pressed all operations are automatically done. The machine is equipped with Auto Tension Pneumatic Brake. Air Shaft at unwind unit for easy and quick change over of reels. It has Shaft less Rewind system for 2"& 3" core ID to increase the production. It also has automatic pneumatic cross cutting system. Online Printing unit can also be incorporated.
Working Speed200 Cuts Per/ min (Depending on Length )
Maximum Cutting Length12" (300 mm)
Minimum Cutting Length3" (76 mm)
Maxi Unwind Roll Dia40" (1000 mm)
Type of materialPaper from 36 gsm to 150 gsm
Sheet length adjustmentGear type
Power Required2 HP 440V 50Hz
OptionalSide trimming Auto Tension Brake, Web Guiding

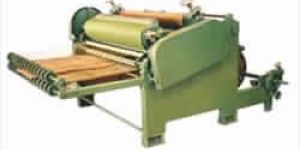

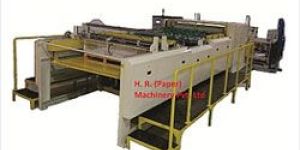

To cut paper from reel to sheet in A4/ A3 Cut Size, delivery table is lowered through mechanical drive. Duplex conveyor is provided for proper stacking at high speed. The machine can be also attached in front of any web offset, etc-printing machine.
To cut paper from reel to sheet in A4/ A3 Cut Size, delivery table is lowered through mechanical drive. Duplex conveyor is provided for proper stacking at high speed. The machine can be also attached in front of any web offset, etc-printing machine.
Type of materialPaper from 70 gsm to 400 gsm (Total of all paper)
Total Power Required24 HP 3 Phase (415V 50Hz)
Sheet length adjustmentTouch Screen with Servo Motor
De-curling unitMotorized De-curling unit
OptionalTag Inserter
To cut Paper / Board / Label Stock from Reel to Sheet, Hydraulic floor lifting Shaftless Reel Stands with Web Guiding, Auto Tension Pneumatic Brake, De-curling unit, Slitting unit with Pneumatic Cutters, Heavy duty Cutter, Duplex Conveyor with Over lapping unit, PLC based Control with Inter-Locking Systems & Safety Features for easy running, Sheet Ejector unit, Air Purging & Section Pump Systems, Motorized delivery table with auto lowered, Sheet Size set by Touch Screen with Servo Motor
To cut Paper / Board / Label Stock from Reel to Sheet, Hydraulic floor lifting Shaftless Reel Stands with Web Guiding, Auto Tension Pneumatic Brake, De-curling unit, Slitting unit with Pneumatic Cutters, Heavy duty Cutter, Duplex Conveyor with Over lapping unit, PLC based Control with Inter-Locking Systems & Safety Features for easy running, Sheet Ejector unit, Air Purging & Section Pump Systems, Motorized delivery table with auto lowered, Sheet Size set by Touch Screen with Servo Motor
Core ID at Unwind76mm (3")/ 100 mm (4")/ 150 mm (6")
Core ID at winding76 mm(3") / 100 mm (4")
Type of materialPaper from 50 to 150 gsm / 50 to 400gsm
Power required27 HP 3 Phase (440V 50Hz)
OptionalAir Shaft at Winding, Pneumatic Top Cutters, Shaft Less Winding
Main Features: Shaft LessFloor Lifting Unwind unit, Pneumatic Brake for Auto Tension Control at both sides of the Unwind Roll, Web Guide at Unwind, Quick change over of Slitting Size, [Pneumatic control for Top Circular Cutters. (Optional)] Hydraulic Roll pushing & Hydraulic Tray for Rewind Roll Dropping.
Main Features: Shaft LessFloor Lifting Unwind unit, Pneumatic Brake for Auto Tension Control at both sides of the Unwind Roll, Web Guide at Unwind, Quick change over of Slitting Size, [Pneumatic control for Top Circular Cutters. (Optional)] Hydraulic Roll pushing & Hydraulic Tray for Rewind Roll Dropping.
