Hipa Vac Equipment and Pollution Control Film City Road, Mumbai, Maharashtra

Turbo twin lobe rotary positive displacement compressors come in two models twin lobe. They are engineered and manufactured by capable and experienced personnel in a modern plant with the latest machines and also with latest tooling. Production is controlled by close inspection, tests and attention to the smallest detail. Reliable field service is maintained by factory trained personnel twin lobe compressors range in capacity up to 50, 000 m3hr. The rotary positive displacement compressor twin lobe model has two figures eight impellers rotating in opposite directions and twine lobe model has three impellers in each shaft rotating in opposite direction. As each lobe of an impeller passes the compressor inlet, it traps a quantity of air equal to exactly one-fourth the displacement of the compressor. This entrapment occurs four times per revolution, moving the entrained air around the case to the compressor outlet. Ground helical timing gears accurately position the impellers in relation to each other, maintaining the minute clearances so vital to the high volumetric efficiency of the rotary positive compressor. Because the compressor operates with very close internal tolerances, a slight amount of air escapes past the operating clearances back to the suction side of the compressor. This leakage, defined as 'slip' is a predictable constant volume for any given compressor at any given pressure. For ease in calculation, this leakage is expressed in compressor rpm. A standard slip, based on handling air at standard condition, has been established for each compressor size. For gases having a specific gravity other than 1.0, the slip will vary and this must be taken into consideration when calculating total operating speed of the unit. The twin lobe compressor is built with the closest possible tolerances to give highest volumetric efficiency. Every twin lobe compressor is tested before shipment. We are a reliable Manufacturer, Exporter and Supplier of Twin Lobe Rotary Blower in India.

Turbo Vacuum Pumps are of the oil immersed rotary vane type V belt driven machine. A stator with an eccentrically mounted rotor within Turbo Vacuum Pump from the main assembly. The rotor has two vanes facing each other. There are springs in between the two vanes. As the rotor revolves these springs press the vanes against the inner wall of the stator and make them move in and out of the rotor as the rotor revolves by means of a driving shaft sweeping the air space twice per revolution. Material of construction is property chosen graded cast iron and all the parts are precisely machined micro finished and assembled to close tolerances for high efficiency   accessories for "turbo blower" vacuum pumps non return valve it is provided for preventing body leakages with the help of spring tensioned rubber diaphragm. The rubber diaphragm prevents back flow of oil when the pump is not in motion. Air vapor in the pump so that contamination of oil is avoided. Moisture trap available in c.i.al with detachable glass. The moisture in the air is absorbed by this trap before entering into the pump. Inlet dust filter vacuum gauge with regulator this filters dust particles down to 20 micron size. This is being used as to maintain any desired vacuum in the system. It is graduated from 0 to 30 inches in mercury. Guarantee service after sales with one year guarantee against manufacturing defects. Note models up to me-15 are air cooled type & provided with single phase motors. Models from me-16 onwards are provided with water cooling jackets and 3 phase motors

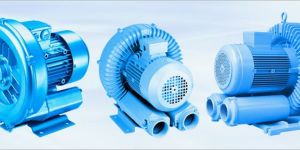

Turbine blower is designed to meet the most critical application requirements. Each features as -impeller, mounting base and housing manufactures of aluminium for maximum strength, reduced weight an increaed corrosion resistance. The blower is constructed as a unit for mechanical simplicity and maximum structural integrity. The elimination of clutches, gears, belts and sliding vanes reduced periodic maintenance requirements while increasing reliability. All blowers' impellers are dynamically balanced to virtual eliminate vibration while increasing overall long-term reliability. All the models have a shaft oil-seal between the impellers and bearings as well as double shield bearing to reduce the possibility of foreign material in influx and preclude air contamination.

Turbo Diecast aluminium Ring Blower are robust units used for versatile applications. These blowers stand out for their durability, due to the robust aluminium design, which makes them highly resistant against corrosion. Other advantages of Turbo side channel ventilators include: Lightweight due to use of diecast aluminium Compact size for building into machines Corrosion-proof aluminium Contact free operation eliminating wear Oil-free so no maintenance Feature noise-dampers as standard, for low noise levels Universal gas pipe connection at inlet and outlet Vibration-free and pulsation-free operation Versatile use for pressure and vacuum The use of Turbo Ring blowers is common in machine-building as high pressure ventilator, vacuum pump, air pump, booster, low pressure compressor and oil-free compressor. The applications are unlimited like aireting, dust cleaning, vacuum lifting, vacuum tables, blowing off, pneumatic transport, cooling and vacuum molding.

Die cast aluminum Side Channel Blowers are robust units used for versatile applications. These Side Channel Blowers stand out for their durability, due to the robust aluminum design, which even makes them highly resistant against corrosion. Quiet equipped with low-noise, high-efficiency ip54 induction motor and specially designed mufflers, all blower series feature quiet operation. The external bearing design allows bearings to operate in low temperature, feature quick heat dissipation and uniform loading capacity. Lubrication is easier and makes maintenance an easy job with Side Channel Blowers. The base of all blower models is made with flexible steel plates that feature shock absorption. Fastened with screws. The bases can also be fixed through the screw holes on the front cover, enabling either vertical or horizontal installation as required.   Long time operation made of aluminum alloy, all the turbo blowers are lightweight and excellent in heat dissipation, thus allowing long time operation even under ambient temperature reaching 40°C; insulation class f and h ensures better reliability.   Fully closed unit multi-layer shaft seals are used to thoroughly separate motor coil from blower body, ensures excellent performance and prevents motor from damage.

Side Channel Blowers are suitable for all those applications requiring considerably higher pressures than that which can be achieved using centrifugal fans. Side channel blowers are used in all those applications requiring an operating vacuum higher than the one achievable by a fan, but not as high as to require the use of a vacuum pump. The rotating parts of the blower are not in contact with the casing, there is therefore no friction during operation and thus no internal lubrication is necessary. The gas moving through the machine therefore remains uncontaminated and completely oil-free.

Voltage : 220-240 V

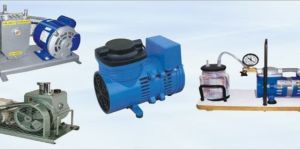

Rotary Vacuum Pump, series MLV are sliding vane, oil lubricated type and incorporate many features which result in trouble free performance with minimum maintenance. These pumps have earned unique reputation for its reliability and easy installation. It is used as original equipment in various plants. We are a noted Manufacturer, Exporter and Supplier of Rotary Vacuum Pump, based in India.

  Turbo Diecast aluminium Ring Blower are robust units used for versatile applications. These blowers stand out for their durability, due to the robust aluminium design, which makes them highly resistant against corrosion. Other advantages of Turbo side channel ventilators include: Lightweight due to use of diecast aluminium Compact size for building into machines Corrosion-proof aluminium Contact free operation eliminating wear Oil-free so no maintenance Feature noise-dampers as standard, for low noise levels Universal gas pipe connection at inlet and outlet Vibration-free and pulsation-free operation Versatile use for pressure and vacuum The use of Turbo Ring blowers is common in machine-building as high pressure ventilator, vacuum pump, air pump, booster, low pressure compressor and oil-free compressor. The applications are unlimited like aireting, dust cleaning, vacuum lifting, vacuum tables, blowing off, pneumatic transport, cooling and vacuum moldin

  We offer 100% oil free Diaphragm Vacuum Pump to our clients widespread. These pumps can be used as an oil-free compressor or even as a vacuum pump. They don't require lubrication and are practically maintenance free. Diaphragm type vacuum pumps are more preferable compared to the conventional reciprocating piston type air compressors and sliding vane type vacuum pumps due to their minimum maintenance requirements. They are suitable for producing completely oil-free compressed air and vacuum production without environmental contamination through oil mist.   Applications : laboratories, pollution monitoring equipment, chemical analyzers, laminating press, material handling equipment, labeling machines, plastic welding machines, gas welding machines, soldering iron, agitation of chemicals in tanks, aeration, glass forming, dentists, etc

We are involved in manufacturing, exporting and supplying of Centrifugal Blower that are widely acknowledged for sturdy construction, durability, excellent strength and easy maintenance. The functionality makes our Centrifugal Blower suitable for various industrial applications. Our blowers are available in various forms such as high pressure blower, low pressure blow and medium pressure blower.   Centrifugal Blower that we are offering is widely acknowledged for its sturdy construction, durability, excellent strength and easy maintenance. The excellent functionality makes our Centrifugal Blowers suitable for various industrial applications. They are designed precisely using the most advanced technologies and high quality equipment. We are a reliable Centrifugal Blower Manufacturer, Exporter and Supplier from Maharashtra, India. We make available our product in various forms such as high pressure blower, low pressure blow and medium pressure blower. Contact us to know more. Made in various material of construction: Mild steel Stainless Steel Aluminum, (MS-F-RP) lined MS rubber lined Available in two configurations:   Single Inlet single width (SISW) Double Inlet double width (DIDW) with Split casing as an optional feature
