Hydraulic Presses Dealers in Fort, Mumbai

This is an excellent quality efficient and accurate multi-function Hydraulic Iron worker. It can be used for shearing of U Beam, flat bar, round bar, square bar, angles and sectional steel and also for punching, bending and cropping & notching operations.  The machine is supplied complete with standard equipment for angle shearing, square bar & round bar shearing, punching equipped with one set of round hole punching tool and die of 16mm, flat bar shearing, rectangular notching and with back gauge device with scrap boxes for punching & notching stations. It is available in two models with 55 Ton and 70 Ton punching pressure having flat bar shear capacity of 350 x 10 and 410 x 10 mm and U beam shearing of 100 x 50 and 125 x 65 mm respectively. Kindly ask for many other attachments available to meet your requirements

Handoperated hand presses are designed for production work of quick operation in general engineering workshops, garages etc. for driving mandrels in and out of work and can be also used for inserting and removing brushes, bearings, etc. They do not bend or burr the work of necessitate taking off carrier and will prove a saving of time and increased life of arbours.

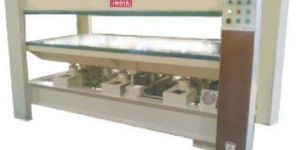

Hot Press is used to press and paste the mica to the board. In this machine the mica and the particle board are bonded together with the help of adhesive and heat of electrical heaters. The adhesive is applied on the board the mica and are placed in the machine. The heaters at the set temperature are heated and maintain that temperature automatically and the bottom plates of the press with the help of a switch start moving toward the upward direction. At the set pressure the plate will stop and start moving downward at the interval set by the user. Remove the board, mica is pasted on the board is ready for use.

Description: Hydraulic Motorized ‘H’ Frame Four Pillar Press All steel construction provides a sturdy frame for low vibration under heavy load Easy to operate. Machine can be stopped at any position. Safety valve to prevent overloading Adjustable table height for versatile operations The machine is equipped with Pressure Manometer and ‘V’ blocks Accuracy: As per IS Standard 14877 Perpendicularity between vertical movement of slide and upper surface of bolster: 0.4 mm Parallelism of lower face of slide with respect to the upper face of bolster: 0.8 mm Applications: Straightening bent fabricated bodies or sheets General Purpose Press for Repair Workshops Pressing of Ball Bearings Removal of Old Bushes And Mounting New Bushes

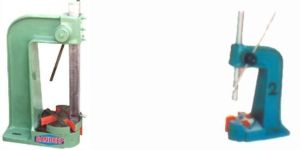

SANDEEP" hand operatred rack and pinion type arbour presses are designed for production work f quick operation in general engineering workshops, automobile workshops, garages etc. for driving mandrels in and out of work and can also be used for inserting and removing bushes, bearing etc. They do not bend or burr the work or necessitate taking off carrier and will prove saving of time and increased life of arbours, Available in two types as under : Round Rack : Provided with a keyway and screw to prevent the rock turning.Square Rack : Has a larger bearing surface which prolong service life. The machined rack bearing plate is held securely to the body by four large screw, permitting take up for possible wear.

Automatic Brake and Friction Clutch system avoids double stroke - Crankshaft made of Carbon Steel - Suitable for Shallow and Deep Drawing Applications - For forming Round, Square, Oval and Rectangular Shapes - For making utensils like Pots, Pans, Tops, Covers, etc. from Stainless Steel, Brass, Aluminium, Copper, etc.

Tread Brake Unit type BF2S as per SAB-WABCO design is a very compact device integrating entire brake actuating mechanism for Railway vehicles comprising of Brake Cylinder, Levers for magnification of Braking efforts, Slack Adjuster to keep Cylinder stroke constant irrespective of Brake Shoe Wear and Brake Shoe Holder with twin Brake Blocks.

This is a steel fabricated body hydraulically operated 300 tons capacity press specially designed for minting gold and silver coins and medals. This coin making press is an upstroke press with higher ram travel speed and with extra hydraulic cylinder for return stroke to increase the production. The press is equipped with hydraulic Power Pack consisting of Piston Pump, Electric Control board operated directional Control Valve, relief Valve, Pressure Gauge and standard hydraulic accessories. This coin making press can be operated through the control panel board or manually and has the provision to adjust the coining pressure. A timer is provided to adjust the time for which the final embossing pressure is applied before return stroke. Our standard version Hydraulic Coining Press is available in four models: 50 Tons, 100 Tons, 200 Tons and 300 Tons Capacity. Kindly ask for more details.
