Impex Trading Company Kalbadevi, Mumbai, Maharashtra

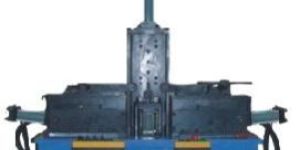

MAIN TECHNICAL PARAMETERS : 1. Power supply: tri-phase 380V±1 0% ,50HZ 2. Power: 4KW 3. Hydraulic pressure: :≤ 65kgfcm2, 4. Size: 1520x6500x2300mm

MAIN TECHNICAL PARAMETERS 1. Tube diameter after compressing : Φ5.2mm - Φ19.0mm 2. The max. diameter before compressing : Φ21mm 3. The min. length of tube : 110mm 4. Efficiency : 18mmin 5. After compressing, the straightness can reach : -1:300 and the roundness can reach : 0 0.07

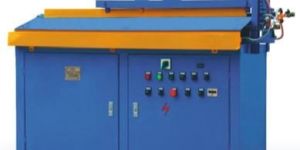

We offer tube feeding machine. Main technical parameters 1. Power supply: 220v,50hz,60w 2. Air supply: 5 -7kgcm2 3. Feeding speed: 5-15mmin. 4. Applicable tube diameter: φ6.5mm - φ21.0mm 5. Applicable tube length: 1oomm - 3000mm 6.size (lxwxh) : 1400x850x1100(mm) (one meter machine) 7. Weight : 200kg

We offer terminal pin grinding machine. Main technical parameters 1. Power supply: triphase 380v 50hz 2. Rated power:750w 3. Applicable diameter:φ1.5mm - φ3.0mm ( it can be custom-made) 4. Applicable length: 40mm - 140mm ( it can be custom-made) 5. Efficiency: 60000-70000pcs8h 6. Size (l * w * h) : 810*680*1140 (mm) 7. Weight: 21okg

MAIN TECHNICAL PARAMETERS 1. Power supply: tri-phase 380V 50Hz 2. Power: GBT transistor high frequency power 2x25KW and 2x40KW 3. Water supply: water pressure 2-3kgfcm3, input water temperature

Main technical parameters 1. Power supply: triphase 380v, 50hz 2. Rated power: o,8kw 3. Air supply: 5 -7kgcm2 4. Efficiency: 8000pcs -1oooopcs8h 5. Size ( lxwxh ) : 800x500x900(mm) 6. Weight: 120kg

MAIN TECHNICAL PARAMETERS 1. Power supply: Triphase 380V, 50Hz 2. Rated power: 6.5KW 3. Applicable tube diameter: Φ5mm - Φ20mm 4. Size (LxWxH) : 1800x1500x1200 (mm) 5. Weight: 750kg

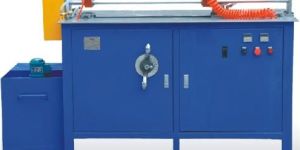

We offer partial annealing machine. Main technical parameters 1. Power supply : triphase 380v, 50hz 2. Air supply : 5-7 kgcm2 3. Rated power: 30kw 4. Applicable tube diameter: φ6mm-φ20mm 5. Applicable tube length: 150 mm -1000 mm 6. Size ( lxwxh ) : 1500x600x 1500(mm) 7. Weight : 500kg

Main technical parameters 1. Power supply : triphase 380v, 50hz 2. Rated power : 800w 3. Air supply : 5 -7kgcm2 4. Efficiency: 6000pcs8h 5. Applicable tube diameter : φ6.0mm - φ8.0mm 6. Size (lxwxh) :1200x600x1500(mm) 7. Weight : 120kg

Main technical parameters 1. Power supply : triphase 380v, 50hz 2. Rated power : 1.5kw 3. Efficiency : 20000pcs8h 4. Applicable tube diameter. Φ4mm - φ20mm 5. Applicable tube length : ≥150mm 6. Size (lxwxh) : 600x620x1200(mm) 7. Weight : 130kg

We offer dual axis strip reeling machine. Main technical parameters 1. Power supply: triphase 380v, 50hz. 2. Rated power: 750w. 3. Applicable tube diameter:

Main technical parameters 1. Power supply: single phase 220v 50hz 500w 2. Air supply: 5 -7 kgcm2 3. Eificiency: 5000- 8000 pcs8h 4. Applicable tube diameter: φ6mm - φ 12 mm 5. Applicable tube length: 150 mm - 800mm ( custom-made) 6. Size ( l * w * h ) : 1700*600*1000 ( mm ) 7. Weight: 230kg

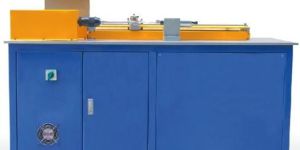

We offer cartridge heater coiling machine. Main technical parameters 1. Power supply: single phase ac220±10% ,50hz 2. Power: 300w 3. Applicable diameter: ≤φ21 mm 4. Applicable length: 60 - 800mm 5. Size: 1560*600*1220mm

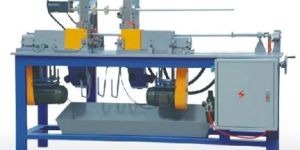

We offer automatic tube turning machine. Main technical parameters : 1. Power supply : triphase 380v, 50hz 2. Rated power : 1.6kw 3. Air supply : 5 -7kgcm2 4. Applicable tube diameter : φ5.2mm - φ 15mm 5. Applicable tube length : 110 - 1500mm 6. Efficiency : above 5500pcs8h(below tube length 500mm) 7. Size (lxwxh) : 2100x850x1350(mm) 8. Weight : 450kg

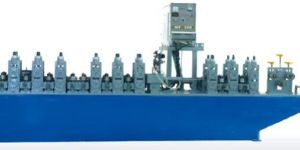

MAIN TECHNICAL PARAMETERS 1. Power supply : TRiphase 380V 50Hz 2. Rated Power ; 16.5KW 3. Water Supply : 190 liters hr 4. Argon Supply : 400-700 liters hr 5. Hydrogen Supply : 20-350 liters hr 6. Applicable tube diameter : Φ4mm - Φ16mm (over this range can be custom-made) 7. Applicable tube thickness : 0.17mm - 1.0mm 8. Tube making speed : 6-18mmin 9. Size (LxWxH) : 4000x1100x1700 (mm) 10. Weight : 2000kg

MAIN TECHNICAL PARAMETERS 1. Power suppiy: Triphase 380V, 50Hz 2. Rated power: 1.6KW 3. Air supply: 5 -7kgcm2 4. Efficiency: 30000pcs - 50000pcs (Φ8.0mm copper tube) 5. Size (LxWxH) :1500x800x1500(mm) 6. Weight: 550kg

MAIN TECHNICAL PARAMETERS 1. Power suppiy: tri-phase 380V 50Hz 2. Power: 25KW, 30KW, 40KW, 60KW 3. Water supply: water pressure 2-3kgfcm2, input water temperature< 30oC, water flux: 2x40LMIN 4. Air supply: 4-6kgfcm2

MAIN TECHNICAL PARAMETERS 1. Power supply: Triphase 380V, 50Hz 2. Rated power: 3.5KW 3. Efficiency: 60000pcsl8h 4. Applicable tube diameter: Φ6mm - Φ12mm (over this range can be custom-made) 5. Applicable tube length: 1OOmm -750mm 6. Size (LxWxH) : 1900x1800x1200(mm) 7. Weight: 580kg

MAIN TECHNICAL PARAMETERS 1. Power supply : 220V,50Hz 2. Rated power : 500W 3. Main axis speed : O -2134rpm 4. Pinch roller speed : O -74rpm 5. Accuracy : + ~ 1 % 6. I.D. of element : 0.75mm -12.7mm 7. Wire diamete : 0.1 Omm - 0.85mm 8. Size (LxWxH) : 1800x700x700 (mm ) 9. Weight : 130kg

Main technical parameters 1. Power supply: triphase 3s0v. 50hz 2. Rated power: 1.2kw 3. Air supply: 5 -7kgcm2 4. Efficiency: above 4500pcs8h 5. Size ( lxwxh ) : 8oox8oox660(mm) 6. Weight : 600kg

High efficiency, little pollution, stable quality and safe, PLC automatically controlled, easy to operate, Load material automatically, the speed can be adjustable, easy to change specification and maintain, Power supply: Triphase380V 50Hz.
