Industrial Seals Dealers in Malad West, Mumbai

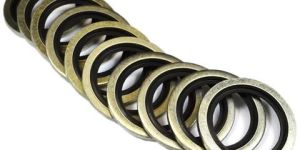

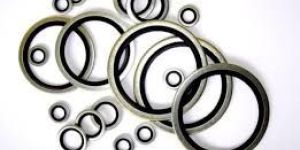

Dowty Bonded Seals represents a combination of metal washer and elastomer sealing lip vulcanised to the edge of the metal part to seal spiral leakage in bolted connections. E.g., pipe connections and couplings. When the bolted connections is tightened, the sealing lip is pressed against the flat surfaces. The metal washer ensures that the components to be connected are reliably and securely held. The thickness of the washer limits the compression of the elastomer metal bonded seals, eliminates any over torque of the joint, thereby ensuring a reliable sealing system. The internal pressure increases the sealing force by energizing the sealing lip.

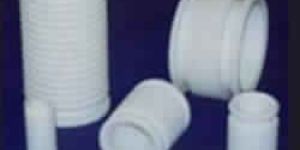

  Shashi Fluoroplastiks are well-reputed as one of the astounding PTFE Bellow Seal Manufacturers and Exporters from India. Our range of PTFE Bellow Mechanical Seals is idyllically designed to meet the requirements of our varied clients across the globe. The PTFE Bellow Seal is an externally mounted seal for corrosive chemicals where contact with the media is to be avoided. The mating seat is high alumina ceramic with excellent corrosion resistance to highly corrosive chemicals like concentrated acids and other strong organic chemicals. Specifications Bellow: PTFE Seal face: glass filled PTFE versus high alumina ceramic seat Seal face: glass filled PTFE versus high alumina ceramic seat Secondary elastomer: PTFE gaskets Pressure: 5 bar Temperature: 110 °c Equivalent to crane 10t , 20, 10r and 20r and burgundian TF.   2) PTFE Shaft SealsApplication: pharmaceutical industry food processing and many moreFeatures : high-tensile strength, minimum maintainence, low wear & tear, non-flammable, durable 3) PTFE Chevron Seals

Double Cartridge Seal Type ZR28/D are Recommended for Clean and dirty media application . Seal can tolerate reversal pressure. Double Cartridge Seal Type ZR28/D is Standard for using where Corrosive Liquid are being Processed. We are the top manufacturer of Double Cartridge Seal Type ZR28/D in mumbai, INDIA This Type of Seals is designed for using for Petroleum Products, Low Aggressive Chemicals and Refrigerants in Centrifugal pumps and other Equipment with Rotating Shafts. Features Balance Pusher Seals available in Single and Dual Configuration used for Sealing Environmentally. Dual Directional. Stationary spring design. Heavy Duty Seal Faces remain flat during Operation to minimize Leakage. Components in Cartridge Design are Builds for the Highest Reliability and Simple Installation. Hydraulic Balance Seal Permits using high Pressure as well as it Create Low Heat Generated on Faces and provides long Life. Unitized, Easy-to-Fit Design. Materials Seal Ring Faces : Cabon, TC and SiC Seat Faces : SiC and TC Elastomer : Viton, PTFE, and FFKM End fitting MOC : SS 316,HAST-C and Carpenter 42 MOC : SS 316 – CHANGE OF MOC ON REQUEST Operating Capabilities Shaft Dia. : 20mm to 100mm Pressure : Up to 15 bar Temperature : -30°C to 260°C Speed: 3000 r.p.m.

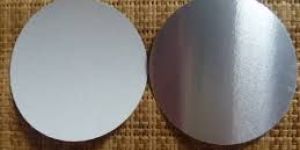

We deliver high quality of Aluminum Foil Lid at very reasonable price, that are immensely used in food and dairy industry. These foil lids are paper thin in dimensions and are used as temporary lids for the use-n-throw food product containers. All these aluminum foil lids can be customized with images, information, logos and prints as per the requirements of our clients.

we are offering teflon bellow seal. seal proof make teflon bellow seal is externally mounted low pressure mechanical seal with metal free contact parts due to corrosive pumping media is designed for highly corrosive chemicals such as concentrared acids, chemically active organic compound, corrosive and abbrasive liquid.this seals are independent of direction of rotation.seal ring face can be changed or replaced due to its design feature.the face is positively driven by integral lugs which is on bellow,it imparts smooth drive to the face.

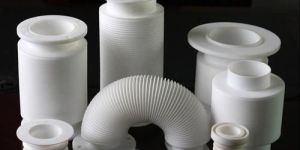

Shashi Fluoroplastiks are well-reputed as one of the astounding PTFE Bellow Seal Manufacturers and Exporters from India. Our range of PTFE Bellow Mechanical Seals is idyllically designed to meet the requirements of our varied clients across the globe. The PTFE Bellow Seal is an externally mounted seal for corrosive chemicals where contact with the media is to be avoided. The mating seat is high alumina ceramic with excellent corrosion resistance to highly corrosive chemicals like concentrated acids and other strong organic chemicals. Specifications Bellow: PTFE Seal face: glass filled PTFE versus high alumina ceramic seat Seal face: glass filled PTFE versus high alumina ceramic seat Secondary elastomer: PTFE gaskets Pressure: 5 bar Temperature: 110 °c Equivalent to crane 10t , 20, 10r and 20r and burgundian TF. 2) PTFE Shaft SealsApplication: pharmaceutical industry food processing and many moreFeatures : high-tensile strength, minimum maintainence, low wear & tear, non-flammable, durable

We manufacture the dowty seals as per the industry requirement. The basemetal ring used is M. S. (mild steel). Normally the industry used the basemetal ring by turning from pipes. We used press metal washers O rings so that the concentricity & flatness of the washer remains within 0-0.05%.

we  at  veer  enterprise  are  manufacturers  and  dealers  of  dowty seal  bonded  washer  copper  washer  brass  washer  bonded  seal  o rings  oil seal  washer  manufacturers  and  dealers  in india  vardhman bearings  veer  enterprise

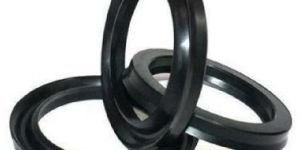

Chevron Packings, Industrial Rubber Component, Nbr Seals, Orin

These types of Seals are single coil spring with elastomeric bellows. Designed for Water, Oils and Light duties. These Seal function independent of direction of rotation special materials can be offered to meet specific requirement.

O-ring seals are circular rings of various cross-sectional configurations installed in a gland to close off a passageway and prevent escape or loss of a fluid or gas. An oring is specified by three of its features: its dimensions, material, and hardness. Material and hardness specify the elastomeric compound and Shore A (durometer) hardness of the compound that is used to manufacture the o-ring. An O-ring's dimensions are described by stating its inside diameter (I.D.) and its cross-section. Designing for o-rings depends on three major and interrelated variables: the operating conditions or environment the seal will experience, the gland geometry into which the seal will be installed and the three variables account for the fact that there are so many different types of seals and applications.

We are recognized globally to come up with the best quality Induction Sealing Wads for PVC Bottles. We deal in Moisture Resistant Induction Sealing Wads that are used for various packaging applications, in several industries. The Induction Sealing Wads we offer prevent the liquid from several environmental factors. We make available the Durable and Perfectly Finished Sealing Wads in various different sizes and design; according to the customers’ requirement and demand.

The Secure Roto Seal is a durable plastic and wire seal that can be applied without a tool This is a Twist Type Roto Seal used for securing Drums and Meters Much better than anchor seal

Owing to the optimum quality. Our products are widely used in Pharmaceutical, Food, Automotive, Chemical and Engineering Related Industries. For the maximum convenience of our clients, we also provide customized services & packaging for these products as per the specifications given by our clients. Apart from this, we also provide paid samples of these products, so that our clients get the prior idea before purchasing them finally. Owing to these factors, we have been able to earn the trust of our esteemed clients. Some of the international markets, where we cater our products.

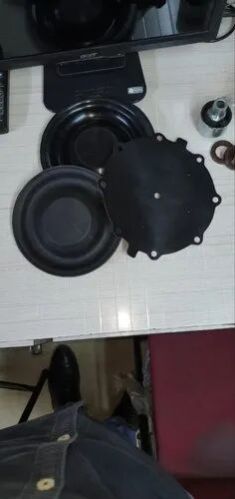

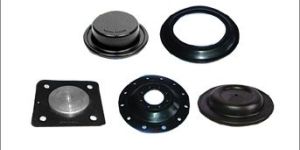

The diaphragms rubbers we manufacture are available in various sizes ranging from 5 mm to 1000 mm. Our range of diaphragms is manufactured using PTFE / ELASTOMERIC materials that have the capacity to withstand harsh weather conditions. We make use of almost all types of material that comprises of Nitrile, EPDM, Neoprene, Fluorosilicone, Silicone, SBR, Fluoroelastomers Viton.,PTFE.   Salient Features:   • Long life cycle • Long stroke capability • No breakaway friction • Constant effective pressure area • No lubrication required • Little or no spring rate • Can be used in extreme pressure

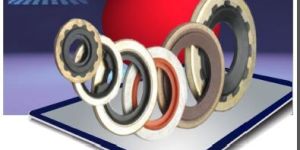

We are offering dowty bonded seals. the bonded seal was originally designed to replace copper type washers in high-pressure systems. The bonded seal comprises a metal washer and an elastomeric ring bonded inside the diameter. The metal washer prevents over-compression and limits deformation of the elastomeric ring. Advantages reliable low and high pressure sealing high and low temperature capabilities bolt torque is reduced with no loss of tightening load materials elastomer component is available in nbr 70 (standard) and (special order materials) nbr 90, fkm (viton ®) 70 & 75 shore a, epdm 75 shore a washer component is carbon steel, zincyellow zinc plated or stainless steel (on request).

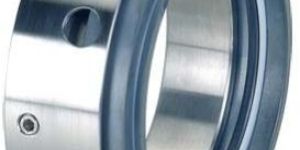

Reversed balanced seal is an externally mounted and internally balanced multi coiled spring seal. The most important aspect of the reverse balanced seal is that it eliminates the shaft step and sleeves for balancing. Our reverse balanced seals are commonly used for handling corrosive chemicals, hydrocarbons, general & light chemicals. Besides, we are one of the foremost reversed balance seal exporters from India. Applications: Generally used for handling corrosive chemicals, hydrocarbons, general & light chemicals. Material: Seal Faces: Sic/carbon Vs Ceramic/Sic./TC Secondary Seals: Viton/PTFE/GFT Metal Components: SS-316 Operating Limits: Shaft Dia.: 10 to 100mm Pressure: up to 10 Bars Temp.: -50 to 180°C Speed: up to 25 m/s
