Italimpianti Orafi Sap - Italy Marol, Mumbai, Maharashtra

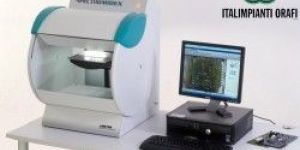

X-ray fluorescence spectrometer used for a non-destructive measurement, extremely sensitive, ideal for fast analysis of small areas and the rapid mapping of large surfaces Technical features: • HT generator 50 Kv accelerating voltage, 30 watts of power • X-ray tube with Mo anode of air-cooled • collimator of X-rays from 0.5mm and 20mm working distance, specimen holder of a manual type • solid-state detector (SDD silicon drift detector) cooled with Peltier technology • Video camera for viewing the sample analysis position and photographic documentation • Basic software for the management of all the instrumental parameters and analysis • Software for 'semi-quantitative analysis using fundamental parameters (FP Alloy, FP Plus) for the elements between Ti and U • Personal computer complete with monitor last generation 19 "TFT and color deskjet printer

This tool is equipped with a battery, so it can also be transported to the outside where it is not present the mains for power supply. For this it turns out to be the instrument with greater flexibility of use. E 'equipped with integrated PC with touch screen (external Notebook optional), touch screen and integrated camera

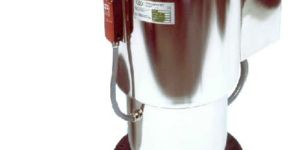

The machine is used for washing and drying of metal chains and small, sludge of silver and / or silver crystals. The drier is built entirely of polished stainless steel, it has a pull-out basket, statically and dynamically balanced. E 'it equipped with a funnel, also in stainless steel, fixed on the cover for washing with water. The support that supports the basket is connected directly to the motor shaft. The electric motor is automatic, independent suspension, isolated against moisture. The starting and stopping of the rotation of the drum takes place very gently, thanks to the inverter that controls the motor, for which the content pieces are difficult to damage. On some models, there is also an electromagnetic brake which acts directly on the engine. The machine is equipped with a potentiometer for the adjustment of the rotation speed from 0 to 1400 RPM, and the timer for the regulation of the working time. All centrifuges are equipped with a safety device that prevents the opening of the lids during the operating phase.

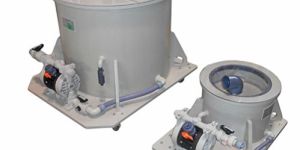

This unit is designed for the filtration of liquid solutions containing solid particles or dust. E 'consists of a trolley mounted on castors 4 in which a cylindrical body is alloggiatto filter built in PP and a compressed air diaphragm pump. The filter body is divided into two parts separated by a perforated plate necessary to aspirate and to the filtering of liquids through the filter paper and / or fabric in PP. The diaphragm pump generates the necessary vacuum filtration, is constituted by a body made of PP with interchangeable PTFE membranes. The system is provided with three ball valves ON / OFF is needed to connect with other filter carts or with other components of other processes and for the supply of compressed air. The filter is provided with a special vacuum breaker valve to protect the filter from implosions body and by a plastic cover divided into two parts, a removable and the other with a suction intake for the fumes.

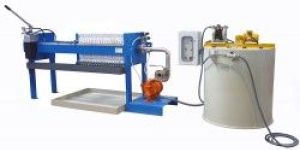

The plant consists of: 1 complete neutralization tank agitator solutions to neutralize # 1 filter press with pneumatic pump   The press is used for the filtration of the neutralized solutions and retain the oxides of copper, zinc etc. destined to companies authorized to process them.   The structures of the filter press, from smallest to largest, are of the monolithic type, realized in carpentry and subjected to electro-mechanical controls and accurate machining. In the design we were considered unitary stresses in the materials contained within very low values, even at maximum operating pressure. The heads and the longitudinal members are coated stainless steel or other materials according to the chemical characteristics of the liquid to be filtered. In the filtering elements, the fabric, the shape and dimensions of the plates, as well as the materials used, they represent the most important part. The selection of these items is the result of years of experience of those who know these problems. The pump is equipped with electronic control by means of the probe level for the drive and the automatic shutdown.

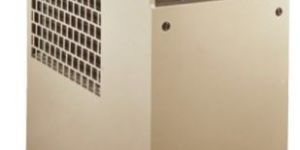

The type of water cooler "TAE EVO" and 'particularly suitable in all cases in which it is' necessary to maintain the plant cooling water temperature within a certain range of values. We particularly recommend the following cases: • induction furnaces to be used with cooled demineralized water • degreasing in trichlorethylene • Furnaces for brazing • deoxidation Ovens • Smoke Capacitors for installations of refining and emptying

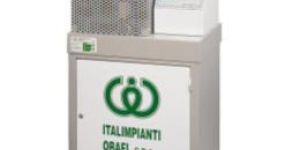

The vulcanising serves for the preparation of rubber molds. It consists of a mobile in painted steel sheet that supports the hydraulic press to 4 columns, with heating plates made of cast iron from 250 × 250 mm. The main advantage of this machine is the automation of the entire cycle, so leaving the operator free for the whole duration of the process. Other benefits include: the ability to simultaneously carry out the vulcanization of more models. the low-pressure rubber preheating to not deform the model the possibility of establishing the thrust in Kg on the models surface the indication of the exact vulcanization time in order to have a repeatability of the degree of hardness of the tires automatic stop of the heating with beeper

Power : 1.2 kW

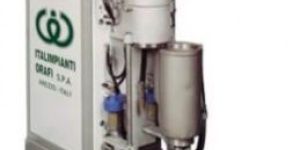

The new FIM / MCE serves both for the production of pieces cast with the lost wax method for the production of wire and slab ingots. Our over 40 years of experience in the industry has allowed to build a reliable and simple to use, reducing manual operations only to a minimum. In addition, the frontal dimensions of the machine has been reduced to a minimum compared to all the existing machines on the market. This machine and 'the combination between quality' and versatility ': allows the use of cylinders with flange or without flange, with holes or without holes, of different sizes, can operate both vacuum and underpressure on the basis of articles of jewelery which have to do, in gold or silver, always obtaining the same high quality results It has a compact design, small footprint, equipped with powerful internal converter, easy to use, with a touch-screen panel, for both experienced and inexperienced smelters. The microprocessor inside the machine allows to store up to 100 casting programs. With this casting furnace it is possible to make even grit by an appropriate device and the production of ingots using appropriate molds to be placed in the lower chamber. The machine can work both in manual and automatic mode. For the automation of the system you have chosen a reliable industrial computer on which the user can set up to 100 programs in three different languages: English, French and Italian. The programs can be stored either by name or number, and facilitate the recall of the desired casting program where, after some time, you wanted to recreate the same article. The machine has the default preset programs for the articles and the most common titles that allow the user to get a feeling for the car quickly. The temperature measurement is carried out by means of a type N thermocouple inserted inside the shutter to evaluate directly the temperature of the molten metal. Synthesis Technical Features • Frequency converter that automatically grants, depending on the type and quantity of the alloy melt in order to obtain the maximum energy transfer. • High-reliability industrial computer that runs the duty cycle set in the user program. This cycle will include the melting temperatures, the casting, the vacuum levels desired and the process time. • Can have up to 100 programs to produce as many different items. • When the machine is turned on, it automatically starts a test procedure for all circuits, after which the crucible is heated to a predeterminable temperature in order to avoid thermal shock or even to find the machine is ready at the beginning of the working day. • Continuous monitoring of key operating parameters. • Advanced alarm diagnostic software. • Help on line that guides the operator to resolve any alarms. • Built in computer with touch-screen display, with custom buttons for immediate use of the oven. • Custom language with the ability to express the temperature in Celsius (° C) or Fahrenheit (° F). • Ability to work in manual mode for learning or check the machine.

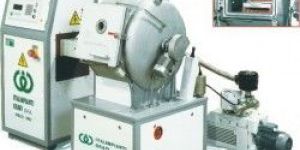

Vacuum melting furnaces FIM / FPt (Alloys Palladium, Platinum) The oven is used for the vacuum melting of platinum, palladium, dental alloys. The induction furnaces Italimpianti Orafi are all equipped with static converters medium frequency (4 to 15 kHz), which guarantee the homogeneity of the alloys. The high technical level achieved in the design of the inductors, also combined with a modular construction technique and the use of high quality materials, guarantees maximum production even in the harshest conditions. The furnace is composed of a completely stainless steel casing rafreddato water wheel in which the crate with the crucible and mold for casting or cylinder for tilting casting. The case is done by tilting motor with inverter and proportional joystick. The oven is equipped with vacuum pump 65 m 3 / h and an optical pyrometer for temperature control. All the step of melting, casting and homogenisation takes place in a protective atmosphere, which can be, optionally, composed of gas Argon or Nitrogen. monitoring of the display of the converter operating parameters, such as voltage and power consumption; computerized alarm diagnostic for the detection of alarms or warnings of which the operator must take into account for the proper functioning of the system. Instructions and tips on what to do are displayed on the display; of closed loop power control which allows to absorb the power system set regardless of the amount and type of metal to be melted; the internal environment of the converter is conditioned by an air-water heat exchanger.

Availability : 300 kg

the vacuum generating system based on the Venturi principle ejector system through high-performance, consisting of the liquid containment tank, centrifugal high-pressure pump.The high pressure fluid circuit is controlled by analog gauge, while on the vacuum circuit is installed on a dedicated vacuum gauge and manual regulation of the vacuum valve.The tank is equipped with level sensor and temperature control.

The plant serves for the application of the solder powder on the chains, remove excess solder and insulate them with talc. It has three tumblers octagonal, in each of them can be placed two skeins. The tumblers have the ability to automatically reverse the motion of rotation, variable time, in order to prevent the entanglement of the chain. Two sieves are to contain the solder powder and the third for the talc. The motion of rotation and revolution of the reels part gently, reaches its maximum speed and stop smoothly. The automatic reversal of the direction of rotation can 'be obtained every two, three, four, up to fourteen laps. All these features offer significant advantages especially to the thin chains for which starting and abrupt reversal of motion is harmful. ADVANTAGES OF THIS MACHINE: • Savings of solder powder. • Overall Reduction and equal production compared to other existing machines on the market.

The ingot trolleys can be constructed with different materials, by means of welded sections, and mounted on four or six wheels that run on rails of which two of these drive. The drive wheels can be both manual and automatic. The translational automatism provides an electric translatory movement with wheel rack and servo alignment mechanismbetween the jet of coltata and mold. The mechanism is composed of an asynchronous motor controlled by an inverter retroazionando and movement with absolute encoder. The remote display control panel will be composed of a tilting command of the cloche and two buttons for scrolling in step or continuously the carriage. The heating of the ingot is entrusted to burners honeycomb fed to propane gas with relative safety valve. The tightening of the ingot can 'be both mechanical and hydraulic. In the first case the molds are clamped by means of screw mechanical closure; in the second case, the hydraulic system provides two opposed hydraulic jacks, controlled by a control unit mounted on the carriage. The trolleys are also equipped with ingot molds for the production of slab ingots and wire or for the production of anodes. Obviously, the type of ingot and size are defined upon customer request. The described plant can undergo customizations on the customer's request, photos posted are just one example of the many possible system solutions. Based on the needs of the customer it is possible to create tailor-made systems, with suitable characteristics to the machining process required.

    The tower is used for neutralization of acid fumes produced by the hood of Spartimento and for the extraction of lead fumes from cupellation furnace.The tower is made of polypropylene. Inside it is provided with sprayer and raschig rings. Under the tower is placed the containment tank of the neutralization and relative anti-acid pump solution.The described plant can undergo customizations on the customer's request, photos posted are just one example of the many possible system solutions.Based on the needs of the customer it is possible to create tailor-made systems, with suitable characteristics to the machining process required.

Terminal with brilliant color "Touch Screen" High-resolution terminal equipped with "Touch Screen" with brilliant colors, can be positioned comfortably and freely on the cable connection. This feature, together with adjustable inclination of the viewer, the user guarantees a comfortable and ergonomic work station. Expandable with engines for dispensing burettes The "Plug & Play" feature allows you to connect to the titrator other engines for dispensing burettes without restarting. The burettes are recognized by the engine through the RFID device. Titrants expired, incorrect concentrations or burette volumes incorrect thing of the past. Full range of communication interfaces Not only USB or CAN Bus connectivity, but also Ethernet, RS-232 and TTL connections are standard. These enable the connection of any USB printers on the market supported by Windows CE and RS-232 or TTL legacy devices, without any additional device. Preconfigured application packages Everything you need for the analysis, in two versions: • M Terminal: terminal stand for manual titration and which control unit • Terminal A: stand for automated titration Rondolino terminal and which control unit

We have a wide range of plants flocculation and sedimentation of various sizes and capacities.

We realize multiple tanks with different materials and capacities for the treatment of solutions containing nitrates.

A wide range of tanks and / or storage containers made of various materials and of various sizes adapted to the storage of chemicals.

Italimpianti produces a wide range of gas atomizers specially designed for the production of metal powders, available in small size to be used in the laboratory until you get to large installations for a real industrial production. The special geometry of the nozzle allows a constant production of metal powder with a spherical form of high quality, with controllable size from 10 to 100 microns. All our melting furnaces are equipped with special induction coils, powered by generators completely designed and manufactured inside our company, with capacities from 5 to 20 kW. The fusion process can take place in air or in a controlled atmosphere, as well as under vacuum or at normal atmospheric pressure, thus allowing a wide range of atomizzabili metals, including those low melting or easily oxidizable. The chemical composition and the homogeneity of the alloys are perfectly guaranteed through the use of low-medium-frequency generators, while the use of inert gas inside the upper chamber limits the oxygen content. These systems are designed to ensure a quick replacement of the crucible, to avoid "cross-contamination", they are easy to clean and easy to use. TECHNICAL CHARACTERISTICS: • Power consumption: from 5 kW to 20 kW • Production Capacity: from 1 to 10 Kg per cycle • Metals that can be treated: Steel, Precious Metals, Copper, Zinc, Aluminum and other base metals, including alloys .

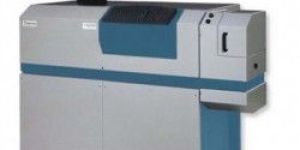

We are offering best spectrophotometers. we have various range or models.

The x-ray fluorescence spectrometer has developed into an all-round talent for the fast, non-destructive analysis of small spots and the rapid mapping of large surfaces (up to double ec format, 233x160 mm, 9.2x6.3’’).

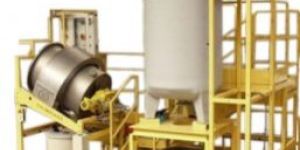

The refining process is of a chemical type and is made by means of a specific and rigorous procedure that uses chemical reagents basic low-polluting impact. The cylindrical reactor with stirrer is suitably designed to allow perfect homogenization during the conduct of the process and ensure a complete reaction. The filtration system is very versatile and allows to reduce the neutralization time. The range of chemical refining plants is very wide and allows to treat quantity 'of silver up to 500 kg per batch. The production time may 'vary from a few minutes up to 3-4 hours for large systems, where it is required high purity silver. The described plant can undergo customizations on the customer's request, photos posted are just one example of the many possible system solutions. Based on the needs of the customer it is possible to create tailor-made systems, with suitable characteristics to the machining process required.

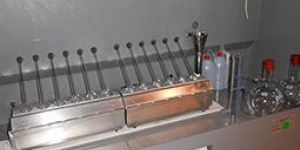

The hood, through the use of acids, is used to separate the precious metals contained in a sample of alloy in order to make a prior analysis of the material and decide the most suitable working process. This is composed of: polypropylene hood with stainless steel supporting frame two multiple assaying plants, one for hno3 at 22 bé and the other at 32 bé, able to contain, in a quartz container, n°24 assays at a time. the plants are made entirely in pirex glass and fitted with a vapour condenser, heaters and 1200 w power changer.

This system is used for the treatment of waste water or process from the processing of precious metals manufacturing industries. The wastewater / process normally contain small amounts of precious metal solid particles in the form of sludge, difficult to treat with the use of standard equipment such as settling tanks for gravity, filter presses, etc ..   The plant consists of two units that allow two processing steps: lamellar settling Bath high performance, an average of three / four times more efficient than traditional sedimentation tanks with calm cone microfiltration unit composed of: collection tank with a probe for level control stainless steel centrifugal pump necessary to ensure a constant flow of water to be treated so as to maximize the efficiency of filtration and the duration No.7 Cartridges Polypropylene The majority of the solid particles are collected from the sedimentation tank and accumulated in the conical bottom of the same, the remaining part of the particles are retained by the cartridge filters of microfiltration unit. These filters are washable and resistant to corrosion of any chemical solutions.

Principle of operation Through a combination of acids and the subsequent use of chemical compounds it is possible to refine gold containing alloys. The aqua regia is a mixture of hydrochloric acid (HCl) and nitric acid (HNO 3 ). The refining process can be summarized in several operations: Analysis of the alloy to be refined title Production of grit or fine gold foils Refining by aqua regia Separation and storage of silver chloride (AgCl) gold precipitation Recovery and filtering of the precipitated gold powder Analysis of the security of this gold Gold Fusion in its final form Key benefits: Compact system Easy to transport and assemble Low purchase costs No harmful smoke released No loss of gold in the process Automatic loading of acids Refining by aqua regia The minimum recommended title for the gold alloys to be refined must be at least 600/1000. Lower Titles significantly reduce productivity by increasing the processing time. The percentage of silver present in the alloy should not exceed 10-12%. Higher values can reduce the productivity of the process as well as adding the times. The gold will be melted and reduced to fine grit (through a melting furnace and a container for the production of grits) or small plates. These latter make it possible to maximize the effect of dissociation due to their high external surface when they are immersed in aqua regia solution. The grit, due to a lower outer surface and more irregular shape, it needs a longer time for its complete dissociation, sometimes leaving residues in the reactor is, however, easier to get gold in the form of grit. The plant consists of: Bath PPL with panels, which accommodate the two containers for HCL and HNO3. Extractor in PPL with the intake manifold, to be connected to our tower suction and fumes neutralization, type TLF. The above is constructed so as to collect any leaks of acids. An electric heater with power regulator Reactor with condenser, pyrex glass. Transfer HCl and HNO 3 as containers sized containers by means of vacuum. Polyethylene container, with lid and suction for AgCl decantation. Flask pyrex glass for the gold cementation, porcelain Buchner funnel and its lid for the transfer and filtration of solutions by means of vacuum. Antacid diaphragm pump, powered by compressed air, for the transfer of solutions. polyethylene containers for the containment of the mother liquors. Metering pumps for the transfer of HCL and HNO3 in the reactors. Pyrex glass capacitors. The described plant can undergo customizations on the customer's request, photos posted are just one example of the many possible system solutions. Based on the needs of the customer it is possible to create tailor-made systems, with suitable characteristics to the machining process required.
