Jay Instruments and Systems Pvt Ltd. Tardeo, Mumbai, Maharashtra

We offer x ray inspection. Anritsu x-ray inspection systems provide complete solutions and gives operational confidence to food and pharmaceutical manufacturers and their retail channels through innovative technical solutions derived from consumer and industry insights.

Features: Specially designed for floor mounting applications where pit can not be made. Lodecells and platforms can be MS with IP 67 protection or SS with IP 68 protection for washdown application. Platform height is only 45 mm and suitable for trolly weighin applicaion. MOC of PF: MS or SS. Capacity from 500Kg to 2000 Kg with 4 load cells.

We offer truck scale weighbridges. Features: pit pitless type wighbridge from 6 x 3 m to 20 x 3.5 m. capacity 10 mt to 150 mt. digitalanalog loadcells with water proof ip68 hermetically sealed protection. atexcmri approved flameproof indicator (optional). rugged structure with isi approved steel. bolted and welded structure available. easy to install and service. lighting protection. full report generaton features and ability to uplink dta to mis system and communicate with sap & erp.

Features: for multipurpose application where the scale has to be moved frequently. size 500 mm sq to 1000 mm sq. ruggedly built to take the knocks of industrial use. ideally suited for mobile weighing in food industry, rice mills, warehousing & logistics.

We offer table top scale tt 1013. Features: accurate, reliable and fast weighing. stainless steel housing for hygiene application. capacity: 1 kg to 30 kg, resolution: upto 30000 dd. larger pan size. easy to read bright red led display. one touch zero, tare, netgross, printhold keys. bi-directional rs-232c port for indicator to pcprinter.

Features: single load cell platform for industrial application. scale size from 350mm sq to 1000 mm sq or custom size. capacity from 10kg to 1000kg. wash down scale for hyginenic applications. Which meets us fda guide lines. scale with ss construction and special ip 68 loadcells. models available for installation in safe or hazardous area.

Features: Multipurpose, Flexable, programmable weight indicator and controller. Fast, Accurate and Reliable. Complete SS Construction for hygiene application. Available in Multiple Capacity and Accuracy. Model Available in Platform with Rollers. Memory to store 10,000 readings (Optional). 7 Segment red LED display for weight.

Features: suitable for heavy goodsdrums loading and unloading. weighing platform with rugged tube steel contruction and range of loadcells. smooth dust resistant rollers and ramps with zz bearings for easy movement of materials. for easy movement of material. ramp with rollers on one side or both side also available. moc: ms or ss. capacity from 50kg to 500kg.

Features: Convenient for mobile weighing pallet weighing. Battery operated indicator (weather proof, flame proof). Fork dimension: 1150mm long x 555 mm wide. Lift height 95 mm to 200 mm. MS or SS washable construction. Easy turning and maneuvering. Duel PU wheels for stability. Suspension system protects loadcells from side loads. Capacity from 500 Kg to 2000 Kg.

We offer checkweigher. Features: to find missing item and control pack weight. 450 models to suit line condition and speed. haccp and gmp compatible models. (ip67 washable weighcell conveyor). validation functions to assure complete reliability. high speed : upto 600 products per minute. weight range : 0.5g to 60 kg. different types of rejecter to match the application and speed. fda 21 cfr part 11 compliant model. with or without integrated metal detector or printer.

We offer metal shark ph. Features: high sensitivity & stability. Fe - 0.3mm, al - 0.4mm, ss - 0.5mm sphere. Maintenance free design. Special round aperture for high sensitivity and safe product handling. Easy to install and operate. Clean design for the pharmaceutical industry. Easy validation. Iqoqpq for qualification templates.

Features: For heavy duty industrial applications. Unique cup and bowl mounting assembly for high accuracy and performance over weighing range. Design for floor or pit mounted application. Heavy duty construction to take point loads of wheels at edges. Easy loading. Low deck height ( 100mm). MOC of PF: MS or SS. MOC of loadcell: Alloy steel or SS. Capacity from 500Kg to 5000Kg with 4 load cells.

Features: multipurpose, field programmable weight indicator. fast, accurate & reliable. 1,00,000 count internal resolution, display resolution upto 30,000 dd (hires option). unique built-in dead weight compensation in the adc. multi-point digital calibration. rs 232 serial port with printing facility (rs 422 optional) and connection to plc. hires model (optional) with part counting.

Features: in low profile platform scales with large dimension, hinged deck option allows you to clean underneath the scale area. capacity from 500kg to 2000 kg with 4 load cells.

We offer counting scale. Features: 130000 display resolution. counting by sample or unit weight setting. auto average part weight calculation. 7 average part weight memories. data accumulation by weight and quantity. digital calibration. built-in battery back up.

Features: Used for weighing during lifting and for overload prevention. Large display. Can be read at considerable distance. Battery operated. Upto 40 hours back-up. Rugged cast aluminimum case. Fixed lifting eye and swivel hook. Heavy-duty heat proof and wireless crane scale available for hot temperature. Capacity from 1000 Kg to 25,000 Kg.

Anritsu is the global market leader in the field of industrial metal detection for the food and pharmaceutical processing and packaging industry. Jay Instruments & Systems Pvt Ltd. is proud to represent this company in India.

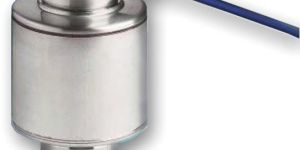

we offer Compression Column Load Cell C 310. Features: fully stainless steel construction. fully welded and hermetically sealed to ip68. pre-corner adjustment optimised for multi-cell systems. self-centering column design with anti rotation pin. in-built surge arrestors for lightning protection. manufactured in europe. oiml r60 approved to 4000 divisions. atex high temperature version available.

B-310 is bending beam load cell available up to 200 kg capacity with class c3 accuracy mainly used for platform scales, belt weigher, bag filling and small capacity of vessel weighing systems. This load cell is made from stainless steel and having hermetically sealed to ip 68 protection.

High-speed, high-accuracy instrument that provides even higher accuracy for measuring led-backlit lcd tvs by reducing errors due to variations in the peak wavelength of led backlights.
