MAGNETIC SOLUTION PVT. LTD. Dahisar, Mumbai, Maharashtra

              Longer Screen Life             Minimum Blinding             Takes less space             No Transmitted Vibration Greater capacity & more accurate screening

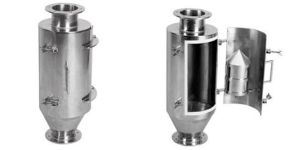

"MSPL" Tube Magnets have been specially developed for thorough removal of ferrous metals from materials in granular and powder form during transport through pipeline systems. These magnet systems are built into a housing, which is fitted with flanges so that, after mounting, they form a single unit with the pipeline system. Guide strips are fitted on the inside of the housing to ensure that the material to be purified is well distributed, and comes into good contact with the magnet core. The standard type has a M.S.Steel housing, although an alternative version with a stainless steel (S.S.-304/S.S.-316,S.S.-316-L) housing can be supplied to special order. Along with the standard Flanges dimensions, Tube Magnets can also be supplied with flanges to customers requirement.   Powerful Permanent / Rare Earth (NdFeB) Magnets.         Door Mounted Magnet.          Simplified Cleaning.         All Welded Construction.          Fit 2" to 20" Diameter.

"MSPL" Tube Magnets have been specially developed for thorough removal of ferrous metals from materials in granular and powder form during transport through pipeline systems. These magnet systems are built into a housing, which is fitted with flanges so that, after mounting, they form a single unit with the pipeline system. Guide strips are fitted on the inside of the housing to ensure that the material to be purified is well distributed, and comes into good contact with the magnet core.

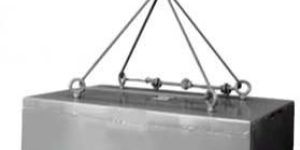

Suspension Magnets are most useful for products carried by the Belt Conveyors.Use of Suspension Magnets is recommended for products with low contamination. However if the frequency of the impurities is too high, then Over Band type Magnetic Separator is recommended. The Suspension Magnet requires frequent cleaning.The main applications are for the processing of Bulk products such as Sugar, Coal, Minerals, Cereals, Coffee, Glass, Culets etc.

Single Drum Magnetic Separator is one of the most widely used varieties of Magnetic separators. Single Drum Magnetic Separator contains a flat surface to which magnetic materials get attracted and are separated from the original heap. These are very effective when magnetic materials that need to be separated are in the form of small flakes.

manufactured to satisfy the demand for high grip magnets where height is too restricted for deep pots. Good grip in intimate contact, but not as stable as deep pots.   Shallow Pots suffer magnetic damage more easily if two should be opposed - this is unlikely to happen accidentally.

The MSPL high intensity magnetic Rota-Grid separator has been designed specifically to process difficult products that have a bridging, and or caking characteristic. The unit comprises of a centrally mounted magnetic rota, which incorporates numerous ‘Easy Clean’ magnetic rods arrayed around its periphery. The number of rods utilised depends on the inlet and outlet size.

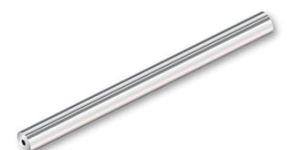

Rare Earth Magnetic Rolls are used to remove Iron Contamination from liquids or dry Bulk material for quality control check. Rare Earth Magnetic Rolls are available as per customers requirement with Solid, Threaded or with Studded ends.

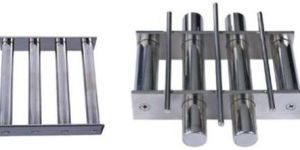

Rare Earth Magnetic Grills are manufactured for various types of Hoppers, Feed Holes etc. The Grills consists of Rare Earth Magnetic Rolls assembled in Single, Double or Multiple layers as required and can be supplied in square circular or any other shape & size to suit customer requirements.

RE Magnetic Separators are useful in processing industry for removing Ferrous Material or very fine Iron impurities from Minerals, Refractories, Food Products, Glass, Slag, Ores etc.

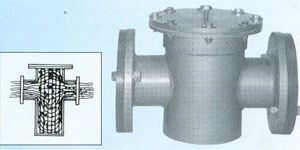

Prong Magnetic separators are manufactured as per customers need for heavy-duty large volume liquid and semi-liquid line flow systems. Prong Magnets employs a slip-in cage of stainless steel permanent magnet tubes. The function of the magnet tubes is such that the captured tramp metal particles migrate to the rear of the tubes where they remain protected from wash-off until the tubes are cleaned. It reduces damages and maintenance to filters, pumps, and other processing machinery handling paper, chemical, slurries, ceramic slurries and other liquid materials.

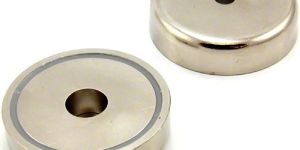

A pot magnet comprises a cylindrical permanent magnet assembled concentrically in a steel pot. The pot is an essential part of the magnetic circuit, providing the return path for th flux. The two poles are concentric, in the same plane, on an end face.   POT MAGNETS - APPLICATIONS Pot magnets are among the most efficient of all magnet manufactures for gripping. (Other manufactures are preferable for lifting and attractive duties across gaps).               Pot Magnets   POT MAGNETS - GENERAL FEATURES     There is no stray flux as the magnetism is retained in a closed circuit.             The pot screens the magnet proper from demagnetising effects.             The pot is readily machinable.             Can be inserted into, or fitted to steel without adverse effect. (This cannot be done with unscreened       magnets).             The magnet proper has the most efficient of all magnet shapes - a plain cylinder, magnetised       lengthways.             Concentration of magnetic flux in the mild steel, possibly up to twice the density of the flux in the       permanent magnet. Grip varies as the square of the flux density, so this is specially advantageous.             Depth of field small compared with that of magnets with poles father apart (Such as horseshoes), but       grip in intimate contact vastly superior to that of non-composite magnets of similar weight.

MSPL is one of the leading manufacturer and exporter of Pot Magnets from India providing solutions for Separation, Holding & Lifting of Ferrous Materials with the help of Harnessing of Magnetic Energy. We manufacture, supply and export wide range permanent magnets including Alnico Pot Magnets & Ferrite Pot Magnets to clients across the globe, including industry leaders from food processing industry, pharmaceutical industry, cement manufacturers, chemical industry, plastic moulding, steel and heavy industry.he most important feature of this programme is it is non-obligatory on the part of our valued customers like you.

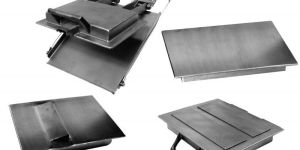

The Plate Magnets also go very well with powdery, moist, lumpy, and abrasive products and large debris that might choke, bridge, or cause rapid wear in cartridge-based separators. Plate magnets are flexible enough to be deployed above conveyors or below conveyor drive pulleys to capture contaminants. They are available in both flat and curved shapes and can be installed either above or at the discharge end of material flow.

“EFI” Pipeline Magnet is designed to attract of fine ferrous particles such as rust from fluids flows in pipeline. Material of construction is 304 or 316 stainless steel; the unit is simply connected to the existing pipeline via flanged or threaded ends. Magnetic Grill filters the flow and extracts the unwanted ferrous metal. Simple and easy access is possible using the quick release lid.

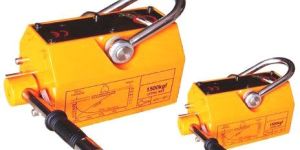

      Tested to 3 times the rated lifting capacity.             State of art manufacture.             Smaller and lighter than ever.             Made with high energy rare earth NdFeB magnets.             Machined out from monolith structure and thus very stable.             Easily transportable.             Actuating lever with positive spring lock.

Suspended Permanent Magnetic Overband Separators are designed to eliminate tramp metal from the product carried by belt, vibratory feeders or inclined planes. Over band Magnetic Separators are mainly used to protect Machine such as Crushers, Shredders to remove Ferrous Material and fine iron impurities (Foundries, Coal Mines, Cement Works, Food and Chemical Industries, Domestic waste recycling Plants.)

Overband separators have a main use of protection of machines such as shredders, crushers and others to purify products, clear out ferrous particles. These have extensive uses in industries like cement works, coal mines, foundries, domestic waste recycle plans, chemical industries, glass, sponge iron, etc. Permanent magnetic self cleaning overband separator is generally used when automatic removal of ferrous contamination is required. Typically, these are suitable for almost any task where metal separation is carried out with the help of crossbelt magnetic separator.

We have separated our infrastructural facility into several units and one of them in warehouse. In order to maintain high quality standards, we laced our facility with modern technology. Being one of the prominent names in the industry, we, as a Supplier, bring forth a wide array of overband magnet to our customers.

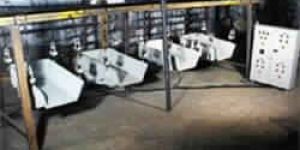

Vibratory conveyors find wide application in cement plants, steel plants, fertilizer industries, pharmaceutical industries, glass industry etc, where controlled feeding of material is required. These conveyors have proved their reliability in transporting bulk material over limited distances.         Depending on requirement and applications vibrating conveyors are available in electromagnetic & electromechanical types. Electromagnetic conveyors make use of an electromagnetic drive for generation of vibrations whereas electromechanical conveyors are powered by two unbalance motors rotating in possible directions. Electromagnetic vibrators are used in applications where stepless variation of feed rate from 0-100% is required. On the other hand electromechanical vibrators are used where the feed rate is not required to be changed frequently during operation or where a relatively constant feed rate is required.       Electromechanical vibrating feeders are powered by two unbalance motors which rotate in opposite directions. These types of feeders can be supplied in two types viz, through type and tubular type depending on the type of application and material being conveyed.

Drum type Magnetic Separator is most useful for separating tramp iron from non magnetic material processed in bulk quantity, for the purity of end products, recovery of metal having commercial value and protection of processing plant and machinery. These are widely used in all the processing industry for separation of iron contamination from Minerals, Chemicals, Food, Flour, Plastics, Grains, Sand, Cement, Fertilizers, Abrasives, Glass, Slag, Ores, Rock, Refractory and many other products.

High intensity magnetic sampling probes are ideal for quality control personnel to quickly and easily carry out product purity inspections on any powder,granulate or liquids for ferrous and lightly magnetic contamination.The probe should be used for sample inspection of product at inward goods, prior to despatch and at critical points throughout the process line for batch testing.All product contact parts are manufactured using 316 grade stainless steel.

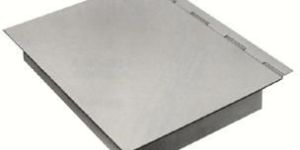

Magnetic Plates are designed in various sizes & strengths to meet with specific operation & plant conditions. Magnetic Plates are widely used for removing Tramp iron such as Bolts, Nuts, Bits of Wire, Nails and other casual Contamination from free flowing materials to protect against occasional damage to the plant caused by bits of iron.

magnetic plates are manufactured in various sizes & strengths to meet with specific operation & plant conditions. Magnetic plates are widely used for removing tramp iron such as bolts, nuts, bits of wire, nails and other casual contamination from free flowing materials to protect against occasional damage to the plant caused by bits of iron.     magnetic plates can ideally be used to remove tramp iron from the moving material carried in chutes ducts, spouts or on conveyor belts, screens and feed trays. Whether the material is plastic or paper pulp, food or fertilizer, oil seeds or gains the result is sure protection of processing machinery and iron free final products.
