Magnetic Grills Dealers in Mumbai

magnetic grill (drawer type) can be fitted simply in existing hoppers, pipe line or outlet of various equipments like pulveriser, blenders or any other outlet location. In standard type single row of magnetic elements are placed at specific distance. Whereas in multilayer type magnetic grills magnetic elements are mounted above each other with zig-zag position for effective clearing. In case of self clearing grills ferrous material can easily be removed, just by pulling the magnetic elements.

Drawer-in-housings are used primarily in vertical chutes for removal of free flowing bulk materials. The drawer in housing designs are offered in simple, inexpensive manually cleaning designs, easy clean, or air or electrically actuated automatically cleaning designs. Food grade finish is available as is any number of tube configurations to optimize the design for your product. The standard tube configuration is staggered so the material must flow around the tubes and tramp metal removal is maximized. To clean manually clean drawer in housings, simply unlatch and remove the drawer and wipe the tubes with a rag or gloved hand. Easy clean models are cleaned manually, simply by unlatching and pulling a handle. The easy clean model is a good compromise between manually cleaning and automatically cleaning. Auto clean drawer in housings can be cleaned by the push of a button or cycled via a timer that is controlled by the system controller or separate timer relay. Common uses for drawer in housings are for sugar, plastic pellets, carbon black, shot, and many other free flowing products. Location should be considered when deciding on a cleaning method.

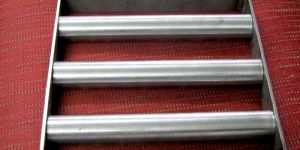

We are offering grill magnet. Pmt magnet grill are used in various industries like food, feed, flour, grain, chemical, plastic & processing plants to remove small iron particles. Magnet grill are very useful for separation of iron particles from dry, granular or powder material like sugar, tea, coffee, spices etc. they are installed in in-feed hopper of machines & are efficient because they work inside the product flow. There is no need for separate arrangement for installation of magnet grill.

Magnetic Grill are used for separation of iron particles mixed with dry, granular or free flowing material. Magnetic Grill are made by using stainless steel frames (Round, Square or Rectangular) with Magnetic Rods inside the frame. These Magnetic Grill are made up of Magnetic Elements which are fitted inside a required size frame. The Magnetic Elements are made up of hard Ferrite Ceramic Magnets or High Intensity Rare Earth NdFeB Magnets. All the components are made up of Stainless Steel 304/316 material. The overall construction of the Magnetic Grill can also be made as per the customer specification and sizes The grills are efficiently utilized if contamination is within 1% to 1.5% by weight. For higher levels of contamination Drawer Grills or Multi Drawer Grills should be used. Low Intensity Magnetic Grill having Gauss value of approximately 2,500 Gauss are ideal for trapping contamination such as Nuts, Bolts, Screws, broken washers etc. these grills are designed to attract larger iron pieces from relatively larger distance. Medium Intensity Magnetic Grill having Gauss value of approximately 5,500 Gauss are used where the contamination is in particle form, however there may or may not be continuous flow of material to be separated. The contamination size may be as low as 150 microns but not lower than that. The material should be free flowing and non sticky. High Intensity Magnetic Grill having Gauss value of approximately 10,000 Gauss are employed at locations where separation of contamination particles as small as 1 microns is required. These grills have been designed to attract super fine particles from the carrier material. In all the three classes of grill, it is a necessity to clean the grills at regular intervals. It is recommended to clean the grill thoroughly before every pass (or as scheduled as per users requirement and experience). More accumulation of Iron particles for long time will reduce the effectiveness of the grill. For highest attraction, the grill needs to be fully clean.

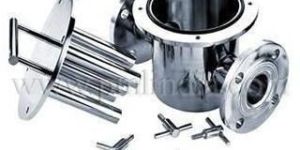

Magnetic Grill (Drawer Type) can be fitted simply in existing pipe line or outlet of various equipments like Pulveriser, blenders or any other outlet location. In standard type each unit comprises to permanent magnetic grill mounted one above the other. System with multiple grill (Layer) are available for special application. The grill are easily removable for cleaning.

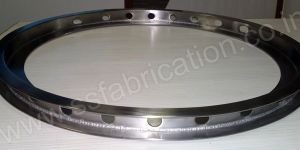

Used in pharmaceutical and food industries. Made by 3 mm 316L Stainless Steel material. Product consists of three parts. Top part and bottom are flanged, and middle part is vertical ring with eight holes (each side) shown in pic which are symmetrical and parallel to each other.

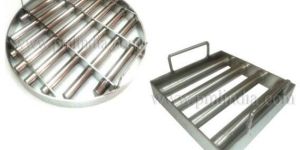

Avail superior quality Magnetic Grills proficiently manufactured by us that is used to remove fine iron contamination from dry free flowing items like spices, sugar, grain, tea, plastic granulate and powdered chemicals. Magnetic Grills are constructed by using number of highly magnetic rods providing strong supporting frame work. Special Features : Easy and quick installationGuaranteed instant protectionEfficiently remove rust, stainless steel scrapings and wear from machinerySupporting frameworkwelded and highly polishedNo power supply requiredNo running costsMaintenance free Fully sealedMagnetic gap between two pipes minimum 15-25mm Construction For Material : 304 grades Stainless Steel for all exterior parts

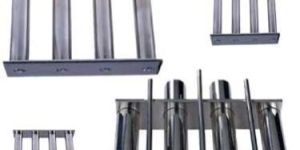

Our Magnetic Grills (Drawer Type) can fit simply in existing pipe line, hoppers or outlet of diverse equipment such as pulverisor, blenders or any other outlet location. In Standard Type Single Row Magnetic Grills, magnetic elements are placed at specific distance. Whereas, in Multilayer Type Magnetic Grills, the magnetic elements are mounted above each other with zigzag position for effective clearing. Moreover, in case of Self Clearing Magnetic Grill, the ferrous material can be removed easily, just by pulling the magnetic elements. Salient Features : Consists of ferrite & rare earth magnet MS & SS 304/316 constructionFitted with flanges at outlet

Magnetic Filters are used for filtration of iron particles from products in liquid/slurry form. They are essentially used in chemical, food, pharma and oil industries. They are also frequently used in hydraulic circuits in cooling systems. The Filter Magnets are made up of either Ceramic or High Intensity Rare Earth Magnets.
