Mahnot Grindage Industries Marol, Mumbai, Maharashtra

Country of Origin : Made in India

Brand Name : Mahnot

Usage/Application : industry

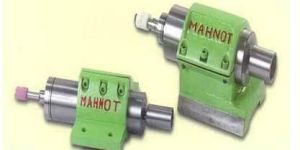

We are offering spindle head. Cartridge spindles with adapter head for given below machines for overbeck, heald, jung, uva, izumi, red head, bryant, voumard, cincinnatti, wmw, bahmuller, buderus, norton, schaudt, minganti, morara, churchill, okuma, toyo, klingelnberg, reishauer, normac, reinecker & other spm's.

Country of Origin : MUMBAI

Application : Industrial

Country of Origin : Made in India

Brand : mahnot

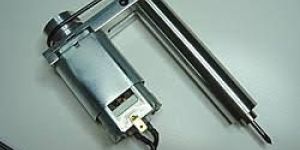

‘MAHNOT GRINDAGE INDUSTRIES’ Pioneer in Manufacturing and designing ‘INTERNAL GRINDING SPINDLES’ have developed various types of Spindles to suit your requirements up to 80,000  R.P.M or more. While manufacturing, care is taken to select High Class Material to maintain its original precision. Four or more Super Precision Bearings with Accurate Preloading & Calibration make these Spindles matchless in quality and suitable for heavy Duty Precision Grinding Operations. Each Spindle is Dynamically balanced and Assembled with Special Grease for High Speed & Life and undergoes Rigorous Run-Test. They are suitable for Internal, Thread; Profile; flute; Surface and Tool & Cutter Grinding operations They are a combination of High Speed Spindle Technology + Grinding Technology. For any grinding machine you can choose Mahnot Spindle up to One Lac R.P.M. by selecting Diameter, Length & RPM to suit your machine and components. For Example :- Any Spindle Diameter (Whether 20mm or 30mm or 80mm or 100mm) can be procured in different R.P.M. Ranges – such as 60,000; 50,000; 42,000; 35,000, 28,000; 25,000; 22,000; 19,000; 14,000; 10,000; 6,000; & 3,000 and less; in Grease Lubrication. The Speed can be increased by 10 to 20% in case of Oil Mist Lubrication

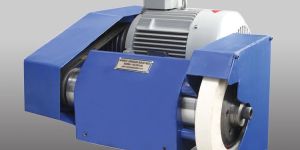

We are offering horizontal grinding head. Horizontal grinding heads is suitable for grinding operations like:- roll grinding; external grinding ; internal grinding; groove grinding etc. And can be suitably fitted on heavy duty centre lathe; or, grinding machines and other special purpose machines in horizontal position . These are high performance grinding head. Capacity available :- • power = upto to 10 h.p. • depth = up to 1000 mm. • grinding wheel dia = up to 400 mm. (for continuous work load.) we assure you that these high performance matchless grinding head will satisfy your all requirements of grinding in the same setting after machining which you had been looking for a long time. These grinding head can transform any machine to grinding machine; and are of much use in heavy duty workshop and their maintenance departments.

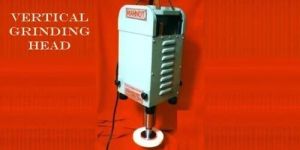

We Manufacture Internal Grinding Spindles upto 80, 000 R.P.M. or More Belt Driven); External Grinding Spindles, Vertical Grinding Spindles, Horizontal Grinding Spindles, Deep Bore Grinding Spindles. We give Lectures on High Speed Internal Grinding Spindles and Grinding Technology. We Repair and Service Internal & External Grinding Spindles with angular contact Ball Bearings.

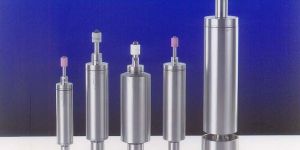

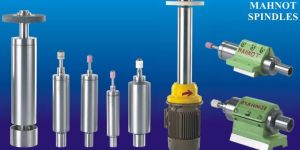

We are engaged in manufacturing, supplying and exporting our wide range of internal grinding spindles to suit specific requirements up to 80,000 r.p.m or more for our clients based in different parts of the world. Also, to maintain the precision of our spindles, we take special care in selecting high class material. There are four or more super precision bearings with accurate preloading and calibration make these spindles matchless in quality and suitable for heavy duty precision grinding operations. Further, each spindle is dynamically balanced and then assembled with special grease for high speed & long life and undergoes rigorous run-test. Also, we are catering grinding machine spindle up to one lac r.p.m. By selecting diameter, length & rpm to suit your machine and components. further, these are combination of high speed spindle technology and grinding technology and suitable for internal, thread, profile, flute, surface and tool & cutter grinding operations. Also, for example we offer any spindle diameter whether 30mm or 60mm or 80mm or 100mm can be procured in different r.p.m. Ranges such as 60,000; 50,000; 42,000; 35,000, 28,000; 25,000; 22,000; 19,000; 14,000; 10,000; 6,000; & 3,000 and less in grease lubrication. The speed can be increased by 10 to 20% in case of oil mist lubrication.

Number Of Flower : Deep Hole Grinding Spindles

Material : Metal

Application : Grinding Use

Condition : New

We are offering deep bore grinding head. Mahnot grindage industries, pioneer in manufacturing and designing, internal grinding spindles, have also developed horizontal grinding head. deep bore horizontal grinding head is suitable for grinding operations like:- internal grinding; groove grinding etc. And can be suitably fitted on heavy duty centre lathe; or, grinding machines and other special purpose machines in horizontal position. These are high performance grinding head. capacity available:- • power = upto to 10 h.p. • depth = up to 1000 mm. • grinding wheel dia = up to 400 mm. (for continuous work load.) we assure you that these high performance matchless grinding head will satisfy your all requirements of grinding in the same setting after machining which you had been looking for a long time. These grinding head can transform any machine to grinding machine are of much use in heavy duty workshop and their maintenance departments.

Material : Metal
